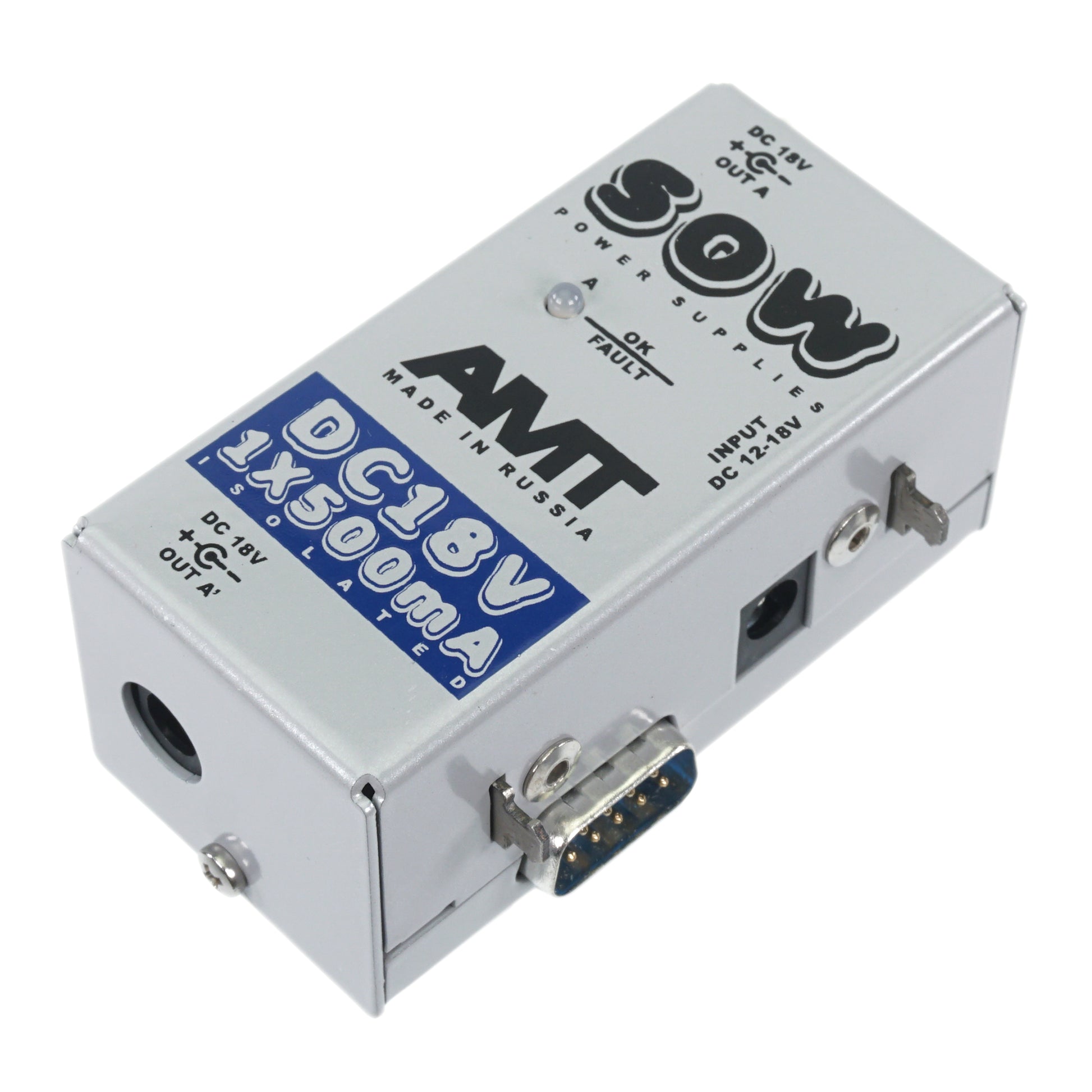

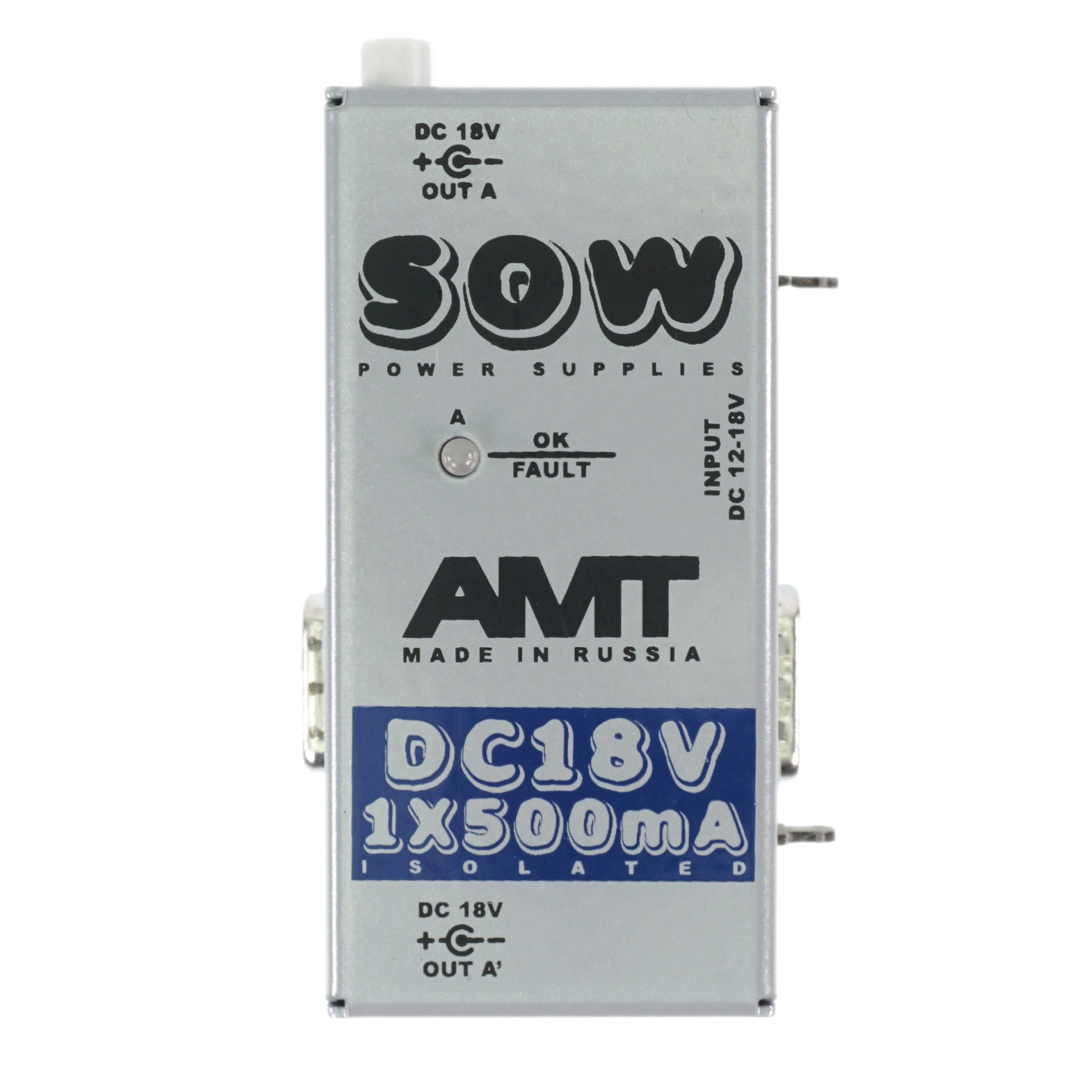

AMT SOW PS DC-18V 1x500mA - power supply module

AMT SOW PS DC-18V 1x500mA - power supply module

PS 18-1

€99,00 EUR
€99,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

► ABOUT THE PRODUCT

AMT SOW PS DC-18V 1x500mA — galvanically isolated from the primary power supply module is designed to power 18-volt guitar pedals consuming max 500mA such as AMT Electronics devices:

The use of galvanically isolated voltages prevents current loops and thus ensures the best performance in sound quality due to elimination of mains interference.

The polarity of the power module: minus on the inside, plus on the outside.

This power supply is also suitable for other 18-volt pedals with current consumption of less than 500 mA with the same polarity.

The device is powered from:

  • the AMT SOW PS ACDC-18V primary power module;
  • an external adapter with an output voltage of 12-18V and current not less than consumed by all connected to it pedals.

The advantage of this power module is that when it is used in conjunction with other modular units, it eliminates the need for different voltages and different current consumption. The application of this series module is important for powering pedal boards.

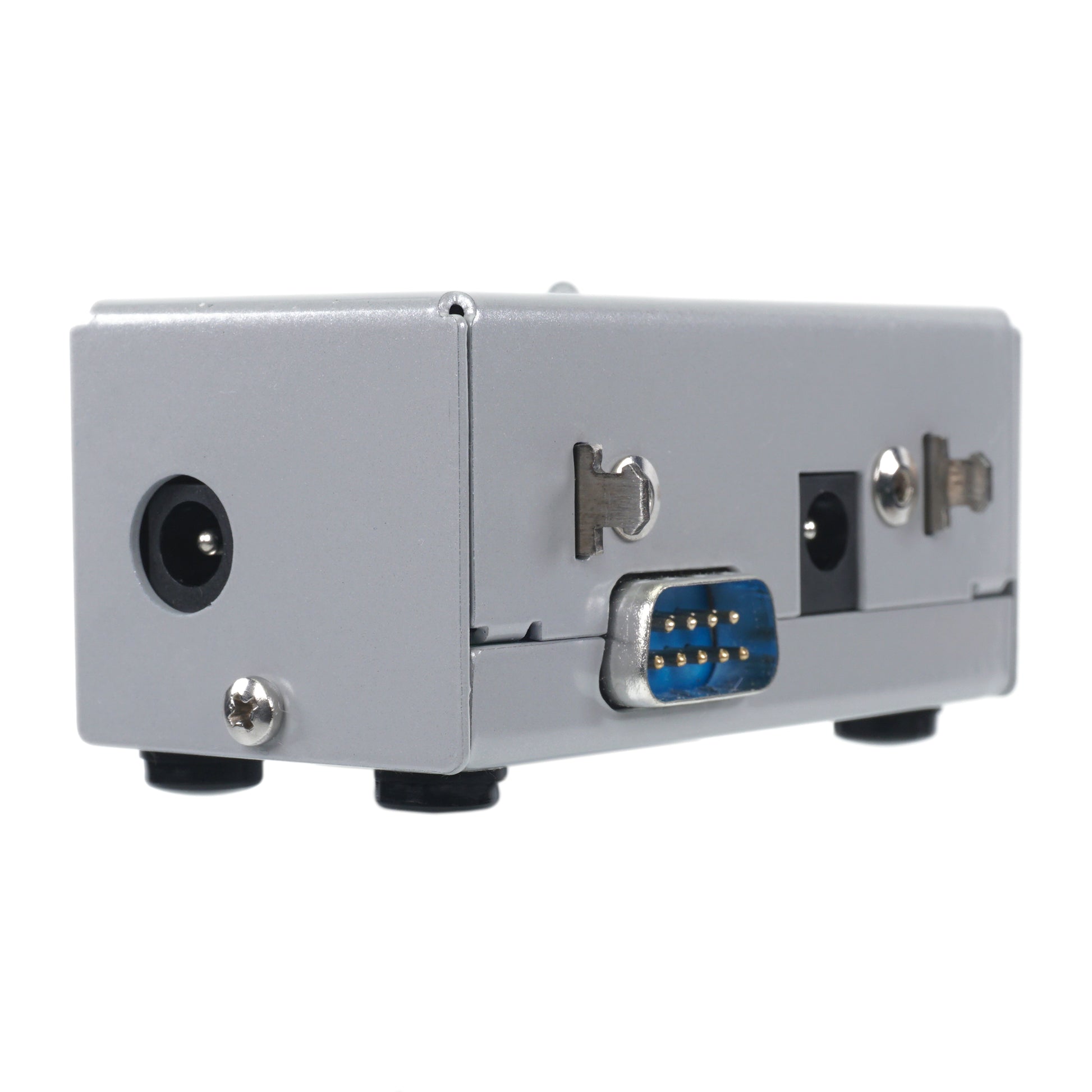

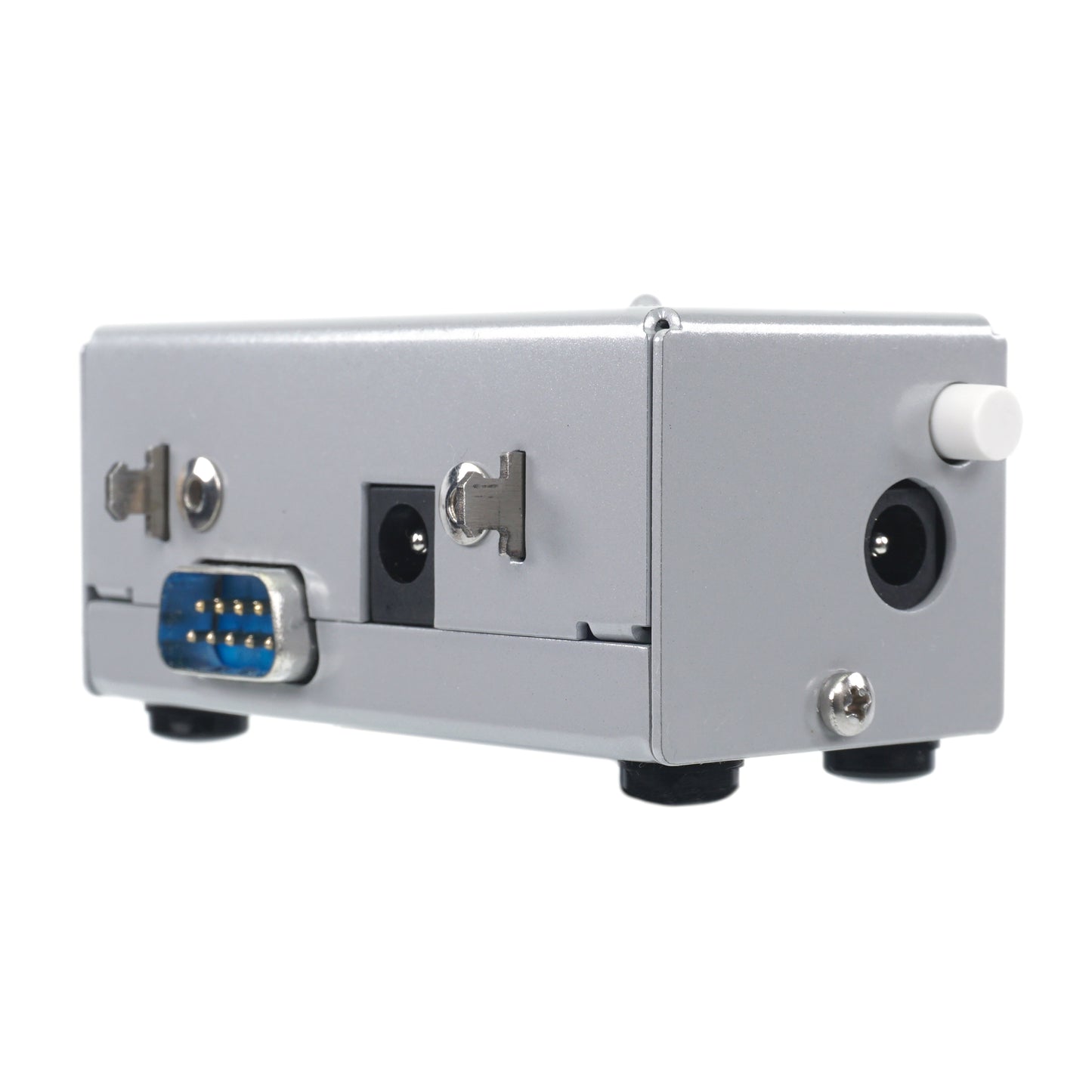

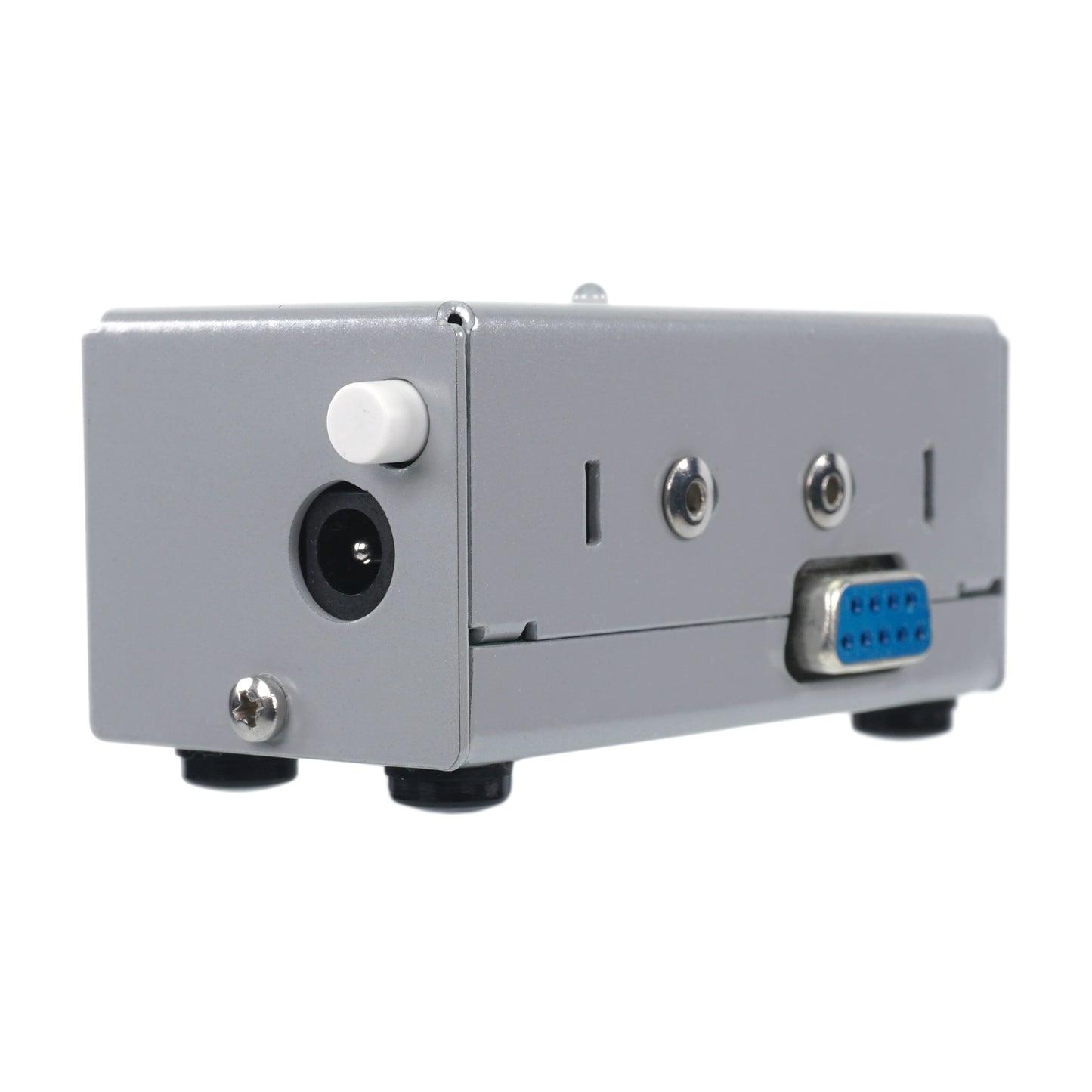

The power supply modules are assembled into a single structure without additional cables and fixtures using the built-in connectors and mechanical locks.

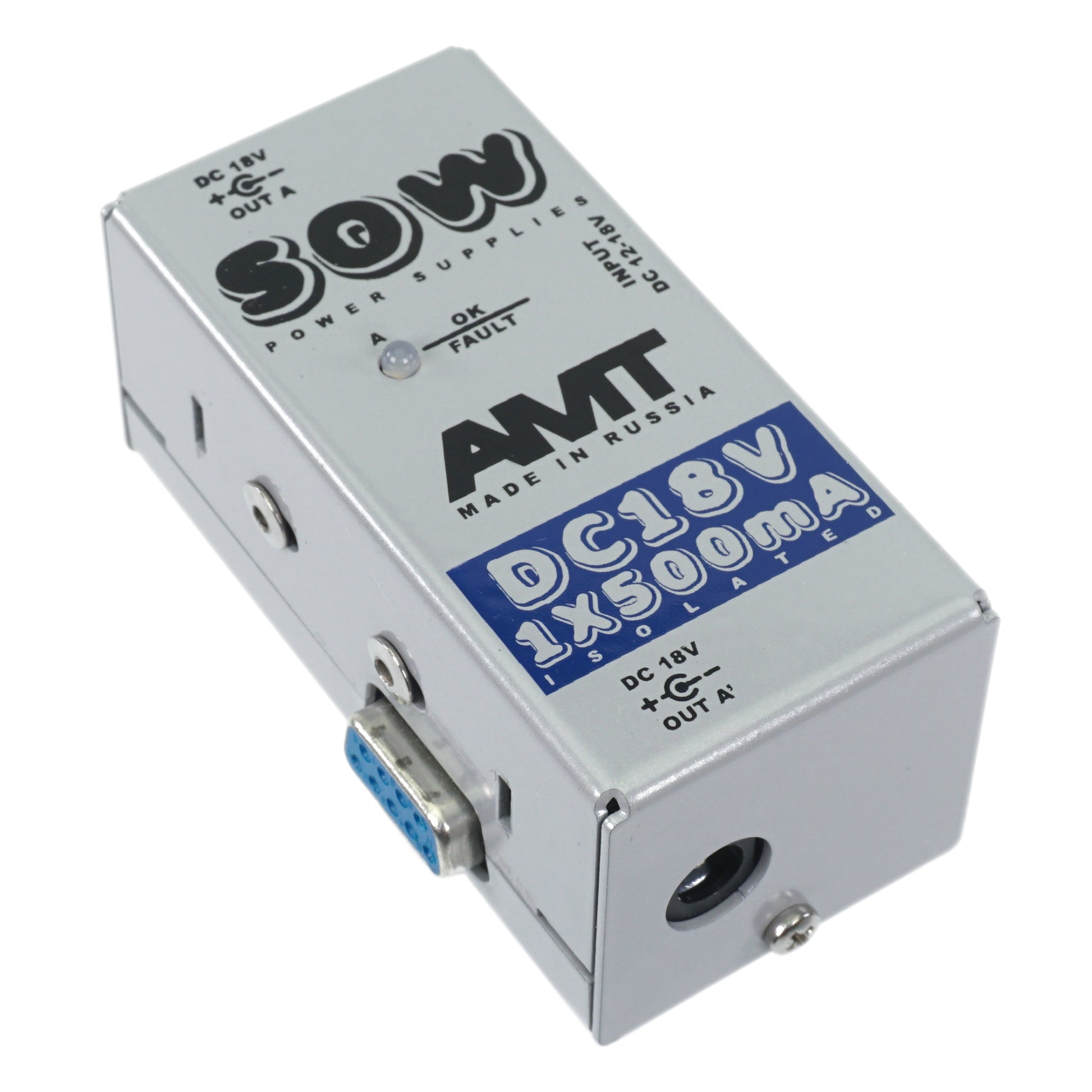

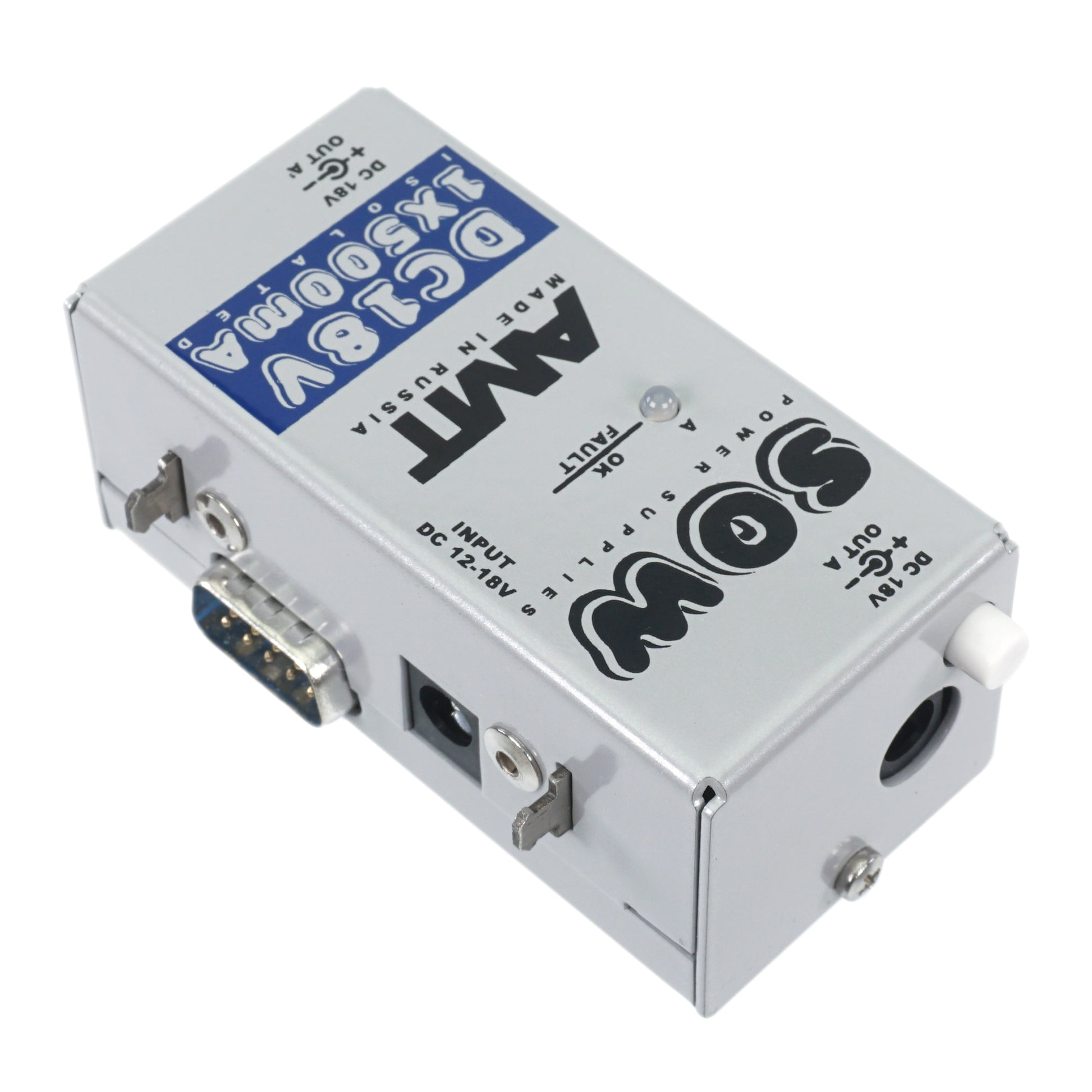

The module’s distinctive feature is that it has paralleled outputs which are set on the opposite module’s sides. It helps to achieve easier commutation.

 IMPORTANT TO KNOW

OUT: OUT A + OUT A' = 500mA

For example:

OUT А [guitar pedal that consumes 150 mA] + OUT А’ [guitar pedal that consumes 340 mA] = 150 mA + 340 mA = 490 mA

As we can see, that's ok as under the amperage requirements for the «OUT» output group.

► WHY YOU NEED THE AMT SOW POWER MODULES

How often times you were face to face with the following situations?

  • Can't use all these number of separate power adapters per each guitar pedal anymore;
  • Not enough a free slots on your main power supply for new pedals;
  • No extra free outlet (power socket) on stage;
  • You just have changed a couple of pedals, but the power supply voltage can't provide them;
  • Power supply can't provide all your guitar pedals with each of its own different voltage, etc.

Fortunately, there is the AMT SOW answer which allows you to close all these questions at the moment!

AMT SOW power supply series — is a unique development by AMT engineers (some of them are touring musicians, by the way). This is professional-oriented deep thought out solution of the powering guitar devices for the live shows and studio sessions as well.

► HOW TO USE

  1. Decide how many different voltages, number of outputs and what kind of the output current you need for all your pedals.
  2. According to this information, just choose and connect all different SOW power modules among themselves into a single whole «power supply panel» easily.
  3. Using primary power module AMT SOW PS ACDC-18V (or any other external DC 12-18V power adapter with sufficient current, voltage, and polarity) connect your resulting SOW power panel to the electrical outlet (you'll only need one!).

The power supply AMT SOW modules are assembled into a single structure without additional cables and fixtures using the built-in connectors and mechanical locks:

► FEATURES OF THE AMT SOW POWER MODULES

AMT SOW PS ACDC-18V is a primary power supply module as a basis for all other SOW modules connected to it:

► TECHNICAL PARAMETERS

  • Main input: DC 12-18V
    (from the primary power module AMT SOW PS ACDC-18V or from an external adapter DC 12-18V)
  • DC Output: DC 18V (500mA)
  • Weight: 160 g
  • Dimensions: 82 mm x 46 mm x 38 mm
  • Connect of modules: through a special connector

► USER'S GUIDE


All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-sow-ps-2-dc-18v/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

Other AMT SOW modules and power supply cables are purchased separately:

AMT SOW power modules

Power supply cables

 IMPORTANT NOTE ABOUT THE POWER SUPPLY

For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:

Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!

Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
