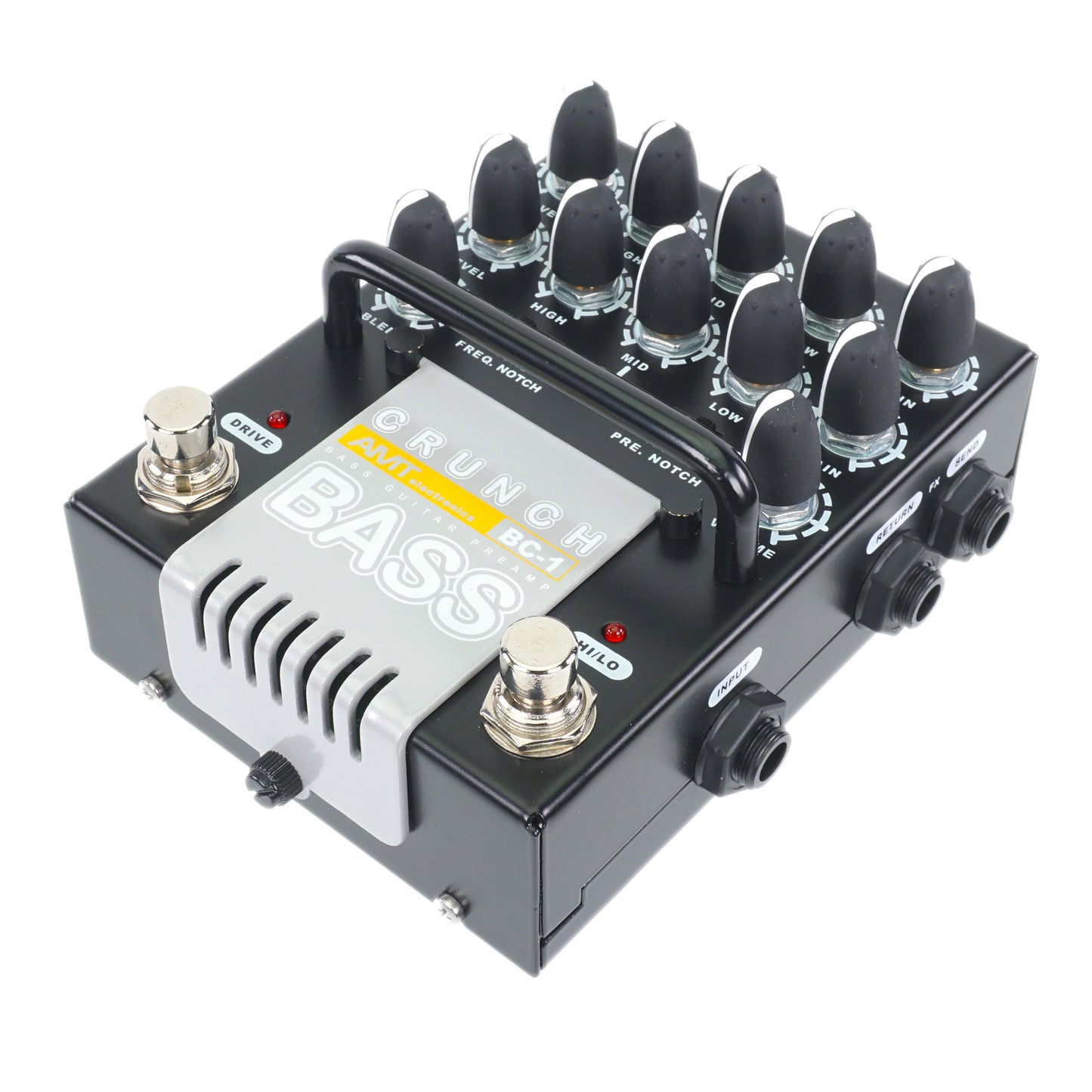

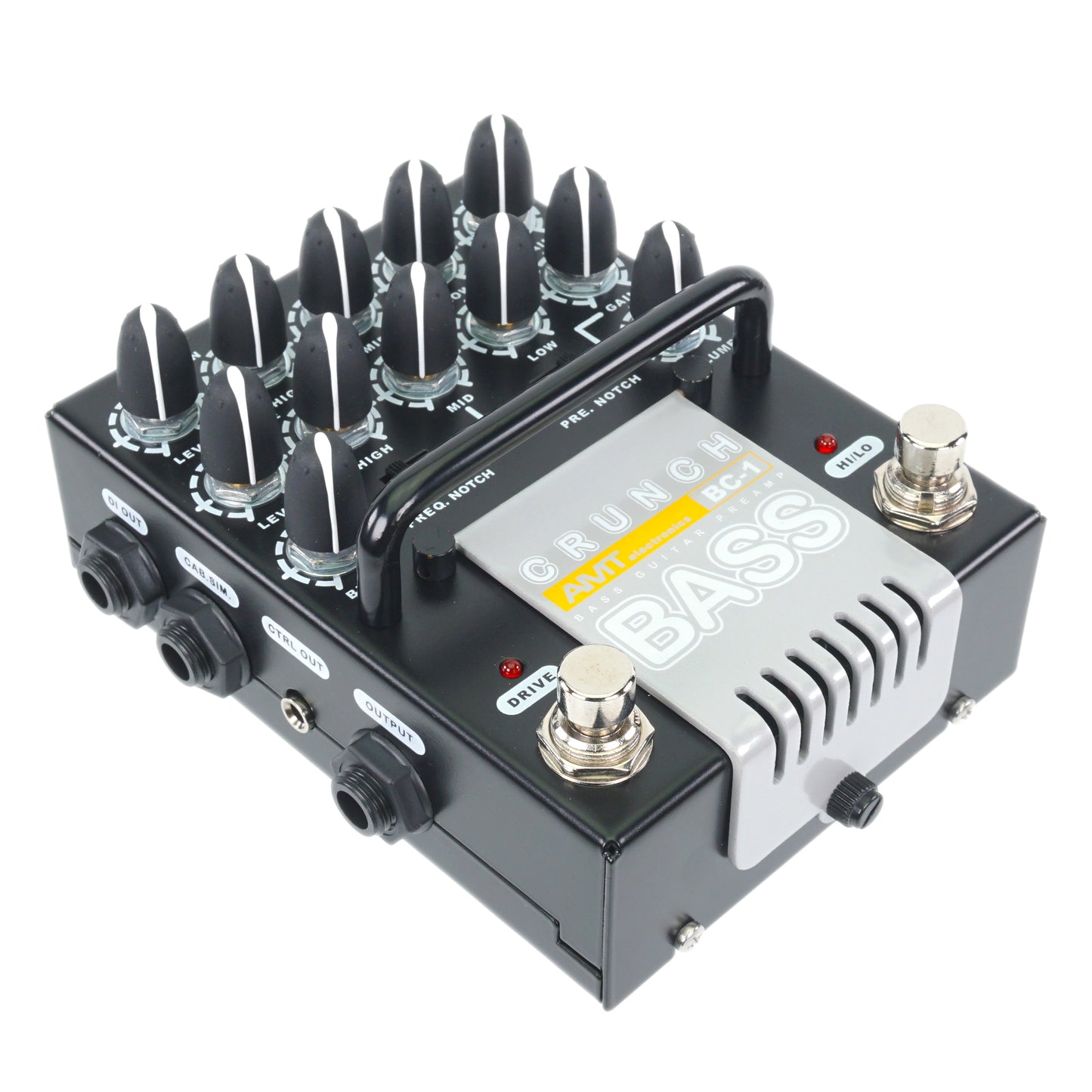

AMT Bass Crunch BC-1 — 2-channel JFET bass guitar preamp (w/o power supply!)

ABOUT THE PRODUCT

The AMT Electronics BC-1 «Bass Crunch» is one of the most versatile bass guitar preamps on the market in a such small size.

The preamp has been built on the basis of the custom technology by АМТ using JFET emulation of the vacuum tube range clipping. The wide adjustment range in combination with rich functional possibilities that can only be found in a stomp box have considerably increased the preamp versatility.

The BC-1 preamp is based on a two-channel circuit.

► CLEAN CHANNEL

The CLEAN channel shapes the classic bass guitar sound characteristic for «old» amplifiers and allows both velvet transparent sound and slight compressed overdrive depending on the position of Gain control.

► DRIVE CHANNEL

The DRIVE channel contains a number of over amplification stages and is intended for obtaining the modern sound from clean to totally overdriven one.

The High Mode provides additional possibilities in terms of the range enrichment towards higher sound density and aggressiveness.

The adjustable 3-position mid-range filter combined with deep adjustments along the frequency ranges offer a musician its rich possibilities related to shaping of the overdriven tone range.

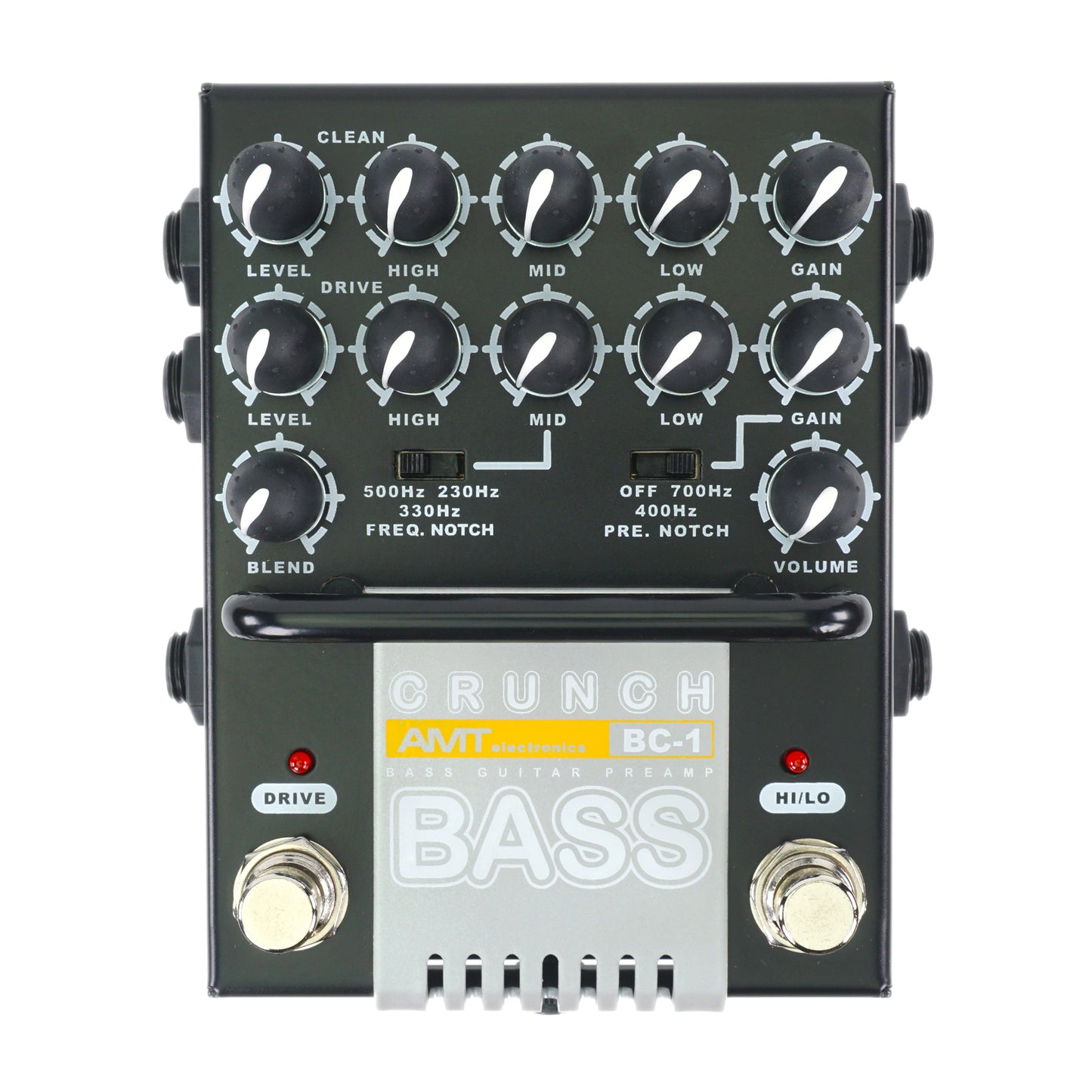

► FEATURES

Clean

• Level – output signal level adjustment
• High – high frequencies adjustment
• Mid – middle frequencies adjustment
• Low – low frequencies adjustment Gain – channel sensitivity adjustment

Drive

• Level – output signal level adjustment
• High – high frequencies adjustment
• Mid – middle frequencies adjustment by means of rejecter filter Freq. notch Freq. notch – cutout frequencies switch (rejecter filter) 500Hz, 330Hz, 230Hz.
• Low – low frequencies adjustment
• Pre. Notch – rejecter filter switch before Drive stage. 700Hz, 400Hz.
• Gain – channel sensitivity adjustment

Overall Controls

• Blend – signal level balance adjustment between channels Clean and Drive
• Master volume – BC-1’s overall output level adjustment.
• Footswitch DRIVE – Drive channel on/off Led – Drive channel on indicator
• Footswitch HI/LO – Drive channel increased sensitivity on/off. Led – HI/LO mode with Drive channel increased sensitivity on indicator.

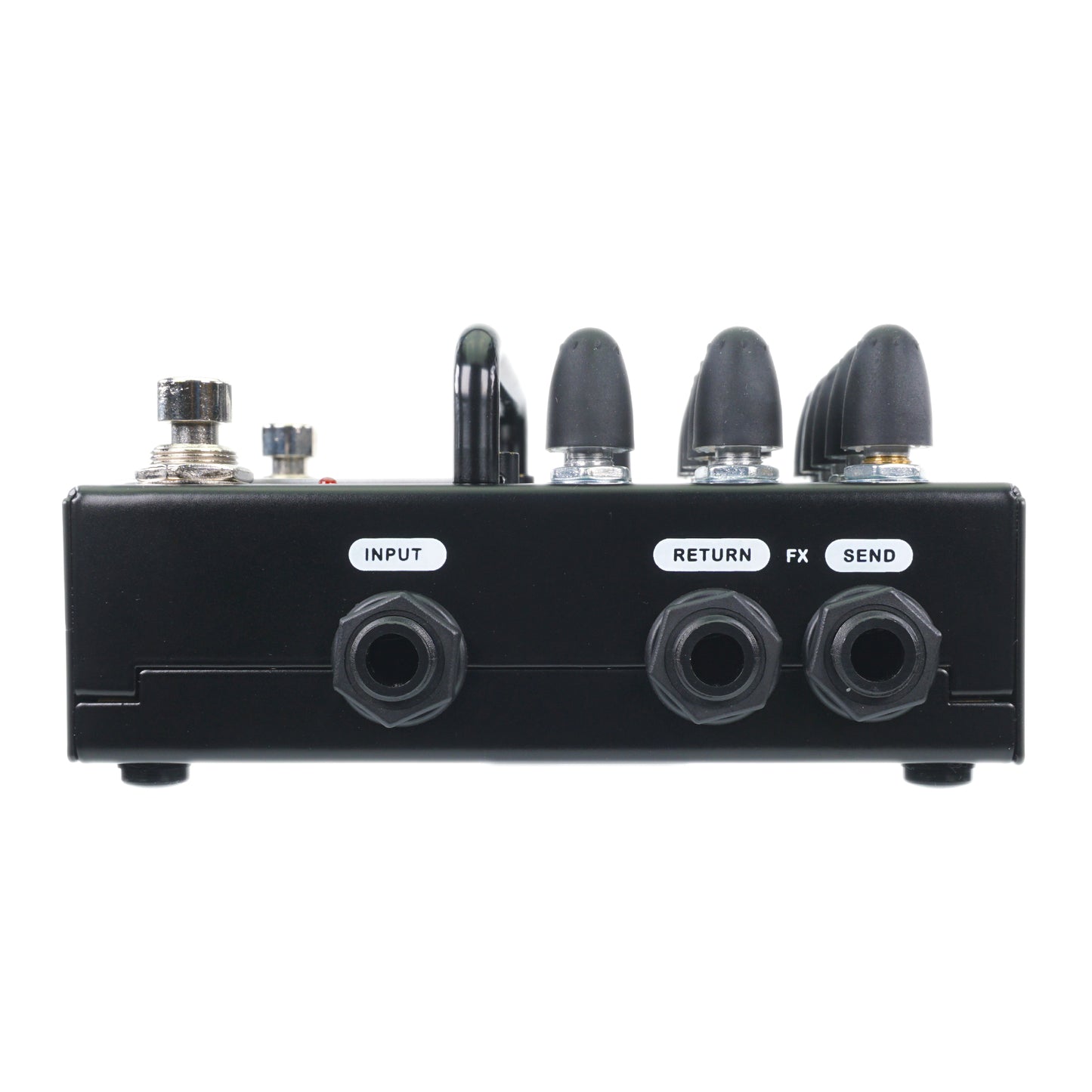

Right Panel

• INPUT – instrument input of the preamp
• SEND FX – signal send to aux effect
• RETURN FX – aux effect signal return

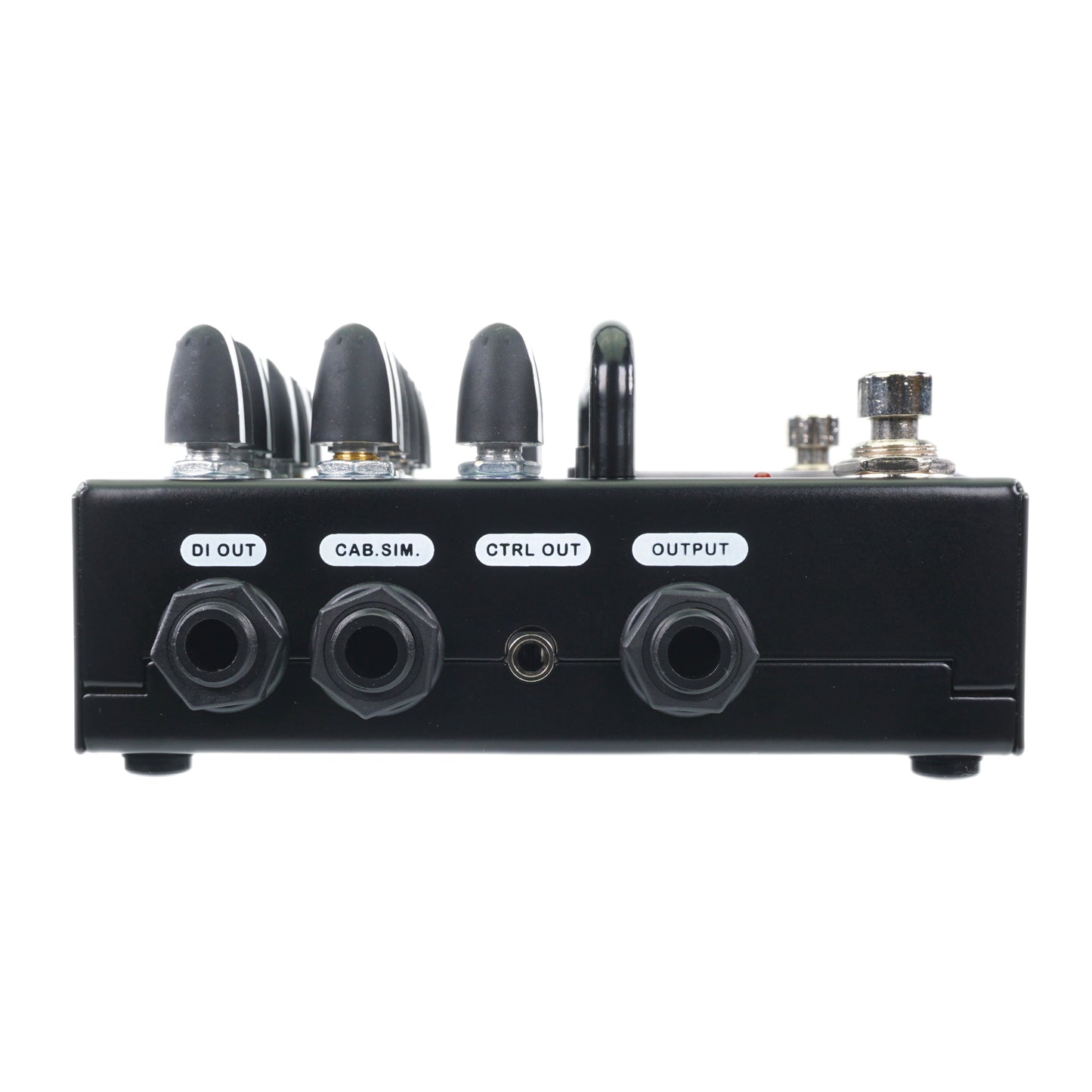

Left Panel

• OUTPUT – direct output to power amp.
• CTRL OUT – AMT TS-2MIDI aux convertors control output
• CAB.SIM. – direct output to mixer’s line input.
• DI OUT – balanced output intended for connection of devices equipped with balanced inputs.

► TECHNICAL PARAMETERS

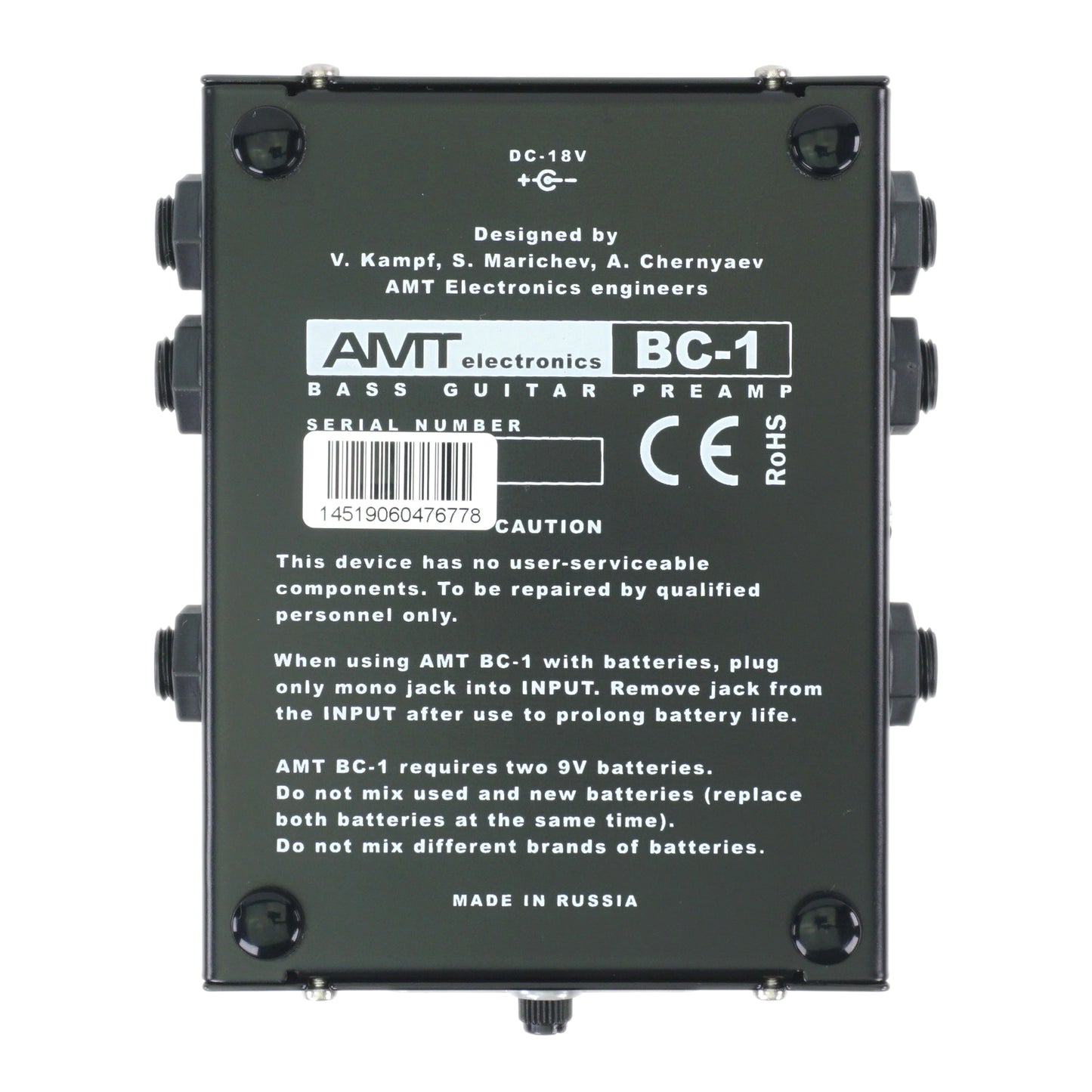

• Weight: 502 g
• Dimensions: 130 mm x 106 mm x 62 mm

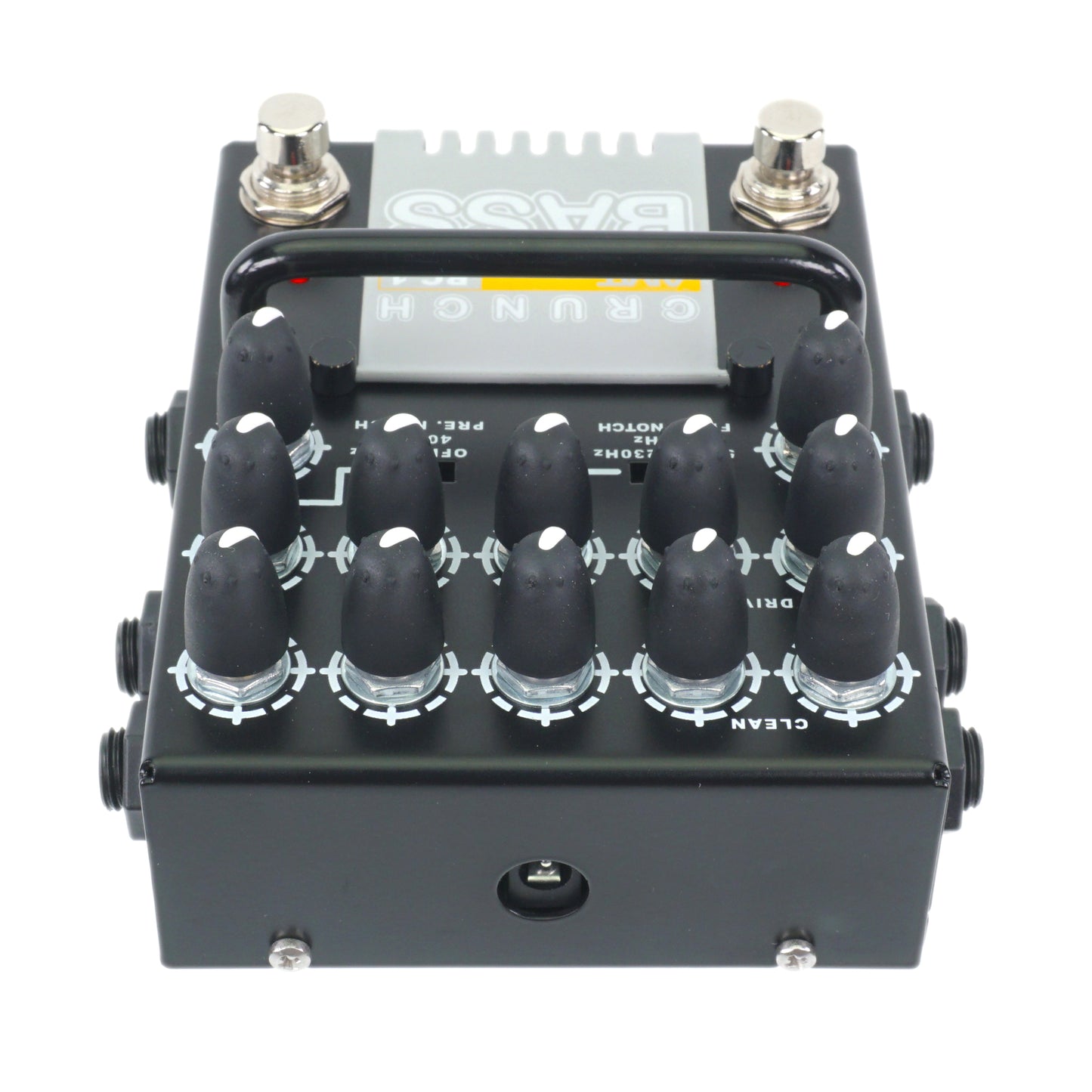

• Supply voltage: 18V DC

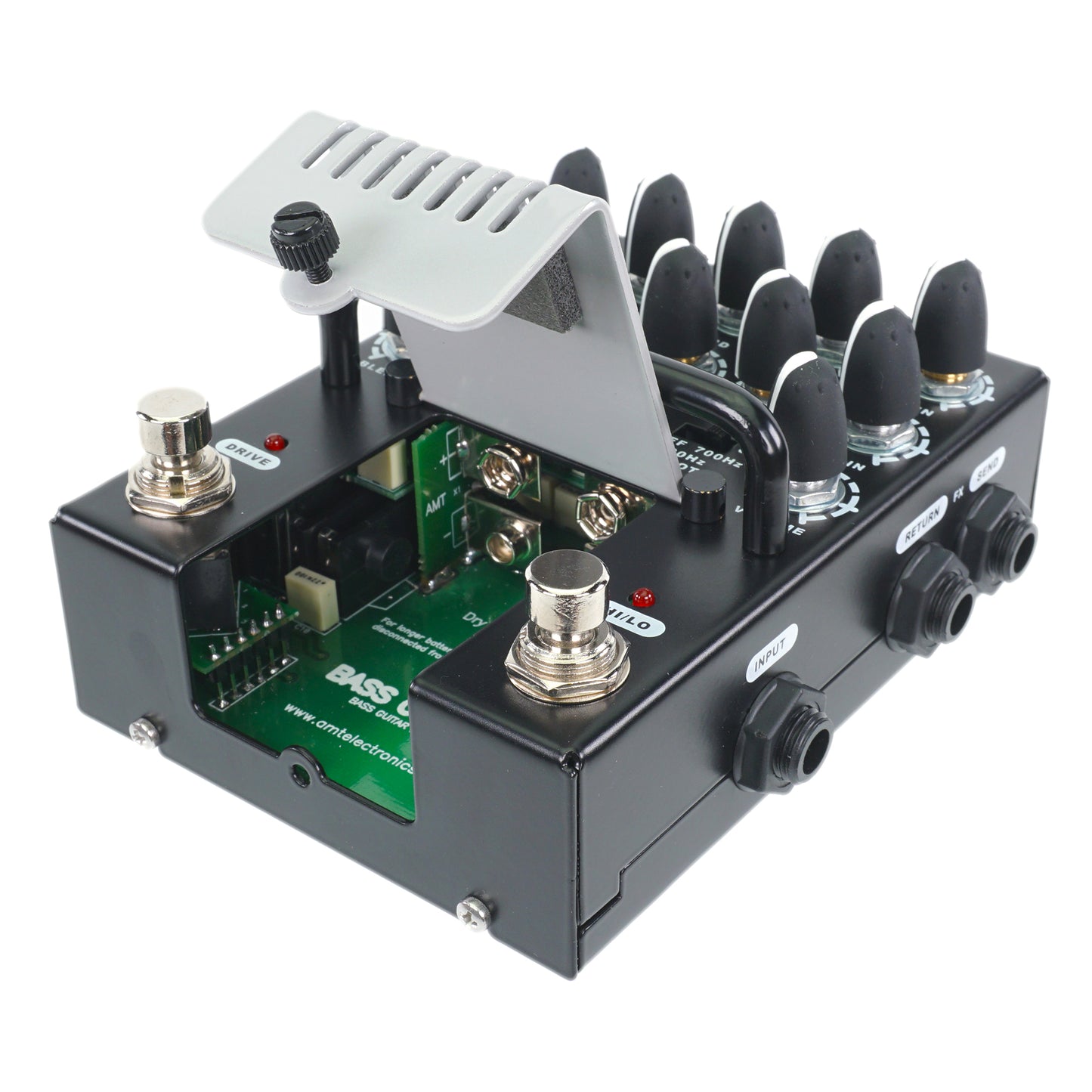

• Battery Power: 2 x 6F22 battery (9v)
• Consumption current: 12.5 mA
• Power supply is not included!

► USER'S GUIDE

All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-bc-1/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

The compatible power supply and extra plugs are purchased separately:
