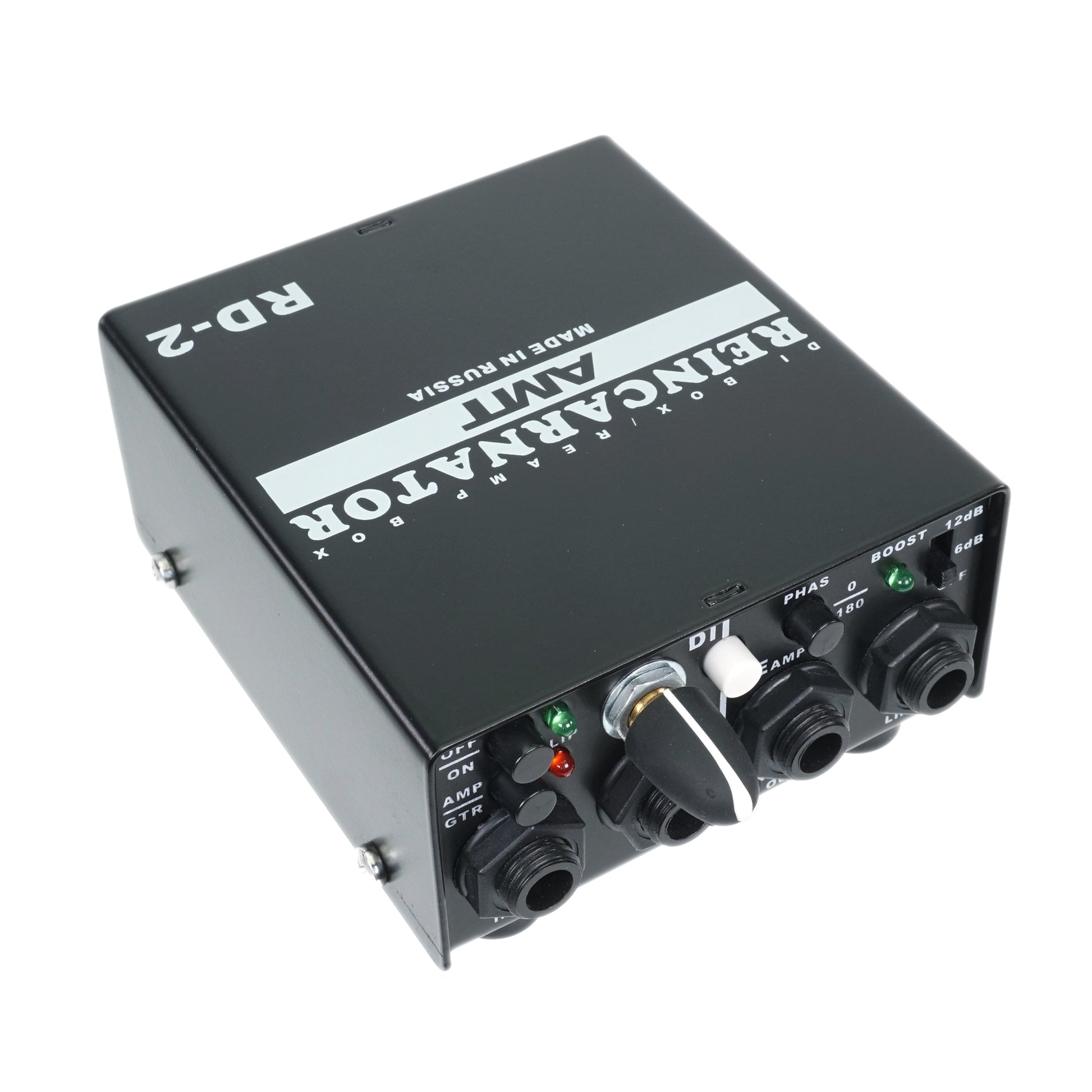

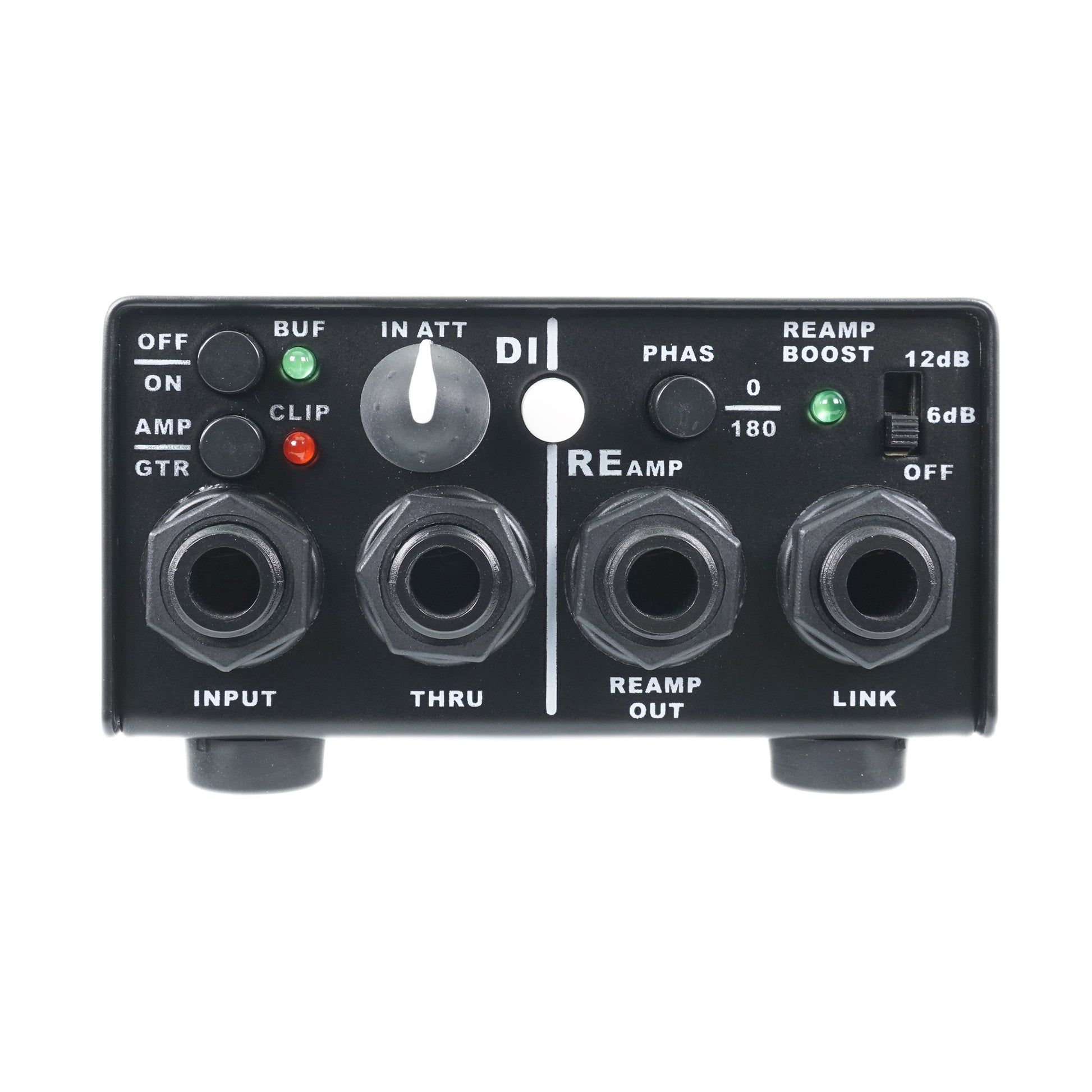

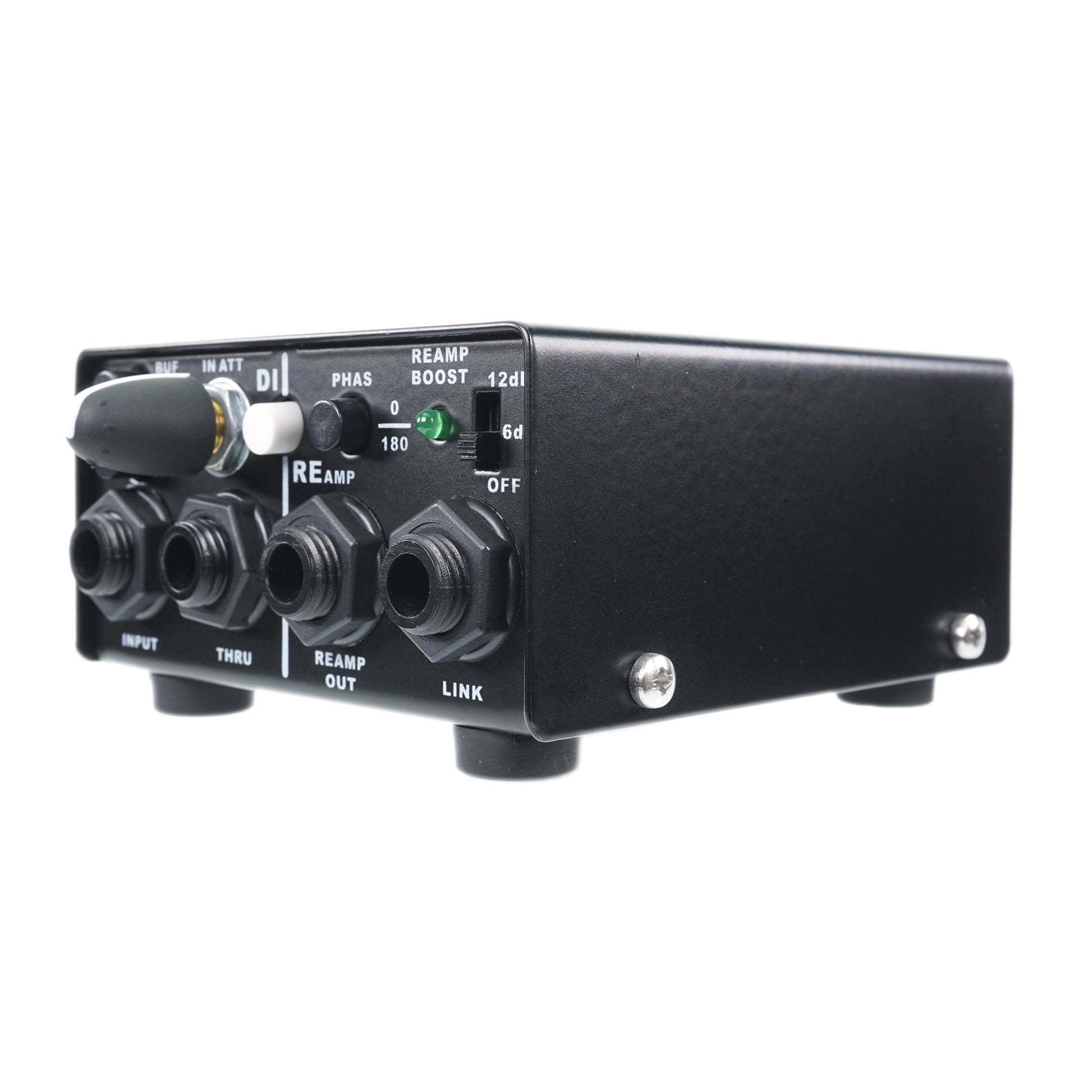

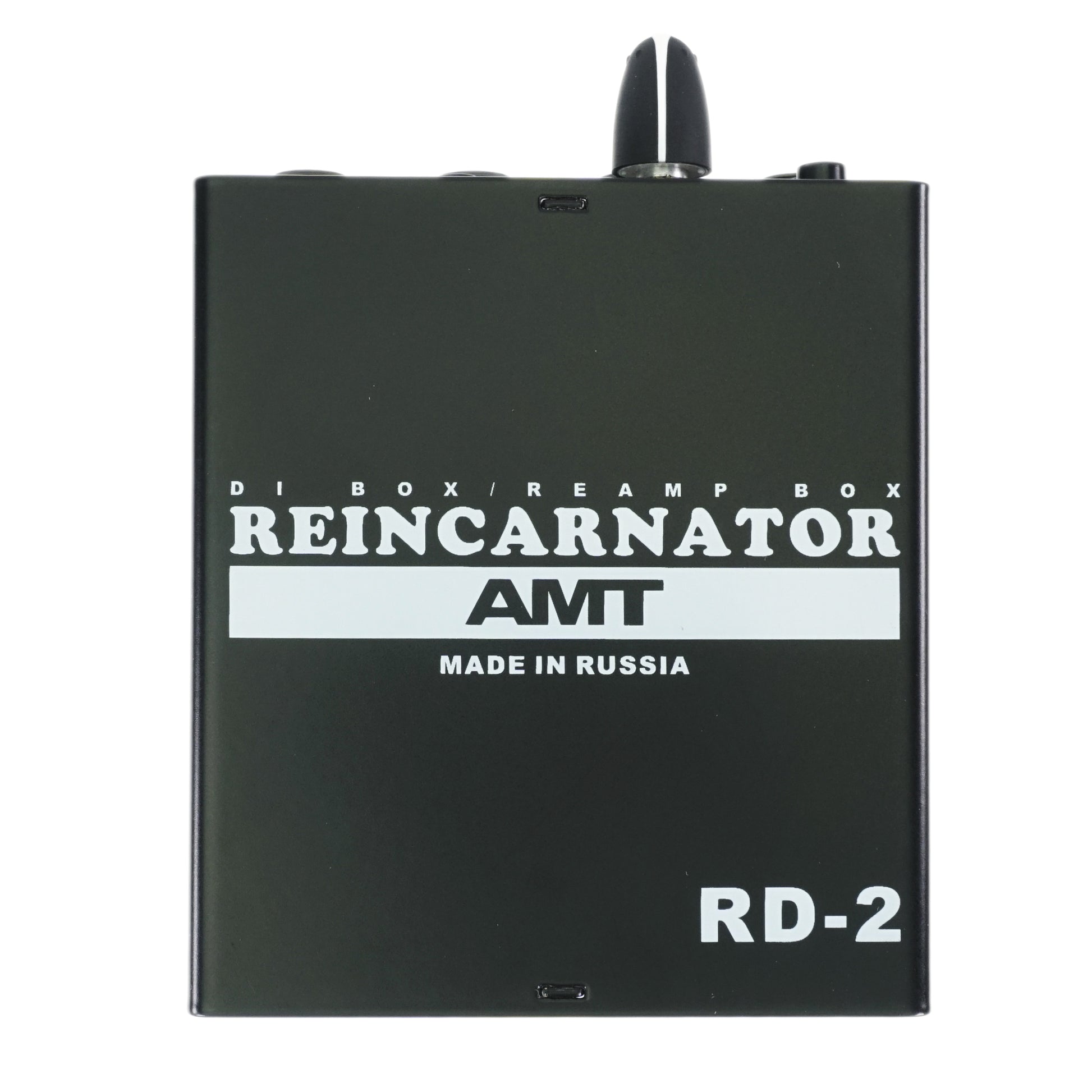

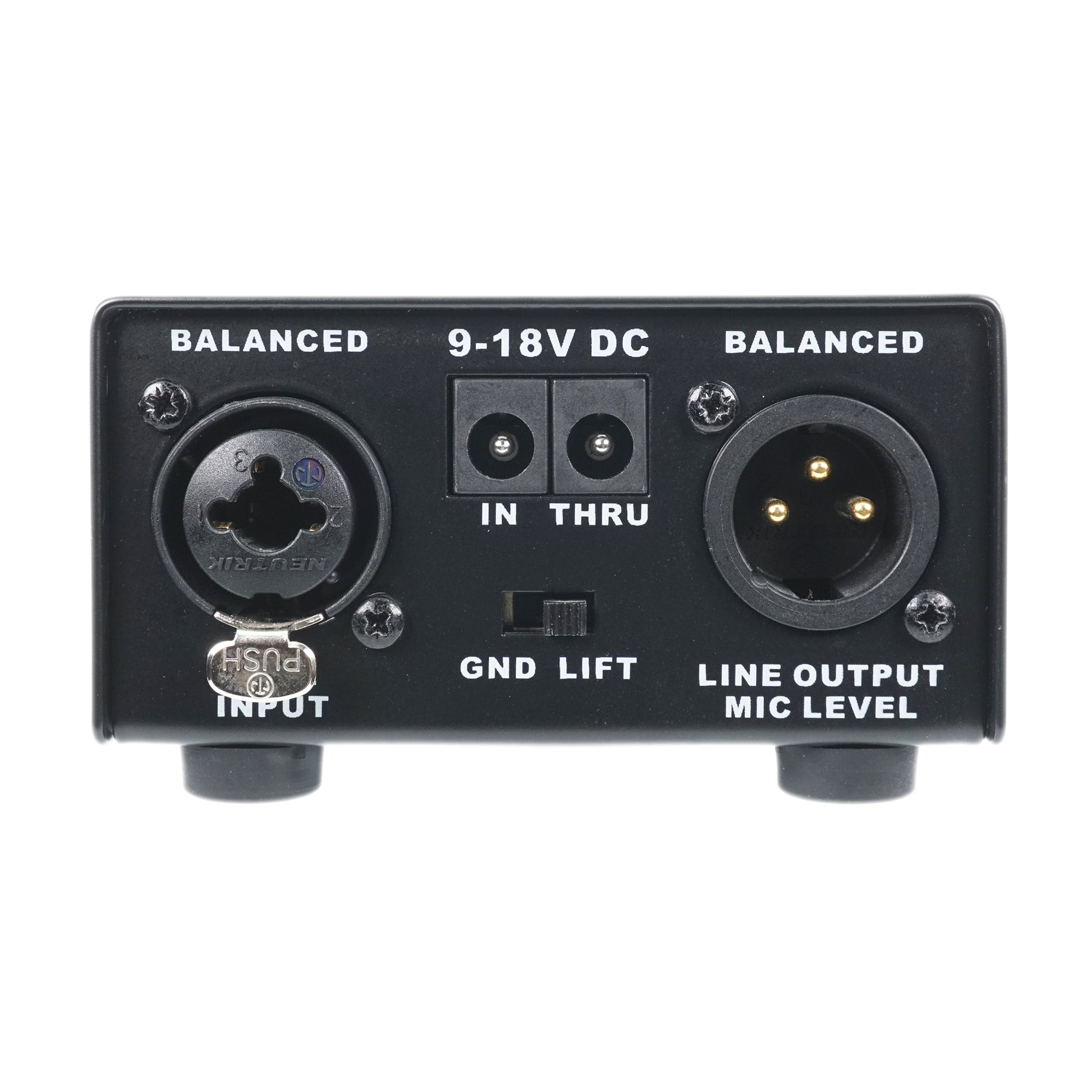

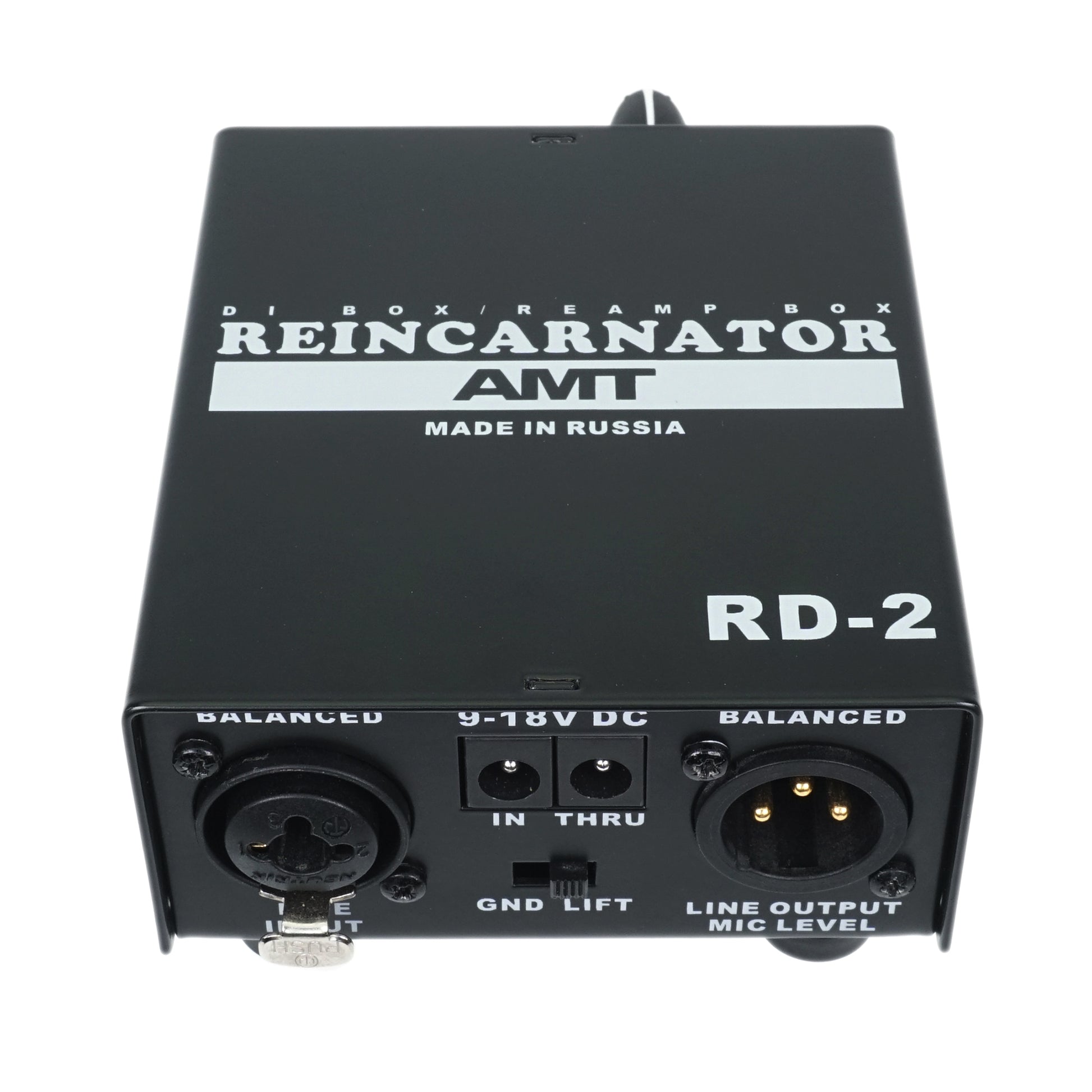

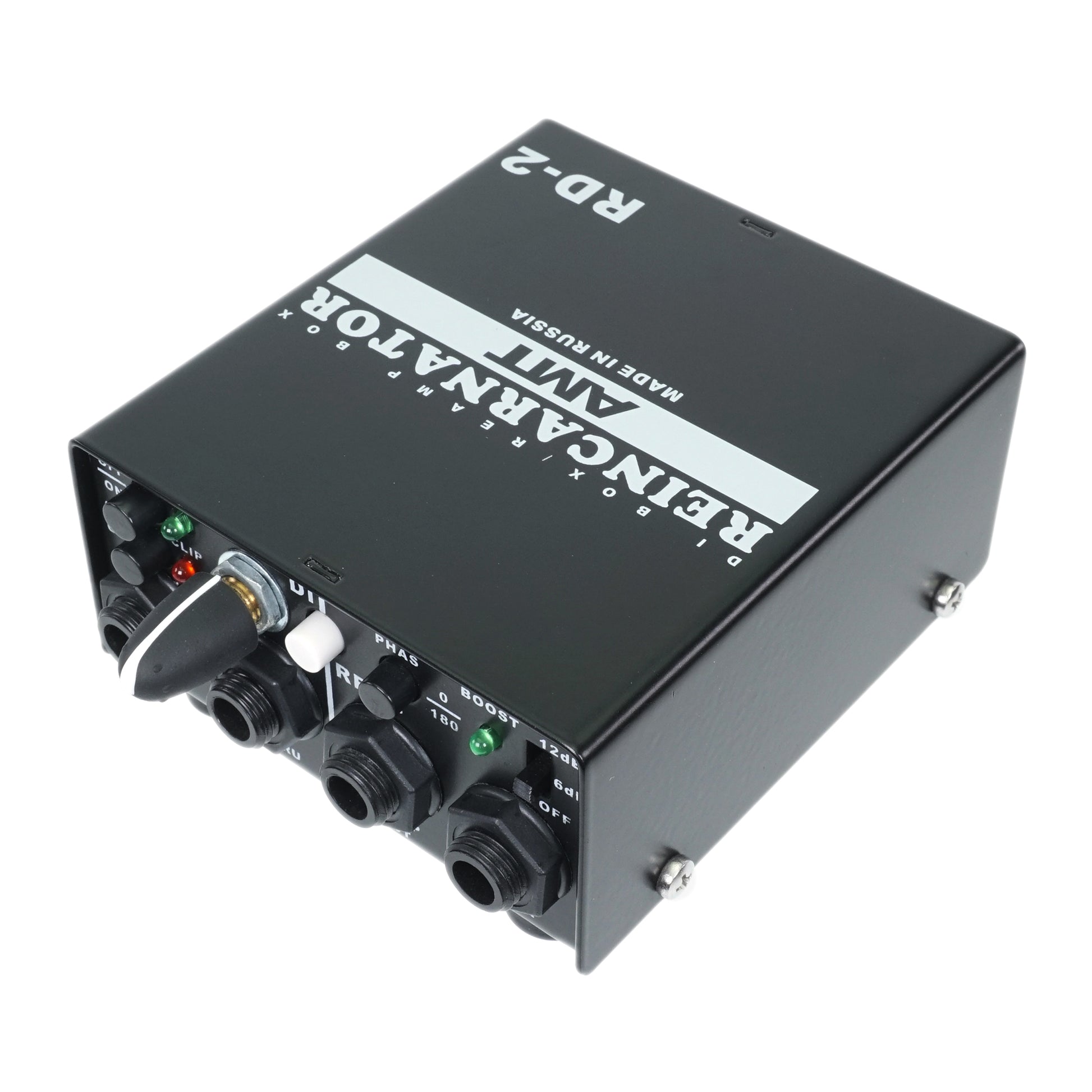

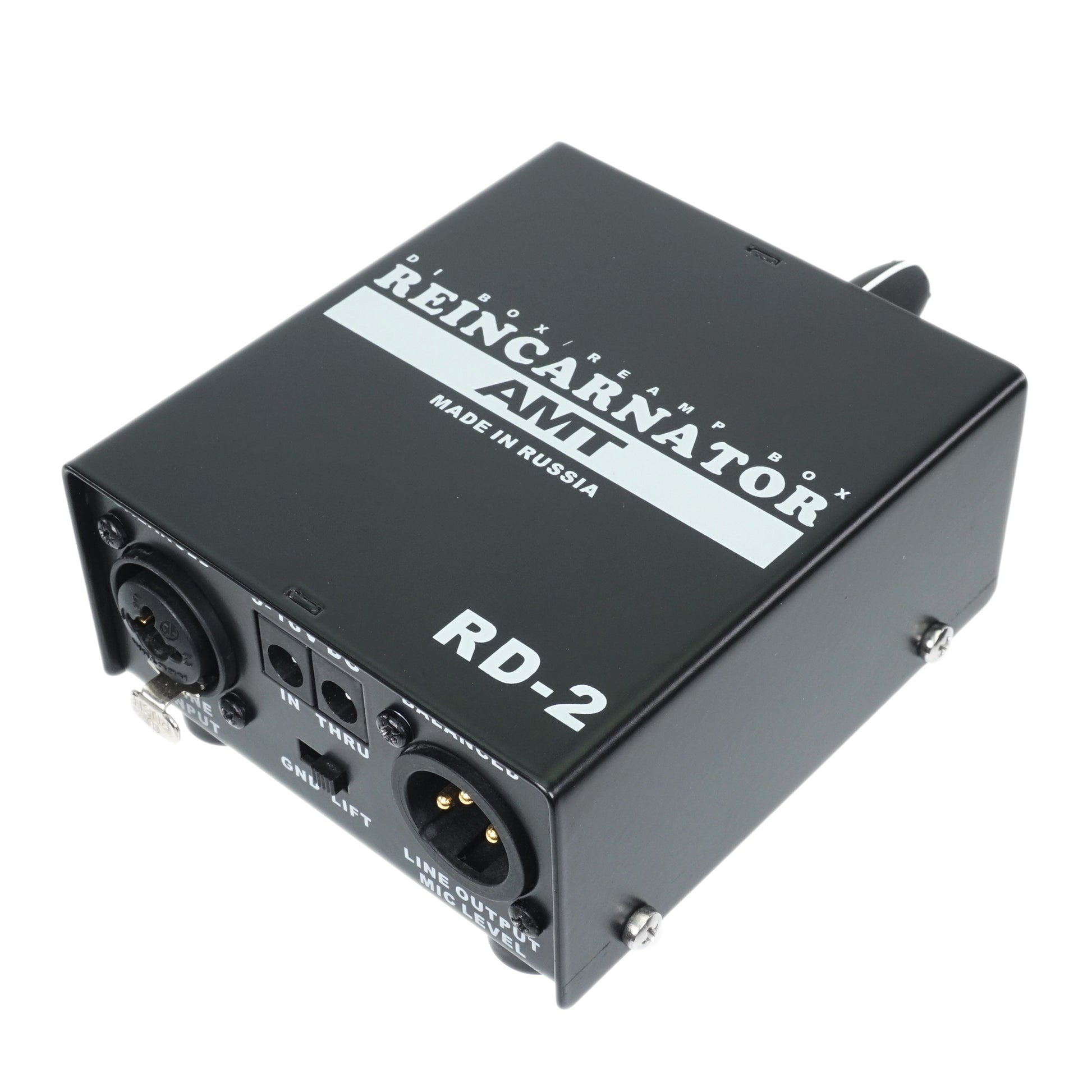

AMT Reincarnator RD-2 (DI-box + ReAmp-box)

ABOUT THE PRODUCT

AMT RD-2 «Reincarnator» lets you record a «dry» sound of your guitar and use it later for the reamping – to send the recorded signal to the input of your real loved amplifier.

► INTRODUCTION

Many sound recording studios use Reamping for getting desired sounding.

The essence of reamping technology is a playback of pre-recorded “dry” guitar signal (the signal from the pickups) through a guitar amp and recording simultaneously with the microphone the guitar cabinet sound.

With this technique, you can once record a guitar track and then, an unlimited number of times to playback and record it. In this case you can try to use different amplifiers, audio processing devices and microphone positions. Even with a live recording of a guitar cabinet with a microphone, you can later find out that you are not quite satisfied with the result, namely, satisfied with the quality of performance, but not satisfied with the quality of the guitar signal processing. When recording “live sounding” guitar cabinet, you can at the same time record a “dry” guitar sound, then, afterwards, using reamping you can achieve the desired result.

The main DI-box function is basically the matching of a high guitar pickups’ impedance and a relatively low input impedance of the recording device. In addition, a DI-box makes a transformation of an unbalanced guitar signal into a balanced mic-level signal for sending to the input of the DAW (sound card). Guitar pickups have sufficiently high impedance, something like 10-15kOhm, so if the signal is put directly to the low-impedance input of the DAW (sound card), there will be a significant change in the signal. In addition, unbalanced guitar cables are susceptible to cross-talk and at a great length; it is desirable to move from an unbalanced line to a symmetric (balanced) one.

The main Reamp-box functions are the transformation of a symmetric (balanced) line-level signal from the output of the DAW (sound card) into the unbalanced signal being sent to the guitar amp input and a matching of the DAW (sound card) low output impedance and high-impedance guitar amplifier input.

► FEATURES

• Weight netto: 400 g
• Dimensions (Case only): W 84 mm x H 42 mm x L 94 mm
• Power Requirement (active mode): 15mA, 9~18V DC

► USER'S GUIDE

All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-reincarnator-rd-2/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

Noiseless power supply is purchased separately (you can choose):
