AMT UBR PB-3 - pedalboard platform (Bricks / LA3 Light)

AMT UBR PB-3 - pedalboard platform (Bricks / LA3 Light)

SKU:UBR PB-3

Regular price €187,00 EUR
Regular price Sale price €187,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

ABOUT THE PRODUCT

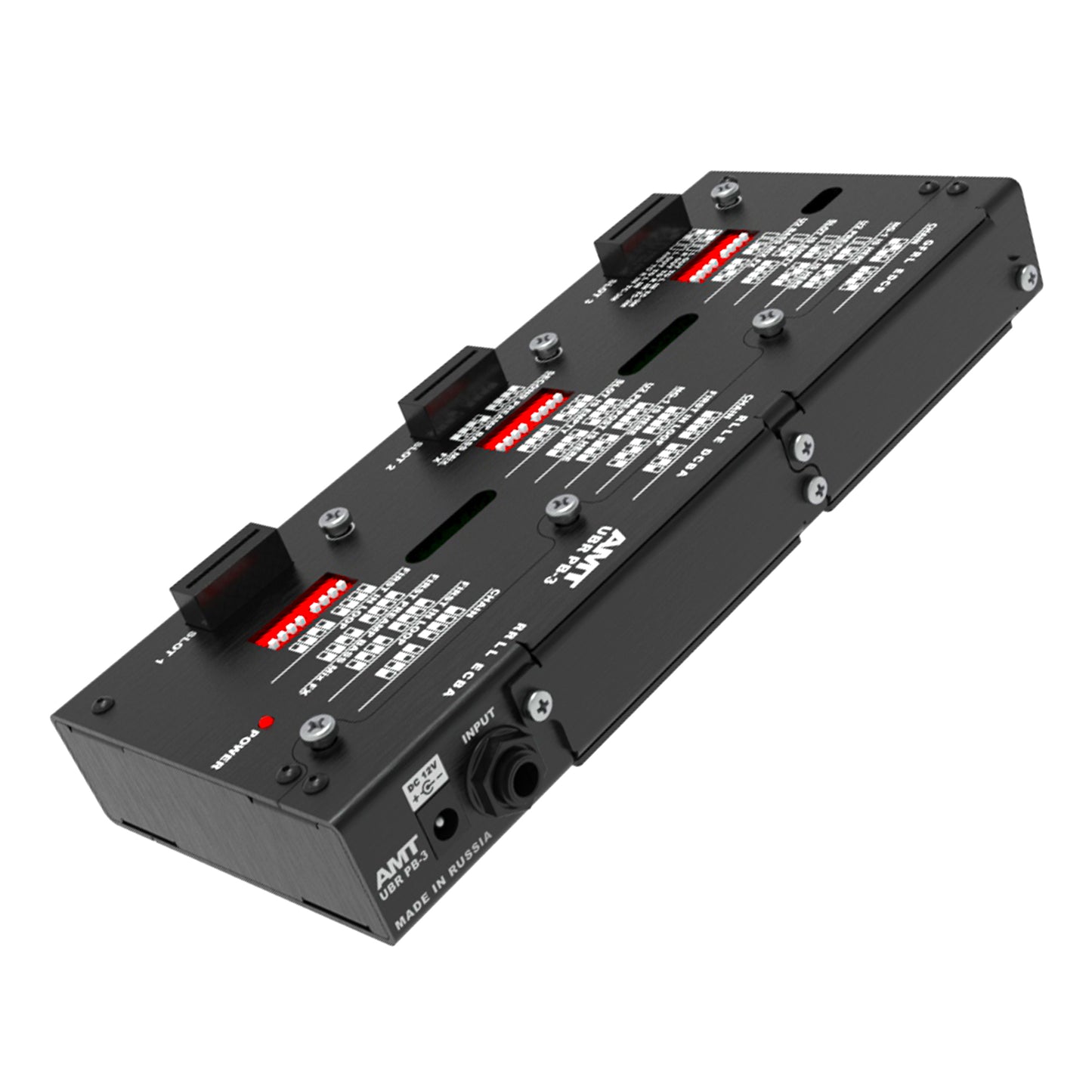

AMT UBR PB-3 is a pedalboard platform for placing any three devices series AMT Bricks / LA3 Light / LA3 Light BLE.

FEATURES

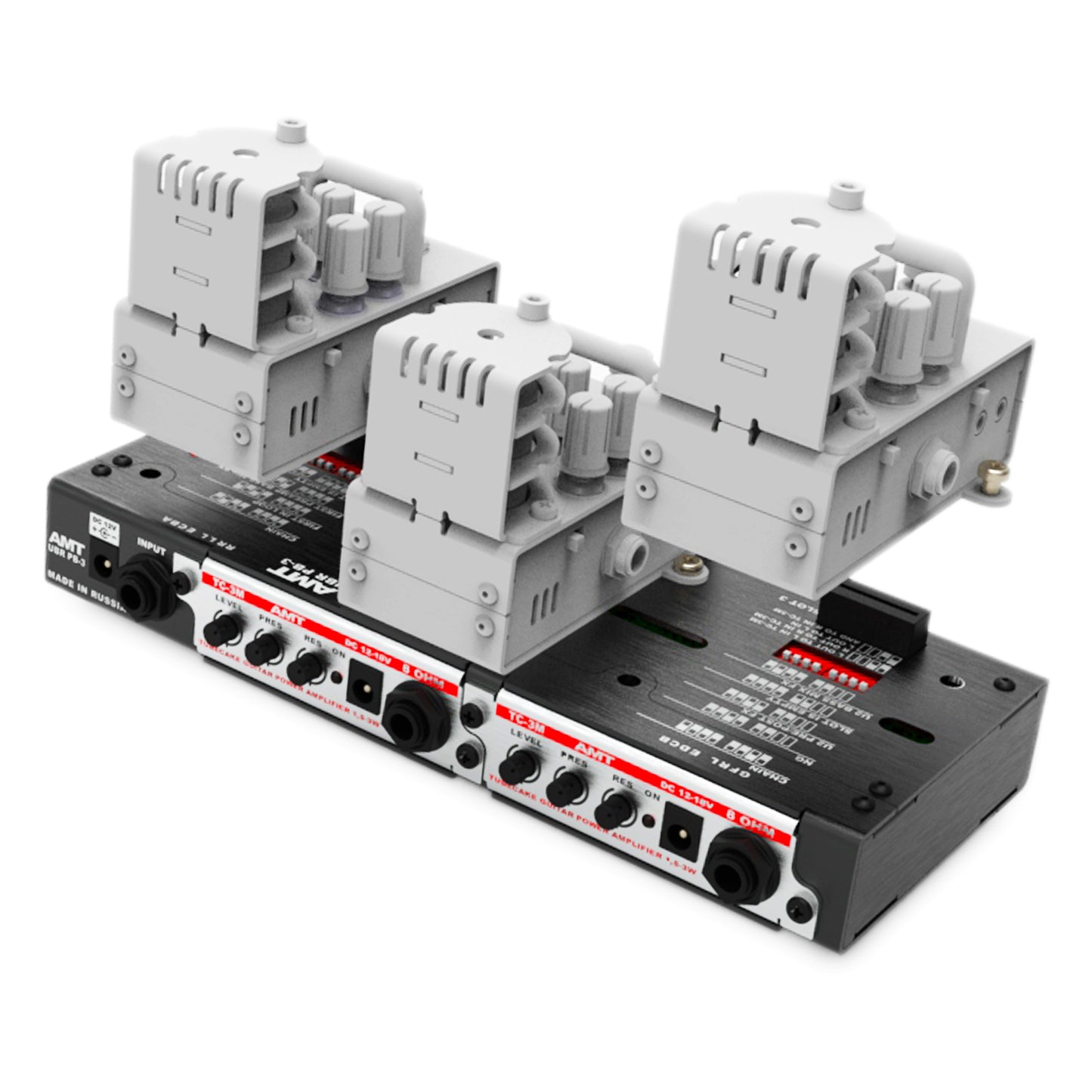

  • Additionally, one or two AMT TubeCake TC-3M guitar amplifiers can be integrated into the back panel of the UBR PB-3 pedalboard, to which one or two guitar cabinets can be connected, respectively.
  • The minimum load impedance of the amplifier is 8 Ohms.
  • The UBR PB-3 architecture implies that various AMT Bricks / LA3 Light / LA3 Light BLE devices can be used together as a part of this platform.
    NEED TO KNOW: To increase the number of such shared devices, several (two or more) UBR PB-3 pedalboards can be connected to each other.

► UBR PB-3 SWITCHING

Since the AMT Bricks / LAN3 Light / LA3 Light BLE devices have different functionality, preliminary setting up the circuit switching of the UBR PB-3 platform for the selected architecture is required.

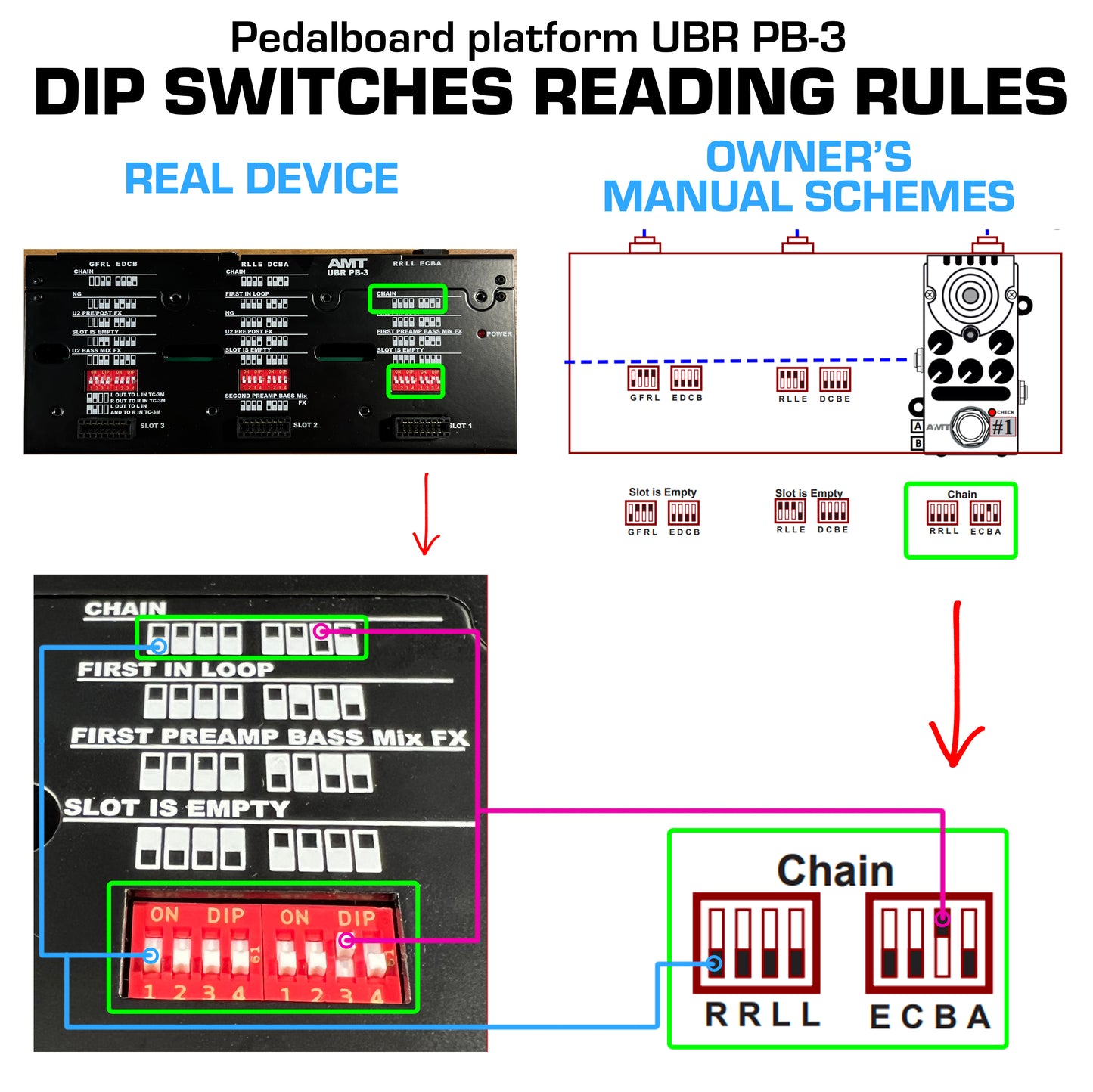

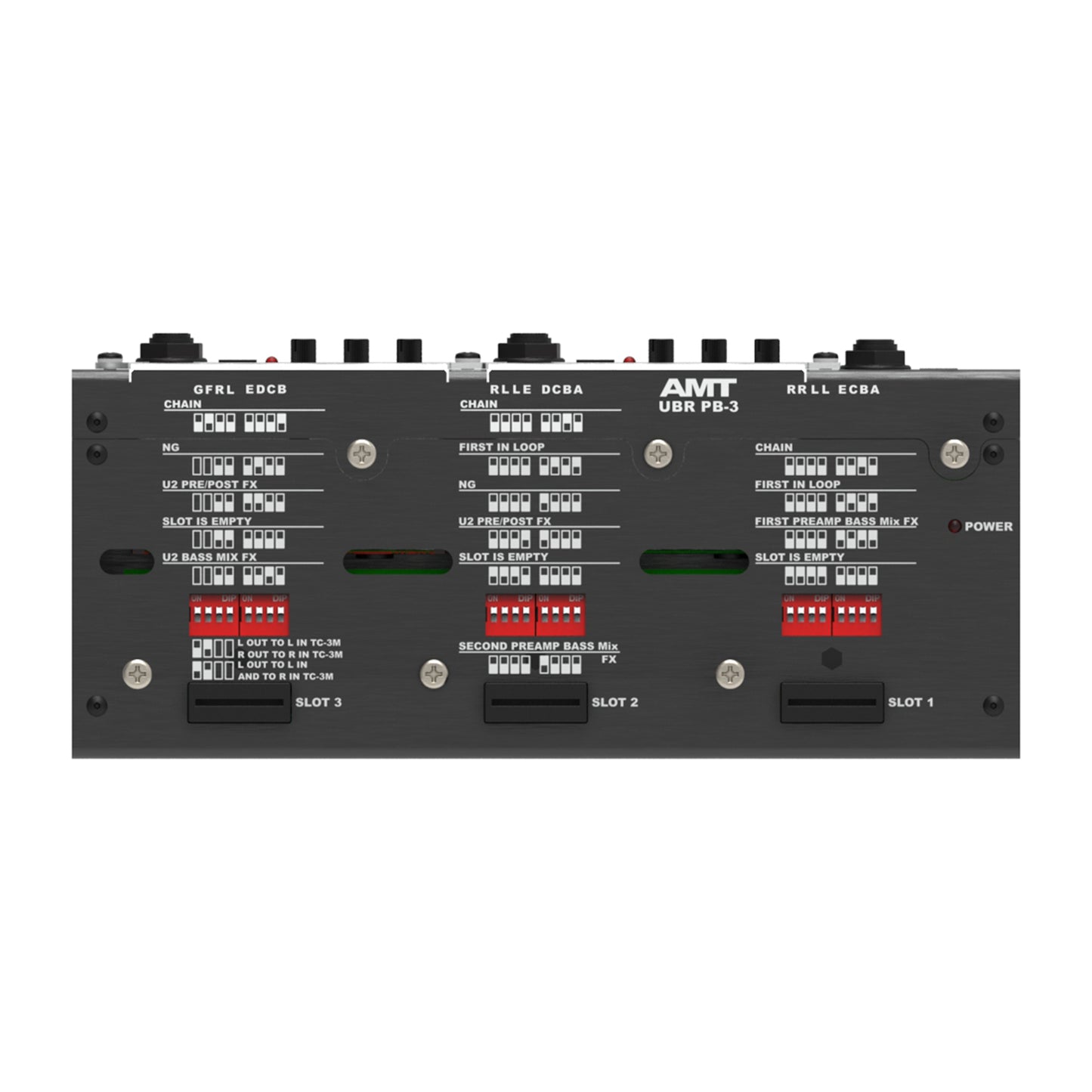

This setting up is carried out using DIP switches (located under the seats of the AMT Bricks / LA3 Light / LA3 Light BLE devices) and cables «mini TRS (3.5 mm) → mini TRS (3.5 mm)*» (audio/aux cable type «stereo mini jack» on both sides).

IMPORTANT: In the UBR PB-3 scheme, such cables* are used just for the interdependent control of devices and are not used to transmit audio signals.

 IMPORTANT NOTE

AMT TubeCake TC-3M guitar power amplifiers and AMT Bricks / LA3 Light / LA3 Light BLE devices are not included in the UBR PB-3 pedalboard package and purchased separately.

► TECHNICAL PARAMETERS

  • Weight: 331 g.
  • Dimensions: 225 mm x 100 mm x 40 mm
  • Supply voltage: 12V DC
  • Battery Power: not provided
  • Current consumption (without installed devices): ~ 30 mA
  • Power supply is not included!

USER'S GUIDE


All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-ubr-pb-3/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

Noiseless power supply & other compatible devices purchased separately (you can choose):

AMT DC 12V, 1.25А AC/DC —
Noiseless Power Adapter (with EU plug)

UBR Platform
compatible devices

 IMPORTANT NOTE ABOUT THE POWER SUPPLY

For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:

Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!

Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
