AMT Tubecake TC-3M (1,5-3W) — Power Amplifier (100% analog) (w/o power supply!)

► INTRODUCTION

The AMT Tube Cake Amplifier Series were designed to emulate the warm, tight, punchy sound of tube power amplifiers; but without the drawbacks such as high cost, large size, heavyweight, and the need for periodic expensive tube replacement.

Save hundreds and thousands of dollars, and compact your rig with one of the Tube Cake pedal power amplifiers.

These are amazing, small, compact units that will find a spot directly on your pedalboard. Also, your dream of running stereo heads can now be a reality at a fraction of the cost. Many guitarists are running dual Tube Cakes as their main rig.

The most prominent features which make the sound of tube amplifiers so popular have been thoroughly implemented into the design of the Tube Cake series by the engineers here at AMT.

► ABOUT THE PRODUCT

AMT TC-3M (Tubecake 1,5-3W) version — is a guitar amplifier can work as independent one device as well as also can be installed into the pedalboard AMT UBR PB-3, which allows you to connect guitar cabinets directly to the PB-3.

It works as a perfect combination with all the AMT preamps.

While creating a lightweight and compact AMT TC-3M amplifier, AMT focused primarily on implementing the basic features of a tube amp using semiconductor component base. However, without the drawbacks such as high cost, large size and weight, and the need for periodic tube replacement (up to 2 times per year).

► FEATURES

The most prominent features, which make the sound of tube amplifiers so peculiar, have been thoroughly implemented by the engineers of the company in the AMT TC-3M.

• The output impedance of the AMT TC-3M is comparable with the load. Such an output resistance in combination with the impedance of a frequency-dependent guitar speaker shapes the «correct» guitar amplifier frequency response.
• The AMT TC-3M has a smooth transition from the linear mode to chopping with the domination of low serial number harmonics in the spectrum.
• Despite its relatively low power, the AMT TC-3M has a large dynamic range, since the chopping, like in fully powered tube amps, is not so noticeable.
• A special feature of the TC-3M is that the device can be powered by a wide voltage range, from 12 to 18 volts:
  • When the power supply is 12 volts — the device operates in the mode of a 1.5 watt amplifier;
  • When the power supply is 18 volts — the TC-3M fully reveals its potential, giving out a full 3 watts of power.

Such an amplifier can be used in cases where great volume is not necessary, but you need a specific extra load, peculiar to vacuum tube amplifier: for home practicing, guitar recording at home and playing in small clubs.

The AMT TC-3M can fulfill this task with nice sound loading and keeping it natural.

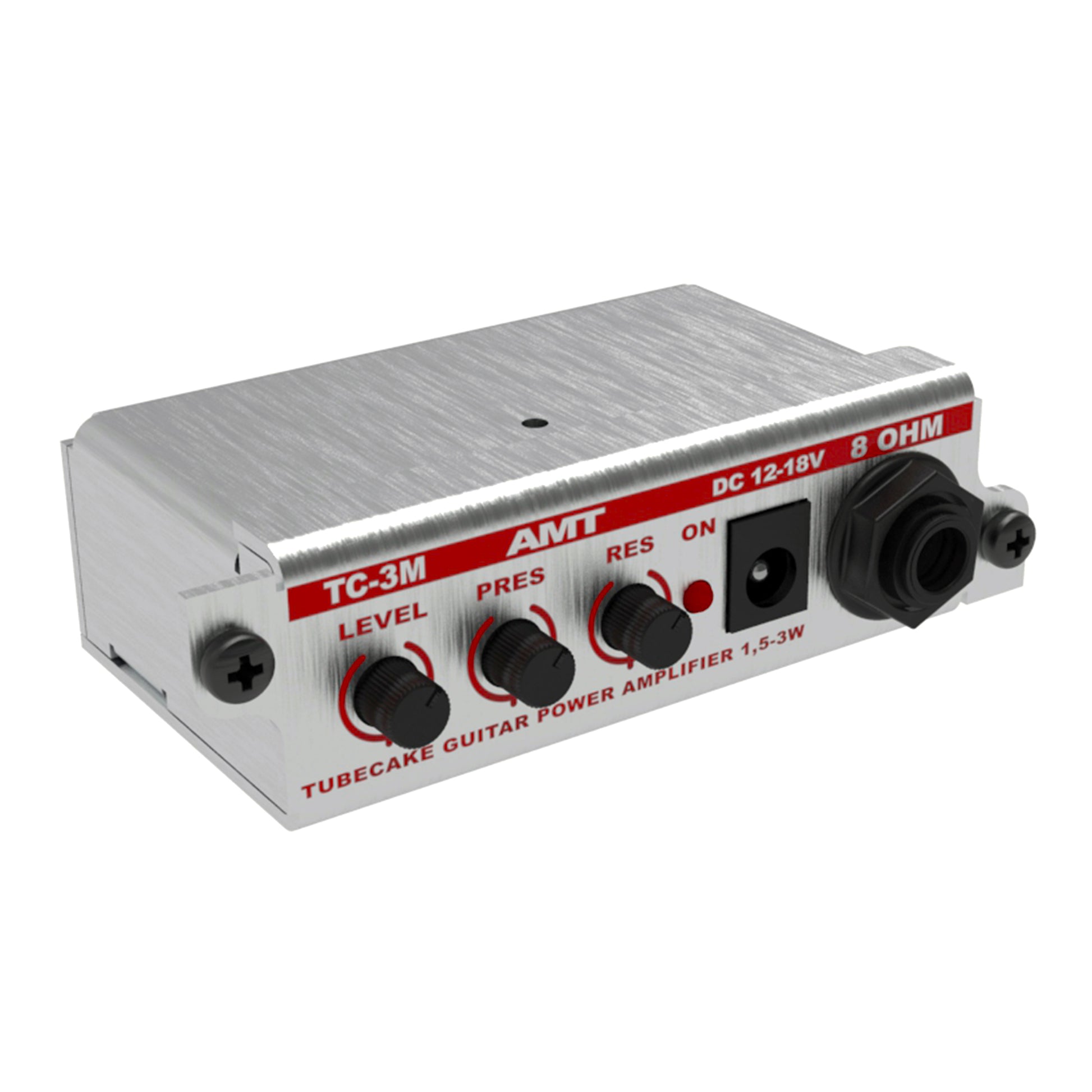

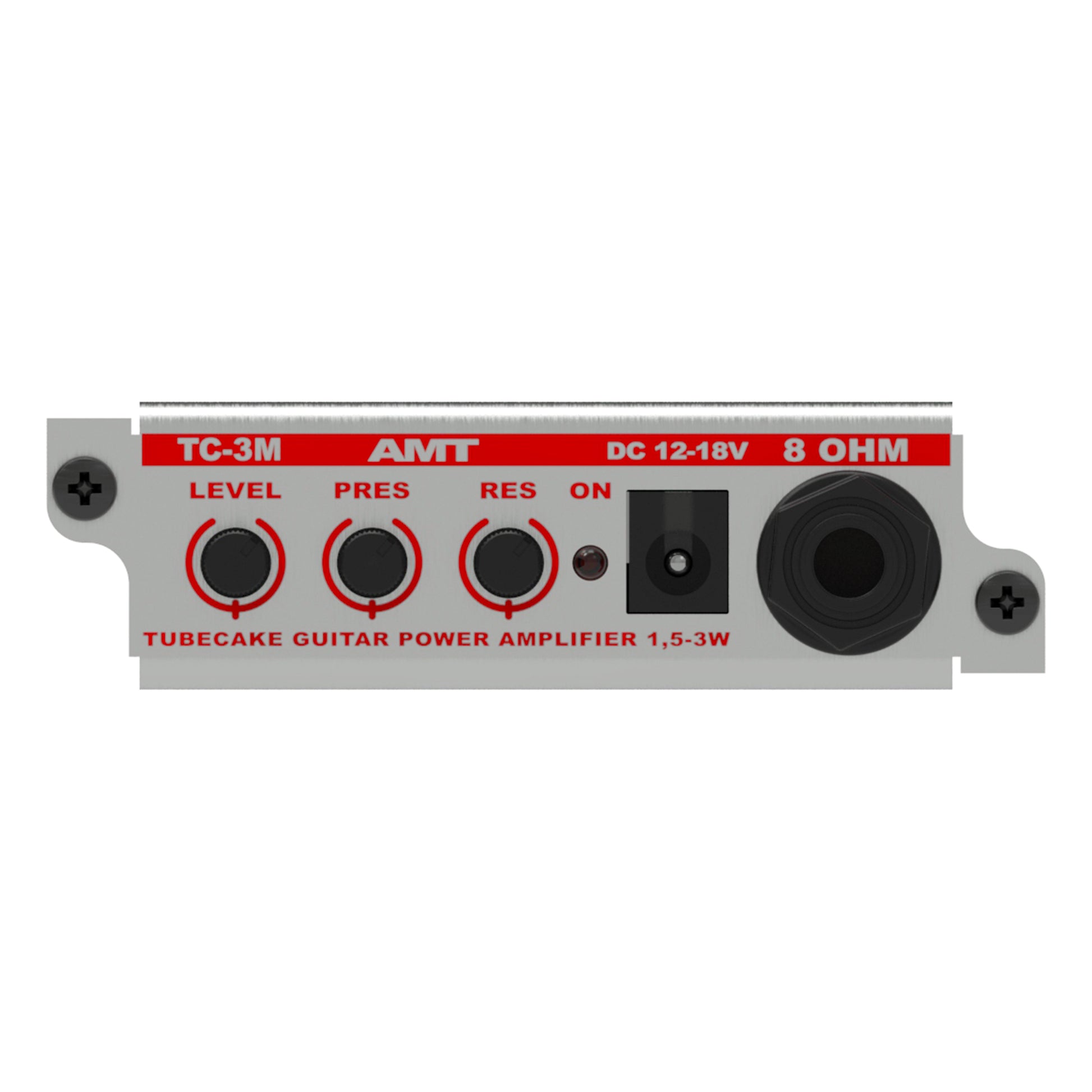

► CONTROLS

• VOLUME controls the overall DB sound level output of the amplifier.
• PRESENCE adjusts the amount of «clarity» or «attack» of the amplifier.
• DEPTH (aka «Resonance») adjusts the amount of low-frequency resonance of the amplifier.

► MOUNTING TO THE AMT UBR PB-3

 IMPORTANT NOTE  To mounting the AMT Tubecake TC-3M into the AMT UBR PB-3 you will need to use an extra Jack to Jack 6.35 mm (1/4 inch) adapter (not included and purchased separately).

► TECHNICAL PARAMETERS

• Weight: 86 g
• Dimensions: 91 mm x 55 mm x 26 mm
• Supply voltage: 12~18V DC
• Battery Power: not provided
• Consumption current (max): 500 mA
• Impedance: 8 Ohm
• Power: 1.5~3 W
• Power supply is not included!

► USER'S GUIDE

All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-tubecake-tc-3m/
