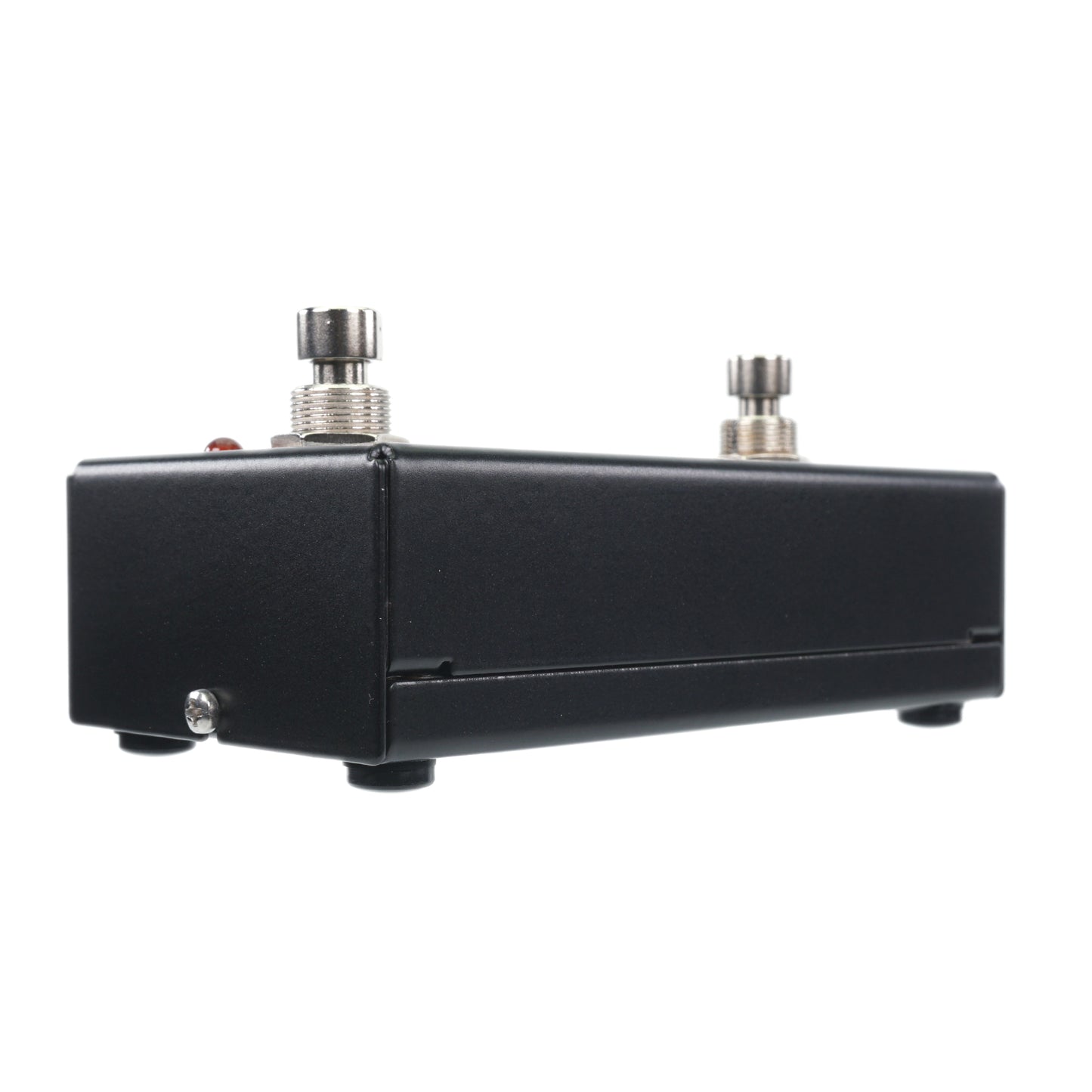

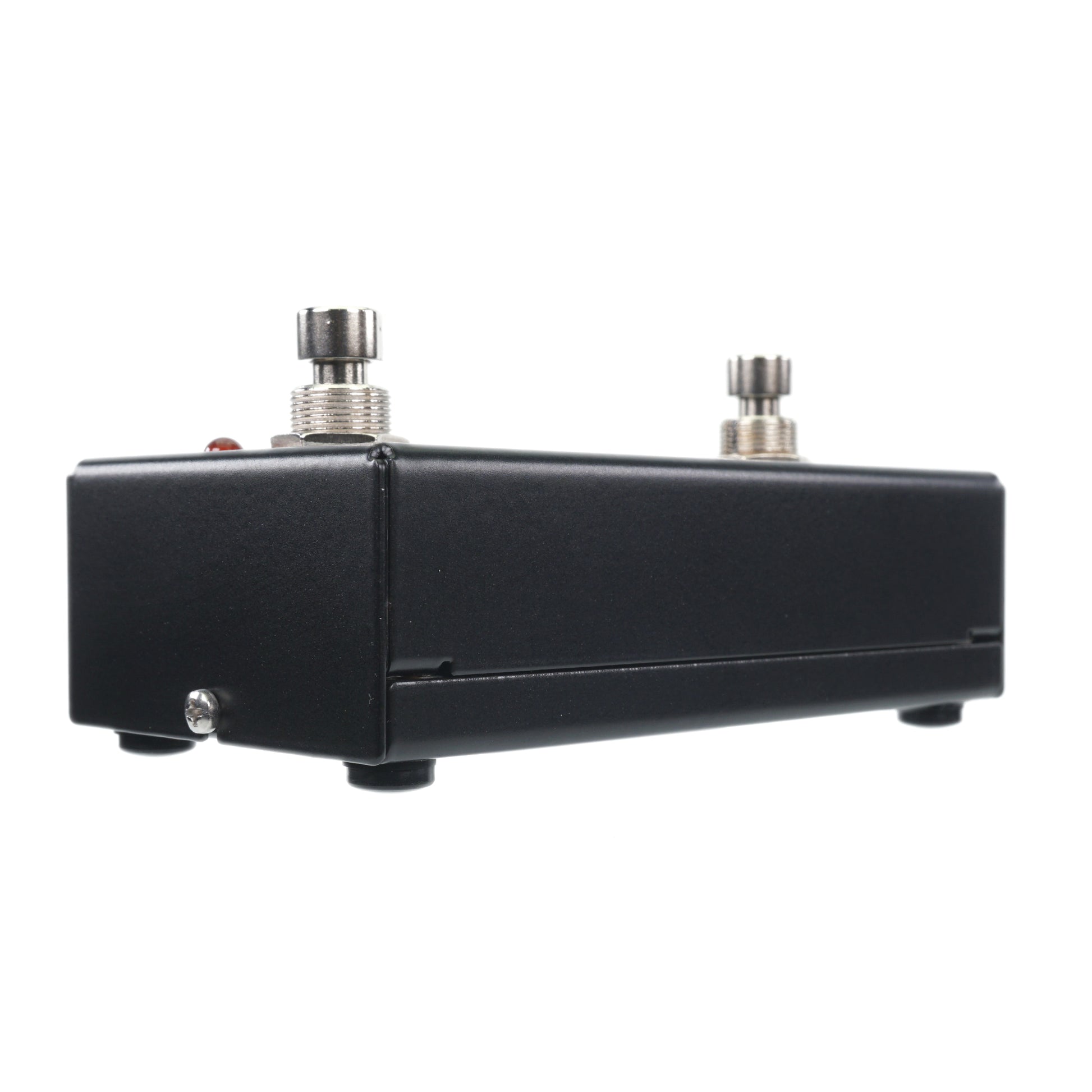

AMT FS-2MIDI - 2-button amp/combo footswitch & MIDI controller (w/o power supply!)
AMT FS-2MIDI - 2-button amp/combo footswitch & MIDI controller (w/o power supply!)
SKU:FS-2-M
Couldn't load pickup availability
ABOUT THE PRODUCT
AMT FS-2MIDI is designed for the purpose similar to the FS-2. In the meantime, the FS-2MIDI device allows switching channels not only by foot switches but also with help of widespread MIDI interface.
The FS-2MIDI lets you incorporate devices with standard control plugs and virtually any modern MIDI devices into an integrated set, where one can switch between all the devices’ presets or channels with just one button.
► FEATURES
- The display of the FS-2MIDI shows all user’s actions and MIDI settings in a simple way.
- Device operation is easy and intuitive.
- All the settings are stored in nonvolatile memory. They are restored instantly when you turn the power on.

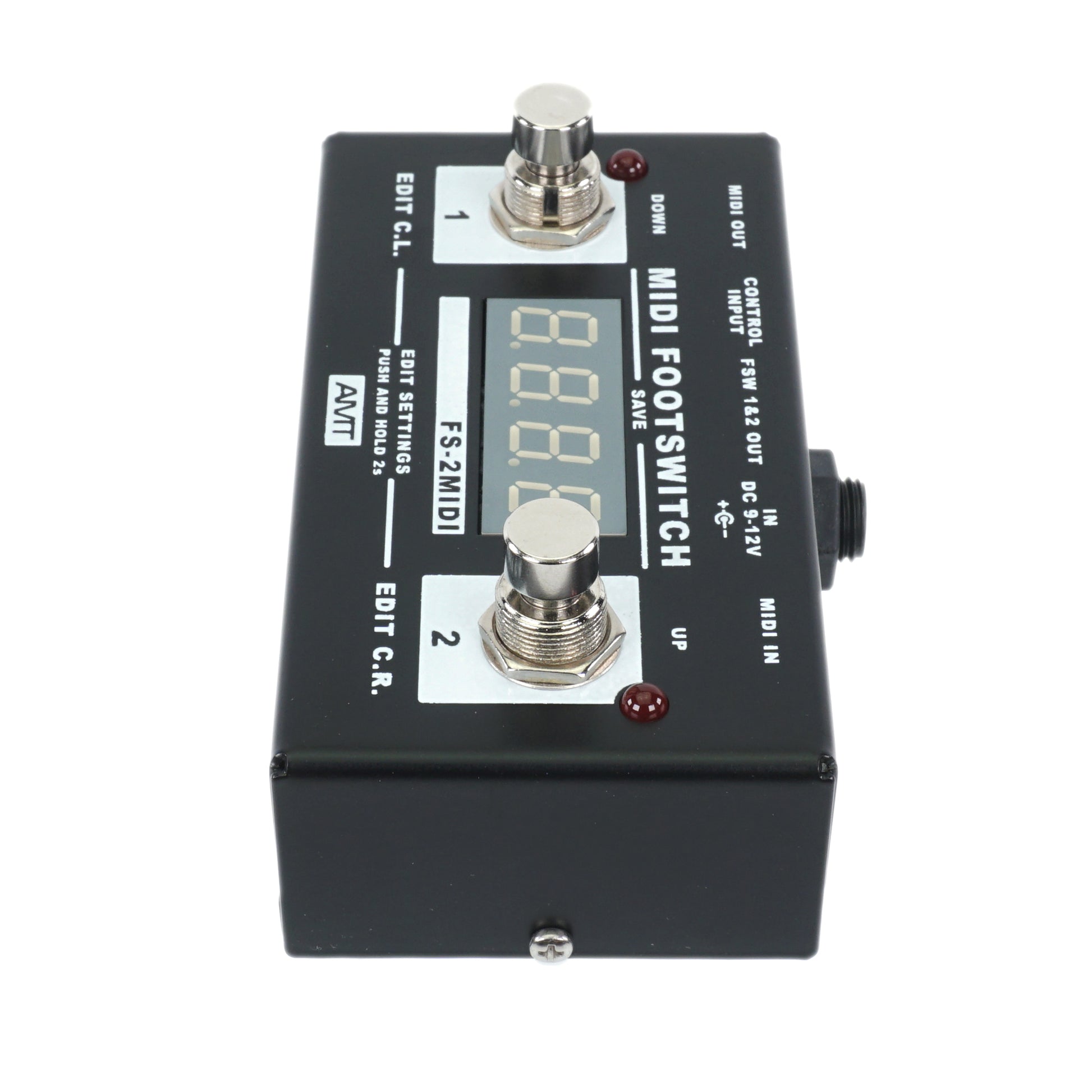

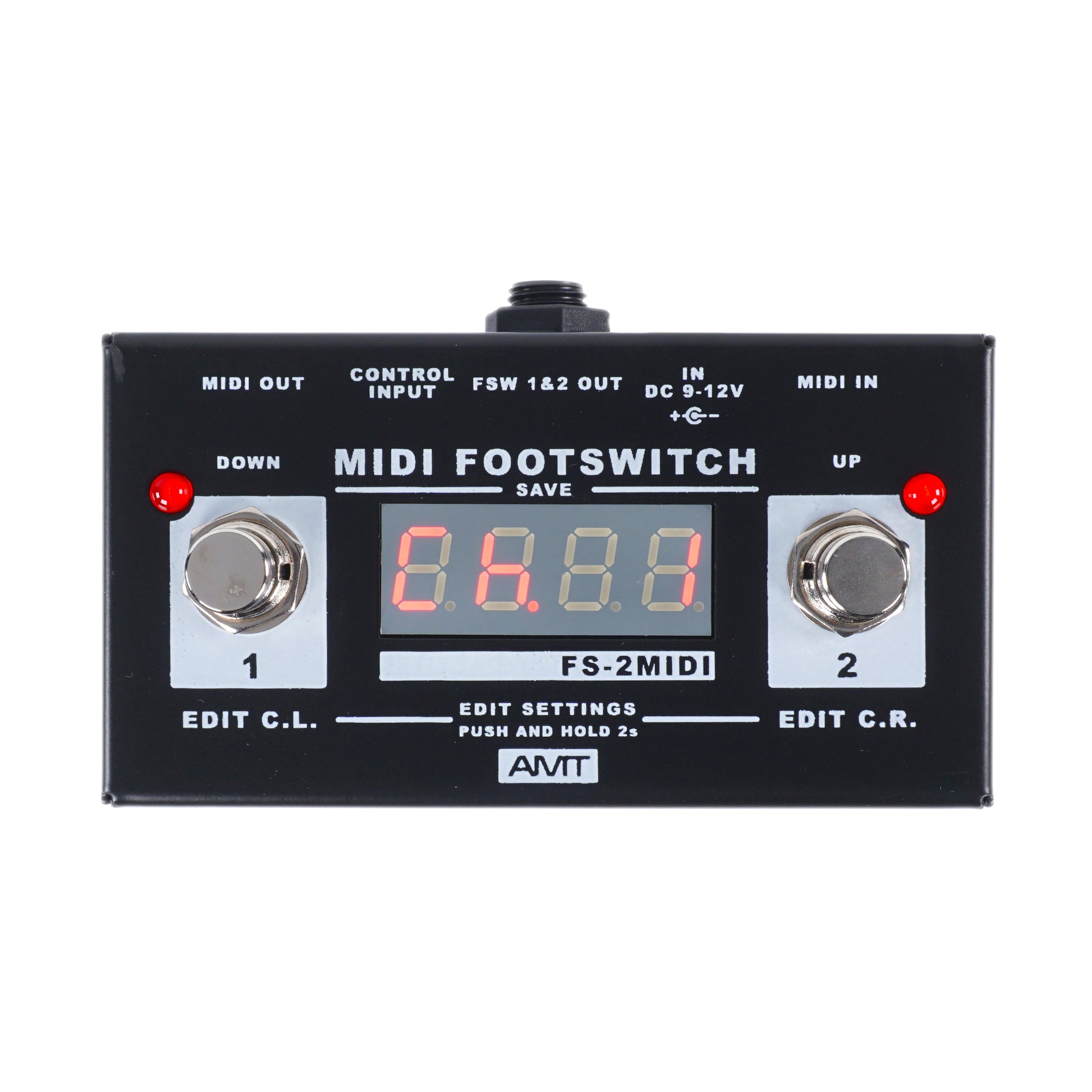

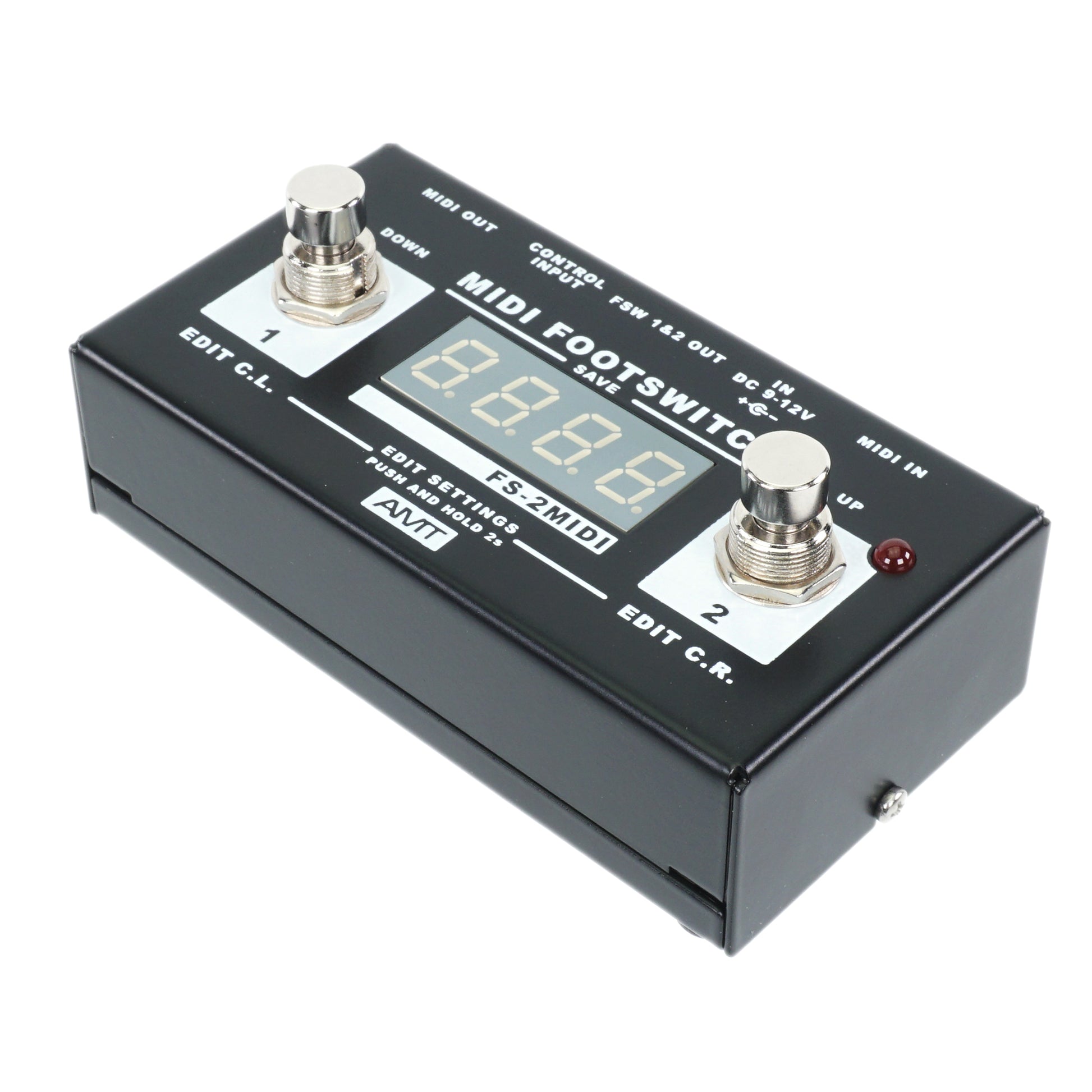

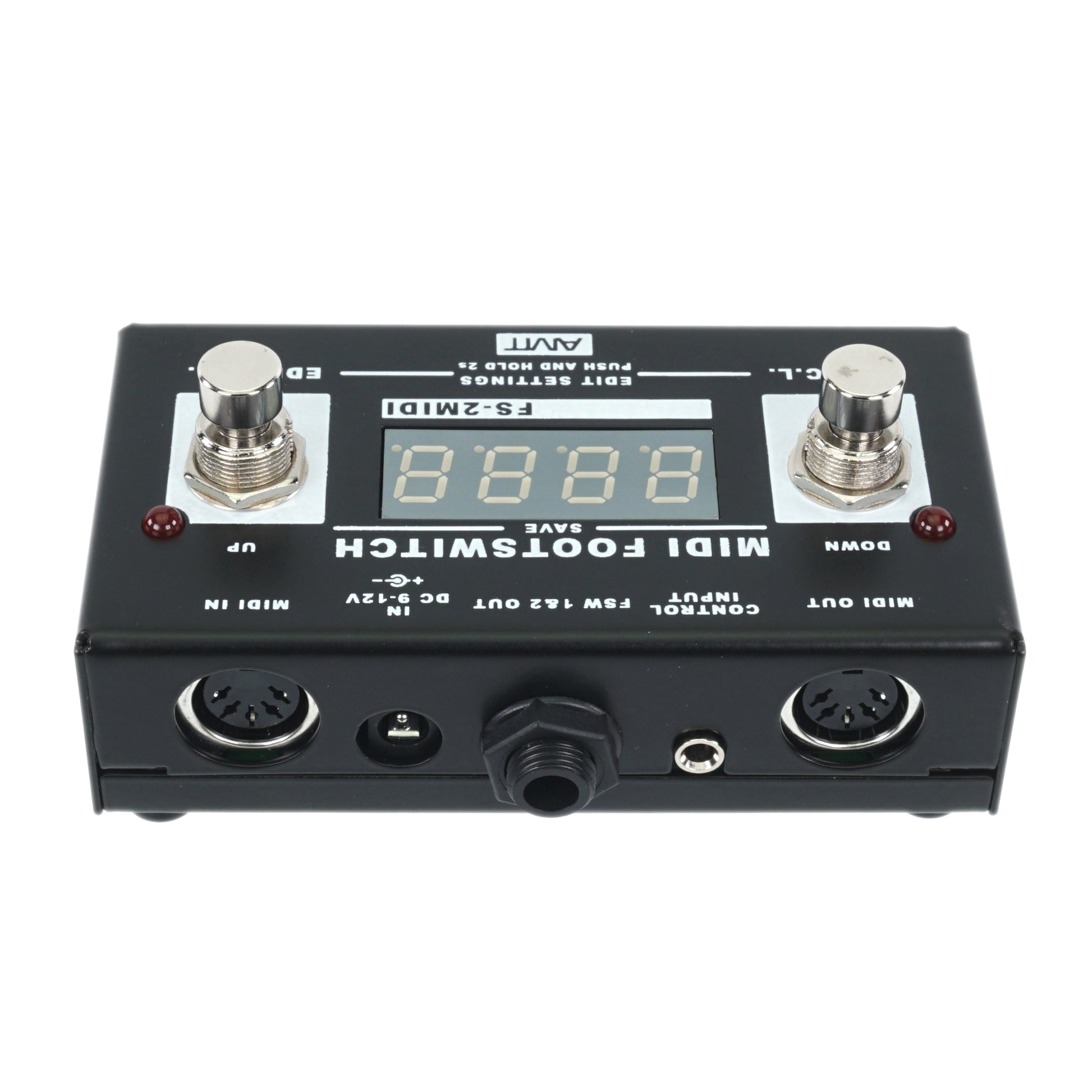

- The front panel of the FS-2MIDI has left and right footswitch buttons with indicators and display.

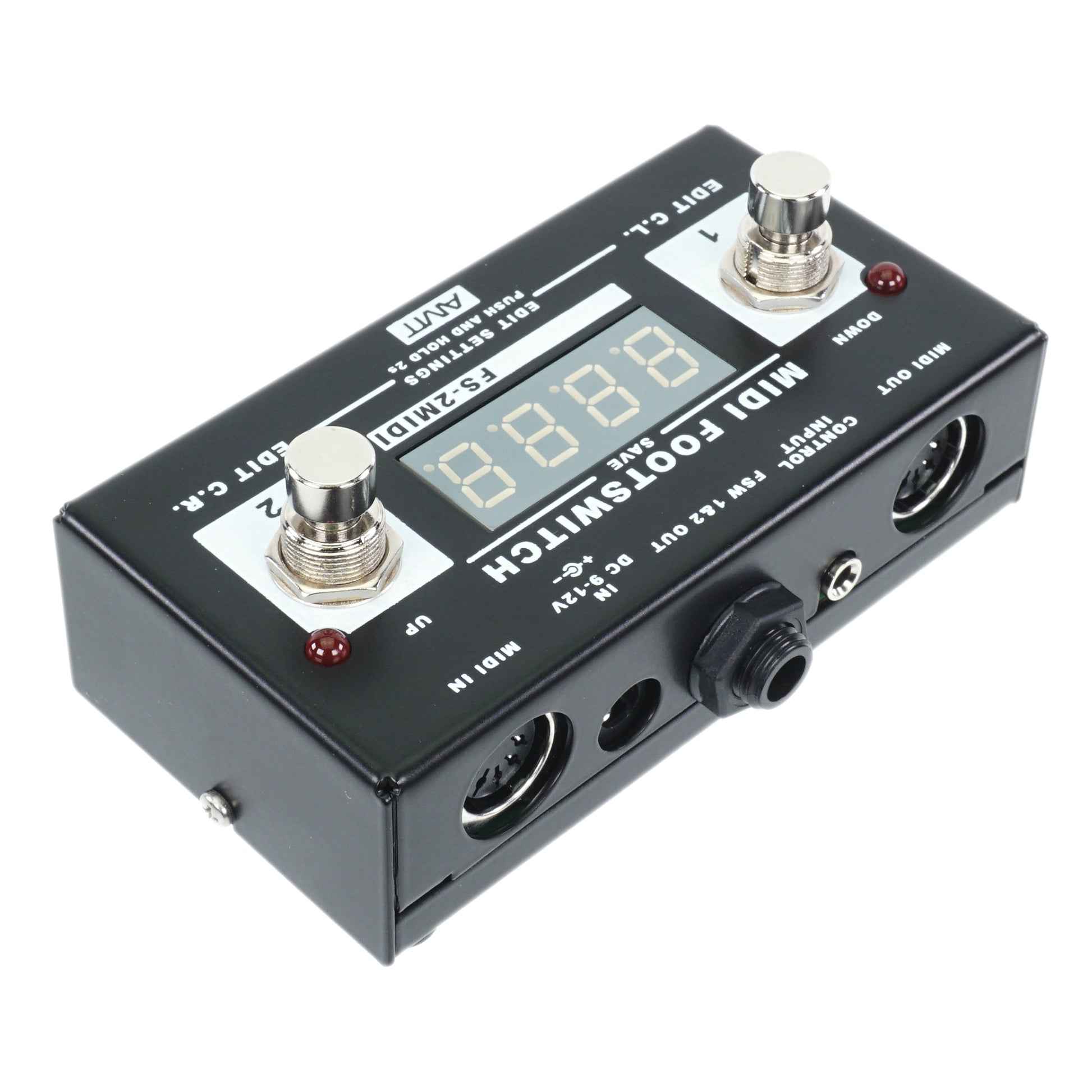

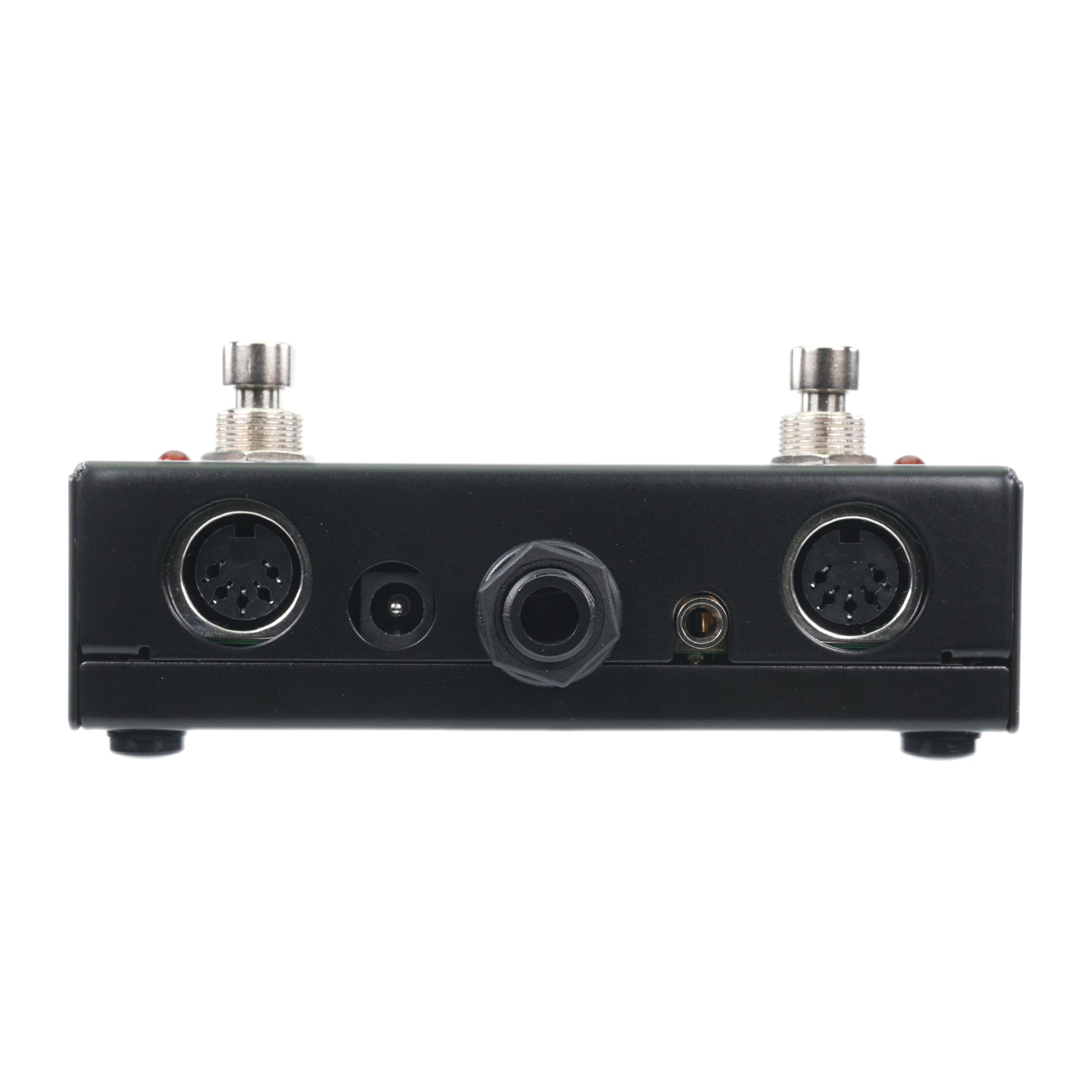

- MIDI IN — MIDI input to receive commands from external devices;
- MIDI OUT — MIDI output;
- CONTROL INPUT — channel status input for AMT pedals which have corresponding output;
- FSW 1&2 OUTPUT — channel switching for devices having control jacks (connection via 3-way cable with 1/4" stereo jacks);
► TECHNICAL PARAMETERS
- Weight: 252 g.
- Dimensions: 113 mm x 66 mm x 52 mm

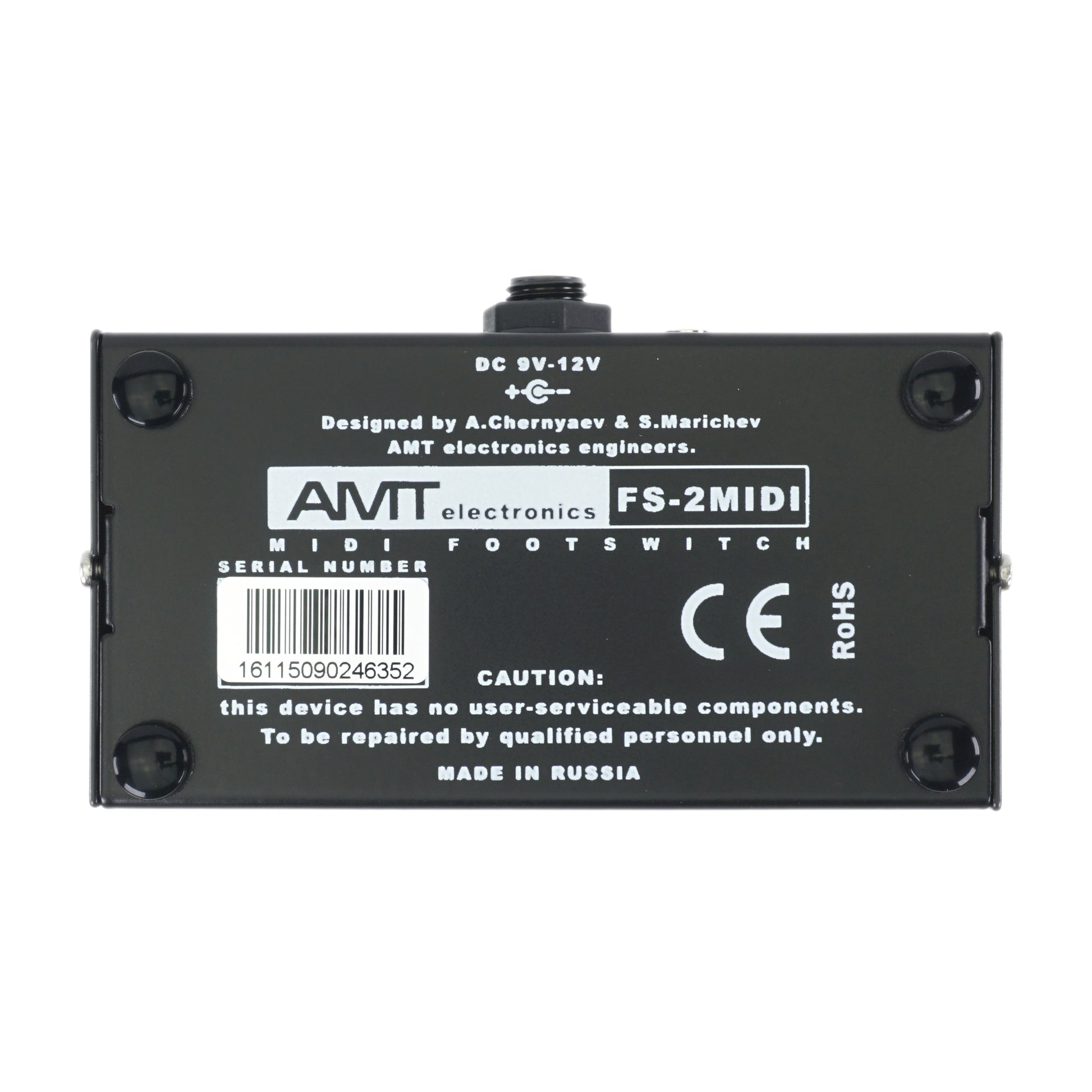

- Supply voltage: 9-12V DC
- Battery Power: not provided
- Consumption current: ~12 mA
- The power supply is not included!

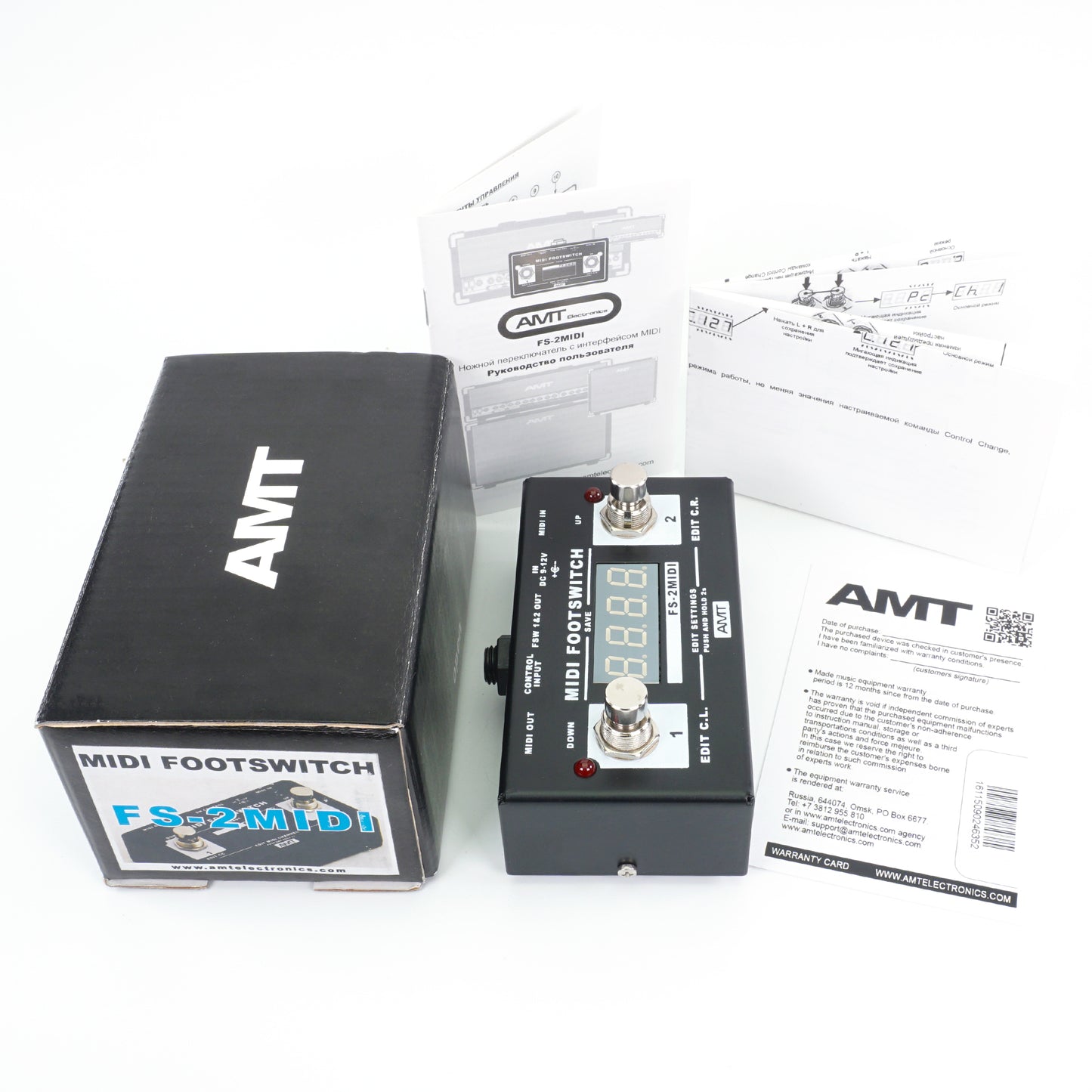

► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-fs-2midi/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Noiseless power supply is purchased separately (you can choose):
|
AMT DC 12V, 1.25А AC/DC
|
AMT DC 9V, 1.5А AC/DC —
|
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
