AMT FS-2 — 2-button amp/combo footswitch (latched)
AMT FS-2 — 2-button amp/combo footswitch (latched)
SKU:FS-2
Couldn't load pickup availability
ABOUT THE PRODUCT

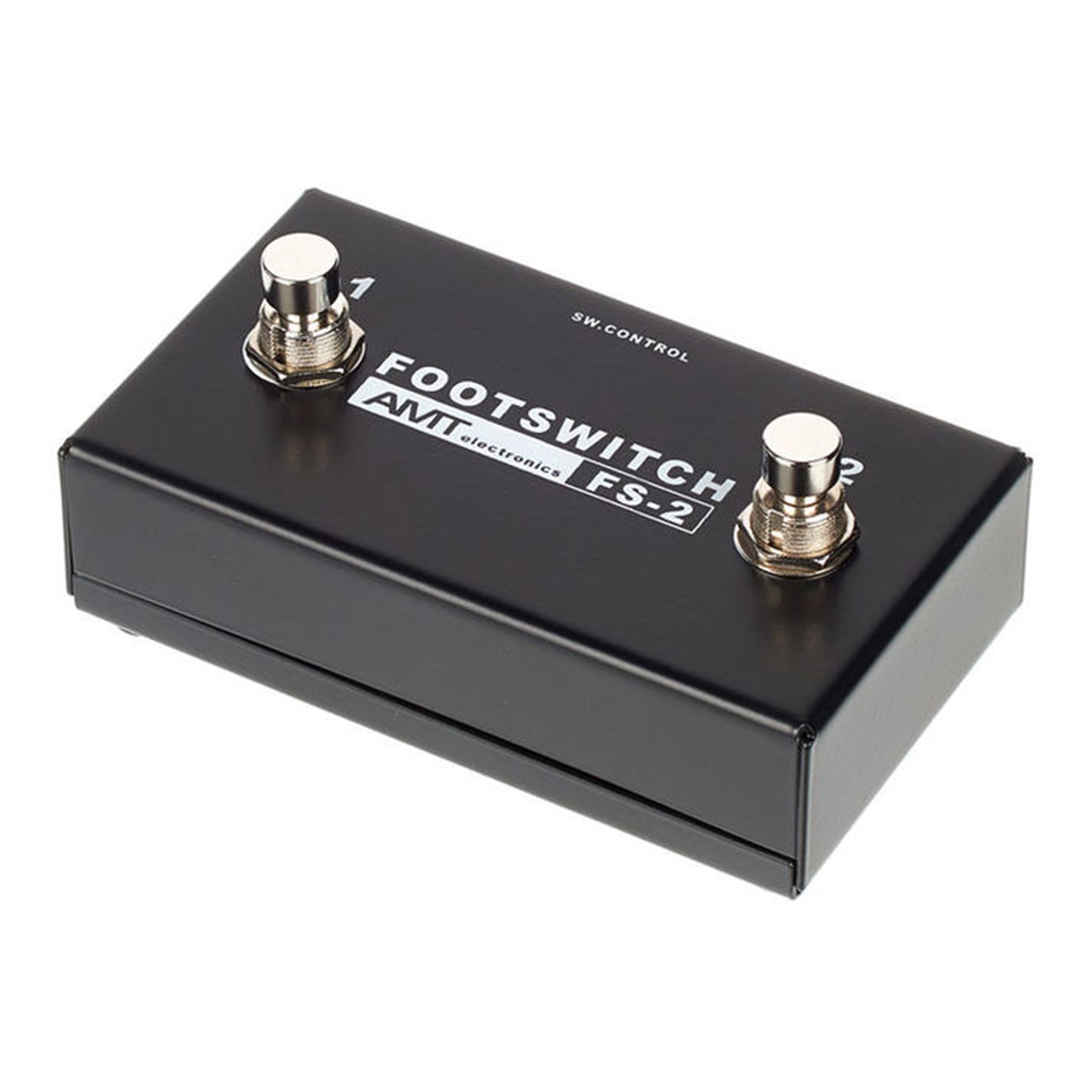

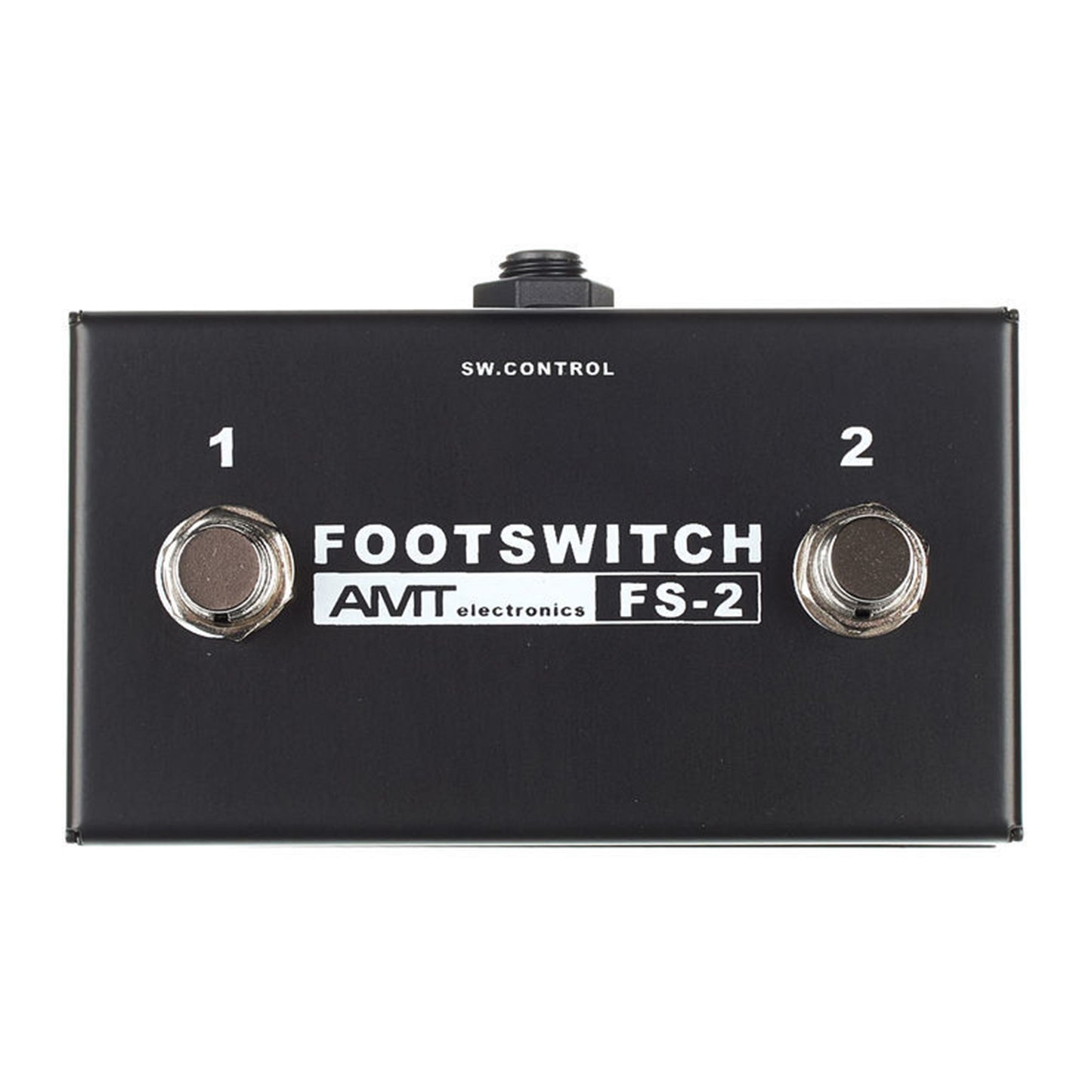

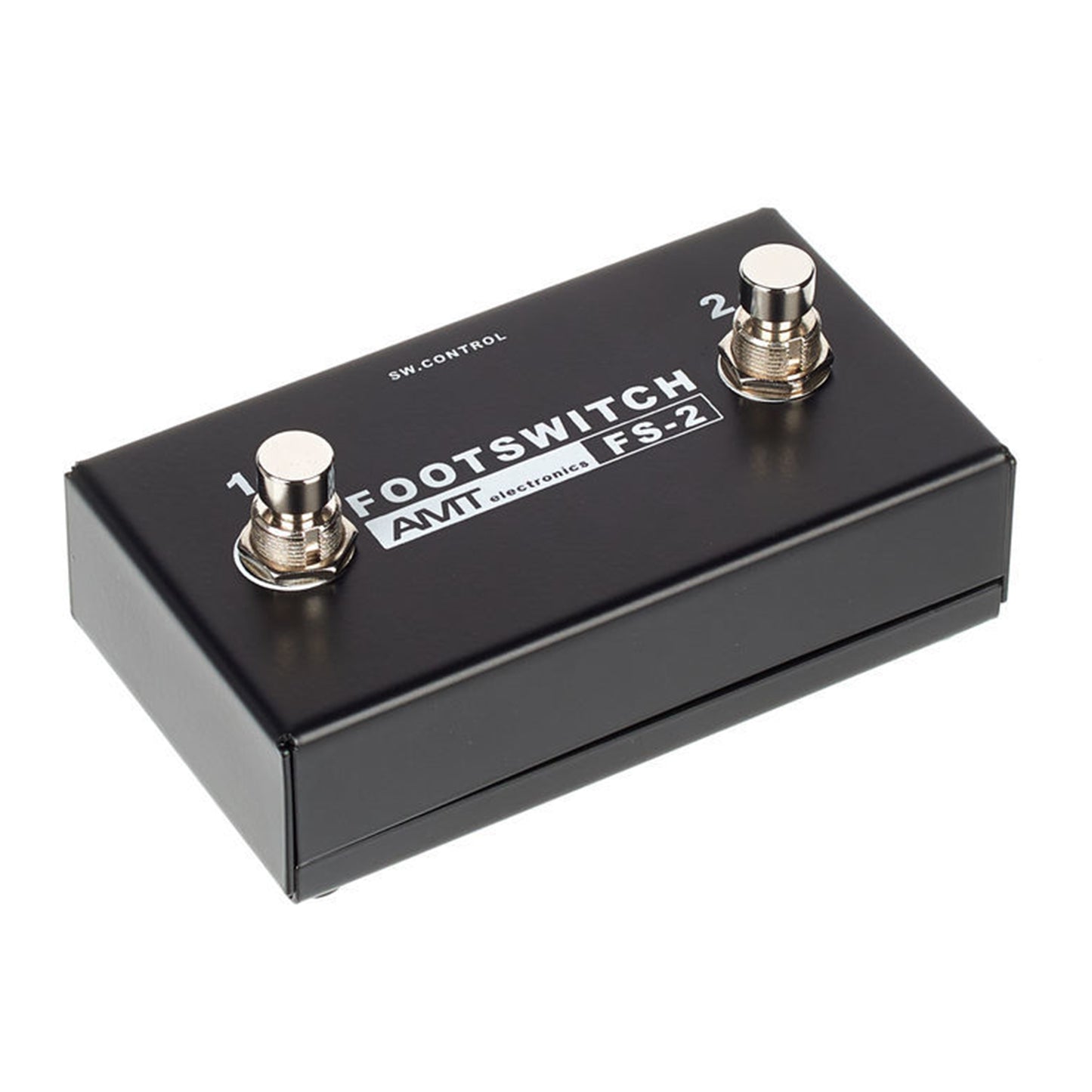

AMT FS-2 is a simple reliable passive (that is, it does not require any external power) footswitch to control combo/amps that support footswitch with 1/4″ stereo jack input. It means, the FS-2 is connected to the controlled device by a three-wire cable with a 1/4″ (6.3 mm) TRS stereo jack connector.
► FEATURES
FS-2 allows you to switch channels or operating modes of the following AMT devices:
- AMT SS-10 guitar preamp (the device is currently out of production) — switching channels «CLEAN ← → DRIVE», as well as channels «CRUNCH ← → LEAD»
- AMT StoneHead-50-4 guitar amplifier (up to 3 AMT FS-2 footswitches can be connected to this guitar amplifier at the same time)
- AMT StoneHead SH-100R guitar amplifier (up to 2 AMT FS-2 footswitches can be connected to this guitar amplifier at the same time)
There are buttons switching type («toggle», «latch»). This means that the footswitch' change mode (ON/OFF) every time the button is pressed and persists after the button is released. Be sure that the device you are going to connect the FS-2 to supports switches of this type.
► TECHNICAL PARAMETERS
- Dimensions: 110 x 70 x 52 mm
- Weight: 227 g
- Ultra-reliable buttons
- Metal body
- Foot switch output: 1/4″ (6.3 mm) stereo TRS jack
- Battery Power: no needed
- Power supply: no needed
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-fs-2/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
The Guitar Amplifier is purchased separately:
|
AMT Stonehead-50-4 —
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
