AMT Pangaea CP-16M (module)

 ATTENTION PLEASE

This product is not for retail selling!

If you are a manufacturer of guitar equipment (or any other music gear) and are interested in cooperation on this product, to find out the prices and conditions, please contact us by email → europe@amtelectronics.com

For personal use, please check out our similar products:

• AMT Pangaea CP16A-6F22 (plug-in module)
• AMT Pangaea ELEMENT CP-16E (CP16A-6F22 + BLE-1) (plug-in module)

ABOUT THE PRODUCT

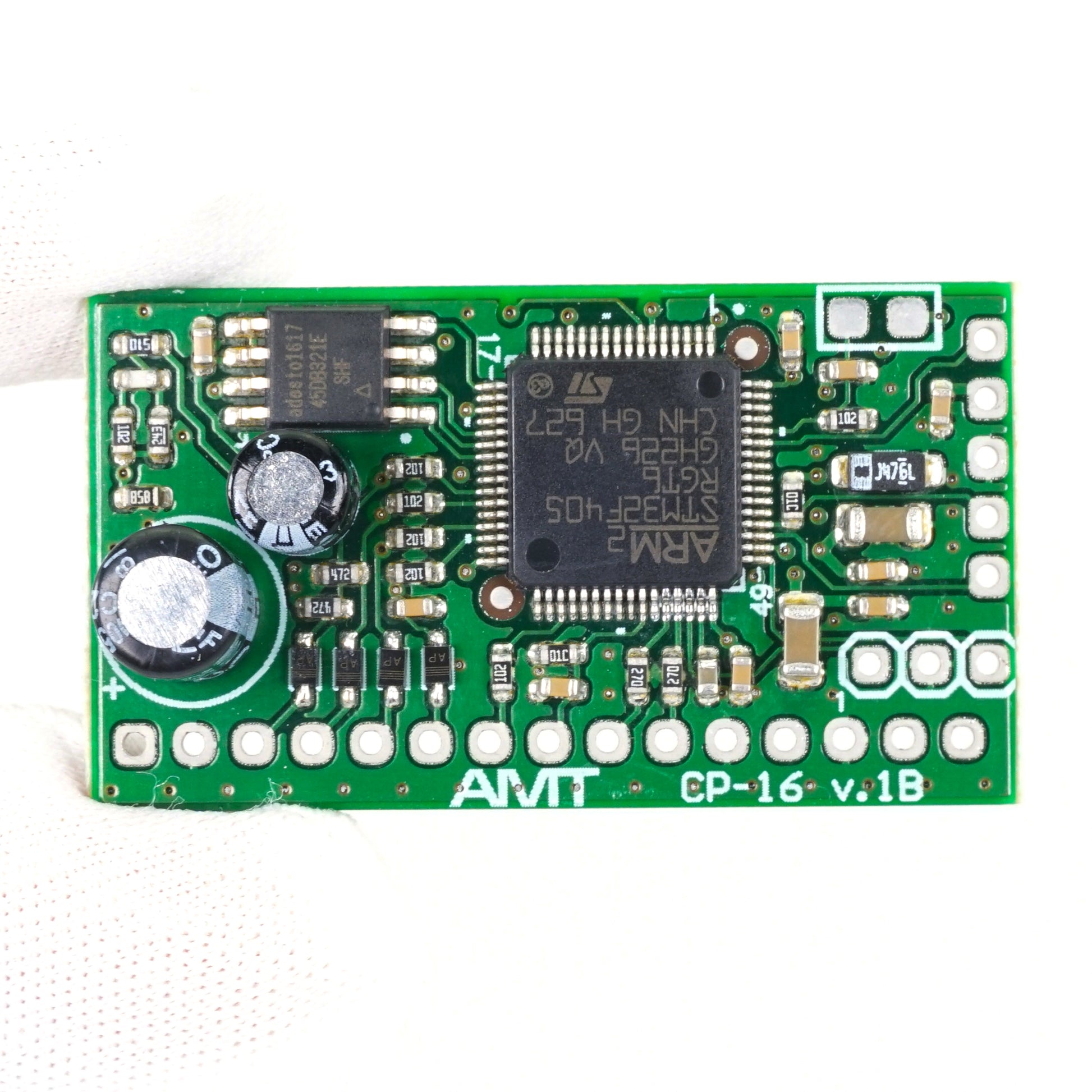

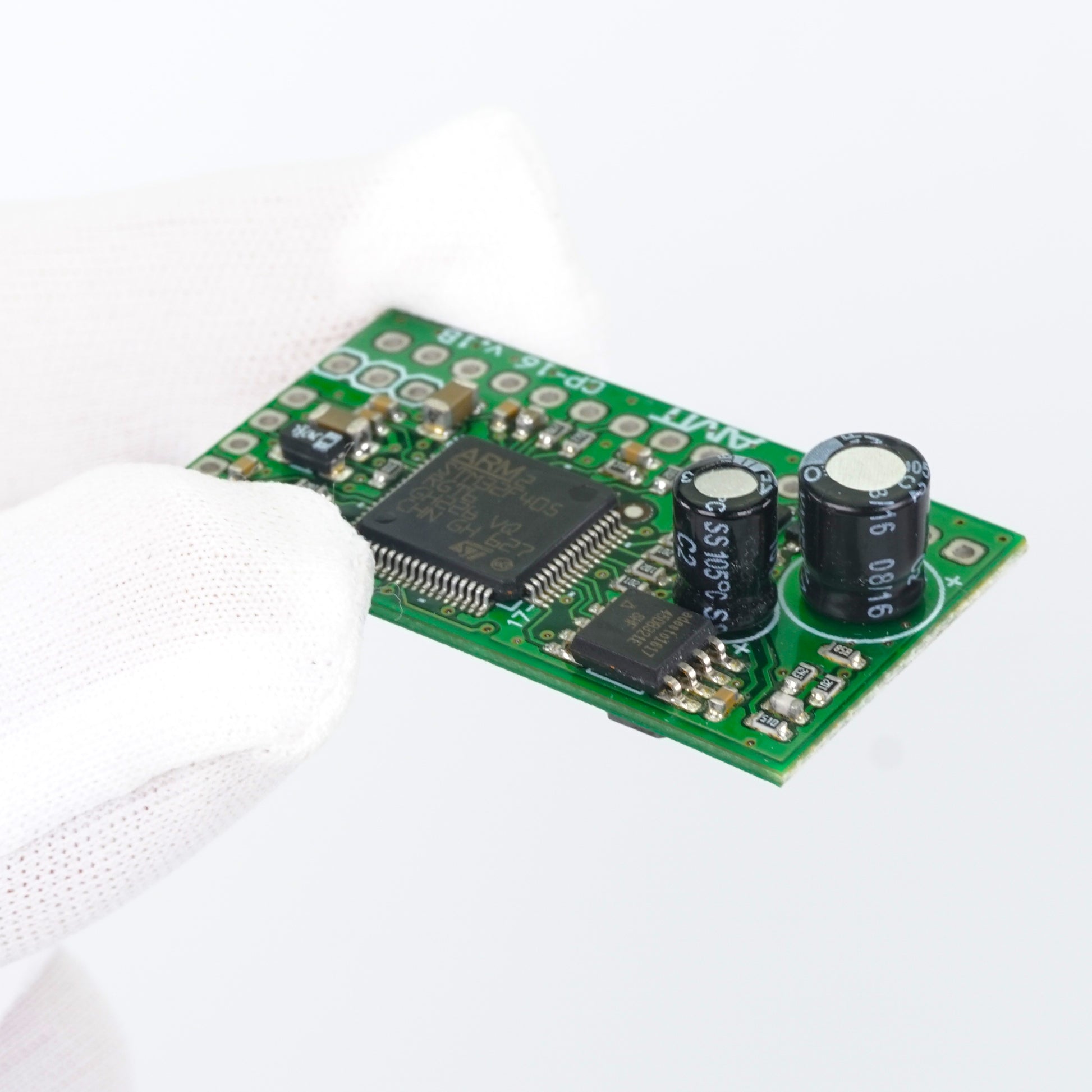

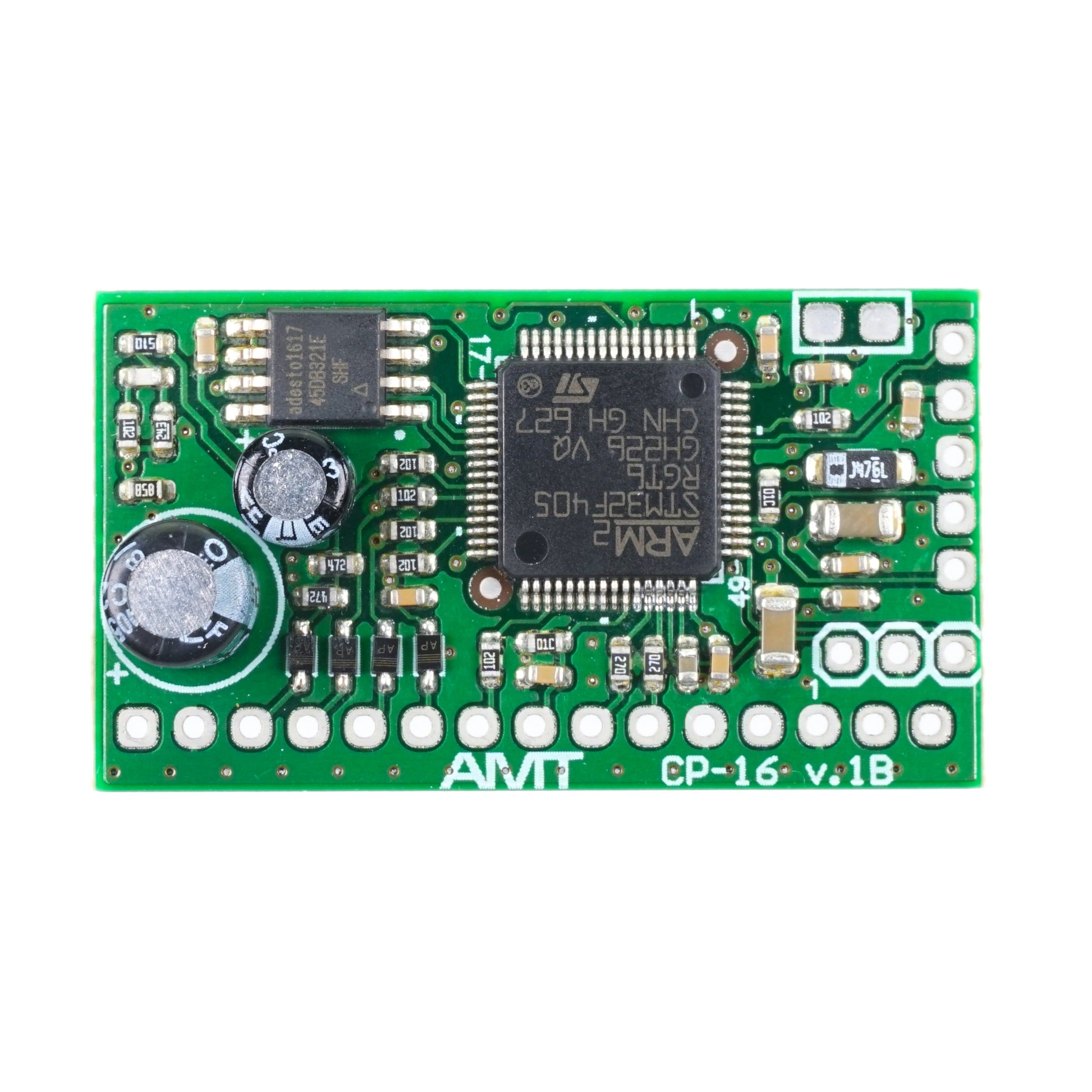

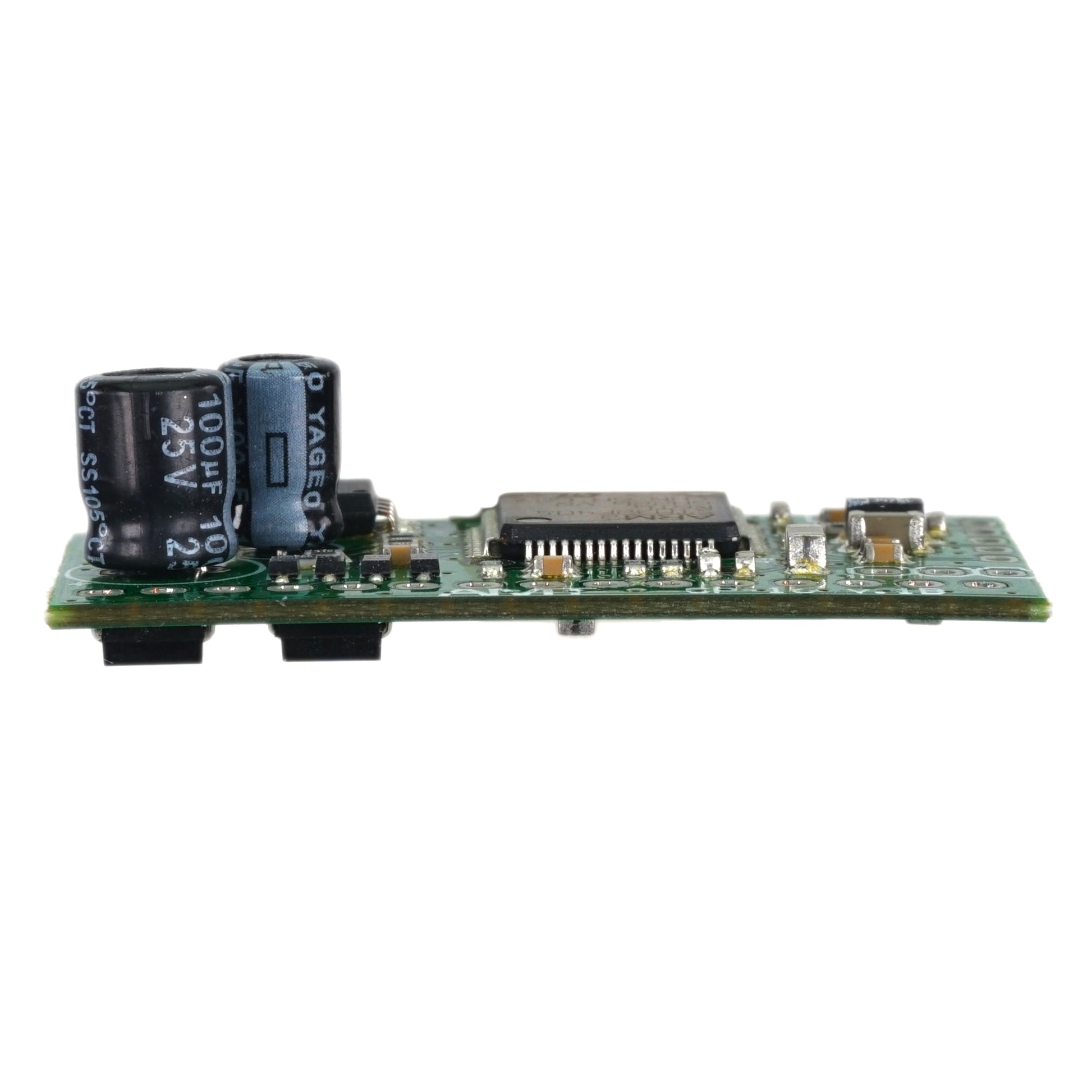

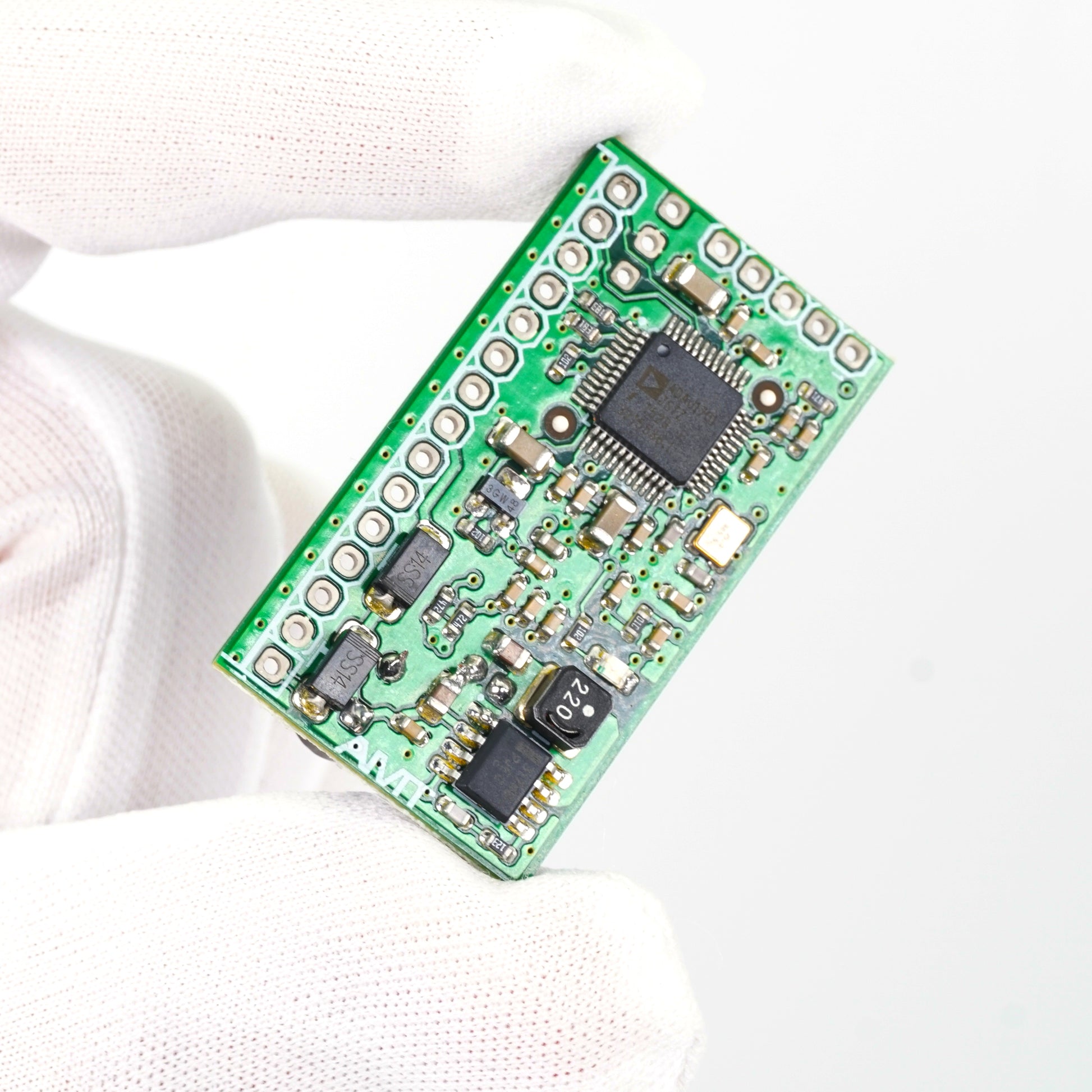

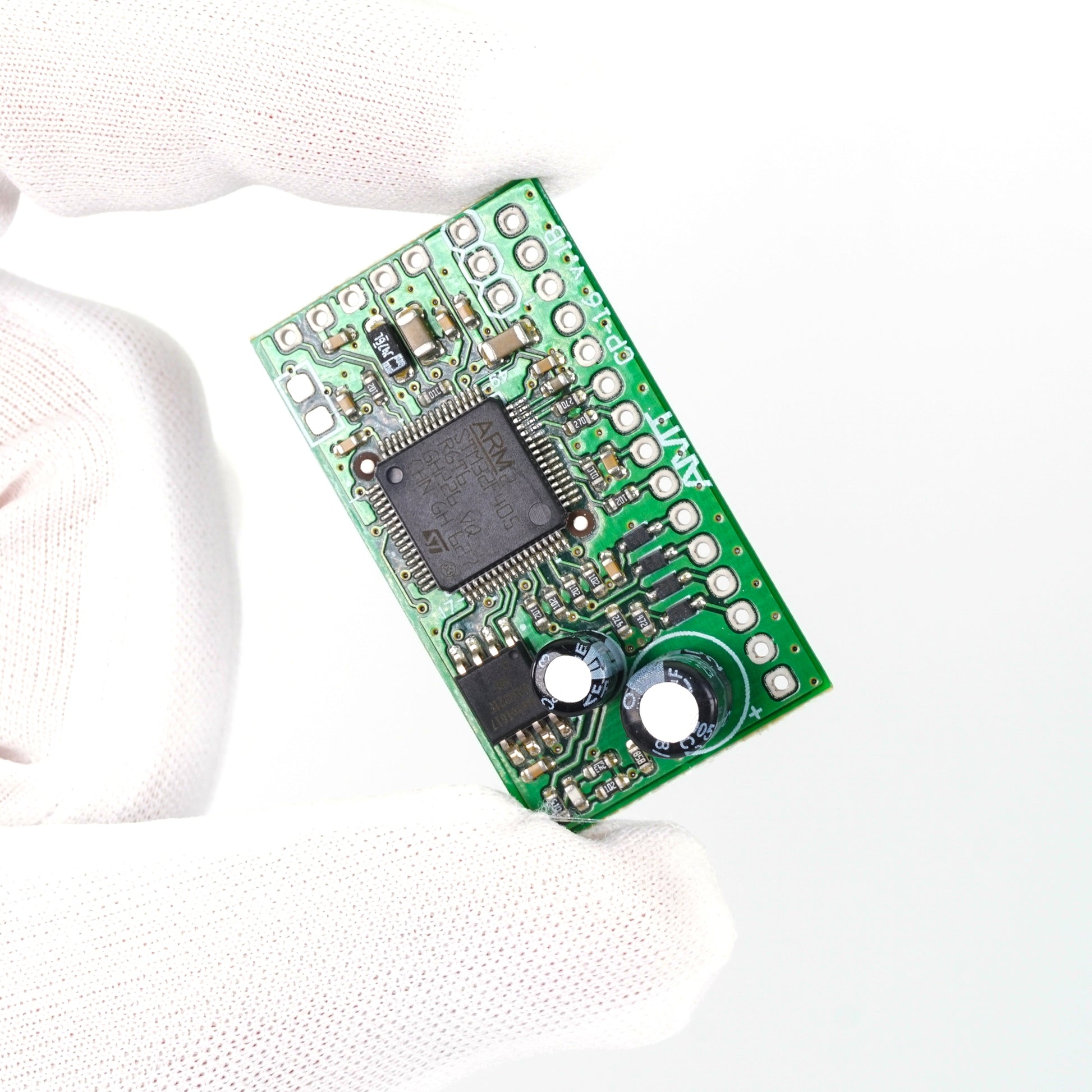

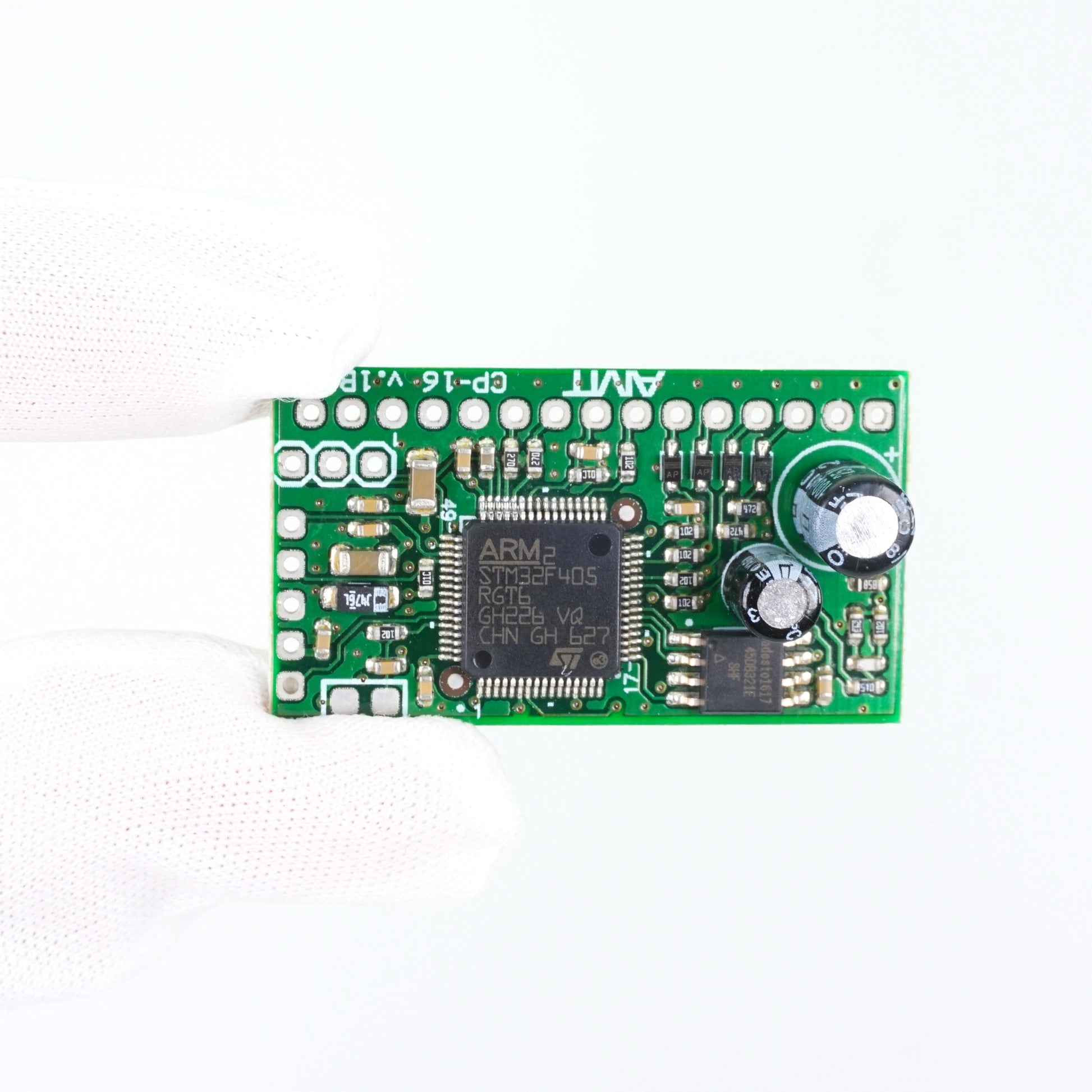

The AMT CP-16M — is a built-in digital audio processing module with preinstalled software. It is designed especially for those who create all sorts of guitar devices: power amplifiers, preamplifiers, guitar effects etc.

 IMPORTANT NOTE!  To apply the module, the user must have some basic knowledge in the field of electronics and possess some computer literacy. More detailed technical information on the module AMT Pangaea CP-16M you'll find on the product's page at the AMT Media Center: https://media.amtelectronics.com/amt-pangaea-cp-16-module/

► FEATURES

• AMT Pangaea CP-16M module lets you emulate any Guitar Cabinet sounding by loading appropriate Guitar Cabinets’ Impulse Responses (IRs). A great amount of different IRs you can easily find on the Internet (both paid and free).
• You can load up to 16 different Guitar Cabinets’ IRs in the module’s memory and choose the desired one at the right moment.
• You can load IRs in the CP-16M memory and control their parameters via USB or Bluetooth* interfaces.
• The CP-16M module is so small that it can be integrated easily into any compact device – such as «newfangled» mini effect pedals.

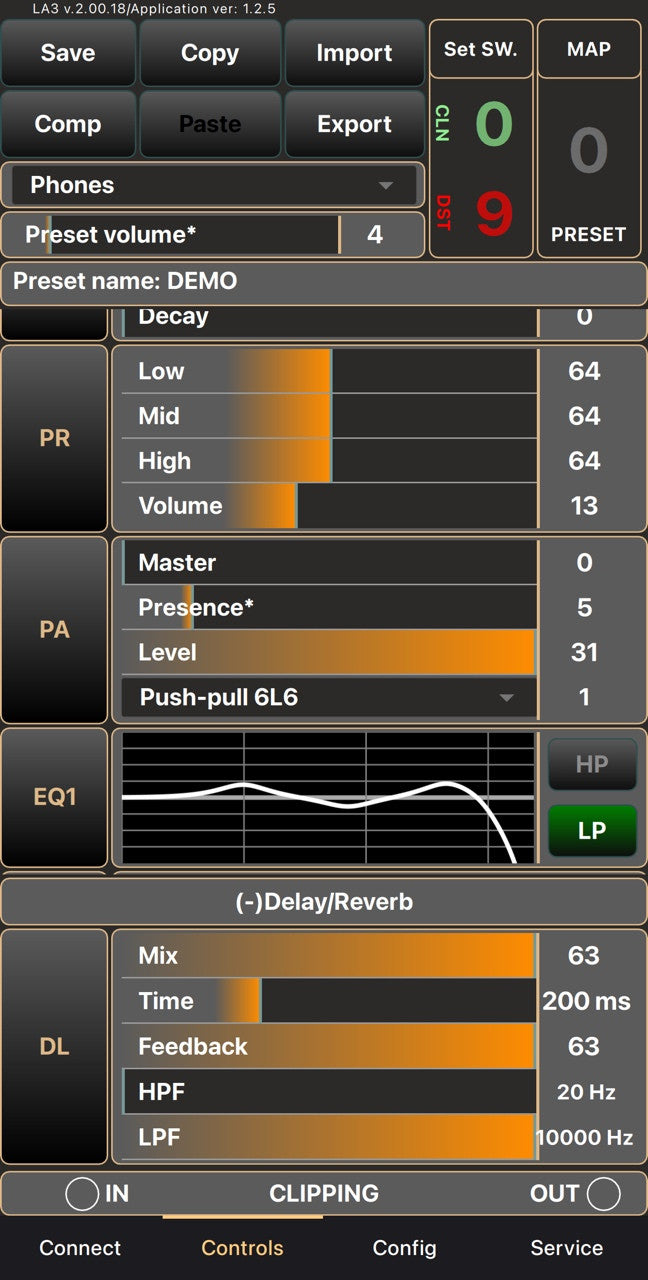

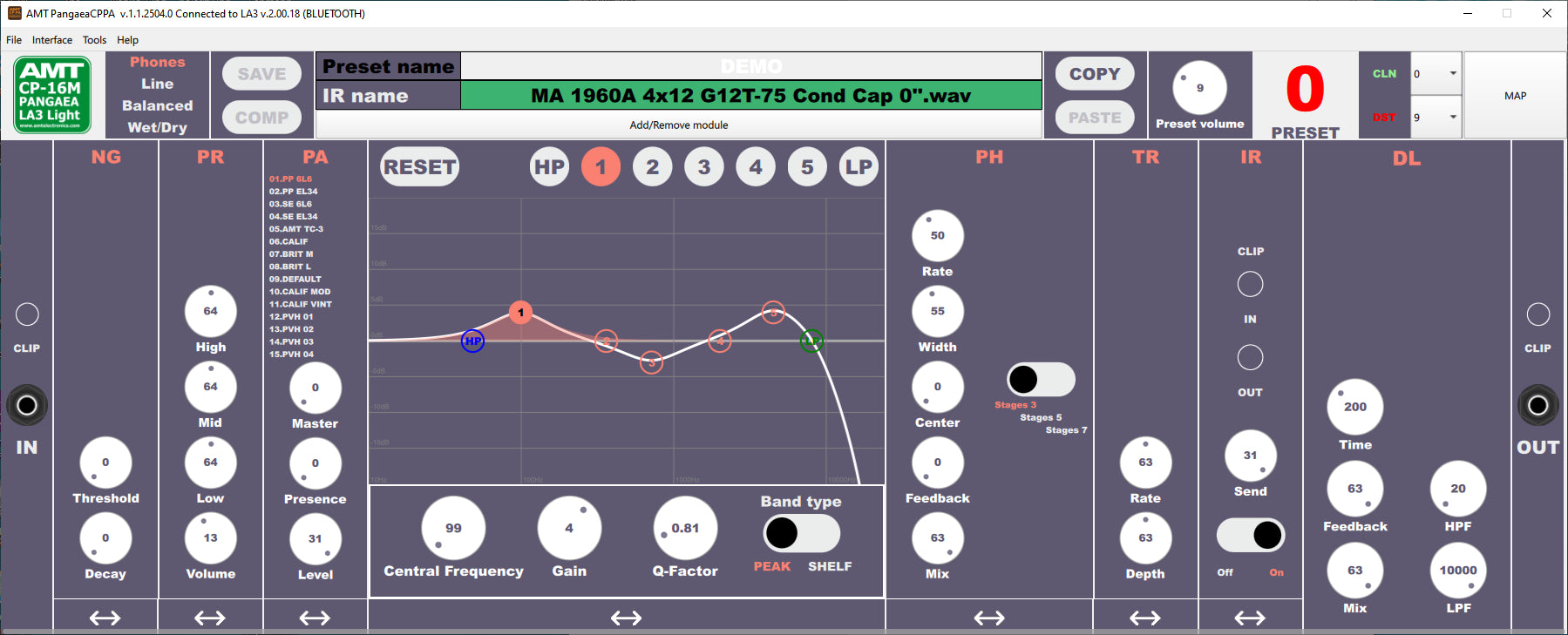

• There are Windows / macOS / Linux / Android / iOS Applications developed by AMT for controls all possible settings of the AMT Pangaea device via USB and Bluetooth* as well. This App allows converting WAV IR's files to the Pangaea's required format «on the fly» (by «drag & drop» method).

* Provided that the Bluetooth module AMT BLE-1 (additional option) is installed on board of the CP-16M.

► STRUCTURE & EFFECTS OF THE CP-16M

The user’s interface of the module is structured as 4 banks of 4 presets (16 presets in total). A separate impulse response of a guitar cabinet can be loaded into each preset. The module's software allows you to implement effects and functions:

• [NG] — Noise Gate;
• [CM] — Compressor;
• [PR] — Preamp (clean channel);
• [PA] — Power Amp — emulates the sound of one of 15 tube guitar power amplifiers:

  • 01. PP 6L6 — Typical Push-Pull Power Amplifier w/ 6L6 Tubes
  • 02. PP EL34 — Typical Push-Pull Power Amplifier w/ EL34 Tubes
  • 03. SE 6L6 — Typical Single-Ended Power Amplifier w/ 6L6 Tubes
  • 04. SE EL34 — Typical Single-Ended Power Amplifier w/ EL34 Tubes
  • 05. AMT TC-3 — Based on AMT Electronics® TubeCake TC-3®
  • 06. CALIF (California) — Based on Mesa/Boogie® Dual Rectifier®
  • 07. BRIT M (British M) — Based on Marshall® JCM-800®
  • 08. BRIT L (British L) — Based on Laney® LC50 II 112 Combo®
  • 09. DEFAULT — (Linear Frequency Response)
  • 10. CALIF MOD —Based on Mesa/Boogie®
  • 11. CALIF VINT — Based on Mesa/Boogie®
  • 12. PVH 01 — Based on Peavey 6505® (with settings: Presence=0, Resonance=0)
  • 13. PVH 02 — Based on Peavey 6505® (with settings: Presence=5, Resonance=5)
  • 14. PVH 03 — Based on Peavey 6505® (with settings: Presence=8, Resonance=7)
  • 15. PVH 04 — Based on Peavey 6505® (with settings: Presence=9, Resonance=8)

• [IR] — Impulse Response;

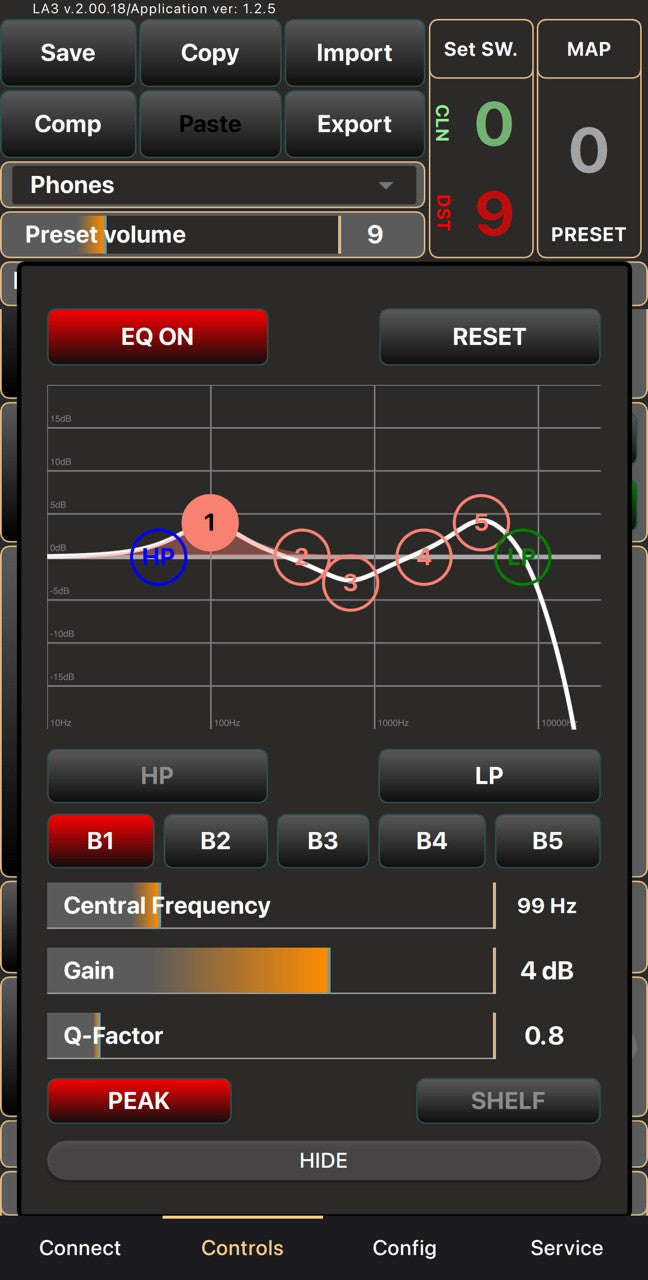

• [EQ1 + LPF&HPF] — Equalizer 1 (the first 5-band parametric equalizer in the chain with a full-fledged graphical implementation of LPF and HPF filters);
• [EQ2 + LPF&HPF] — Equalizer 2 (an additional 5-band parametric equalizer in the circuit with a full-fledged graphical implementation of LPF and HPF filters);
• [TR] — Tremolo;
• [CH] — Chorus;
• [PH] — Phaser;
• [DL] — Delay;
• [ER] — Early Reflections (mono / stereo modes);
• [PV] — Preset volume.

All these functions are configured and executed for each preset separately.

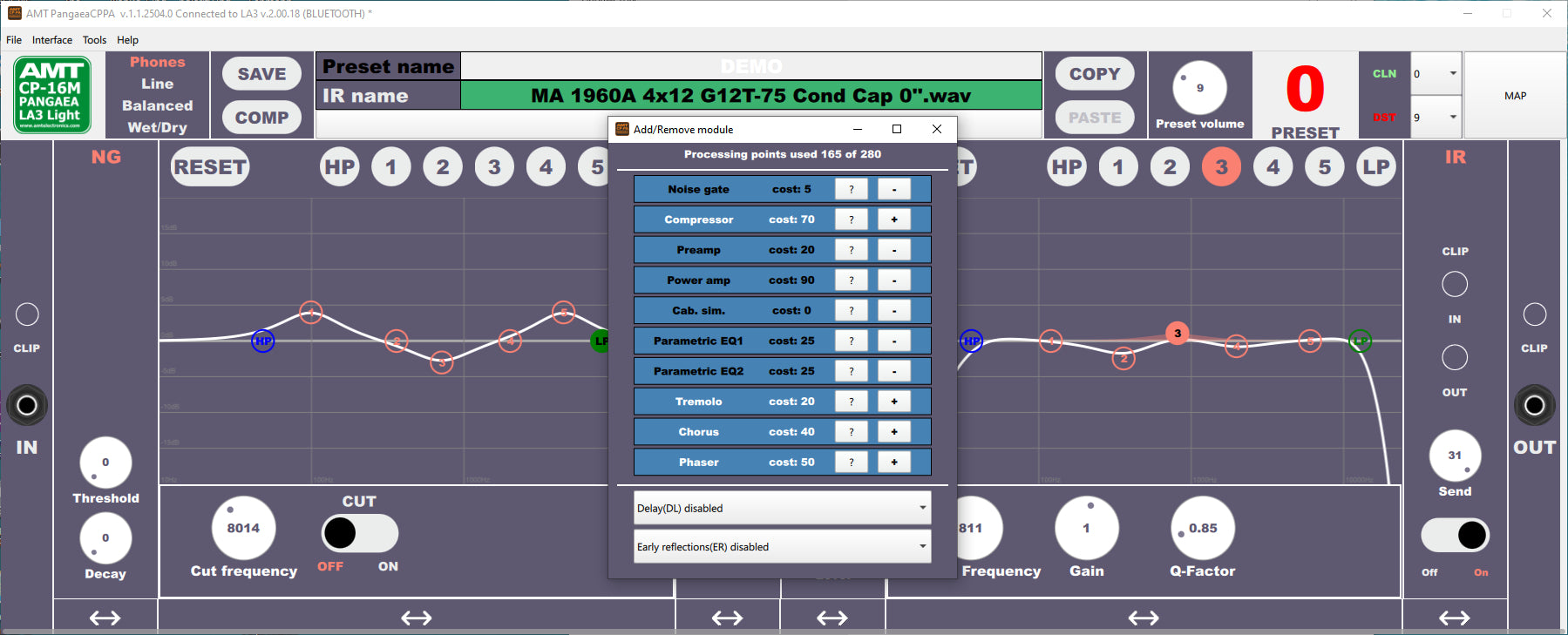

 NOTE!  The Application (both Mobile & Desktop) gives the ability to drag existing effect blocks to any place in the guitar signal formation chain.

► TECHNICAL PARAMETERS

• IR file’s type: WAV, 24-bit / 48 kHz, mono
• Latency: 1.2 msec
• IR file truncation: 20.5 msec (984 Samples)
• Supply voltage: 5/9/12V DC
• Consumption current:
  • 5V DC → 135mA
  • 9V DC → 80mA
  • 12V DC → 65mA

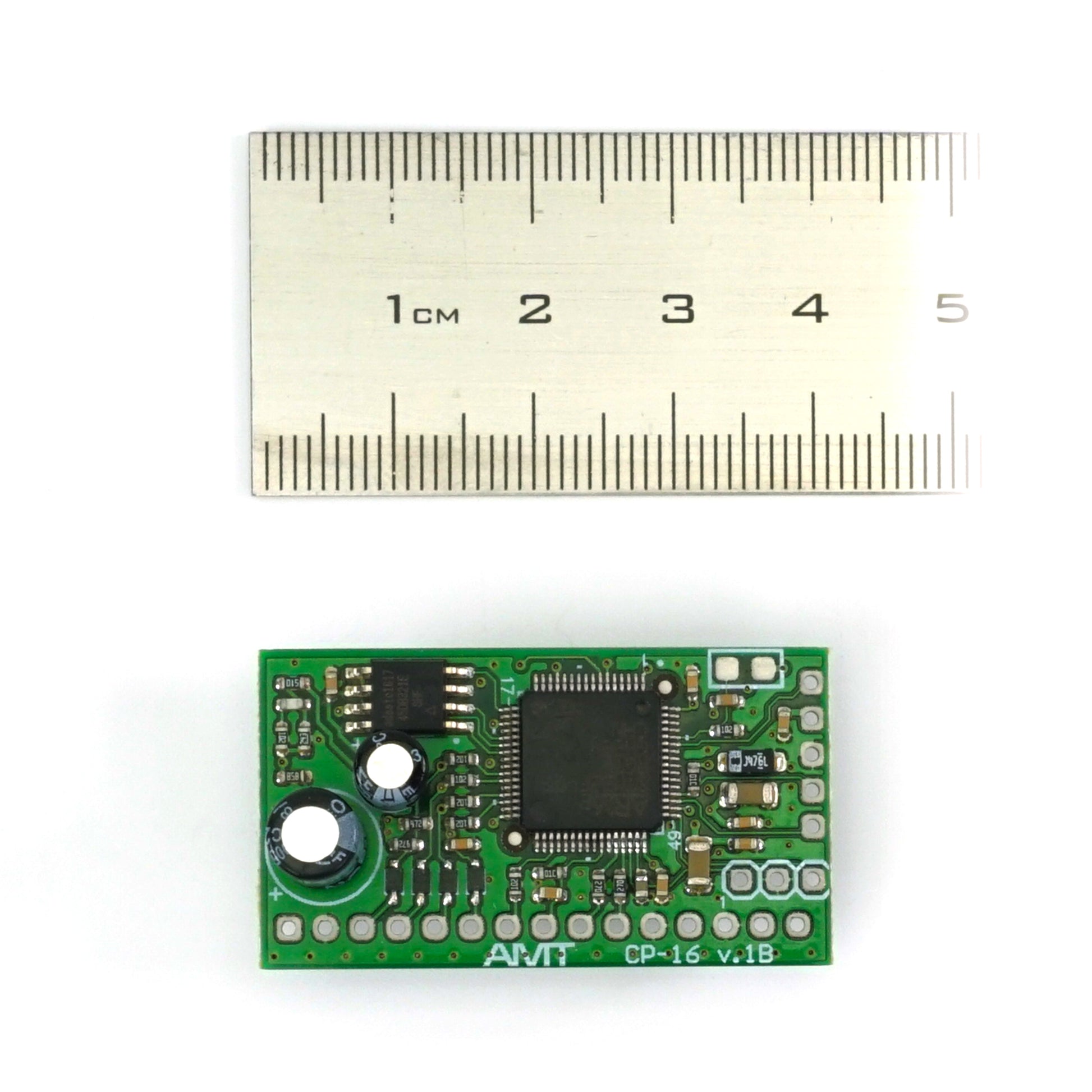

• Dimensions: 40 mm x 22 mm x 12 mm
• Weight: ~10 g

► USER'S GUIDE

All other necessary information about the CP-16M module (Apps, Firmware, User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-pangaea-cp-16-module/

 DOWNLOAD FREE IRs

• → For electric guitar
• → For the bass
