AMT Pangaea ELEMENT CP-16E (CP16A-6F22 + BLE-1) (plug-in module)

ABOUT THE PRODUCT

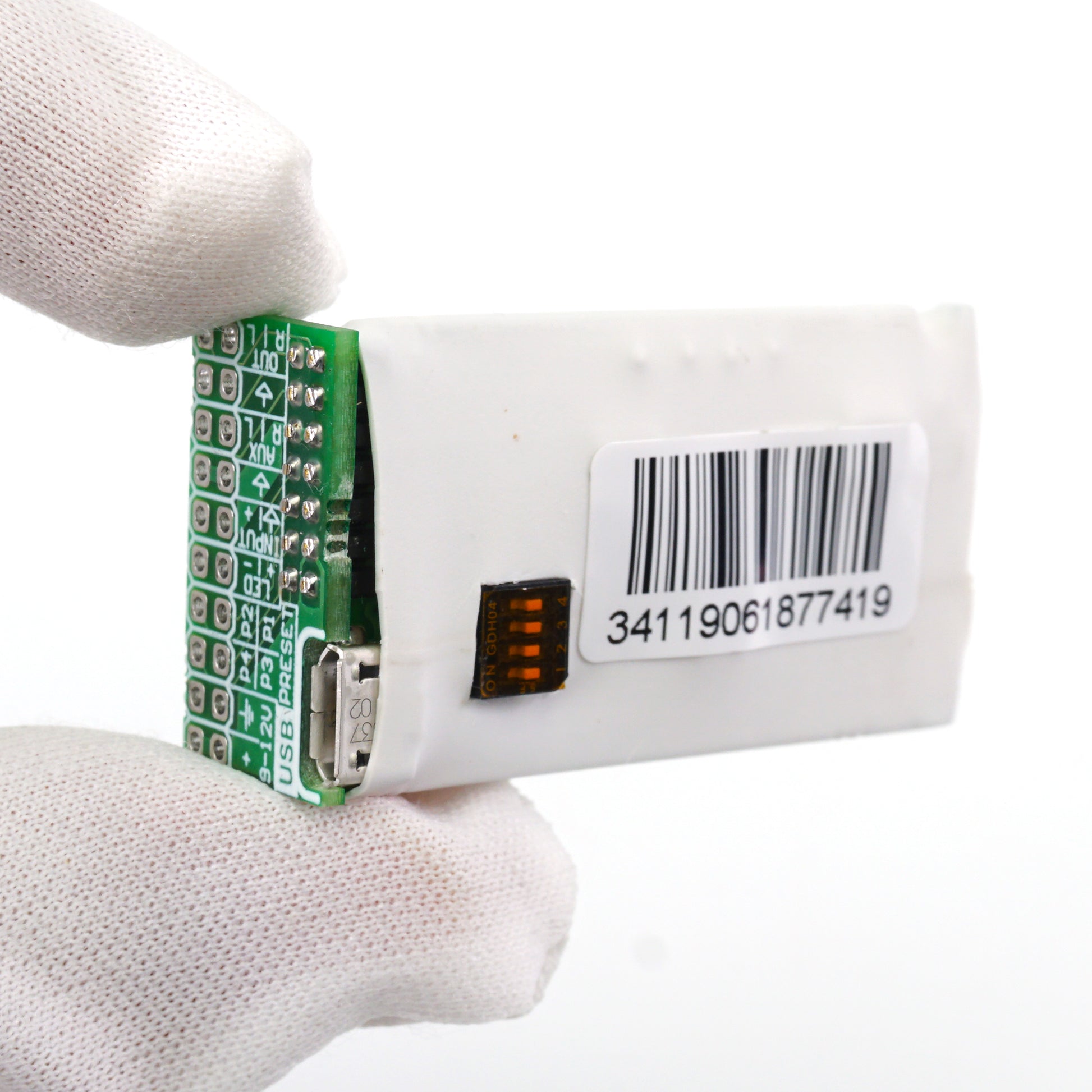

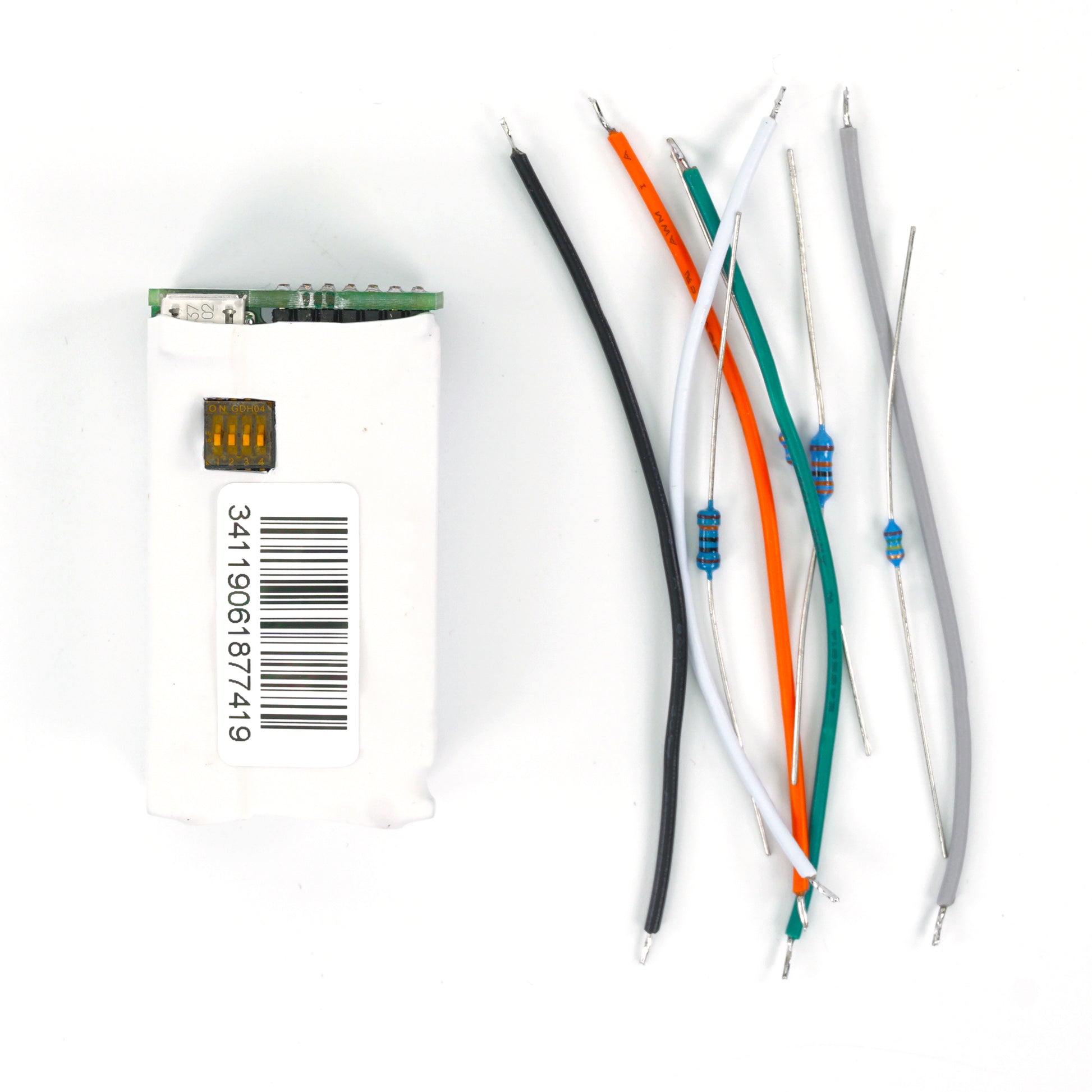

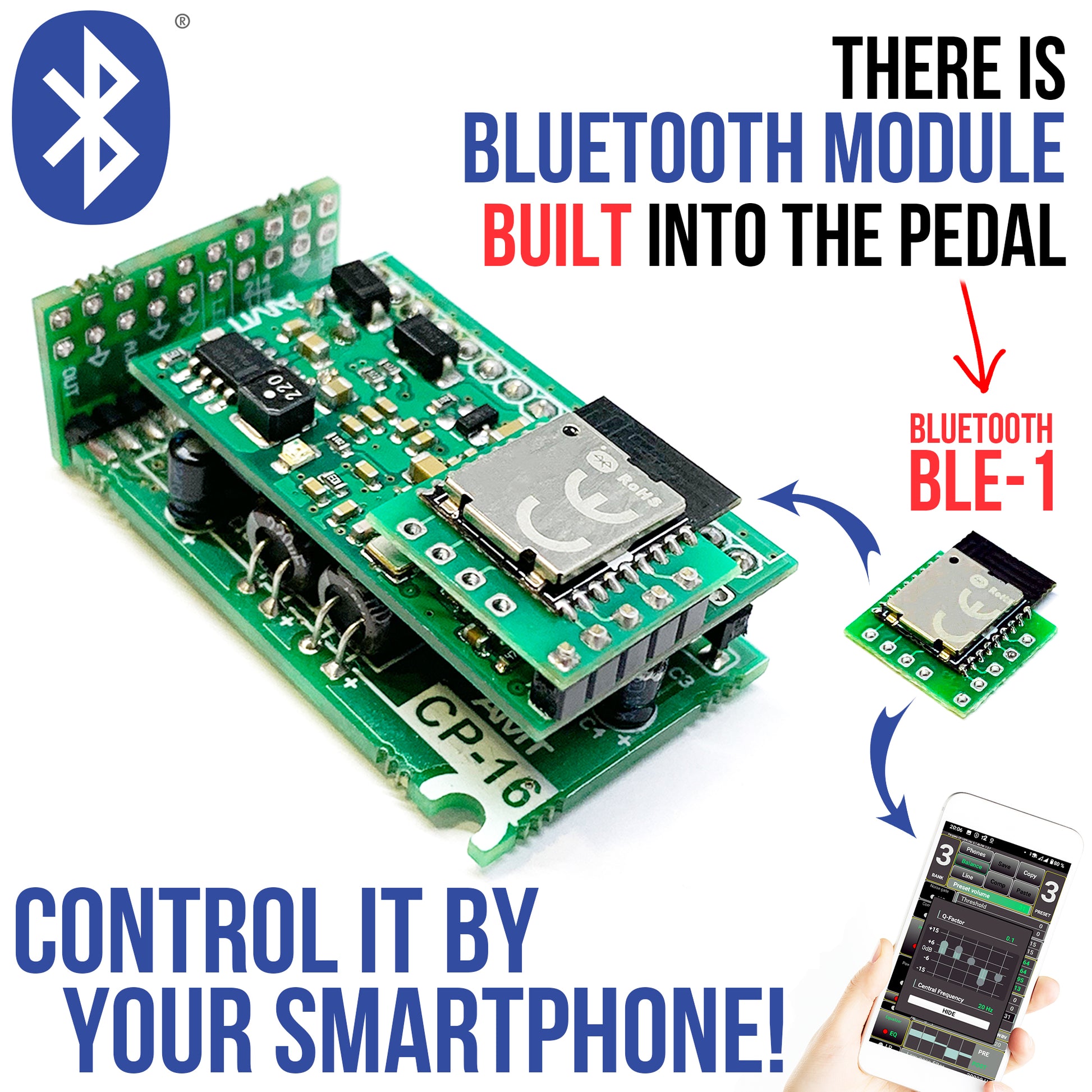

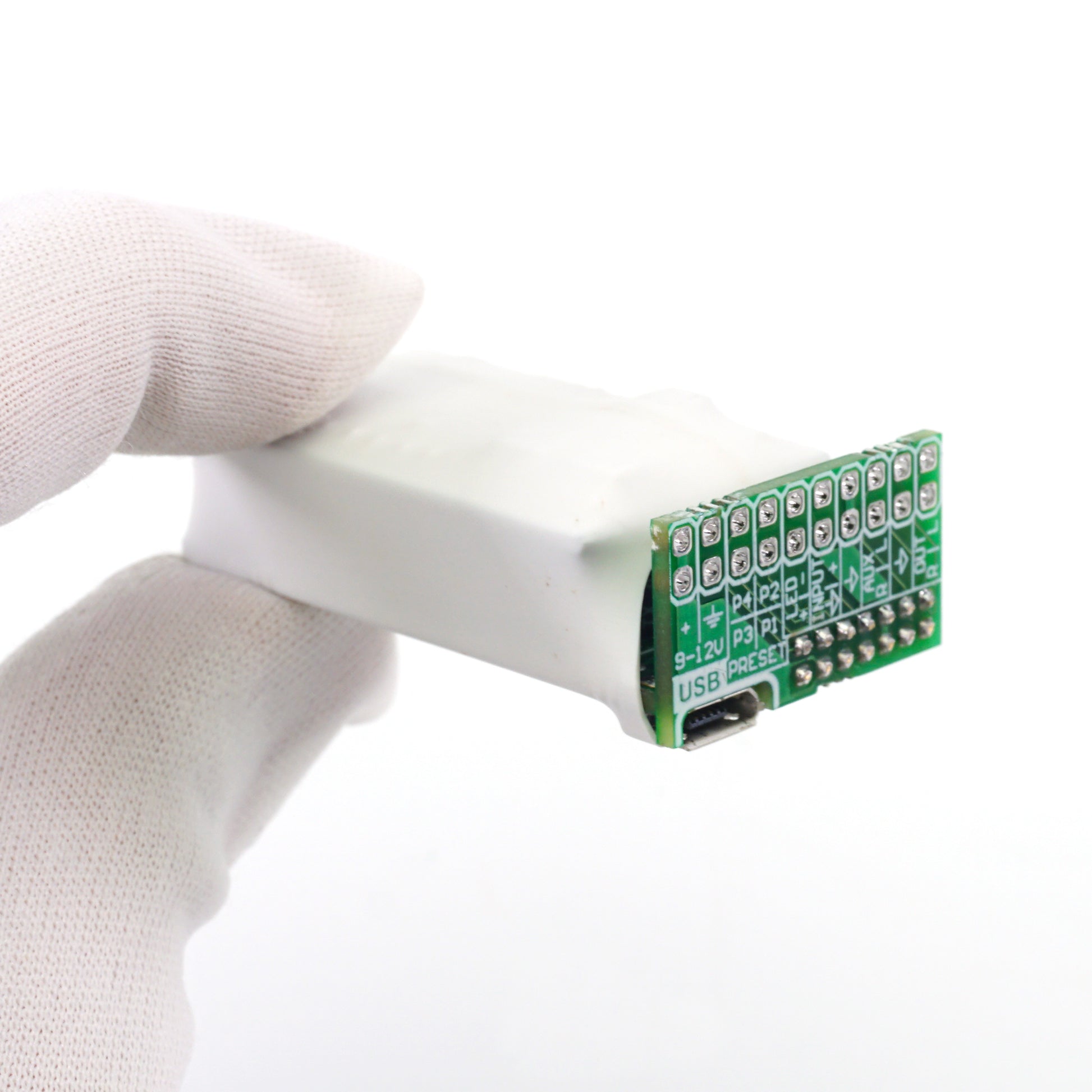

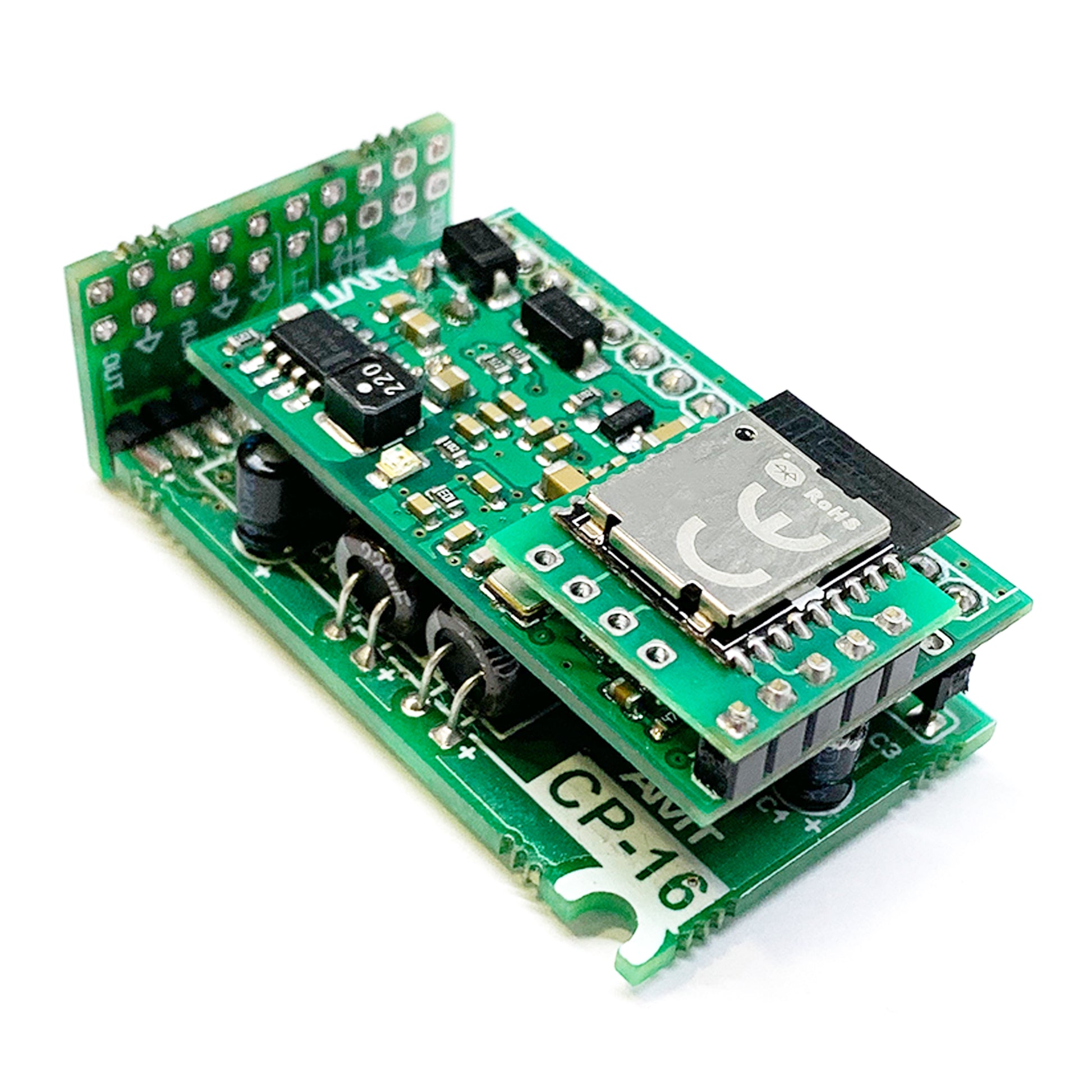

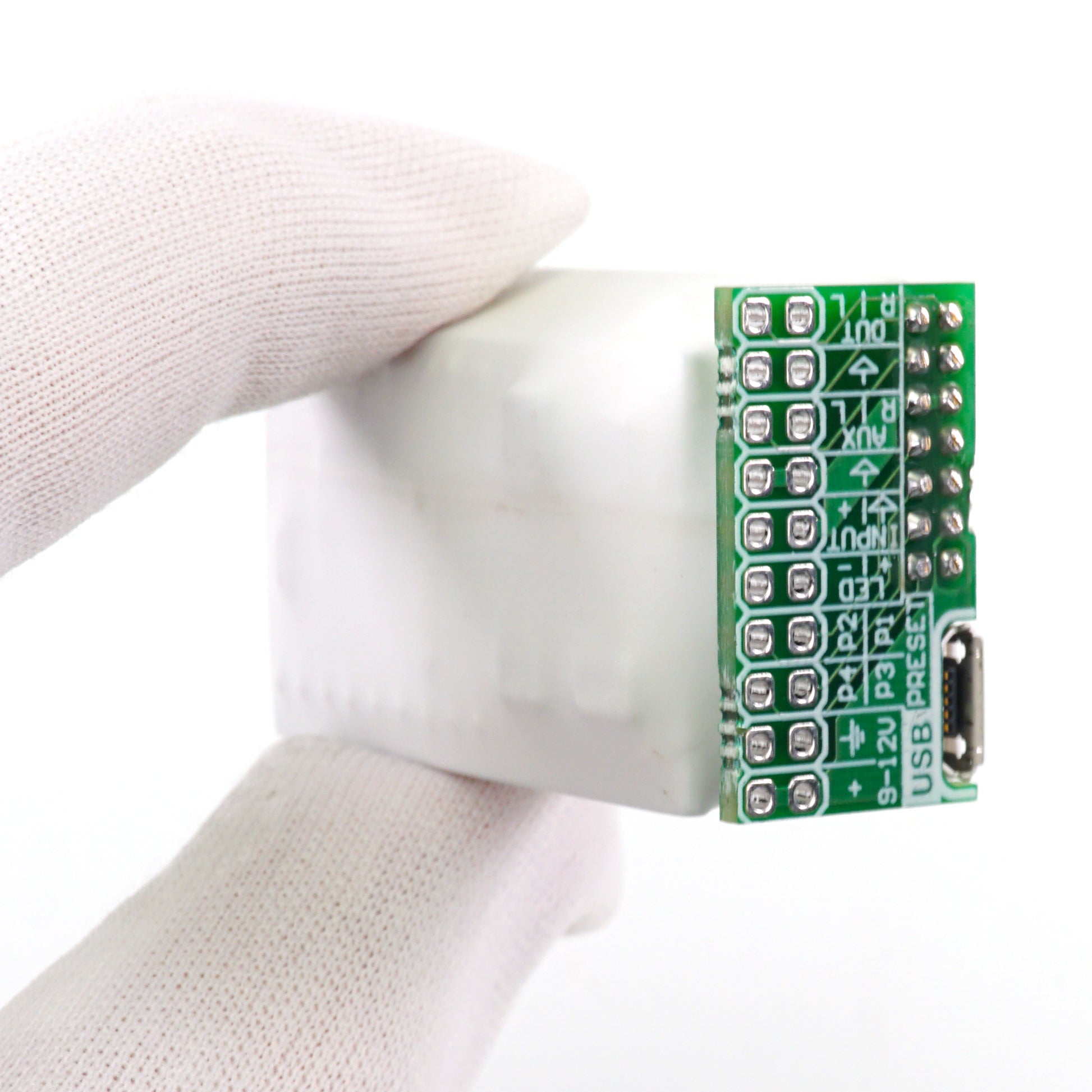

The AMT Pangaea ELEMENT CP-16E is a plug-in module made in the form factor of the 6F22 battery (9v). The module has in its composition serially produced by our company digital audio signal processing module AMT Pangaea CP-16M with a special mini board of input/output analog interfaces plus AMT BLE-1 Bluetooth module on a board!

Due to its small size and functional completeness, the CP-16E module can be easily integrated both into newly developed guitar devices (power amplifiers, preamplifiers, guitar effects, load boxes, etc.) and into any already operated similar devices.

For example, the module can be easily installed in the battery compartment of pre-amplifiers and drive pedals produced by AMT Electronics or other manufacturers.

► FEATURES

• AMT Pangaea ELEMENT CP-16E module lets you emulate any Guitar Cabinet sounding by loading appropriate Guitar Cabinets’ Impulse Responses (IRs). A great amount of different IRs you can easily find on the Internet (both paid and free).
• You can load up to 16 different Guitar Cabinets’ IRs in the module’s memory and choose the desired one at the right moment.
• You can load IRs in the CP-16E memory and control their parameters via USB or Bluetooth interfaces.

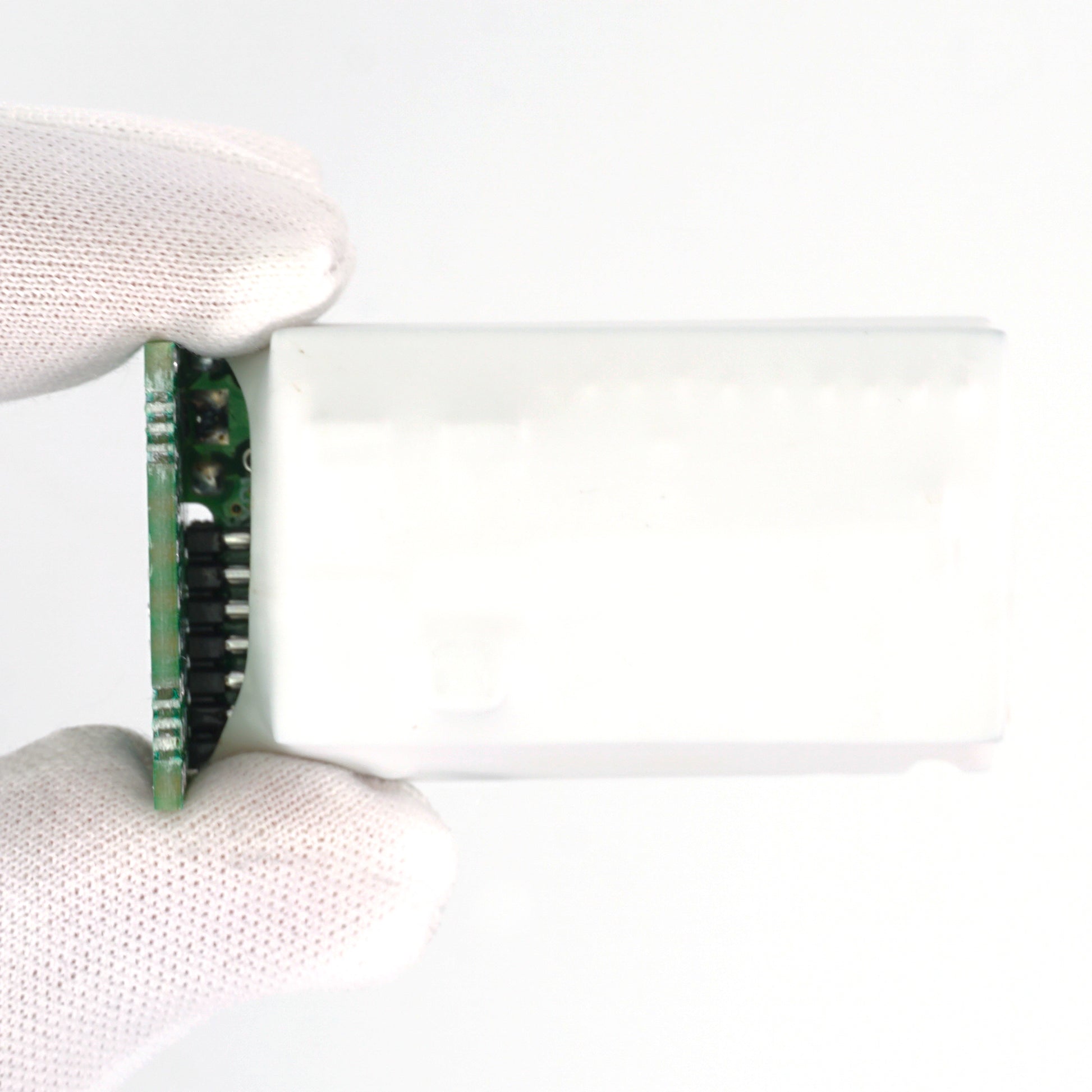

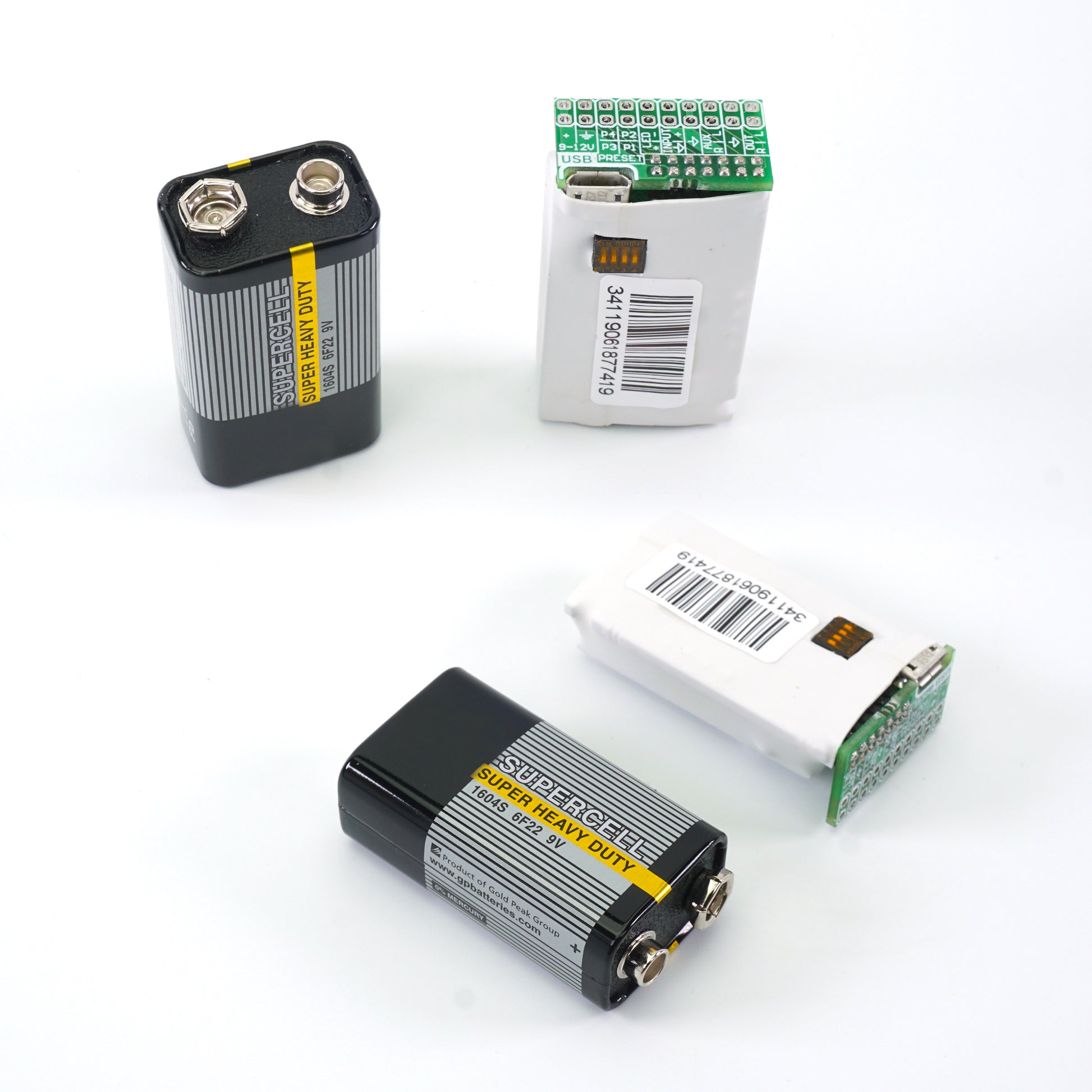

• The CP-16E module is so small that it can be integrated easily into any compact device where there is a place for the 9 volts standard 6F22 battery.

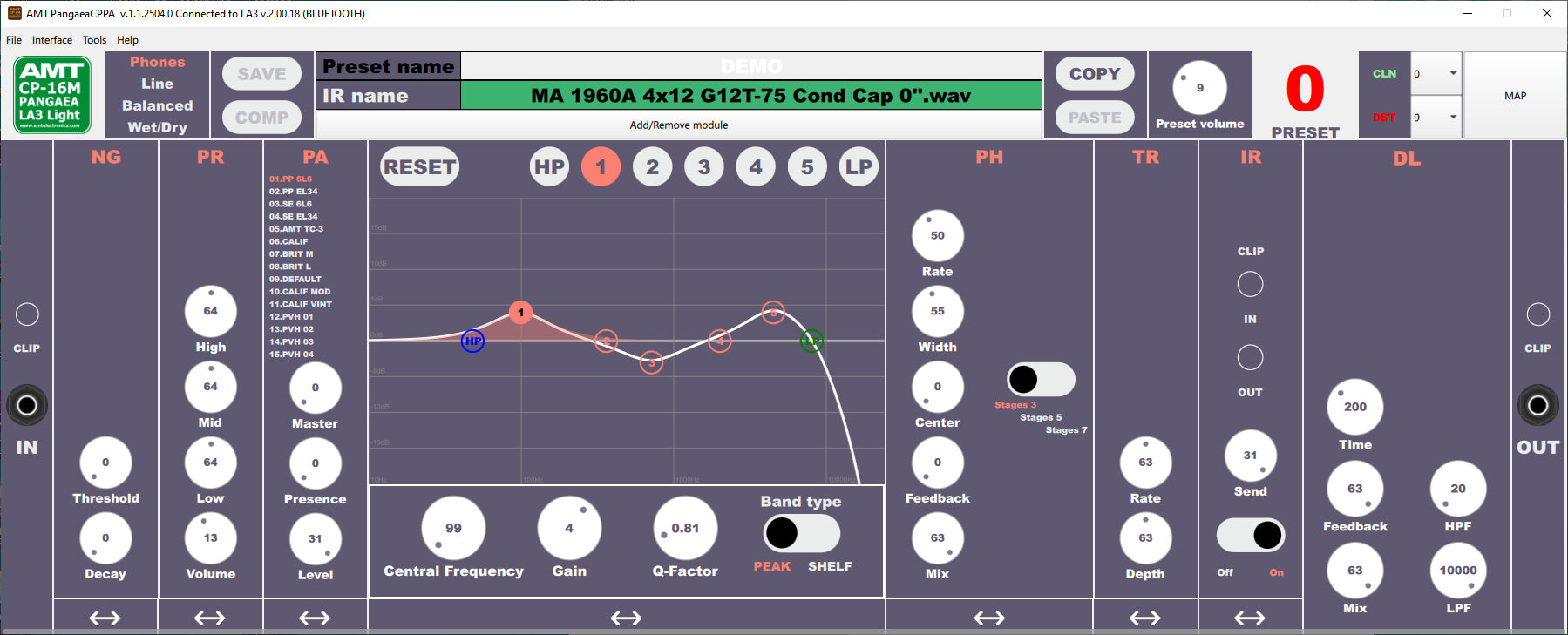

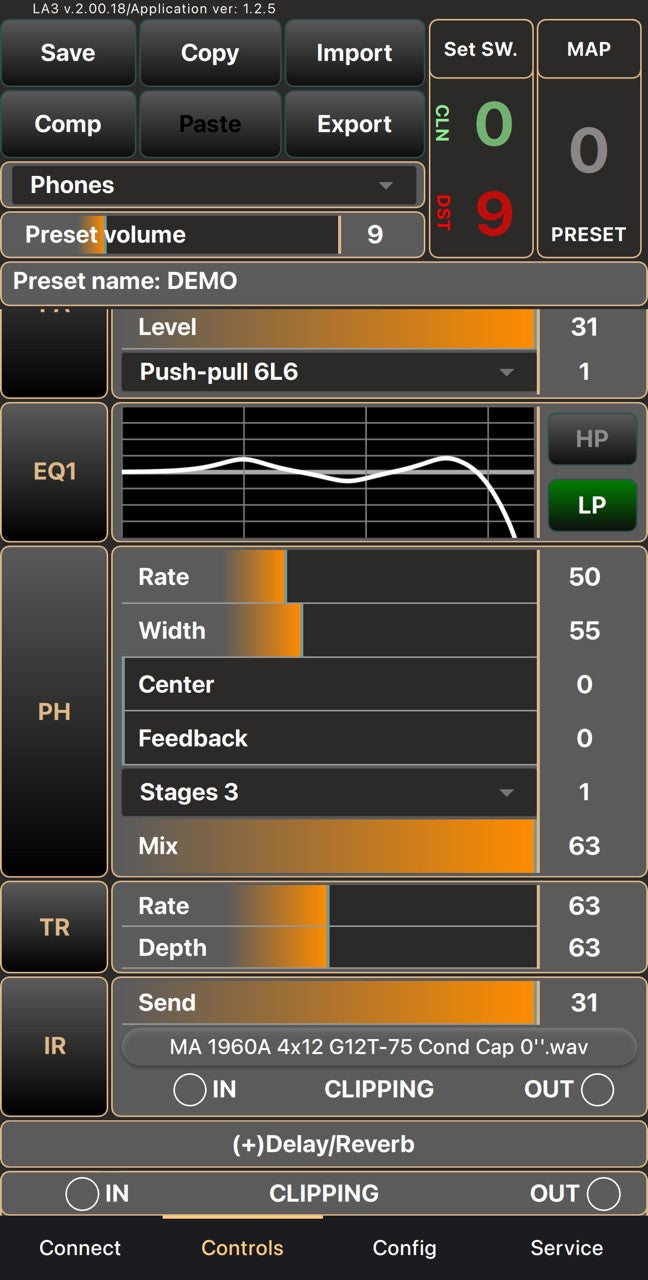

• There are Windows / macOS / Linux / Android / iOS Applications developed by AMT for controls all possible settings of the AMT Pangaea device via USB and Bluetooth as well. This App allows converting WAV IR's files to the Pangaea's required format «on the fly» (by «drag & drop» method).

► STRUCTURE & EFFECTS OF THE CP-16E

The user’s interface of the module is structured as 4 banks of 4 presets (16 presets in total). A separate impulse response of a guitar cabinet can be loaded into each preset. The module's software allows you to implement effects and functions:

• [NG] — Noise Gate;
• [CM] — Compressor;
• [PR] — Preamp (clean channel);
• [PA] — Power Amp — emulates the sound of one of 15 tube guitar power amplifiers:

  • 01. PP 6L6 — Typical Push-Pull Power Amplifier w/ 6L6 Tubes
  • 02. PP EL34 — Typical Push-Pull Power Amplifier w/ EL34 Tubes
  • 03. SE 6L6 — Typical Single-Ended Power Amplifier w/ 6L6 Tubes
  • 04. SE EL34 — Typical Single-Ended Power Amplifier w/ EL34 Tubes
  • 05. AMT TC-3 — Based on AMT Electronics® TubeCake TC-3®
  • 06. CALIF (California) — Based on Mesa/Boogie® Dual Rectifier®
  • 07. BRIT M (British M) — Based on Marshall® JCM-800®
  • 08. BRIT L (British L) — Based on Laney® LC50 II 112 Combo®
  • 09. DEFAULT — (Linear Frequency Response)
  • 10. CALIF MOD —Based on Mesa/Boogie®
  • 11. CALIF VINT — Based on Mesa/Boogie®
  • 12. PVH 01 — Based on Peavey 6505® (with settings: Presence=0, Resonance=0)
  • 13. PVH 02 — Based on Peavey 6505® (with settings: Presence=5, Resonance=5)
  • 14. PVH 03 — Based on Peavey 6505® (with settings: Presence=8, Resonance=7)
  • 15. PVH 04 — Based on Peavey 6505® (with settings: Presence=9, Resonance=8)

• [IR] — Impulse Response;
• [EQ1 + LPF&HPF] — Equalizer 1 (the first 5-band parametric equalizer in the chain with a full-fledged graphical implementation of LPF and HPF filters);
• [EQ2 + LPF&HPF] — Equalizer 2 (an additional 5-band parametric equalizer in the circuit with a full-fledged graphical implementation of LPF and HPF filters);
• [TR] — Tremolo;
• [CH] — Chorus;
• [PH] — Phaser;
• [DL] — Delay;
• [ER] — Early Reflections (mono / stereo modes);
• [PV] — Preset volume.

All these functions are configured and executed for each preset separately.

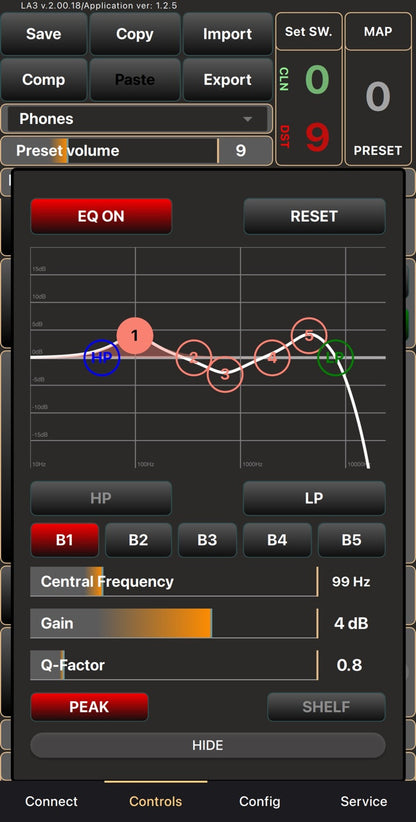

 NOTE!  The Application (both Mobile & Desktop) gives the ability to drag existing effect blocks to any place in the guitar signal formation chain.

► TECHNICAL PARAMETERS

• IR file’s type: WAV, 24-bit / 48 kHz, mono
• Latency: 1.2 msec
• IR file truncation: 20.5 msec (984 Samples)
• Supply voltage: 9-18V DC (18V DC max!)

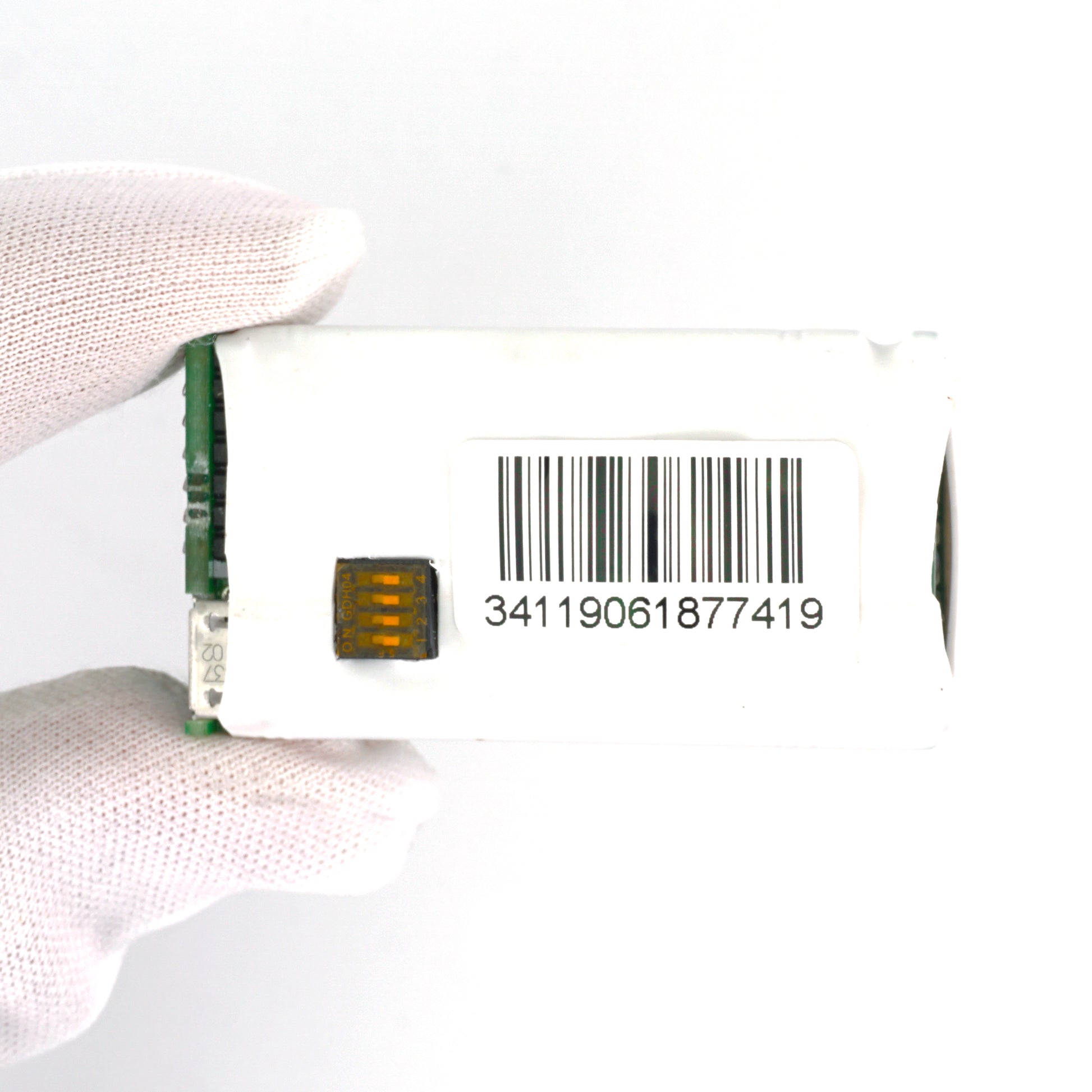

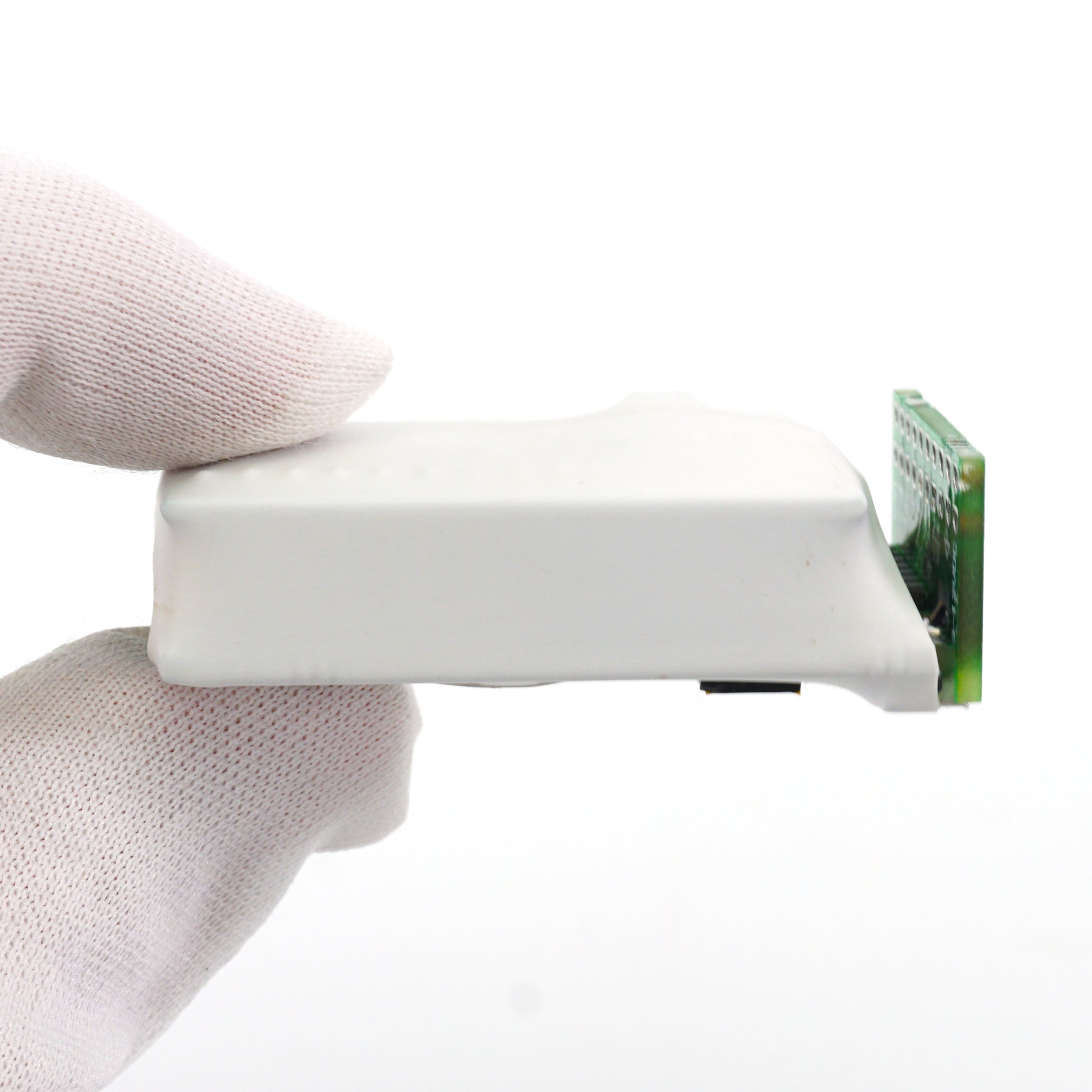

• Dimensions: 50 mm x 25 mm x 18 mm
• Weight: 22 g

► USER'S GUIDE

All other necessary information about the CP-16E module (Apps, Firmware, User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-pangaea-cp-16a-6f22/ *

*  IMPORTANT NOTE!  There is a link to the materials of the module CP16A-6F22 at the moment. Meanwhile, the only difference between the CP-16E and the CP16A-6F22 is just the Bluetooth module on a board of the CP-16E. As for the rest, information there is a maximum similar and applicable both to the CP16A-6F22 and CP-16E as well.

 DOWNLOAD FREE IRs

• → For electric guitar
• → For the bass

💡 FOR THIS MODULE, YOU MAY NEED TO PURCHASE

Noiseless power supply is purchased separately (you can choose):
