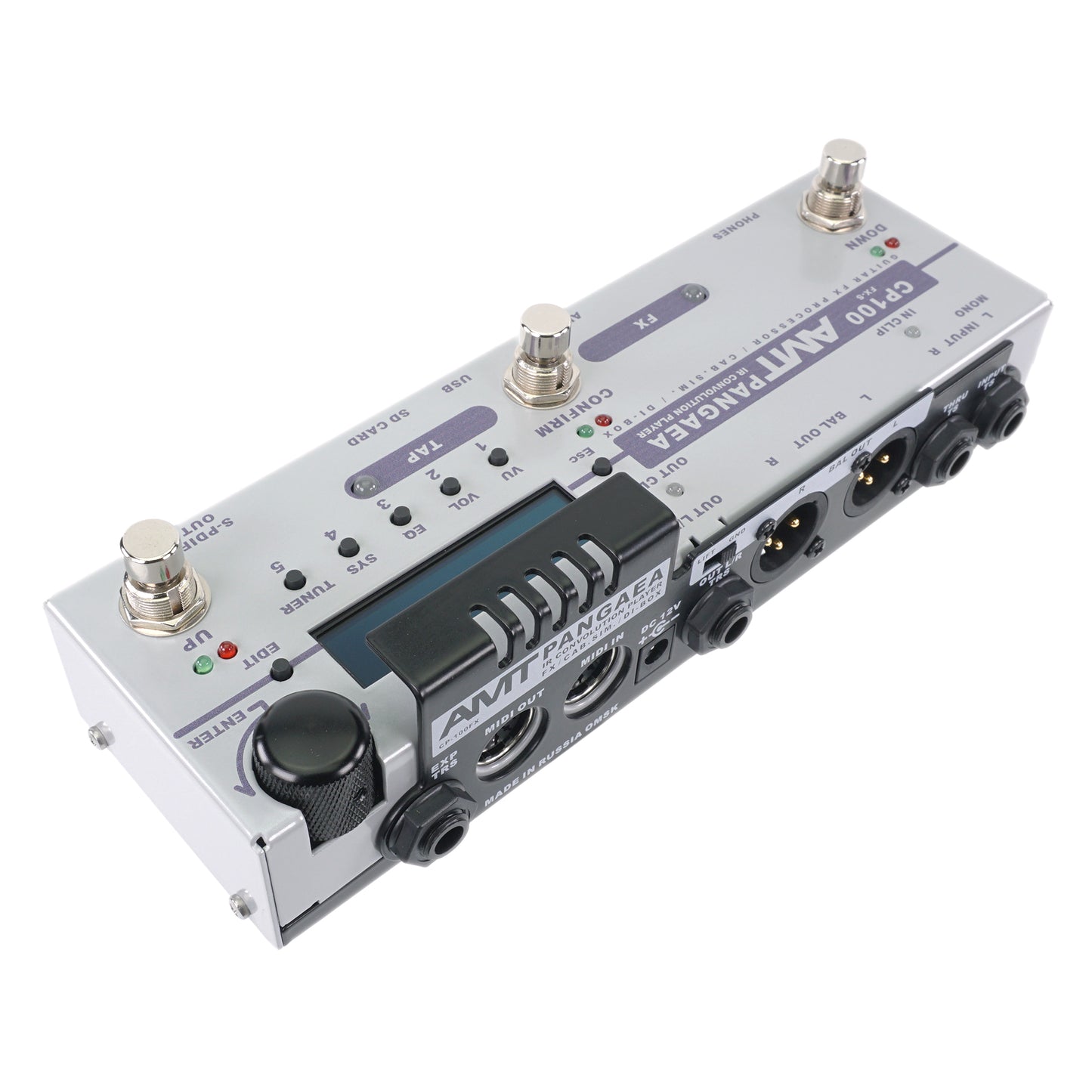

AMT Pangaea CP-100FX-S (stereo) - IR Convolution Player & Effect processor (+ power supply 12V with EU plug included!)

INTRODUCTION

With the help of the AMT PANGAEA CP-100FX-S, you will be able to create a high-quality sound emulation of any guitar cabinet by loading appropriate WAV Impulse Responses (IRs) of guitar cabinets.

It is possible to store up to 99 presets into the internal memory of this device with different IRs together with built-in guitar effects processor.

The AMT PANGAEA CP-100FX-S is not just an impulse guitar cabinet emulator integrated with an effects' processor: the CP-100FX-S is a flexibly adjustable tool both for professional actively touring guitar players and also for those who are just starting their creative career.

► WHAT'S THE DIFFERENCE BETWEEN CP-100FX-S AND CP-100FX?

• The CP-100FX-S is the full stereo version of the device with LEFT and RIGHT both input channels (while the CP-100FX has just the only one mono input).

• The CP-100FX-S device has no attenuator, as this device designed to work together with your board pedals. It means you can’t connect the CP-100FX-S directly to a power amplifier (for these tasks there is the AMT PANGAEA CP-100FX).
• The CP-100FX-S device has no any through output «THRU».
• Instead of the «THRU» output there is an additional input «R» (the «right channel») in the CP-100FX, which makes it possible to use the full stereo path of the device if external stereo devices are connected to the CP-100FX-S. In the meantime, when the signal is connected only to the «L» input, the device will operate in the «mono input → stereo output» mode.
• In other respects, the functionality of both the CP-100FX-S and the CP-100FX devices is similar.

► ABOUT THE PRODUCT

You can find a lot of different WAV IRs on the Web (both paid and free). In the CP-100FX-S internal memory, you may load up to 99 WAV IRs to use anyone you want when playing guitar.

When connecting CP-100FX-S to a computer via USB data cable (USB TYPE B → USB TYPE A), the device is seen on the computer as a regular USB Flash drive. Here you can update a firmware, presets, make a backup of all your CP-100FX-S, etc. — just like if you were working with a regular Flash Drive.

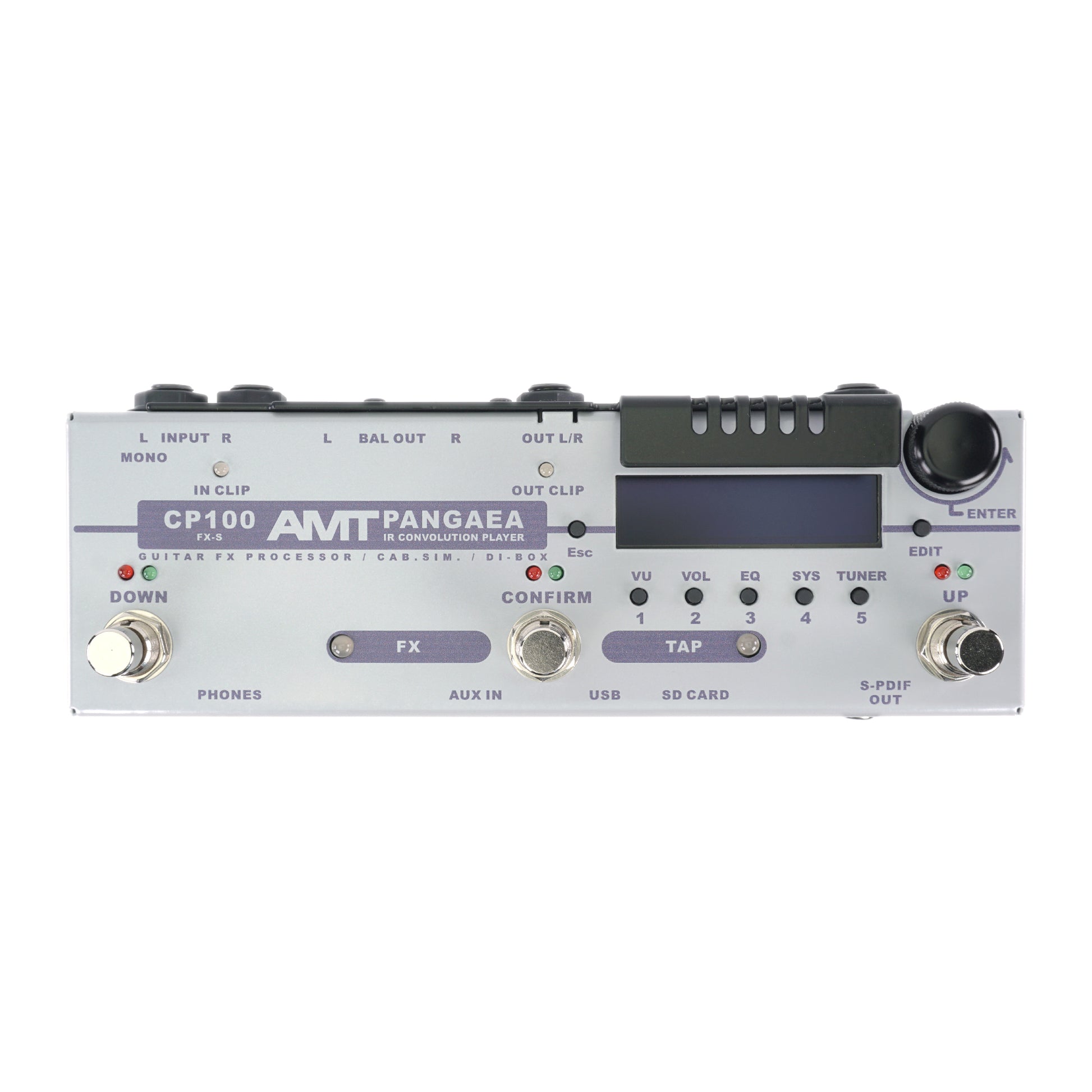

The logically predictable interface of the AMT PANGAEA CP-100FX-S, controllable with the help of an OLED display and knobs, makes this device's operation convenient and comfortable.

► THERE ARE TWO MAIN MODES OF OPERATION WITH IRS

• MODE 1: Loading of one mono WAV IR with the following parameters:
  • IR file’s type: WAV, 24-bit / 48 kHz, mono
  • IR file truncation: 170.75 ms (8192 samples)
  • Latency: 1.5 ms
• MODE 2: Separate loading of two mono WAV IRs with the same parameters as in MODE 1 adjustable for volume and pan:
  • IR file’s type: WAV, 24-bit / 48 kHz, mono
  • IR file truncation: 170.75 ms (8192 samples)
  • Latency: 1.8 ms


► MAIN FEATURES OF THE CP-100FX-S

• You can load up to 99 different Guitar Cabinets’ IRs in the device's memory and choose the desired one at the right moment.
• You can load IRs in the CP-100FX-S memory and control their parameters directly on its screen.
• You can send the signal directly from your preamp as well as from any drive pedal output into the CP-100FX-S input (selecting suitable WAV IR) and use headphones / mixer / sound card, etc.
• In the special CP-100FX-S input «AUX IN» you can put some external source of a sound signal (for example, an MP3 player / your smartphone) and play along with a phonogram selected by you. That's perfect for the independent practice!

► EFFECTS OF THE CP-100FX-S

• TUNER;
• MASTER EQ (with adjustable mid-frequency range of 20 — 20000 Hz);
• [RF] — Resonance Filter;
• [GT] — Noise Gate;
• [CM] — Compressor;
• [PR] — Preamp Simulator (clean channel);
• [PA] — Power Amp Simulator — emulates the sound of one of 15 tube guitar power amplifiers:

  • 01. PP 6L6 — Typical Push-Pull Power Amplifier w/ 6L6 Tubes
  • 02. PP EL34 — Typical Push-Pull Power Amplifier w/ EL34 Tubes
  • 03. SE 6L6 — Typical Single-Ended Power Amplifier w/ 6L6 Tubes
  • 04. SE EL34 — Typical Single-Ended Power Amplifier w/ EL34 Tubes
  • 05. AMT TC-3 — Based on AMT Electronics® TubeCake TC-3®
  • 06. CALIF (California) — Based on Mesa/Boogie® Dual Rectifier®
  • 07. BRIT M (British M) — Based on Marshall® JCM-800®
  • 08. BRIT L (British L) — Based on Laney® LC50 II 112 Combo®
  • 09. DEFAULT — (Linear Frequency Response)
  • 10. CALIF MOD —Based on Mesa/Boogie®
  • 11. CALIF VINT — Based on Mesa/Boogie®
  • 12. PVH 01 — Based on Peavey 6505® (with settings: Presence=0, Resonance=0)
  • 13. PVH 02 — Based on Peavey 6505® (with settings: Presence=5, Resonance=5)
  • 14. PVH 03 — Based on Peavey 6505® (with settings: Presence=8, Resonance=7)
  • 15. PVH 04 — Based on Peavey 6505® (with settings: Presence=9, Resonance=8)
• [IR] — Cabinet Simulator (Impulse Response);

• [EQ] — parametric equalizer;
• [PH] — Phaser;
• [FL] — Flanger;
• [CH] — Chorus;
• [DL] — Delay;
• [ER] — Early Reflections;
• [RV] — Reverb;
• [TR] — Tremolo;

All these functions are configured and executed for each preset separately.

► OTHER FEATURES

• Sereo input (Left & Right channels)
• Bypassing The Cabinet Simulator
• Dual Cabinet Mode
• 14 at the same time used effects
• Preset memory 99 user presets
• Up to 32 controllers for each of 99 presets
• A/D – D/A converters 24 bit
• Sampling frequency 48 kHz
• DSP block ADSP-21489 processor
• MIDI Interface
• MIDI Mapping
• Global Tempo

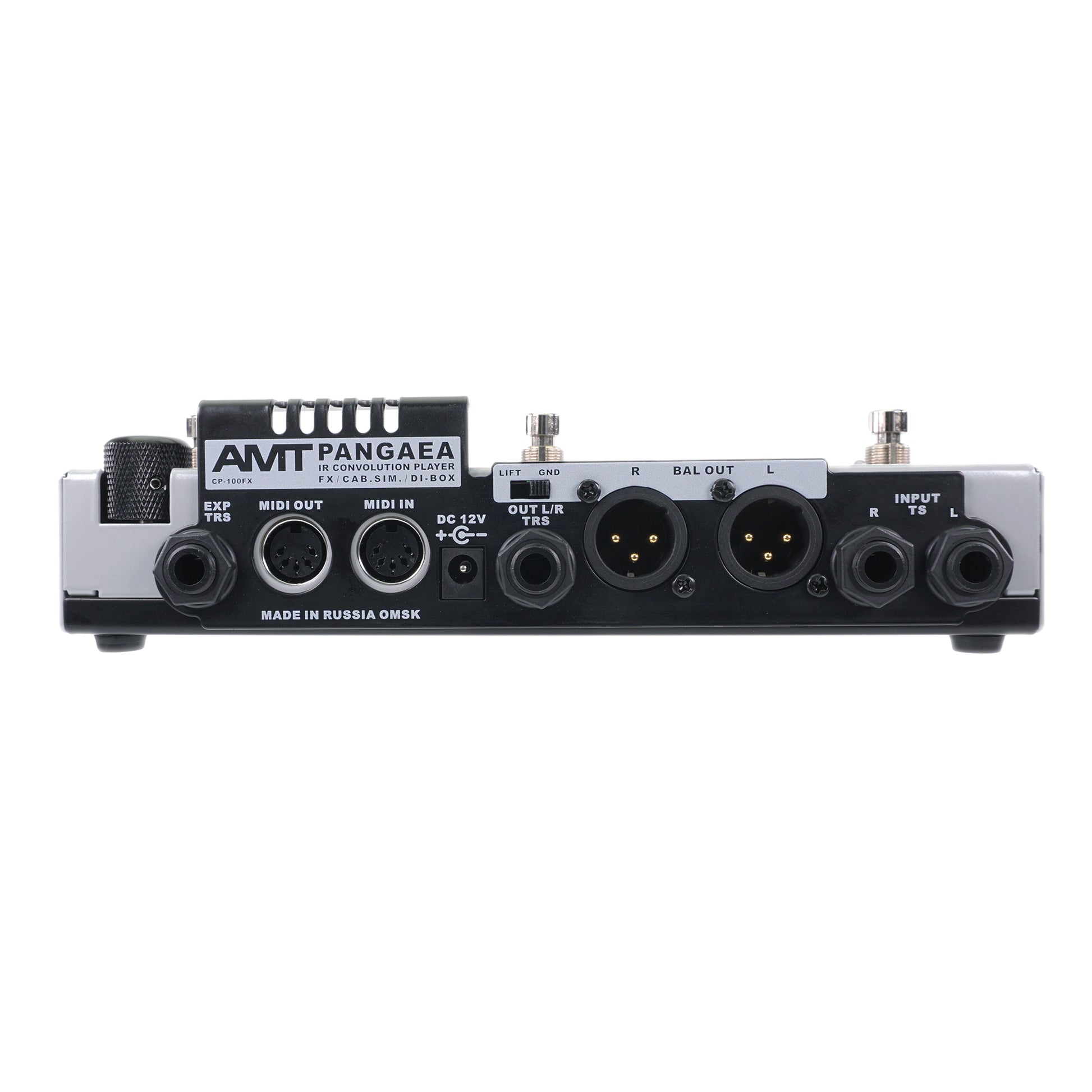

• Analog Outputs (XLR/TRS)
• Digital Output (S/PDIF)
• Headphones Output

► EXTRA FEATURES OF THE CP-100FX-S

• In the AMT PANGAEA CP-100FX-S all WAV IRs files are loaded from Micro SD card.
• The device has a built-in file browser, which allows to «walk around» your Micro SD card and listen to WAV IR sounds in real time. In the meantime, all WAV IRs files are stored on the device's internal memory, in a particular preset — including settings for FX effects.
• Every preset has 32 controllers. So you can designate 32 key parameters (loudness, modulation rate, on/off parameters, etc.), which can be configured for any MIDI controller (or for an external expression pedal, for which there is a plug connector). Therefore, you have a possibility to control 32 parameters in a single preset in real time.
• The expression pedal can be calibrated.
• The CP-100FX-S has a master volume and a three-band master equalizer, for volume and tone corrections in each particular case. The master equalizer can be switched off.
• On the side panel, there is a S/PDIF output connector with two choices of output signal — master output or dry output (direct output from ADC).

► TECHNICAL PARAMETERS

• IR file’s type: WAV, 24-bit / 48 kHz, mono
• Latency: 1.5~1.8 msec
• IR file truncation: 170.75 ms (8192 samples)
• Supply voltage: 12V DC
• Consumption current: 230 mA
• Dimensions: 214 mm x 77 mm x 59 mm
• Weight: 687 g
• The power supply 12V DC with EU plug are included!

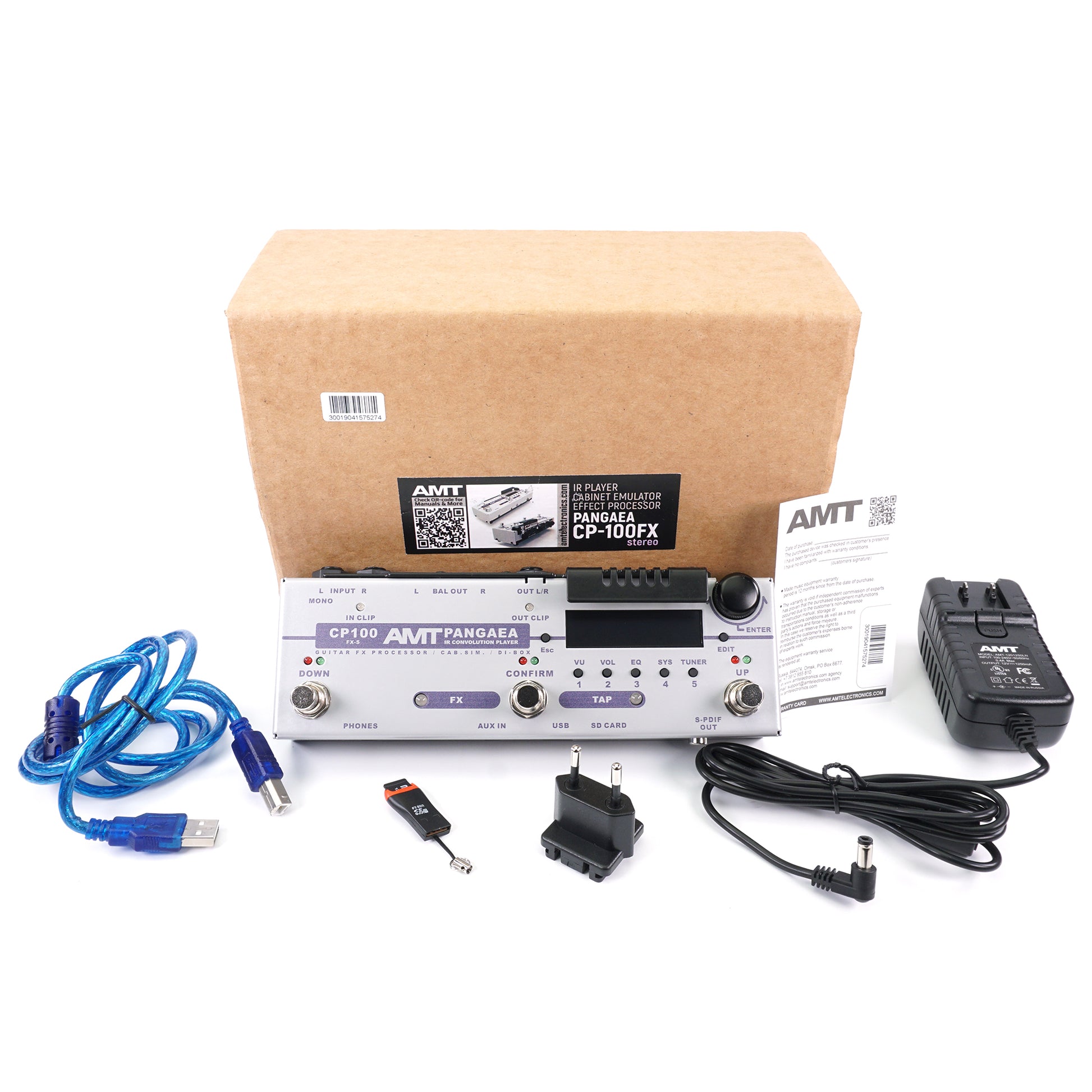

► PACKAGE CONTENTS

• AMT PANGAEA CP-100FX-S;
• Power Supply: AMT DC 12V, 1.25А AC/DC [AC ~100-240V; 50/60Hz];
• Battery Power: not provided
• Micro SD memory card;
• USB 2.0 cable (USB TYPE B → USB TYPE A);
• Warranty card;
• Packing box.

► USER'S GUIDE

All other necessary information about the CP-100FX-S (Firmware, User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-pangaea-cp-100fx-stereo/

 DOWNLOAD FREE IRs

• → For electric guitar
• → For the bass
