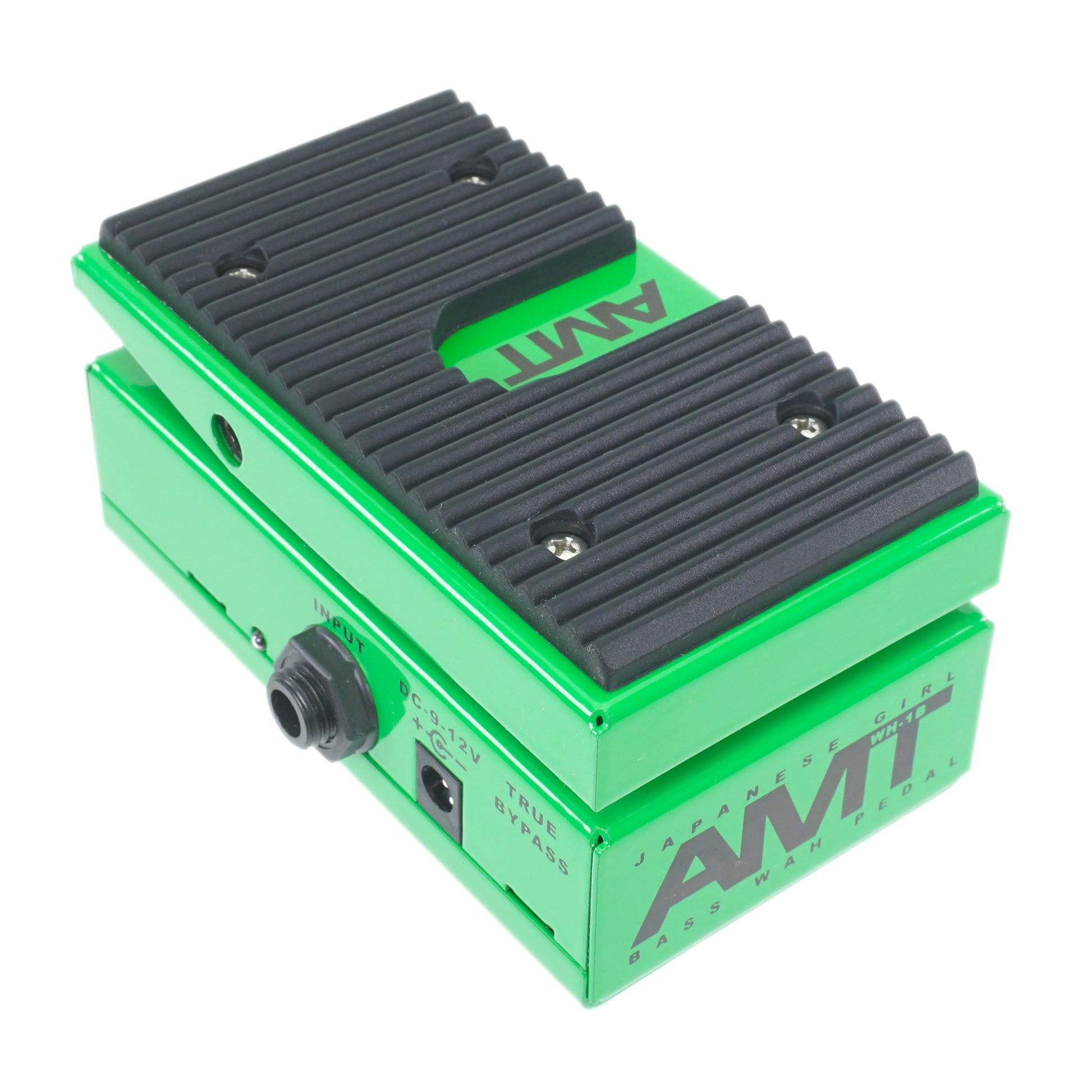

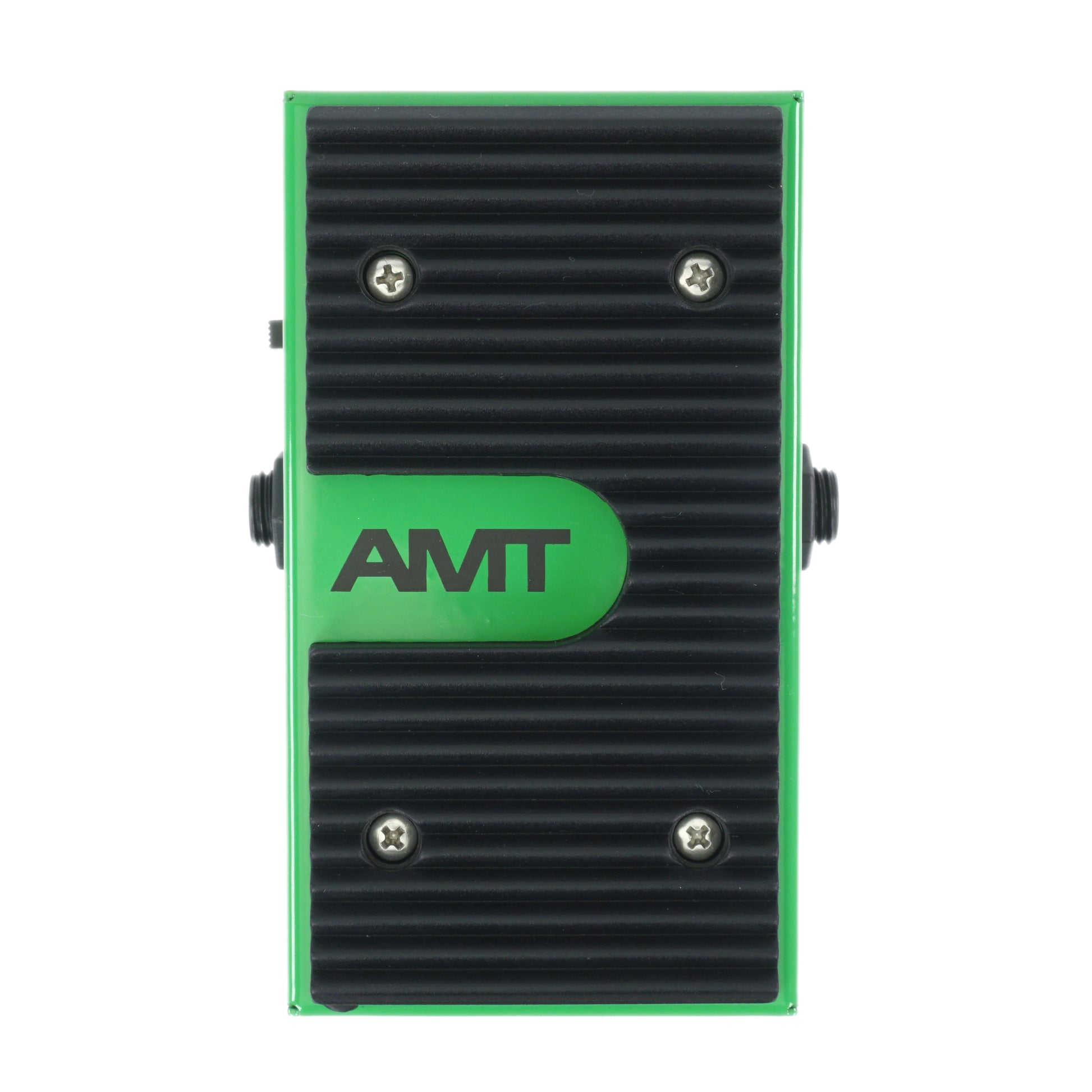

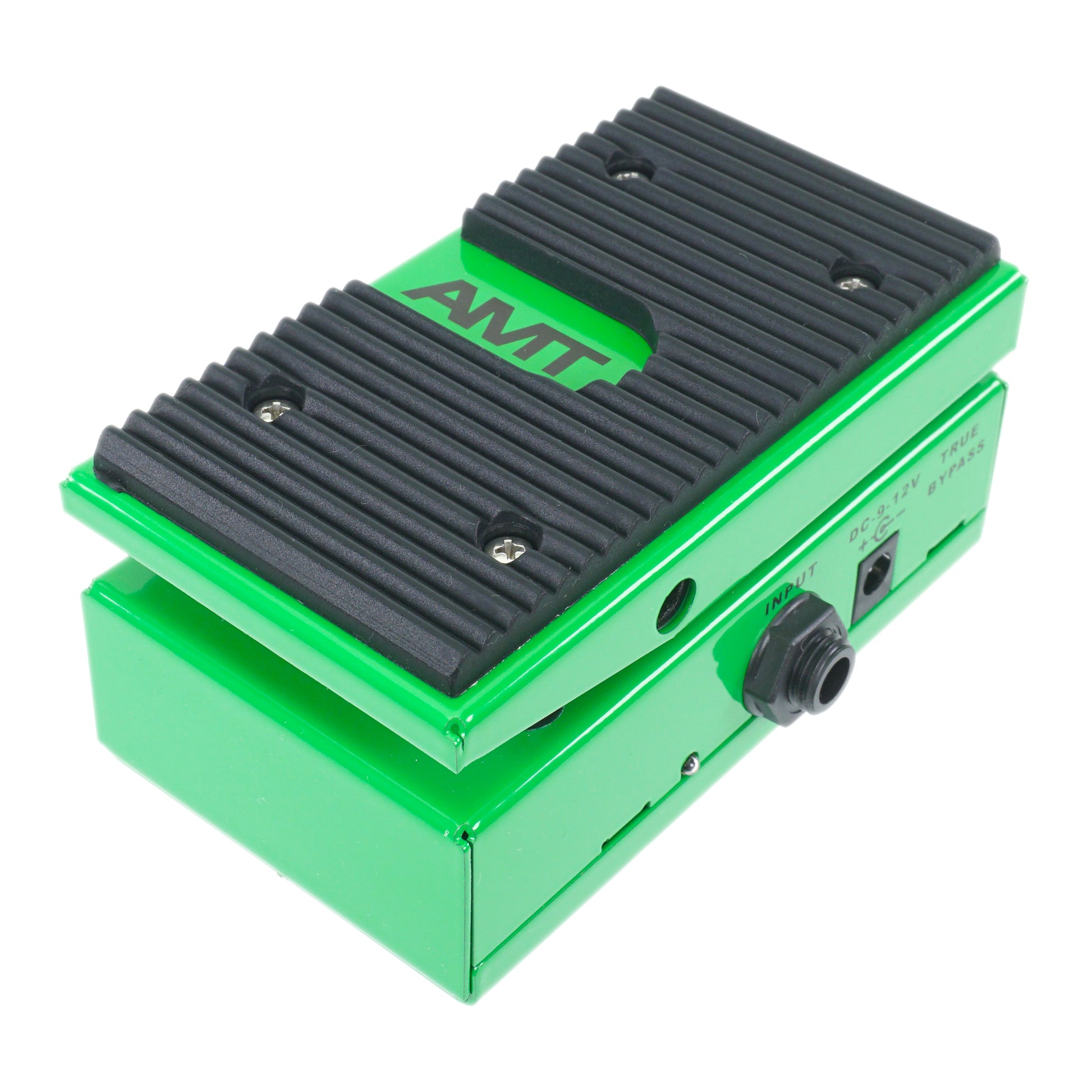

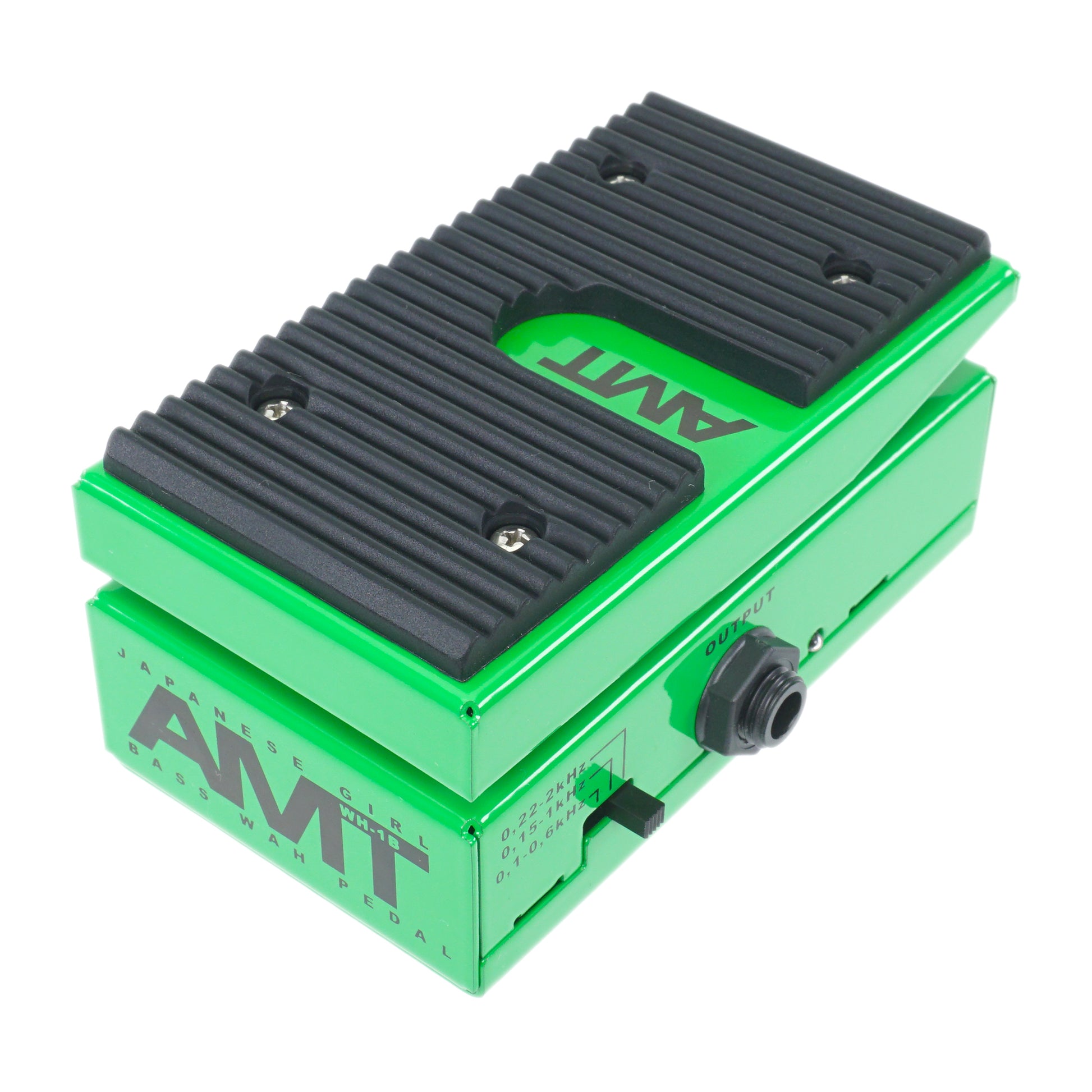

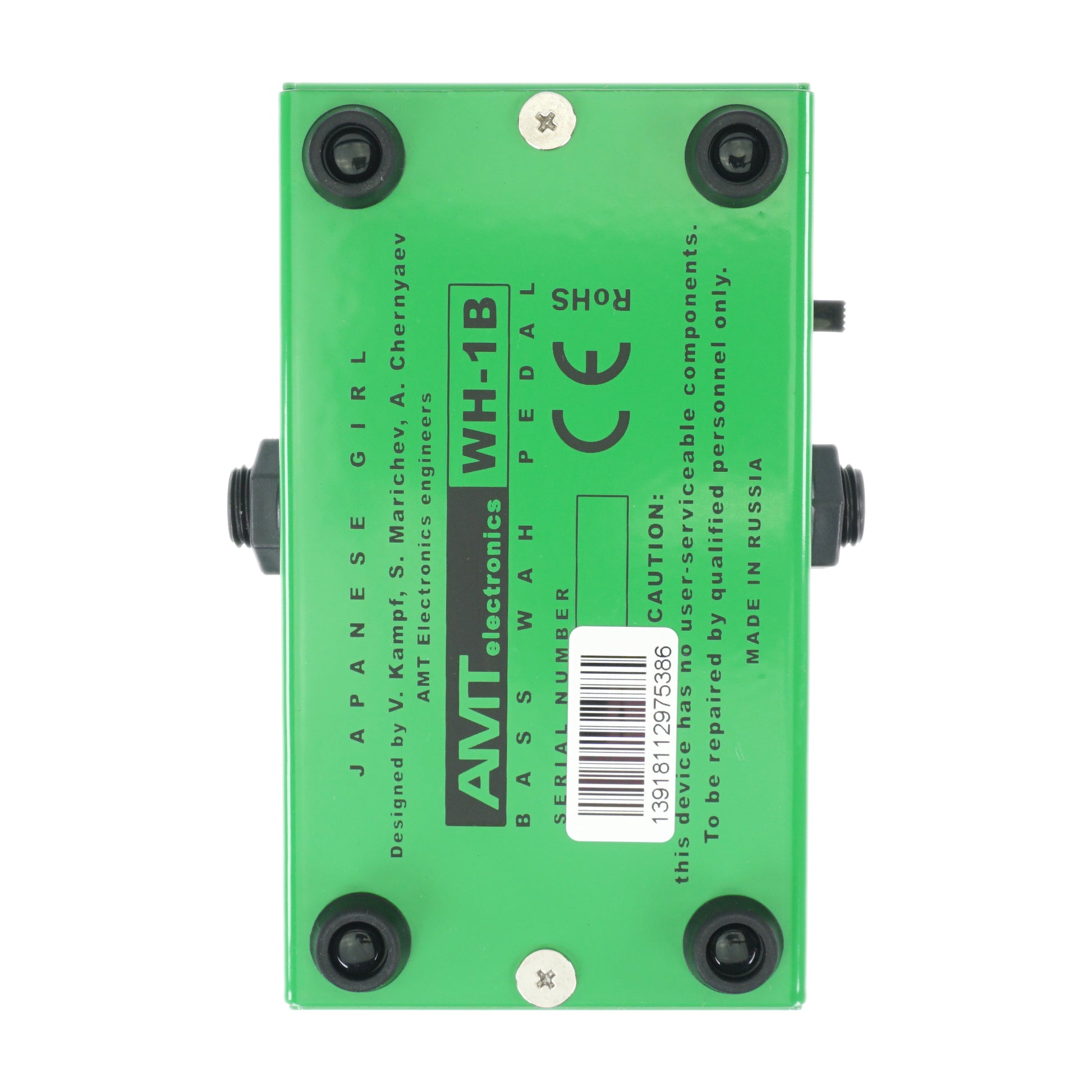

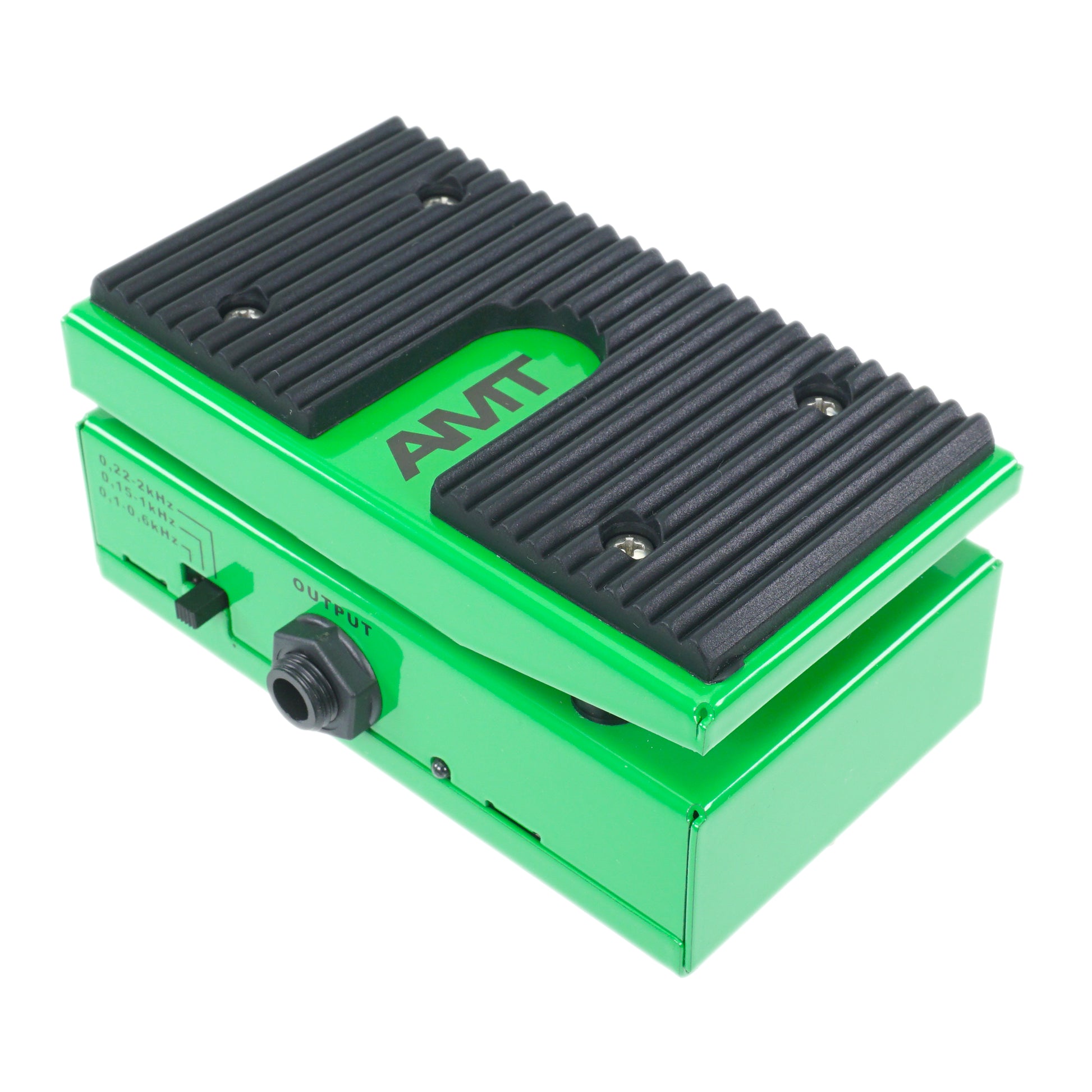

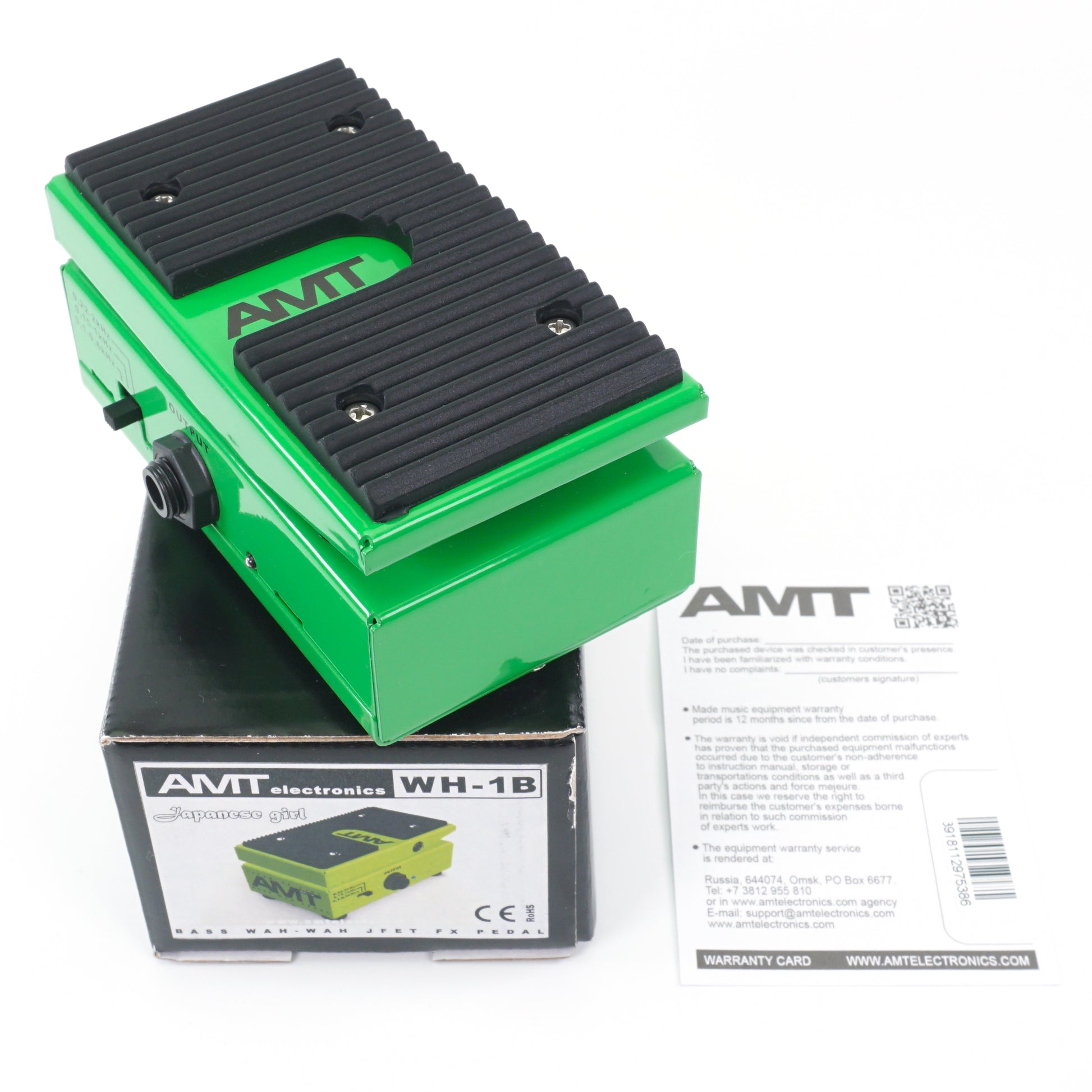

AMT WH-1B — Optical WAH-WAH pedal for bass
AMT WH-1B — Optical WAH-WAH pedal for bass
SKU:WH-1B
Couldn't load pickup availability
ABOUT THE PRODUCT
This is a special bass version of the current AMT bestseller optical wah-wah pedal the WH-1 → the AMT WH-1B.
► INTRODUCTION
The AMT WH-1B is an optical version of a classic Bass guitar «WAH-WAH» effect with bandpass filter range selection (3-way switch). Optical frequency control increases the service life of the effect, eliminating frequent replacements of maintenance and replacement of the control potentiometer.
The AMT WH-1B features low noise and expanded frequency tuning range due to the use of original JFET-based circuit design.
The AMT WH-1B boasts great versatile sound and processes both clean guitar sound and Ultra high gain overdrive equally well.
► FEATURES
- 100% analog WAH-WAH effect;

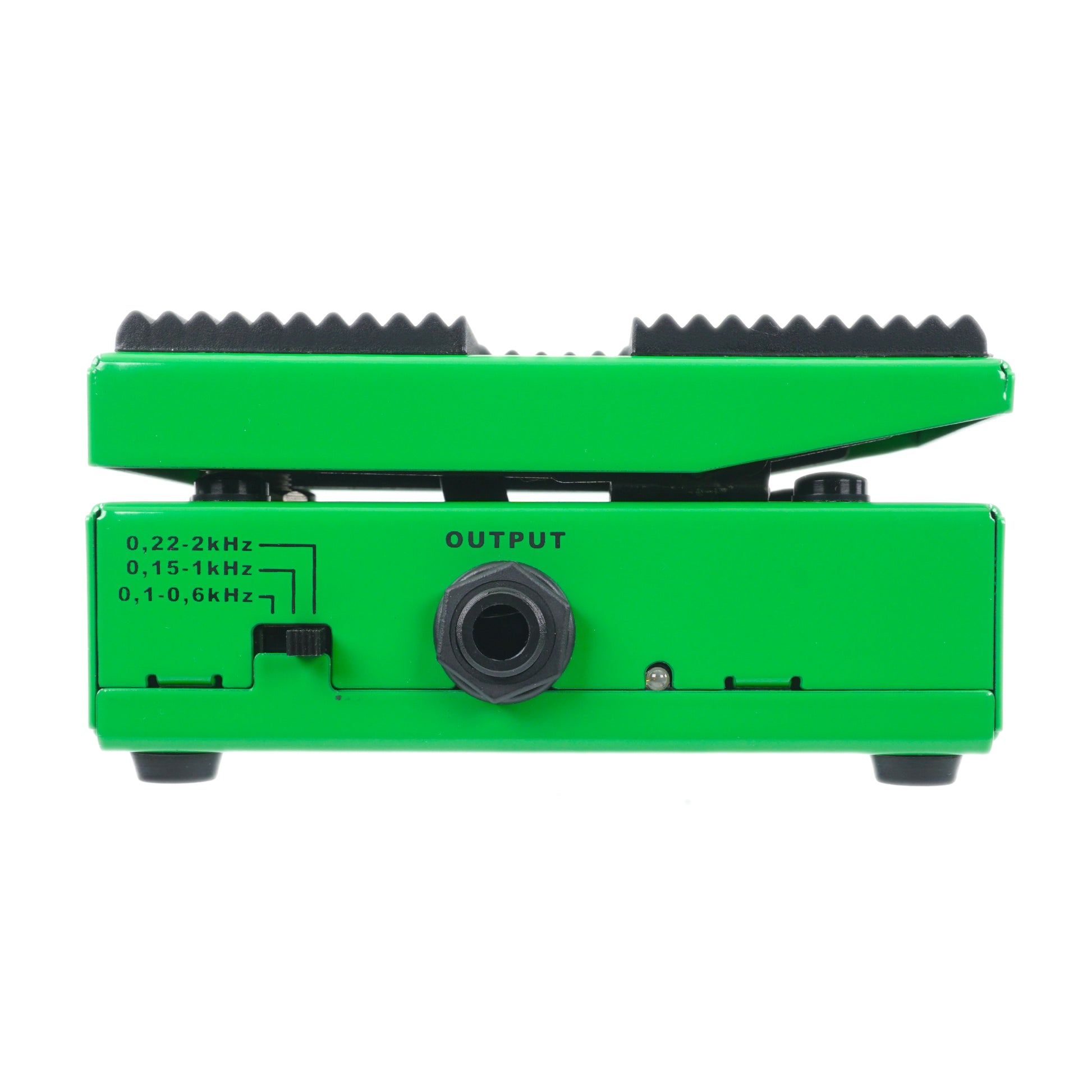

- Fixed switching among bandpass filter ranges: 0.22-2kHz, 0.15-1kHz, 0.1-0.6kHz;
- True bypass;
- Fixed effect selection by pressing the movable front end part of the pedal;
- Removable support feet (the option is useful when you install the AMT WH-1B on the pedal board);
- Effect monitoring by using blue LEDs on both pedal sides (visible engaged AMT WH-1B mode);
- the AMT WH-1B’s steel heavy body is stable and confidently responds to foot control;
- Adjustable pedal movement by means of an axial screw;
► TECHNICAL PARAMETERS
- Weight: 458 g.
- Dimensions: 111 mm x 78 mm x 58 mm

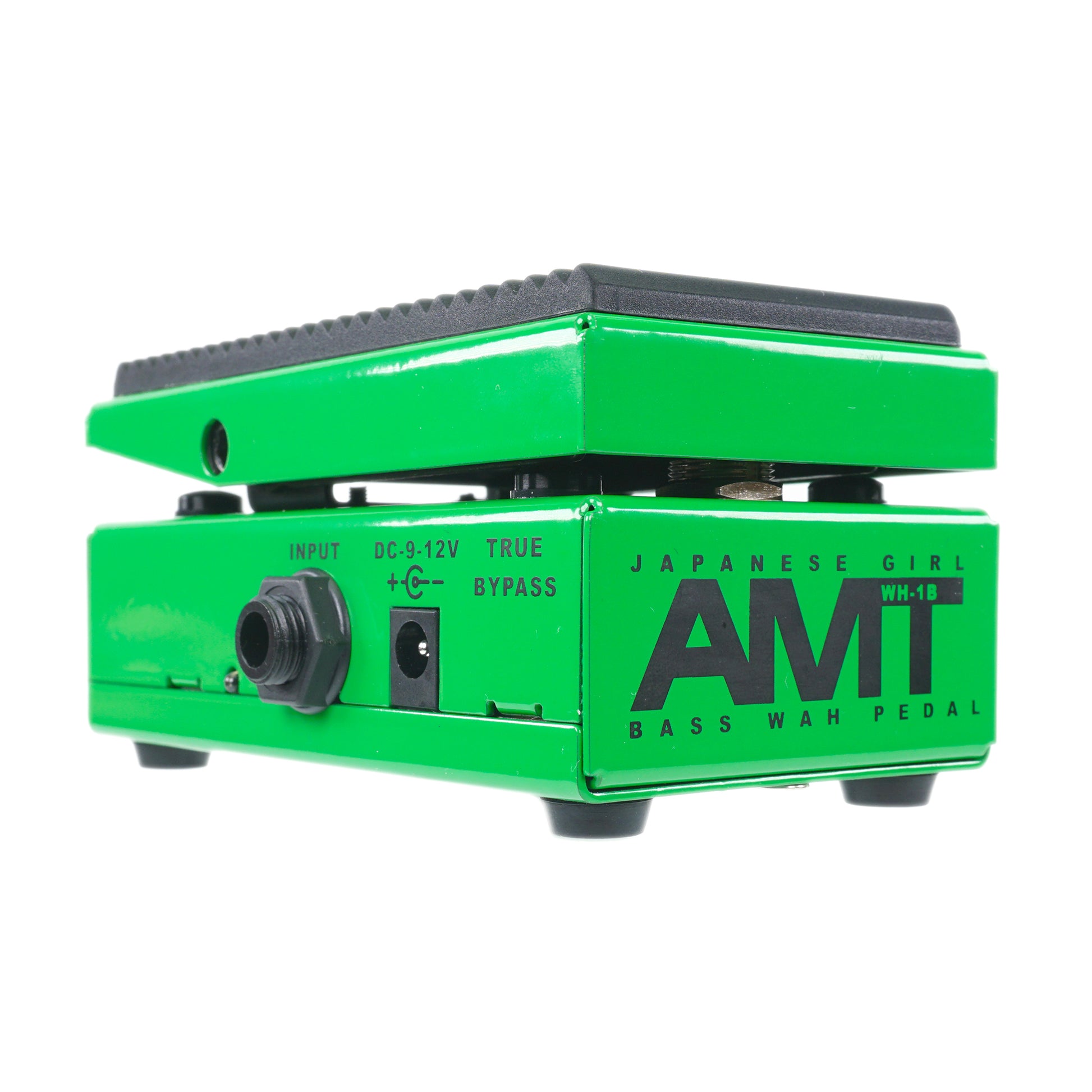

- Supply voltage: 9-12V DC
- Battery Power: 1 x 6F22 battery (9v)
- Consumption current: 7 mA
- The power supply is not included!
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-wh-1b/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Noiseless power supply is purchased separately (you can choose):
|
AMT DC 12V, 1.25А AC/DC —
|
AMT DC 9V, 1.5А AC/DC —
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
