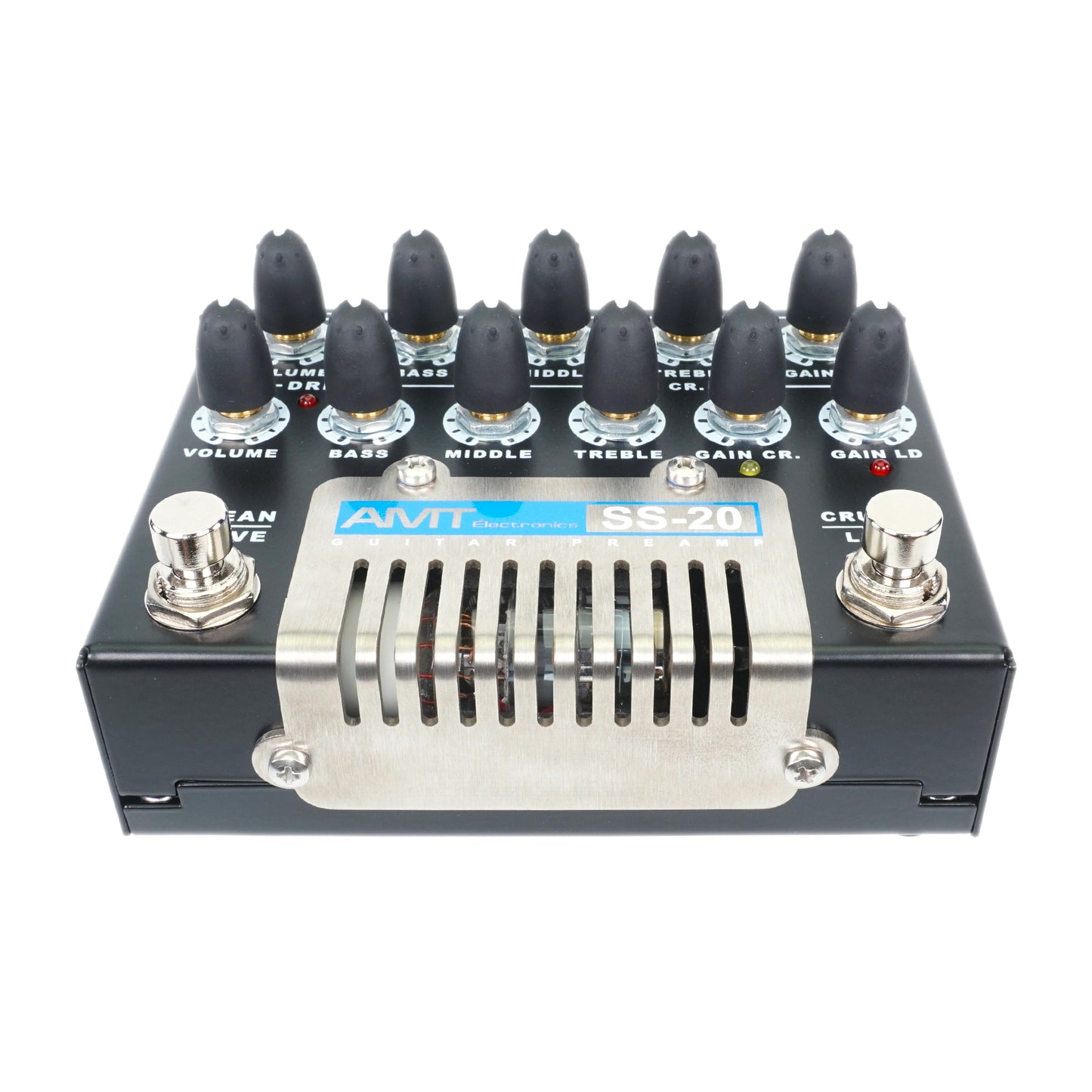

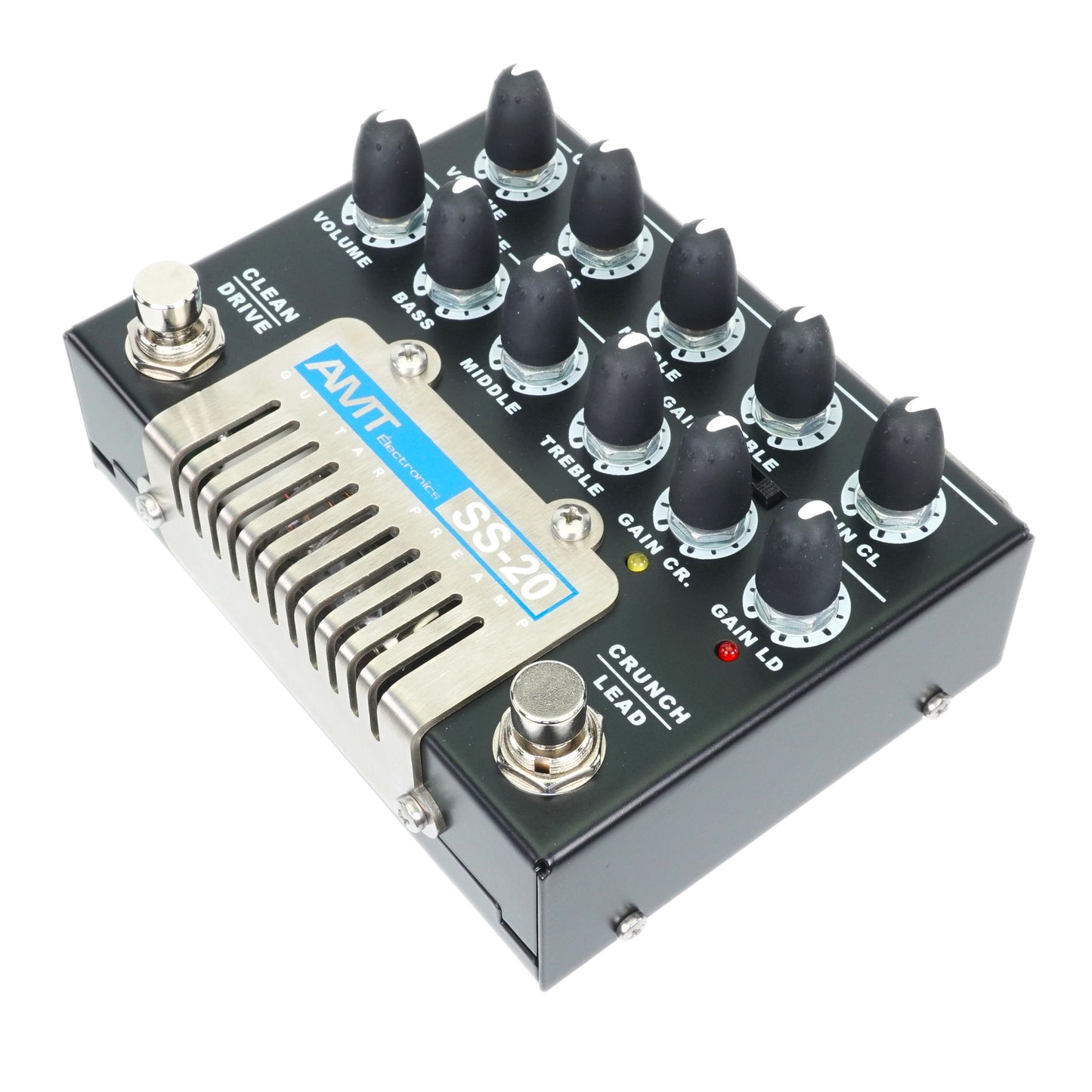

AMT SS-20 — Studio Series 3-channel Tube Guitar Preamp (+ power supply 12V with EU plug included!)

AMT SS-20 — Studio Series 3-channel Tube Guitar Preamp (+ power supply 12V with EU plug included!)

SKU:SS-20

Regular price €436,00 EUR
Regular price Sale price €436,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

ABOUT THE PRODUCT

This preamp became a legend, known worldwide for it's AMAZING heavy metal style tube distortion.

Brother to the AMT SS-11 preamp, but the SS-20 was designed based on tighter, crunchier, more aggressive styles of guitar playing: there are incredible Clean, Overdrive, Distortion, and Lead tones in a compact tube valve driven pedal.

Our principle and motto for the SS-20 is it is the tube that sounds, however, the transistors do their best to help it sound in all its beauty and originality.

FEATURES

  • High-grade high-voltage feed of triodes.
  • Complete elimination of operational amplifiers traditionally used in hybrid preamps for sound amplification and processing.
  • Application of special semiconductor amplifiers modeling triode-based harmonics and providing signal amplitude necessary for high-grade valve operation.

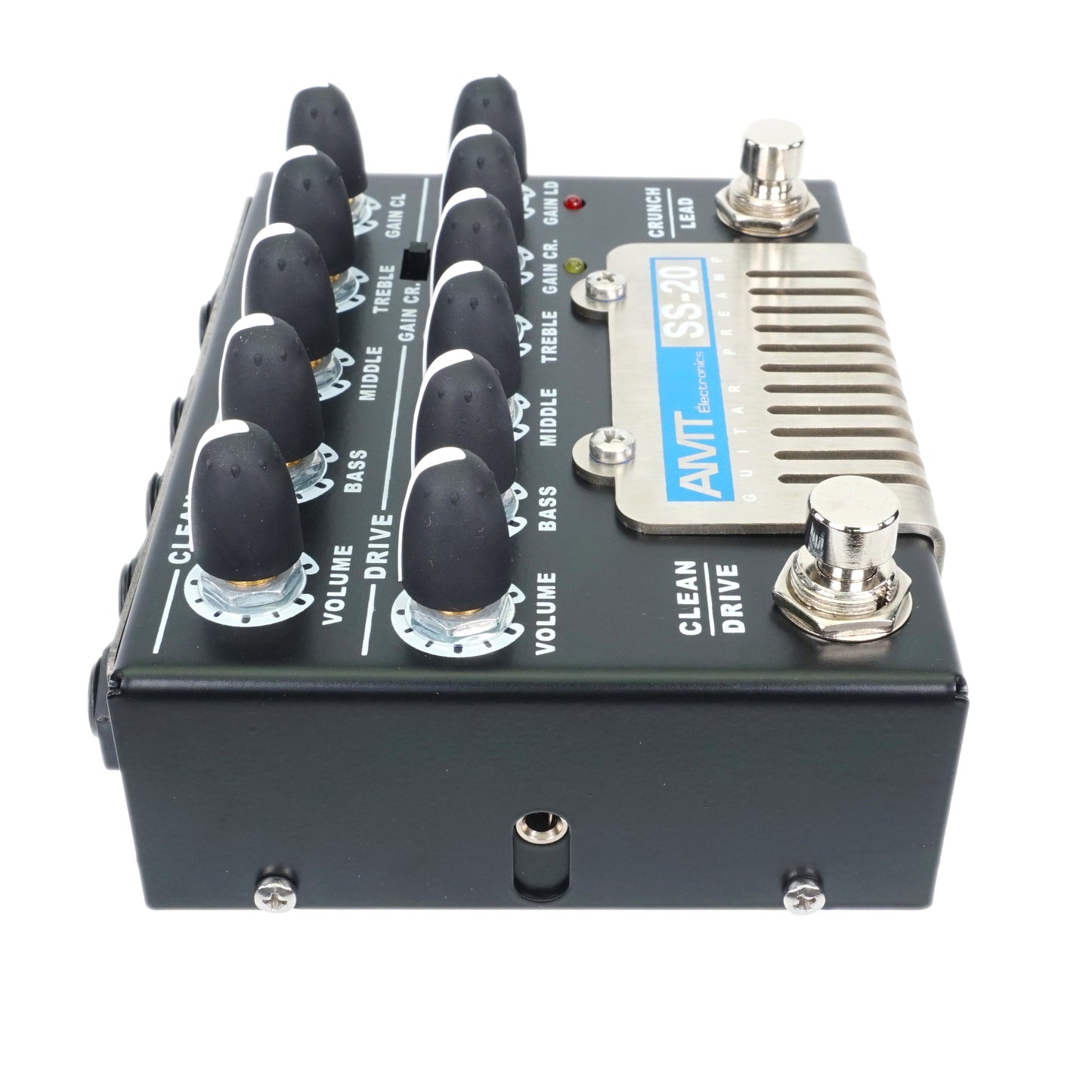

  • Left footswitchDRIVE effect on/off.
  • Right footswitchDISTORTION effect on/off.

In order to achieve the full opening of input valve cascades working in the «hottest» conditions, the giant amplitude of one hundred and more volts is necessary. The dynamic properties characteristic to tube–based preamps are implemented in the SS-20 due to the elimination of signal limiting OA (feed level of 20-25V) in the part of preliminary amplification and using special cascades capable of reaching 250V amplitude with nonlinearity similar to 12AX7 triode.

Thus, we managed to achieve full dynamic characteristics of guitar signal without usual hybrid «squeeze» as well as assign special sound character to the SS-20

Special attention was also paid to clean channel – in this section we also followed the way of preserving the dynamics of guitar signal with simultaneous formation of soft «nonlinearity» inherent in the cascades on vacuum triodes. It also allowed us to escape both the «squeeze» and «refinement» peculiar to many clean-channels of hybrid devices.

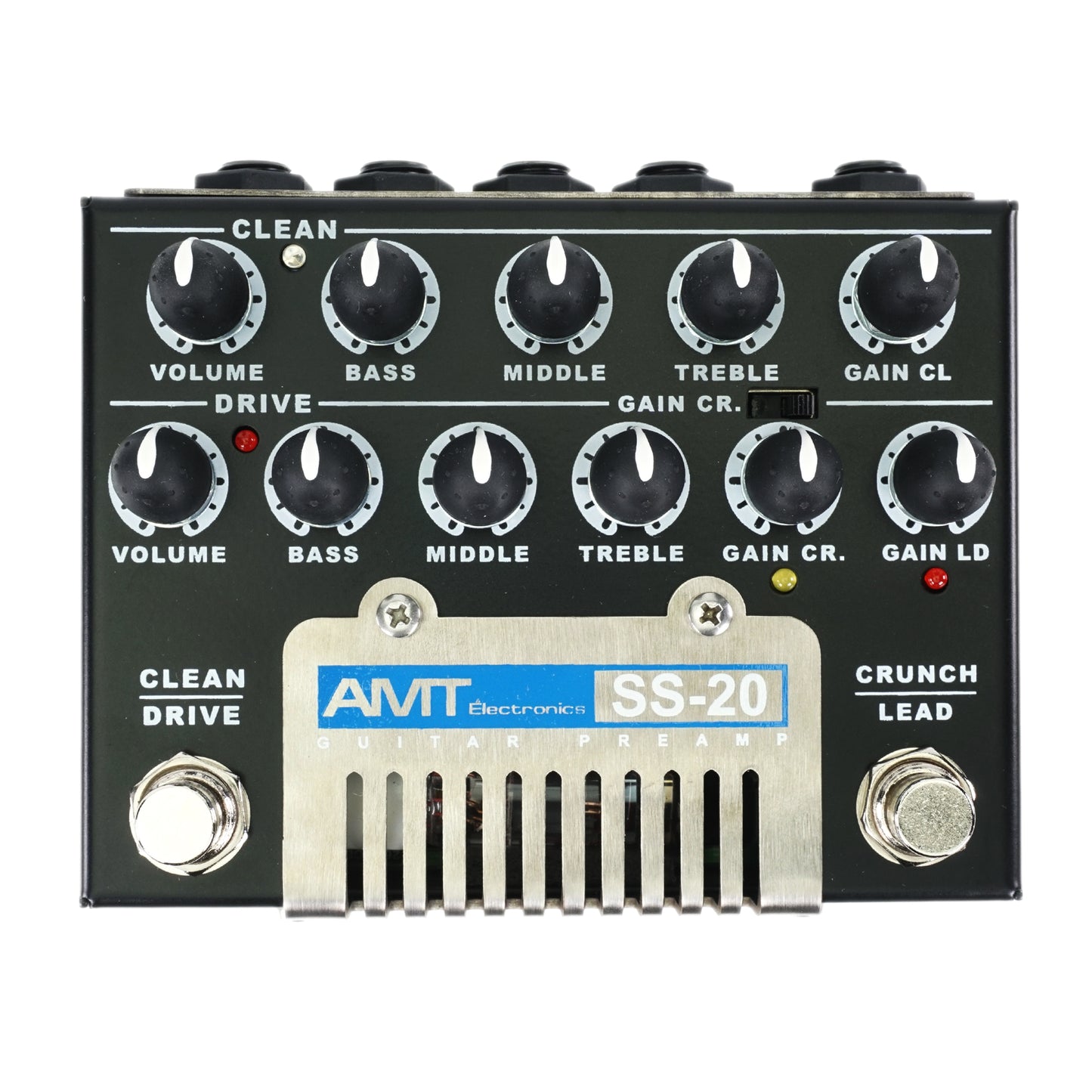

► THE ARCHITECTURE OF THE SS-20

  • Two high-grade channels CLEAN and DRIVE with the possibility of Drive-channel operation in two basic modes:
    • moderate sensitivity (CRUNCH);
    • high sensitivity (LEAD).
  • Effects Loop Send and Return.
  • Operation via both direct unaltered signal for guitar amplifiers heads, combos, and speakers (OUTPUT jack) as well as speaker cabinet compensated output for mixing consoles, computers, or other recording devices.

The basis of the inner preamp structure is the principle of maximum use of amplification and nonlinear transformation of the valve part of the device. Thus, the semiconductor part of the hybrid practically does not participate in the sound limitation (except for the use of preamp in LEAD mode at Gain LEAD level of higher than 7) and the entire spectrum is formed by the valve preamp part.

In the preamp stage, the quantity of semiconductor cascades is not used in the sound processing. In the absence of jacks in SEND and RETURN, the signal is forwarded to OUTPUT through compensating circuits directly from the output triode cascade.

Therefore, it is advised to use high-quality minimum length cables for connecting the preamp input with a guitar.

The SS-20 uses the original cabinet emulator, however, ONLY in direct out mode! It models the amplitude-frequency characteristics of guitar amplification systems for the most accurate reproduction and ease of recording direct.

Secondly, it simulates the own nonlinearity of dynamic head peculiar to instrumental loudspeakers, that in its turn colors the output signal with short-range harmonics making it live and closer to real.

Our unique speaker emulator circuitry supplements the signal with 2nd and 3rd harmonic with smooth increase in their level at signal level growth (it actually is similar to the instrumental head in the closed cabinet), not found on other manufacturers pedals.

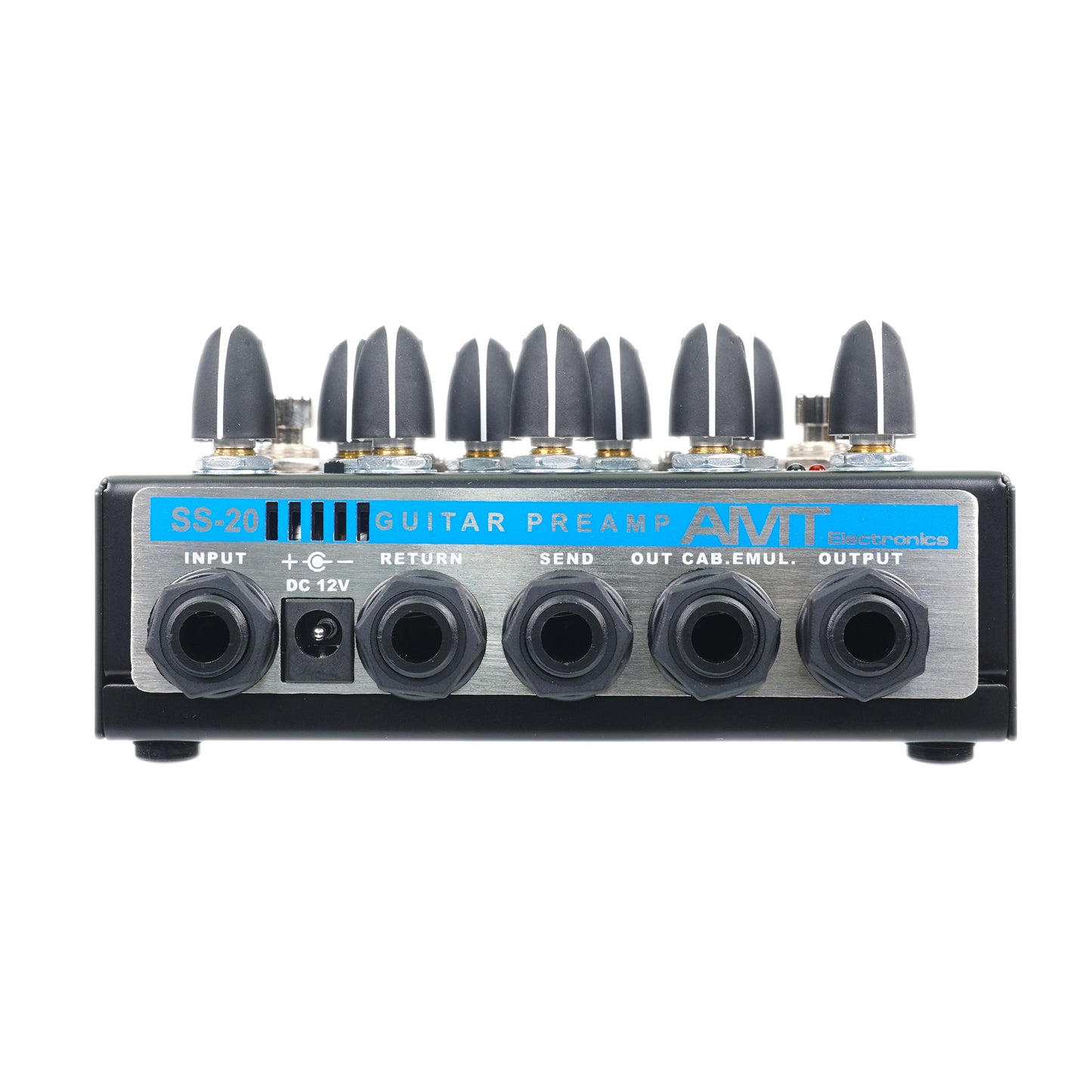

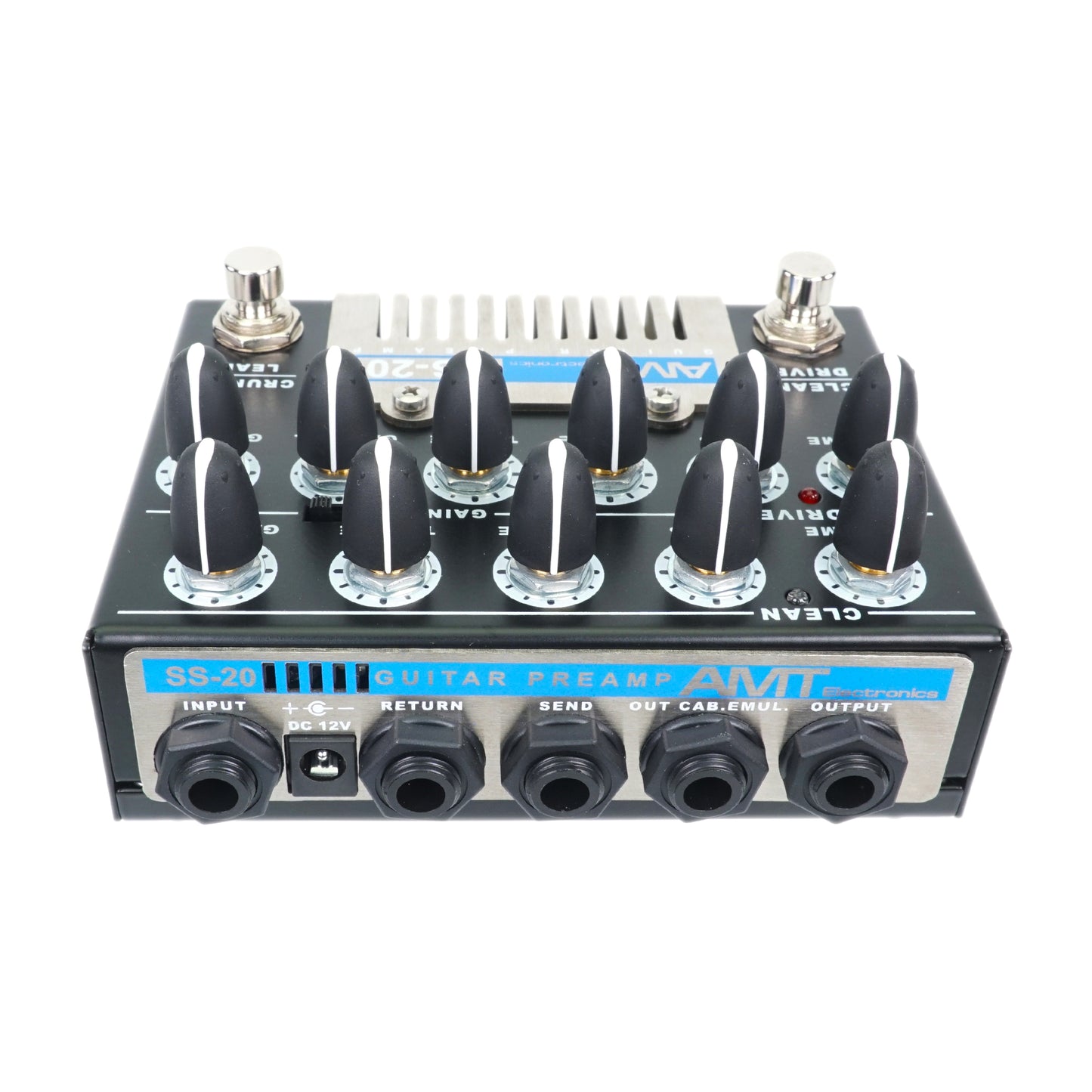

► OUTPUTS/INPUTS

  • Amplifier Output — for Combo Connection.
  • Mixer Output — for Mixer/Recorder Connection.
  • Effects Loop Send & Return.
  • Input In.

► COMPATIBLE TUBES

At the discretion of the manufacturer, a preamplifier can be equipped with a tube of one of the following types: AMT 12АХ7WS-LE, 12АХ7, ECC83 (or another 12AX7 compatible).

► TECHNICAL PARAMETERS

  • Anode Voltage: DC 290V
  • Weight: 529 g
  • Dimensions: 125 mm x 103 mm x 61 mm
  • Supply voltage: 12V DC
  • Battery Power: not provided
  • Consumption current: 500 mA

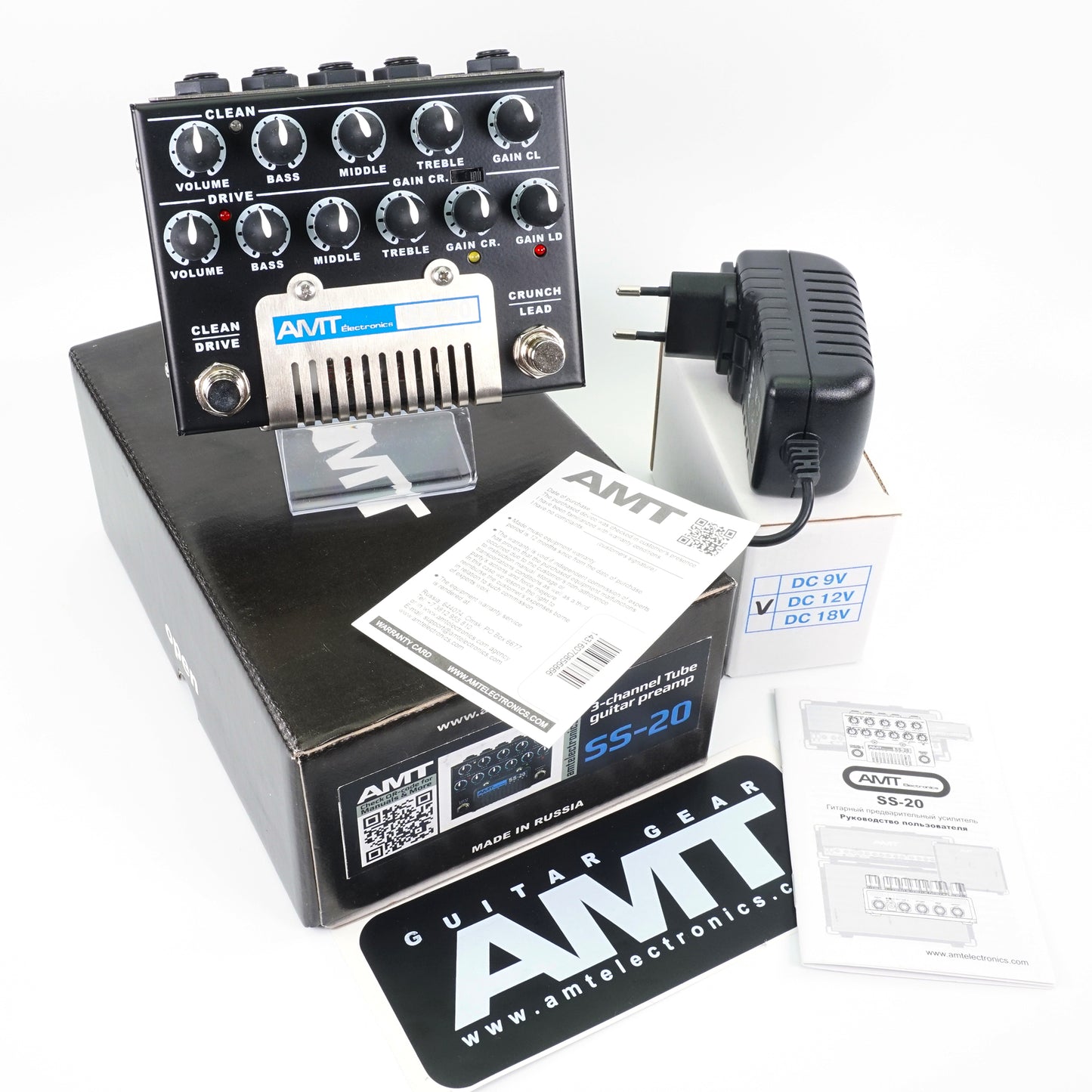

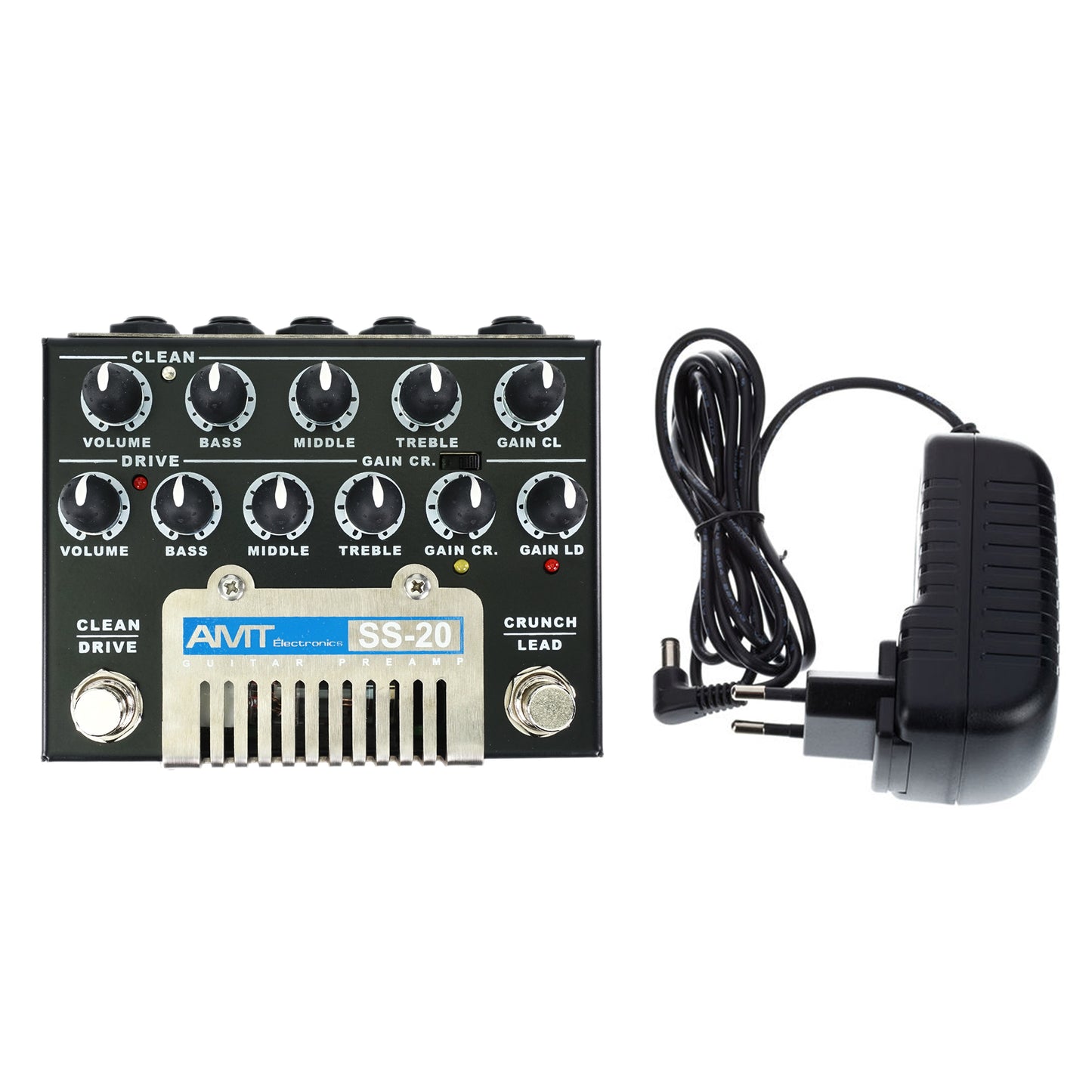

  • The power supply is included!

USER'S GUIDE


All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-ss-20/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

Extra plugs are purchased separately:

EU plug for AMT Noiseless Power Adapters

US plug for AMT Noiseless Power Adapters

UK plug for AMT Noiseless Power Adapters

 IMPORTANT NOTE ABOUT THE POWER SUPPLY

For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:

Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!

Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
