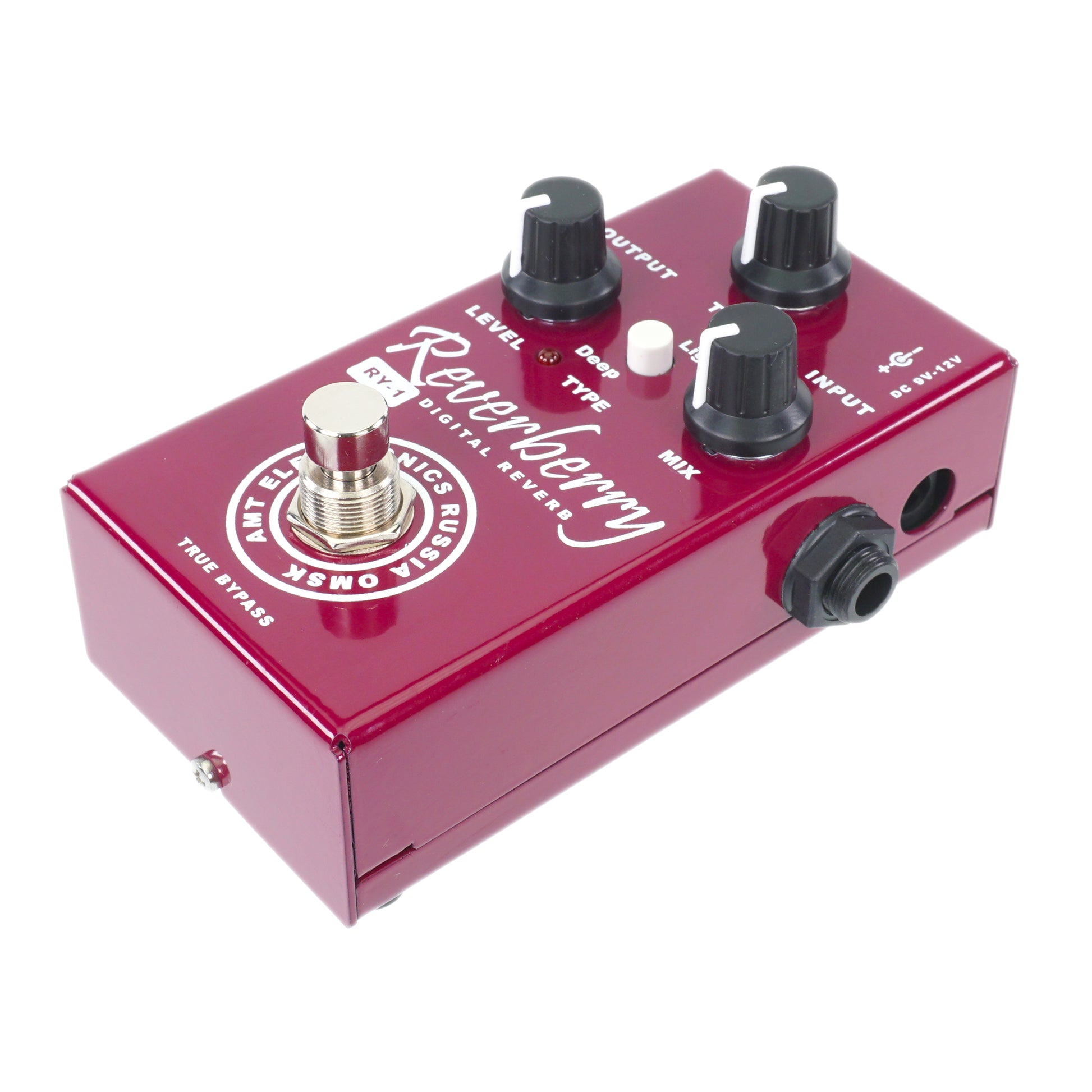

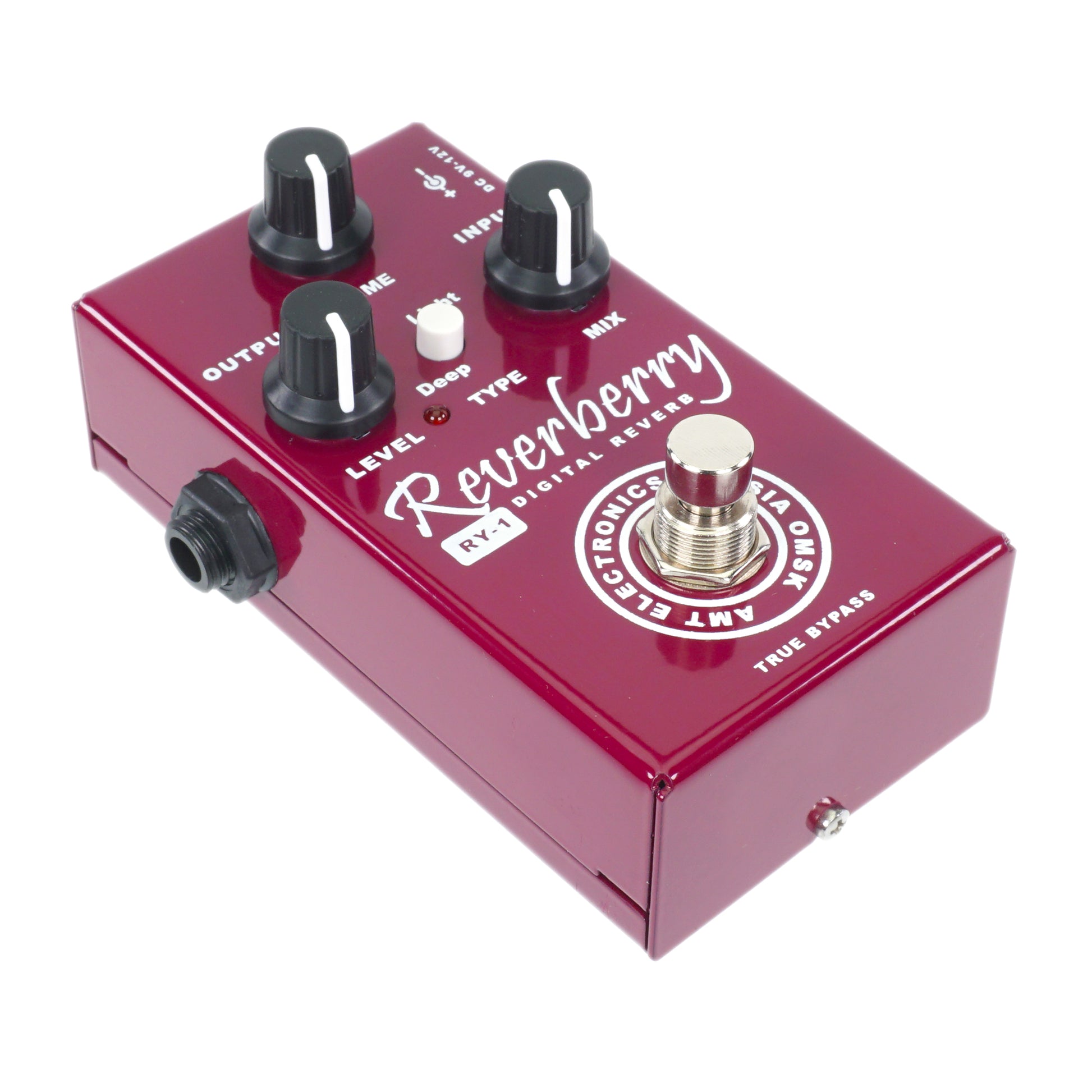

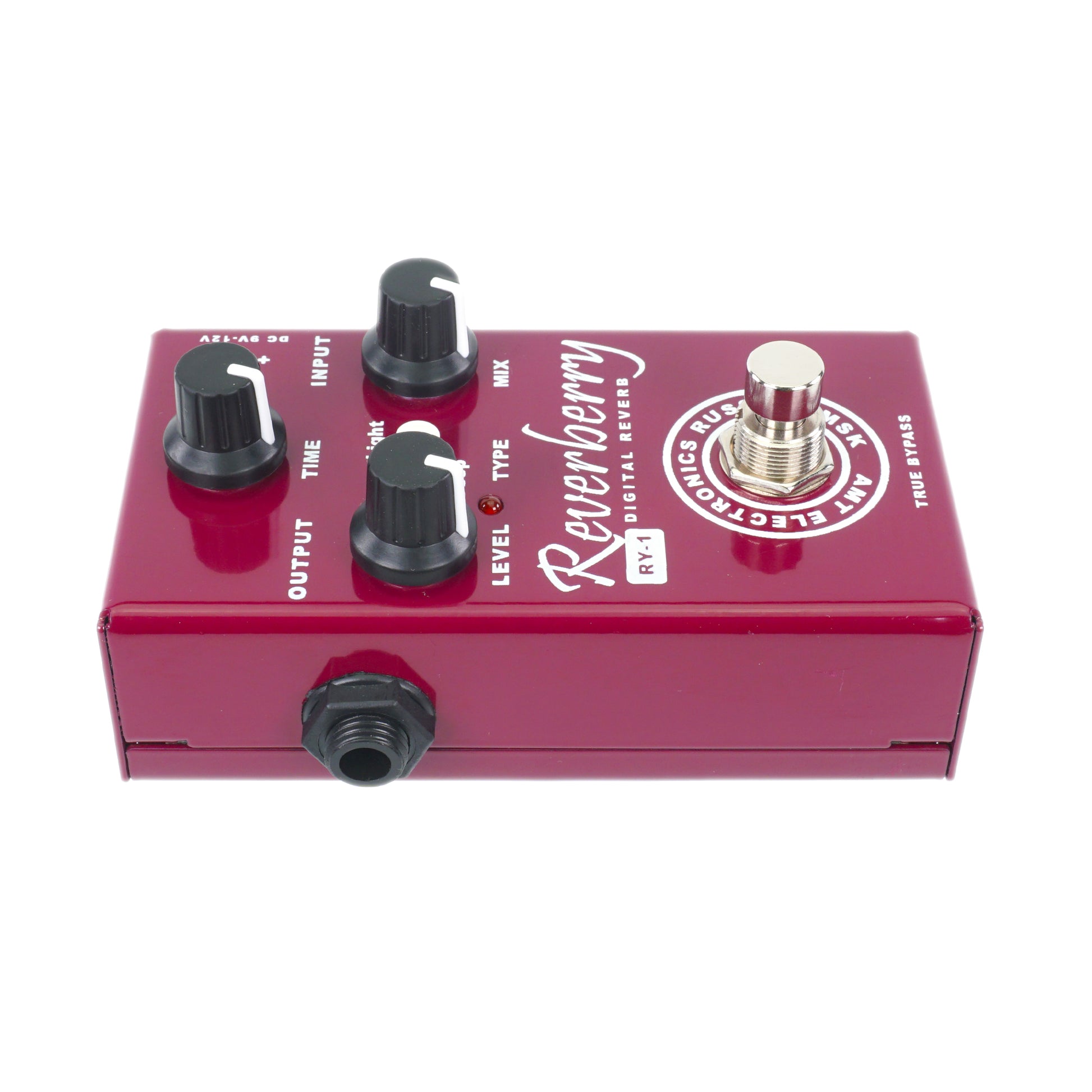

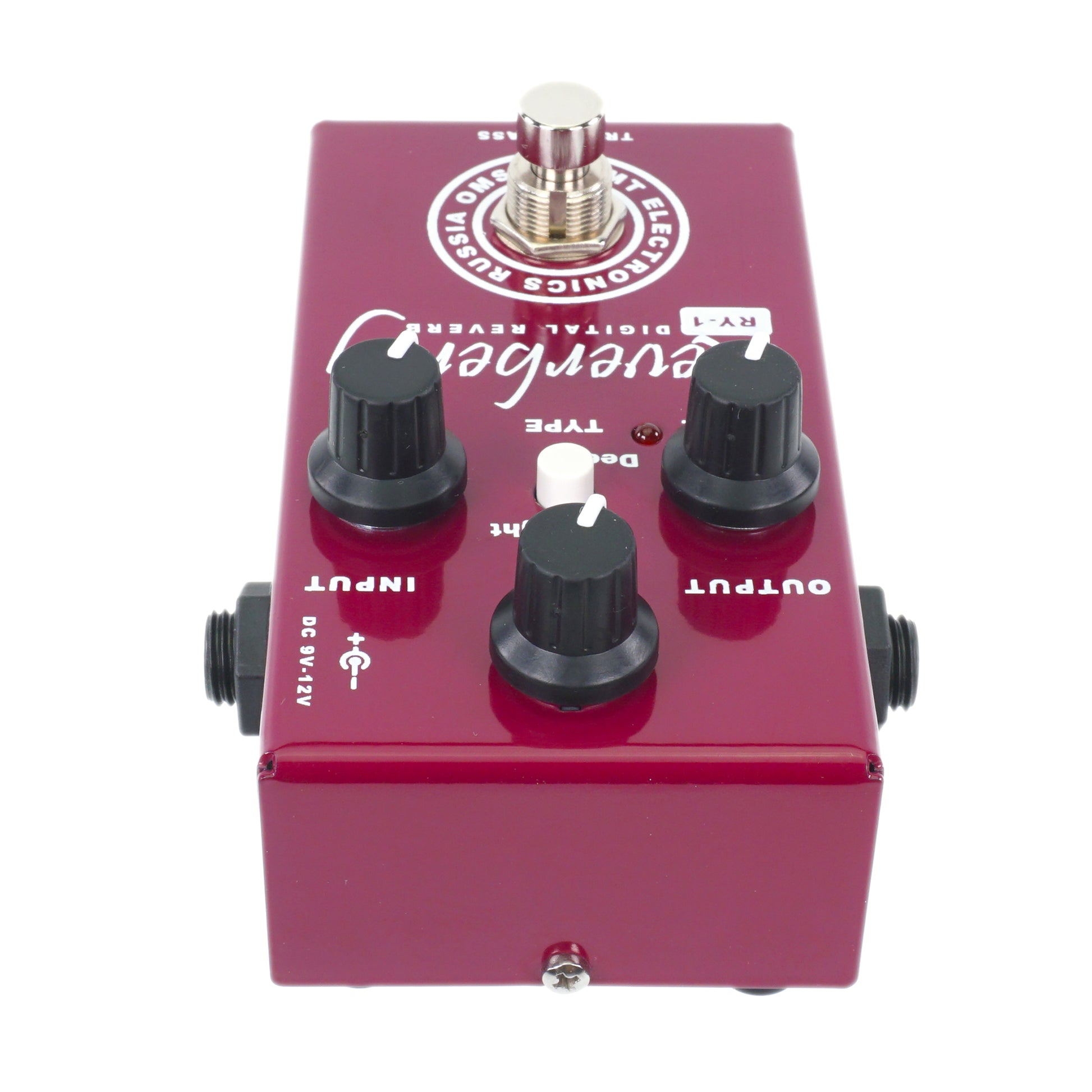

AMT RY-1 Reverberry — HQ Digital Reverb
AMT RY-1 Reverberry — HQ Digital Reverb
SKU:RY-1
Couldn't load pickup availability
ABOUT THE PRODUCT
There is an amazingly versatile reverb pedal from AMT Electronics. The unit is designed upon high-quality DSP chip processing (similarly found in expensive studio processors), providing crisp clean pristine reverb that will NOT color your original guitar tone.
► INTRODUCTION
The Reverberry can provide any type of reverb you might need; from light snappy spring style reverb, to lush cavernous cathedral style reverbs, and everything in between. Designed to work with all types of pickups and amps.
Sounds great with both clean and overdrive distorted guitar signals.

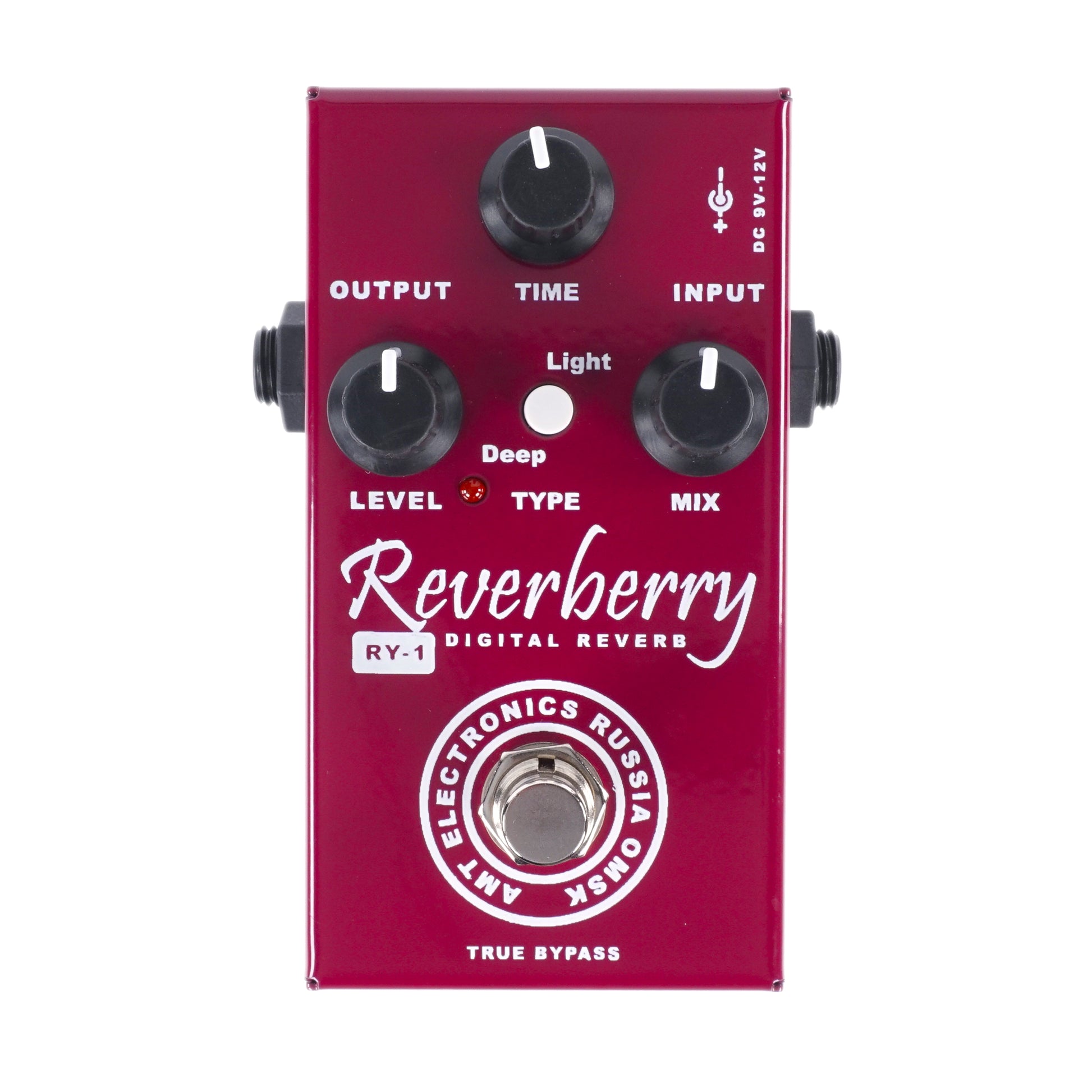

► CONTROLS
- TYPE button allows the user to choose a lighter more subtle spring type reverb, or a deeper thicker cathedral reverb style.
- LEVEL controls the overall level output of the pedal.
- TIME controls the length of the reverb effect on the input signal, decay time.
- MIX control allows the user to blend the original dry signal with the reverb wet signal. A must have feature for getting that perfect mix.
► FEATURES
- TRUE BYPASS circuitry for no tone coloration when off
- DSP powered for the cleanest reverb available
- High quality components
- Film capacitors
- Small and compact size
► TECHNICAL PARAMETERS
- Input resistance: 1 МОhm
- Response: Nom. -10dB (250mV) Max. +4dB (1V)
- Output resistance: 1 kОhm
- Output level: Max. +8dB (2V)
- Weight: 260 g.
- Dimensions: 114 mm x 74 mm x 55 mm
- Supply voltage: 9-12V DC
- Battery Power: 1 x 6F22 battery (9v)
- Consumption current:
- 36 mA (at 9V)
- 30 mА (at 12V)
- The power supply is not included!
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-ry-1/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Noiseless power supply is purchased separately (you can choose):
|
AMT DC 12V, 1.25А AC/DC —
|
AMT DC 9V, 1.5А AC/DC —
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
