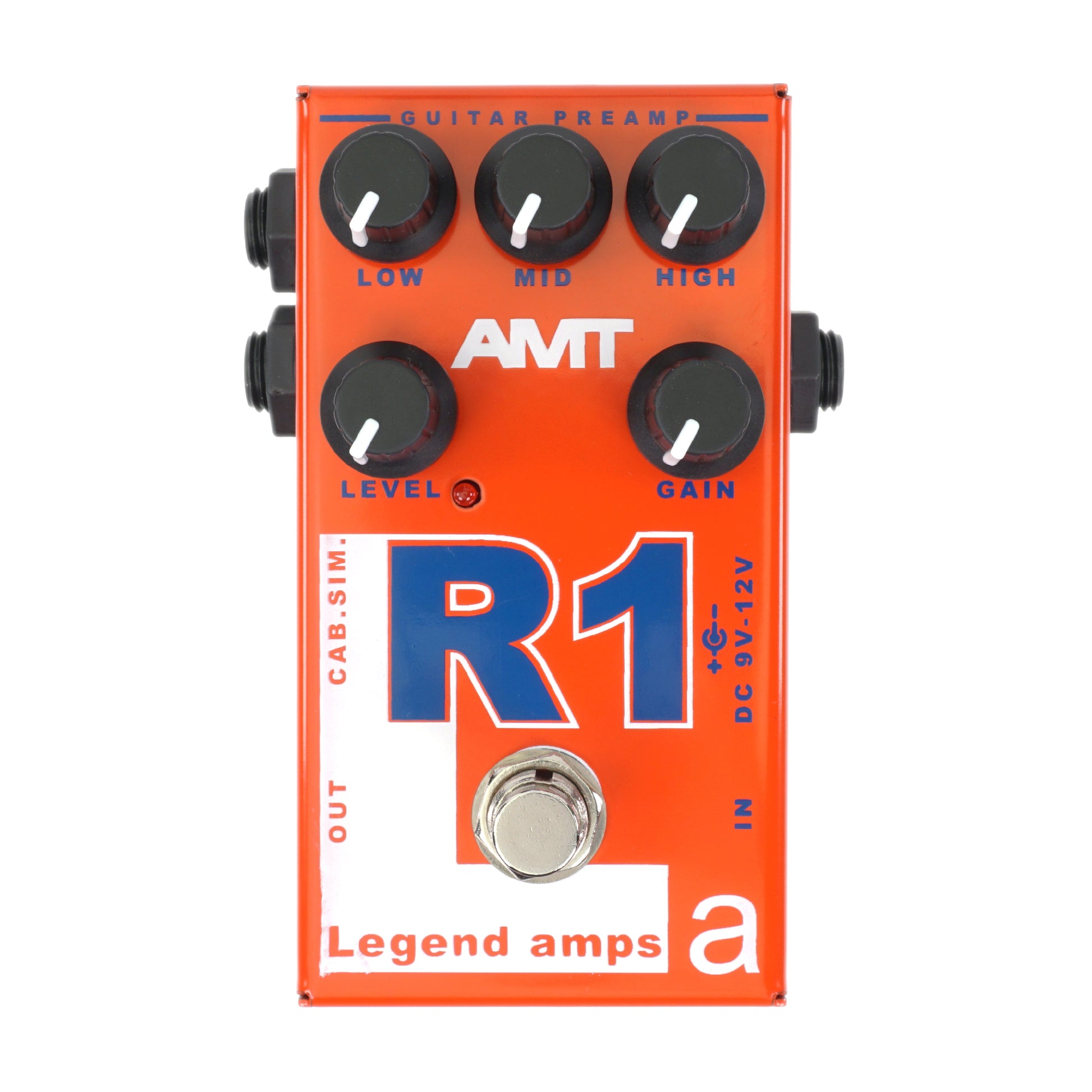

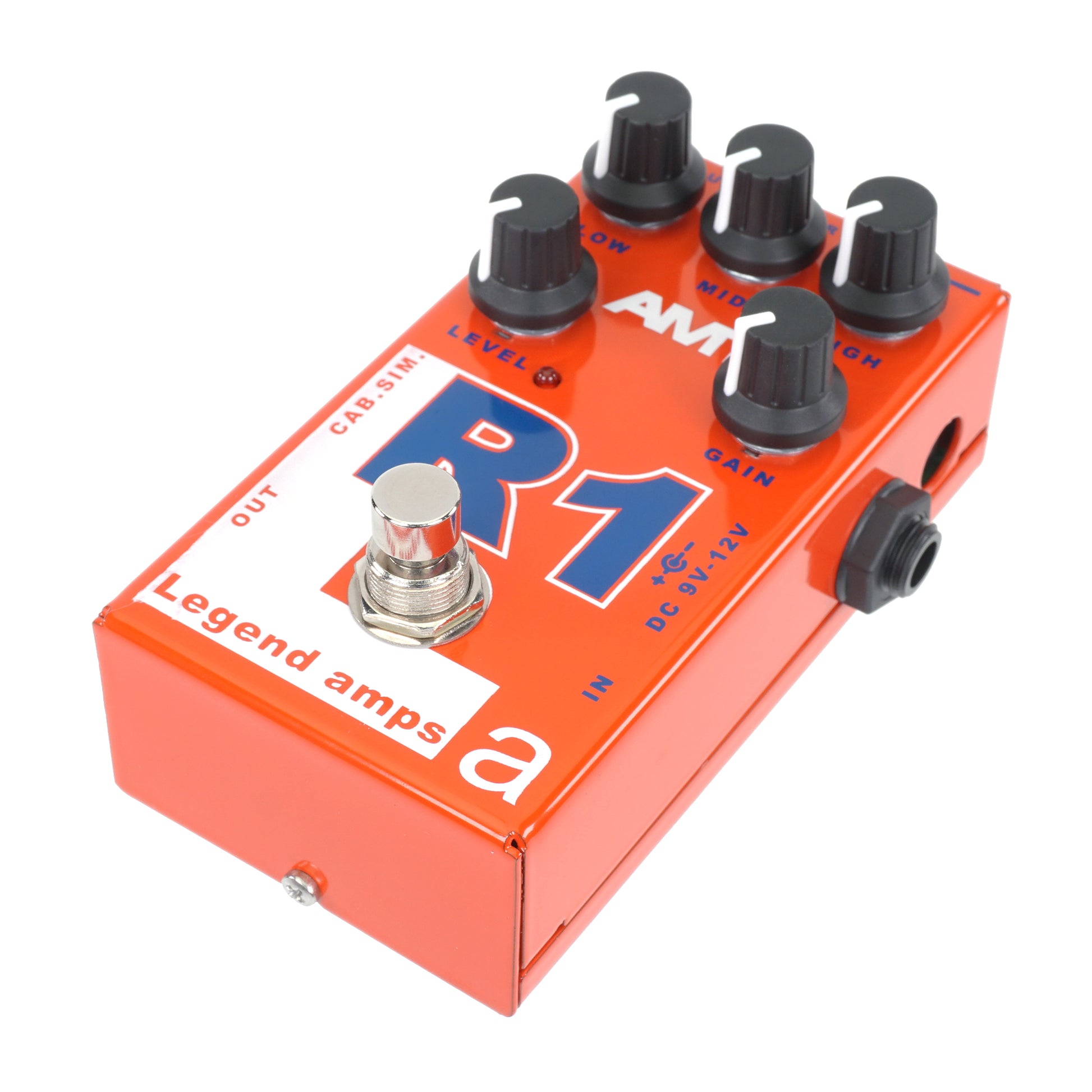

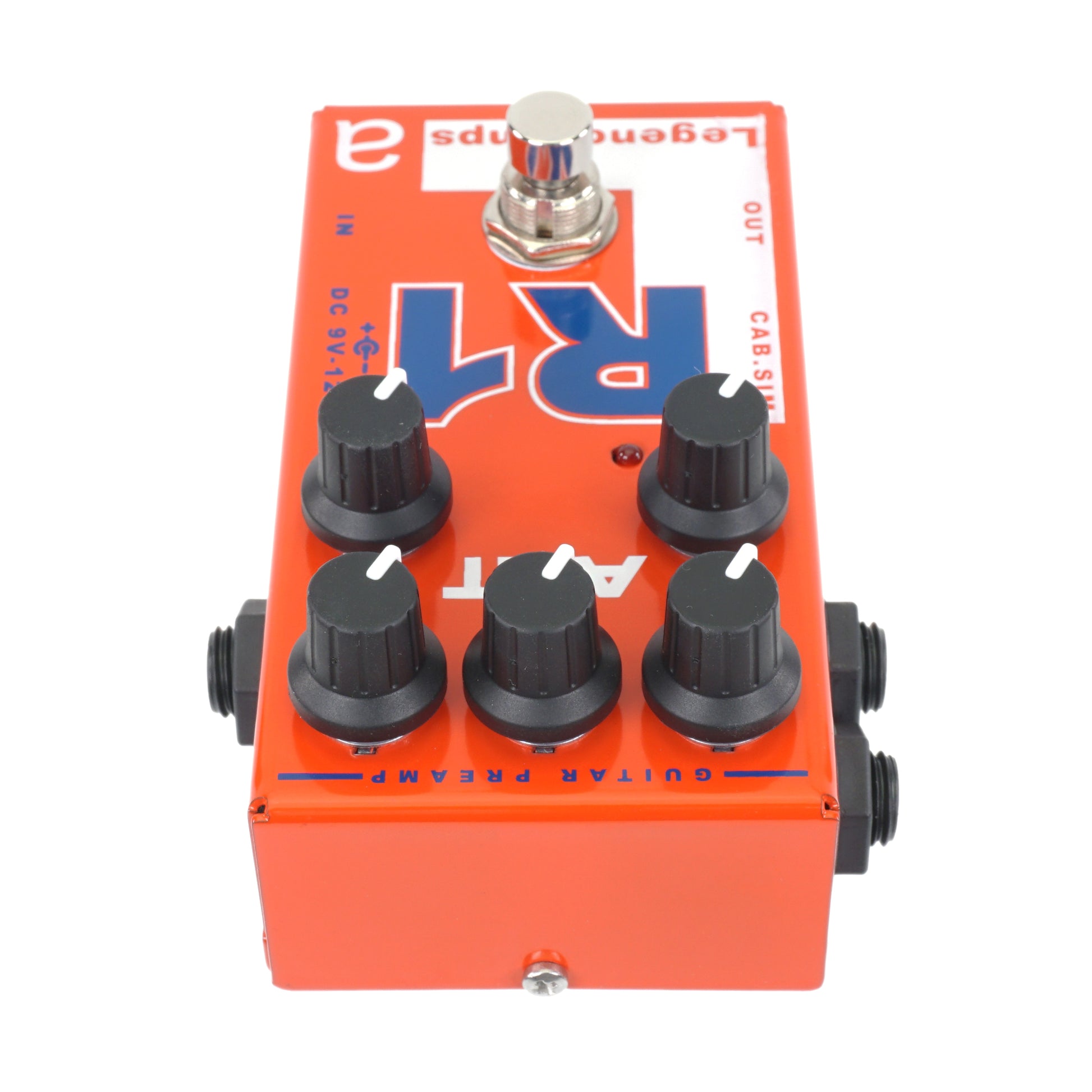

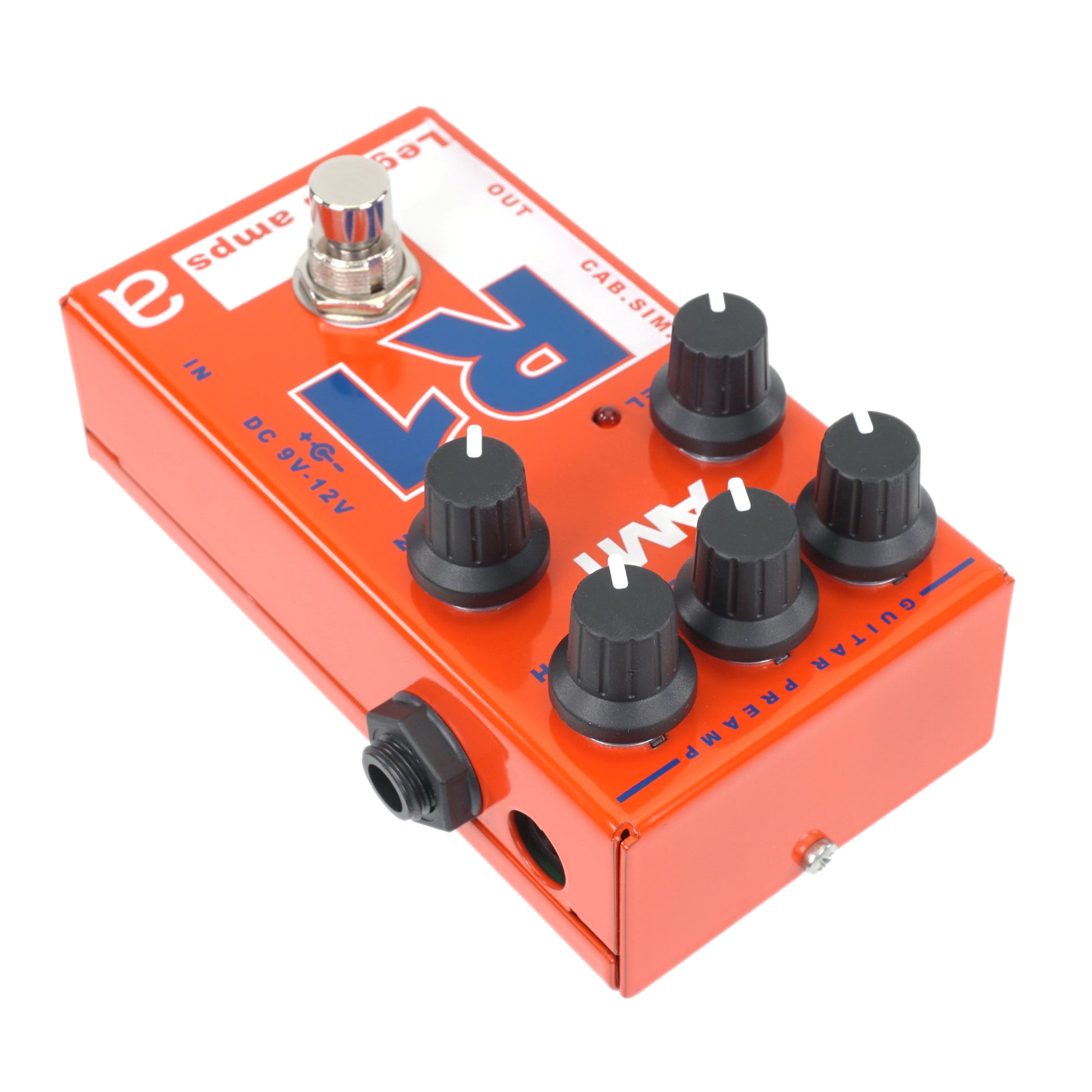

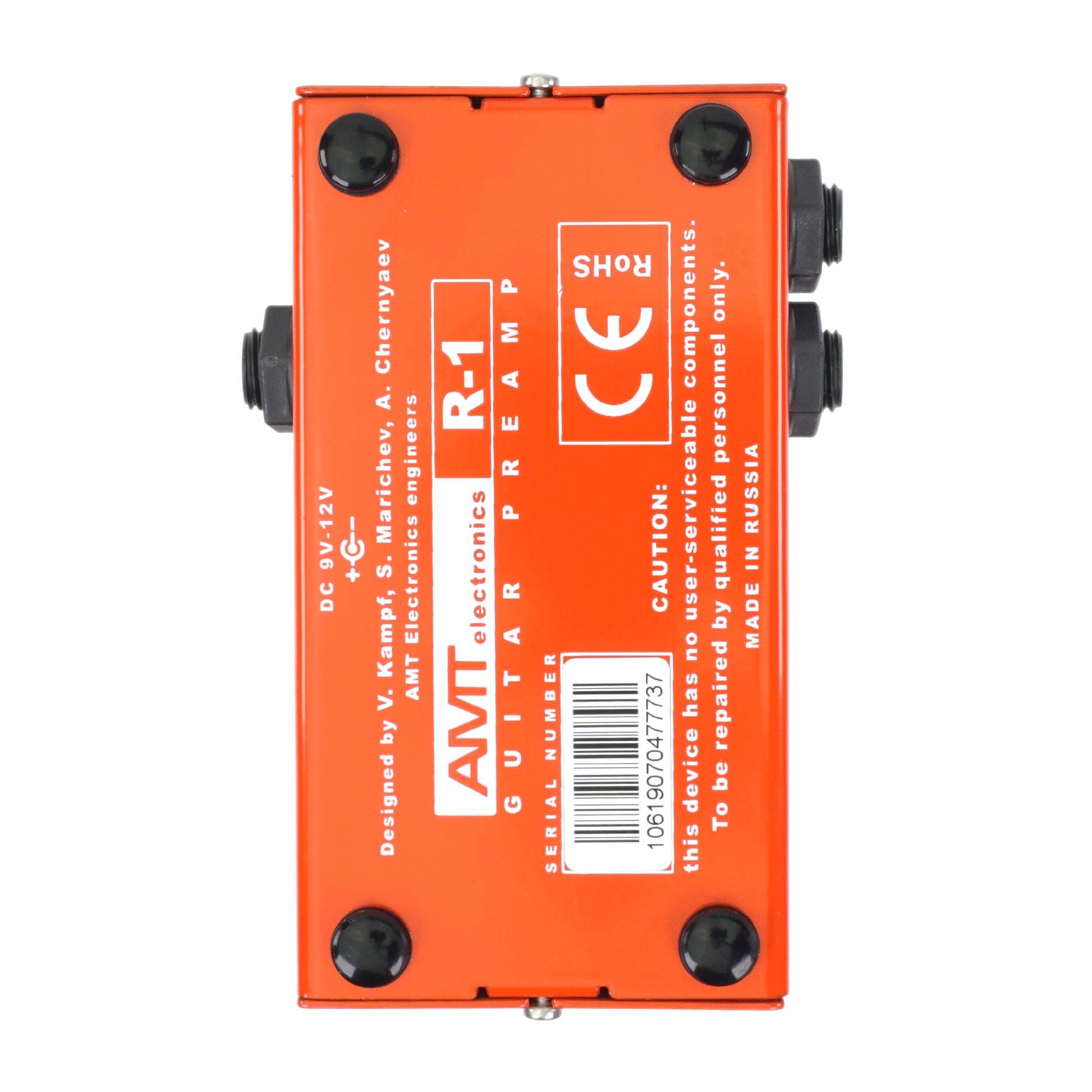

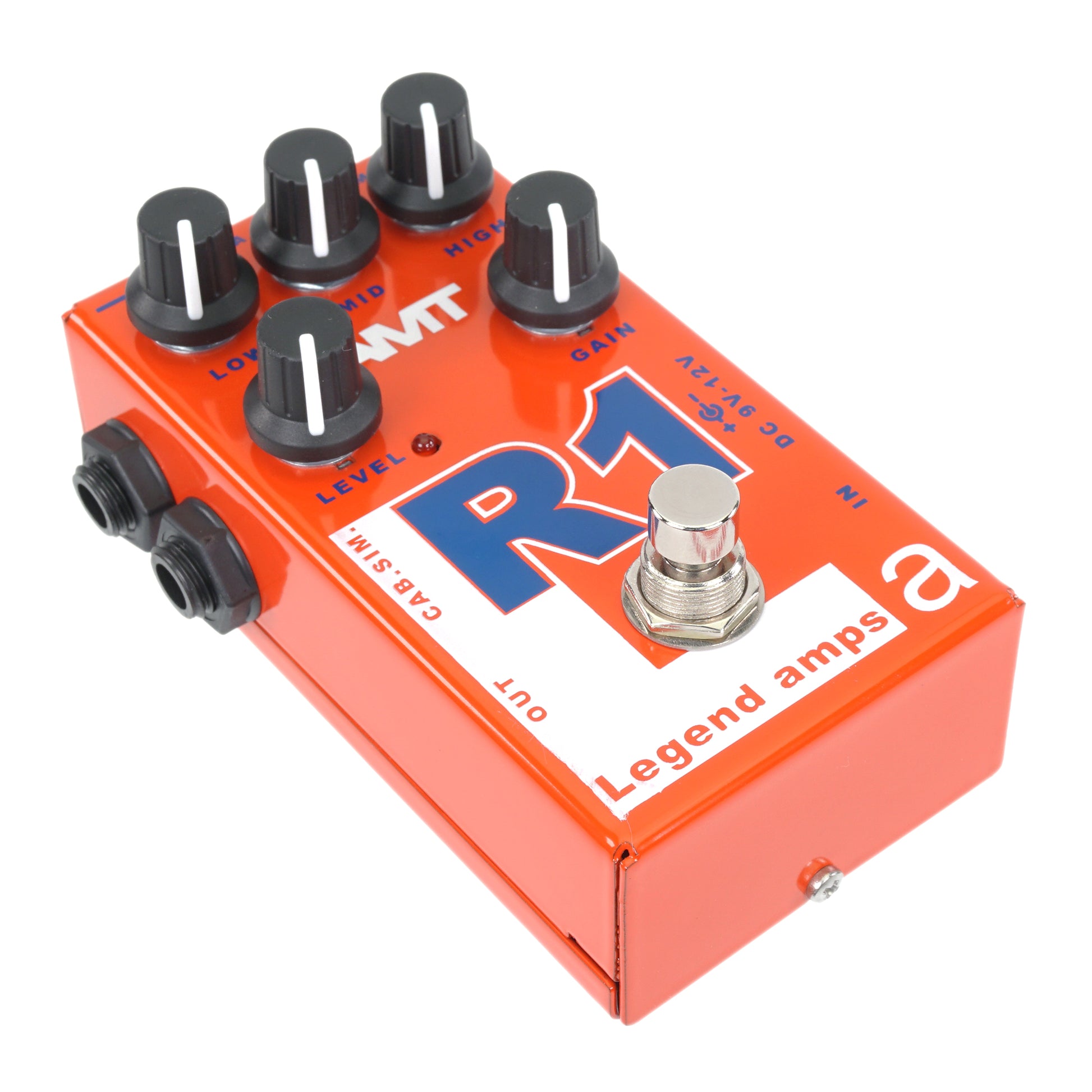

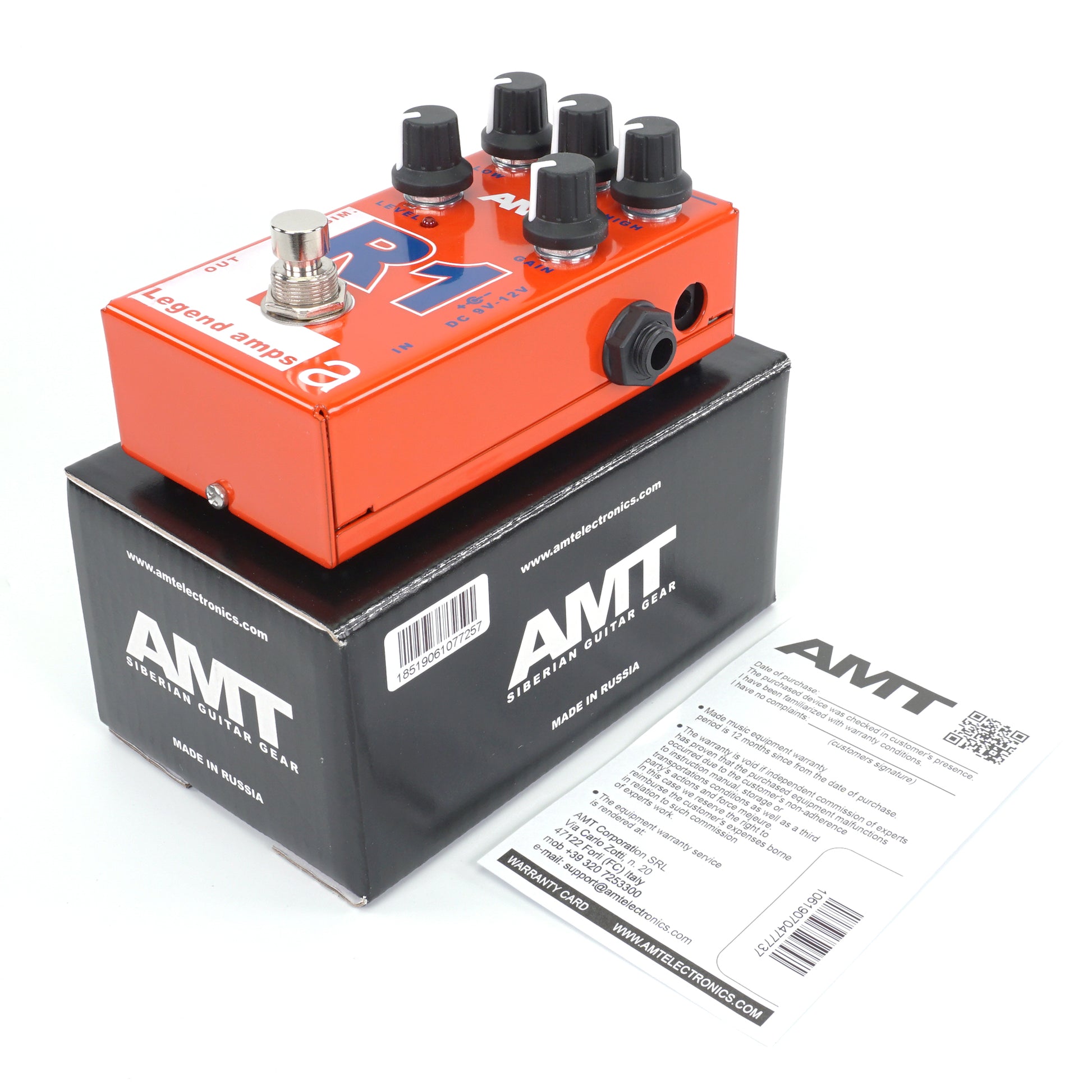

AMT R1 — JFET guitar preamp (1 channel) Mesa boogie rectifier (w/o power supply!)
AMT R1 — JFET guitar preamp (1 channel) Mesa boogie rectifier (w/o power supply!)
SKU:R-1
Couldn't load pickup availability
ABOUT THE PRODUCT
The AMT R1 preamp is a Legend Amp Series pedal is based on one of the most sought after high gain modern amplifiers now in pedal form, the Mesa Triple Rectifer*.
Huge ultra modern distortion tone now able to fit on your crowded pedalboard.
Sparkling tight chunky rhythm that will impress even the most demanding ears, and cutting powerful leads to make you stand out through any mix. If you're the player who likes your gain on 10, then this one goes to 11+!
* All the names used in this document are trademarks of their respective owners, which are in no way are associated or affiliated with AMT Electronics. These trademarks of other manufacturers were used to identify products whose sounds were reviewed in the making of this product.
► FEATURES
- The AMT Legend Amp Series guitar pedals provide excellent dynamics, nuances, and characteristics similar to that of tube driven amplifiers.
- Tube-like range of volume control provides great sound density, playability, and power when playing at full volume and also in conjunction with your guitar's volume knob.
- TRUE BYPASS. The preamps of the Legend Amp Series pedals use passive true bypass circuitry, therefore no loss of guitar signal is noticed in your pedal chain. Similar to if no pedal was there at all when bypassed.
- Features high level of output signal (+10dB in extreme position of Level knob) corresponds to the output levels similar of tube preamps. Thus, you have adjustable signal level allowing to hook up your preamp AND direct input of a power amplifier.
- Controls include LEVEL, GAIN, LOW, MID, and HIGH.

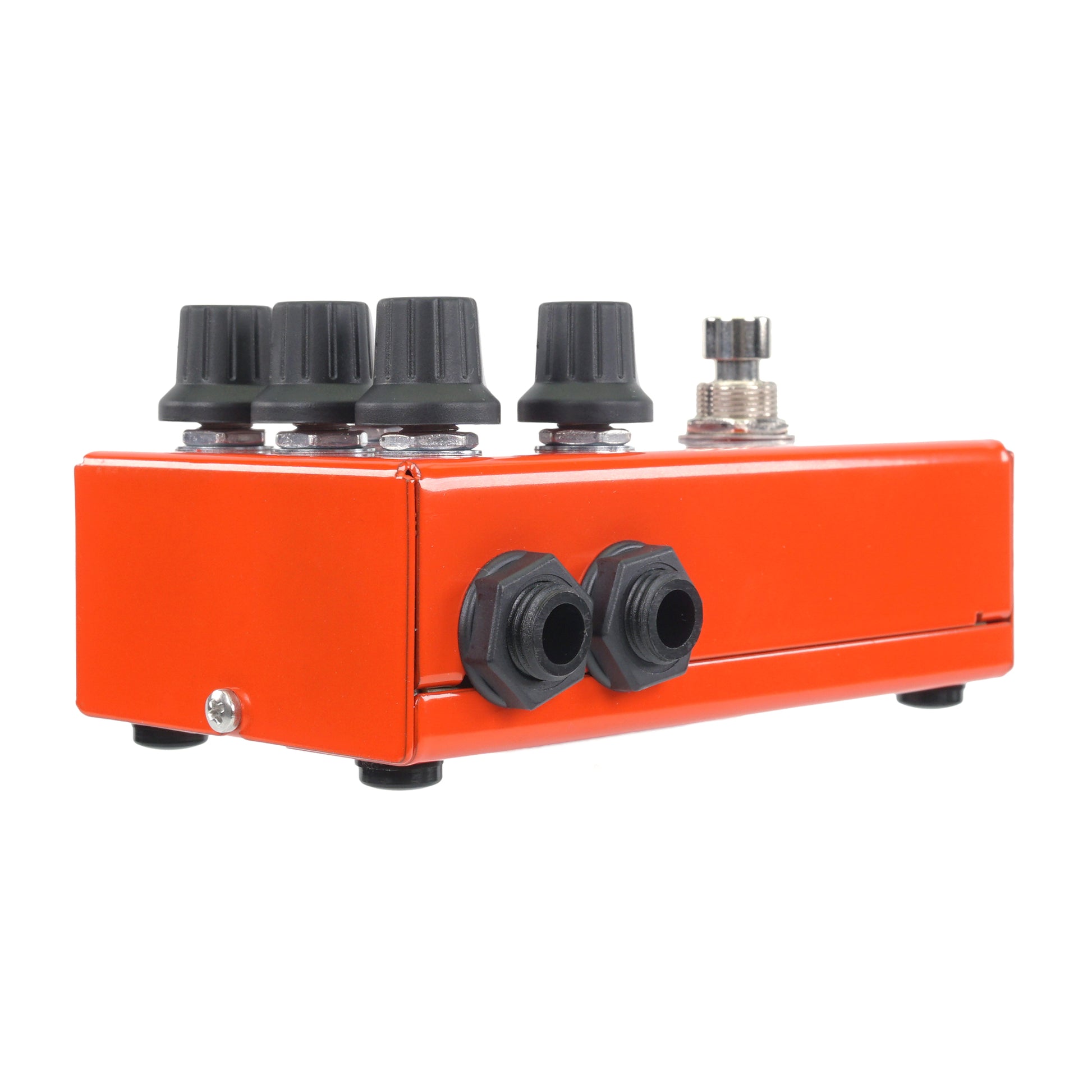

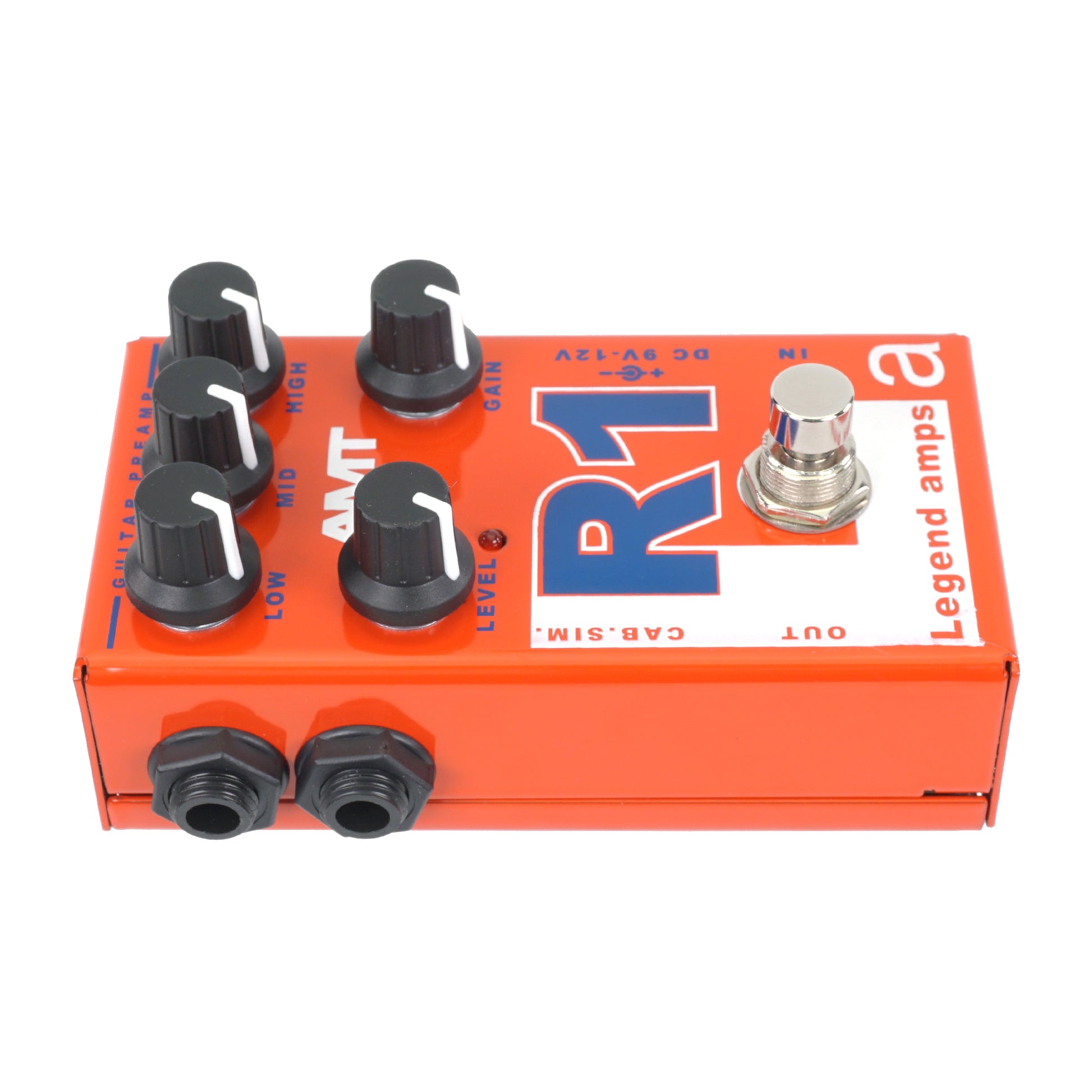

- TWO signal outputs: DIRECT AMPLIFIER OUT for guitar amplifier use and CAB SIMULATION OUT for mixer, or studio use.
- Power saving mode. When the speaker simulation output jack is not in use, the pedal automatically switches to power saving mode. Current consumption (from 9V power unit) is less than 6mА (in power saving mode it drops to 4mА).
► TECHNICAL PARAMETERS
- Weight: 269 g.
- Dimensions: 113 mm x 74 mm x 54 mm
- Supply voltage: 9-12V DC
- Battery Power: 1 x 6F22 battery (9v)
- Consumption current: ~6 mA
- The power supply is not included!
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-r1/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Noiseless power supply is purchased separately (you can choose):
|
AMT DC 12V, 1.25А AC/DC —
|
AMT DC 9V, 1.5А AC/DC —
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
