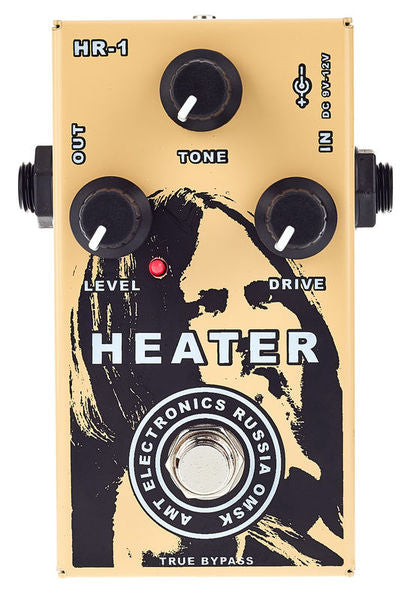

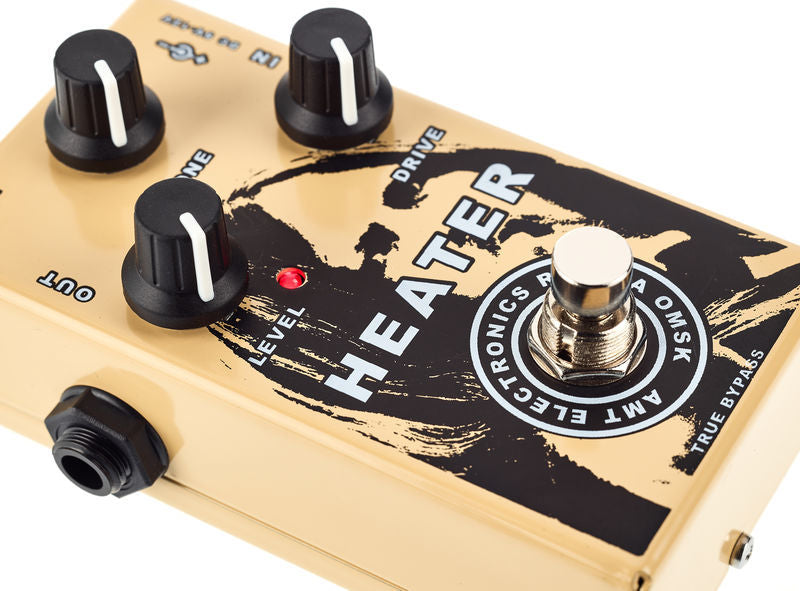

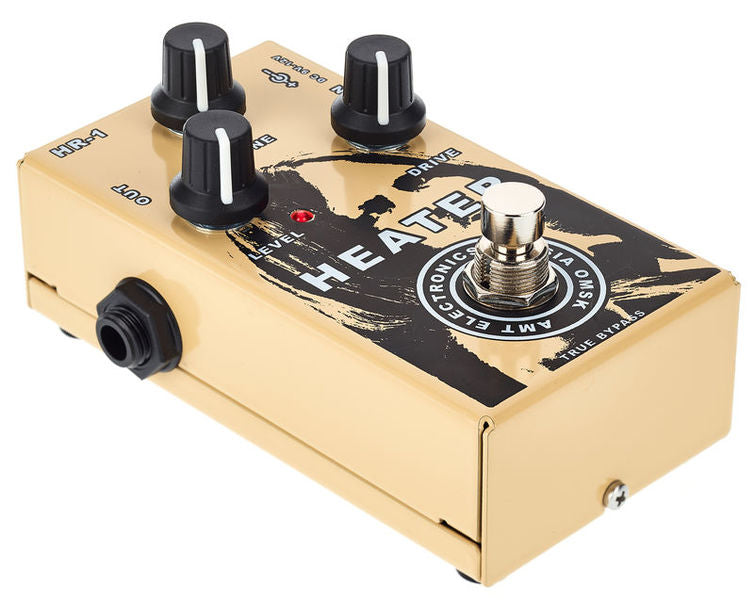

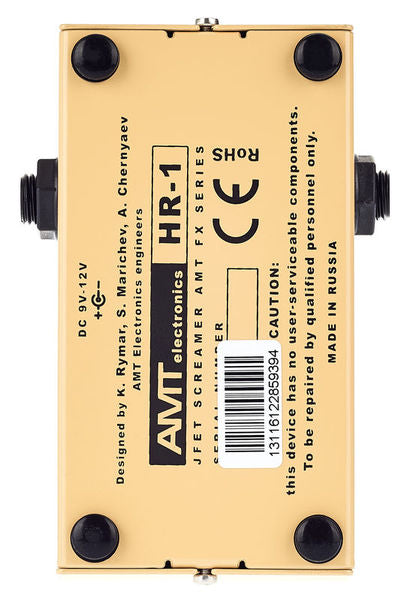

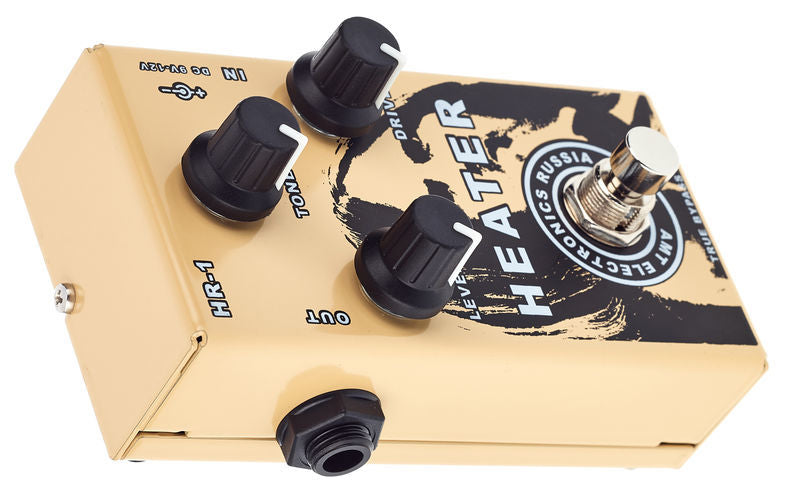

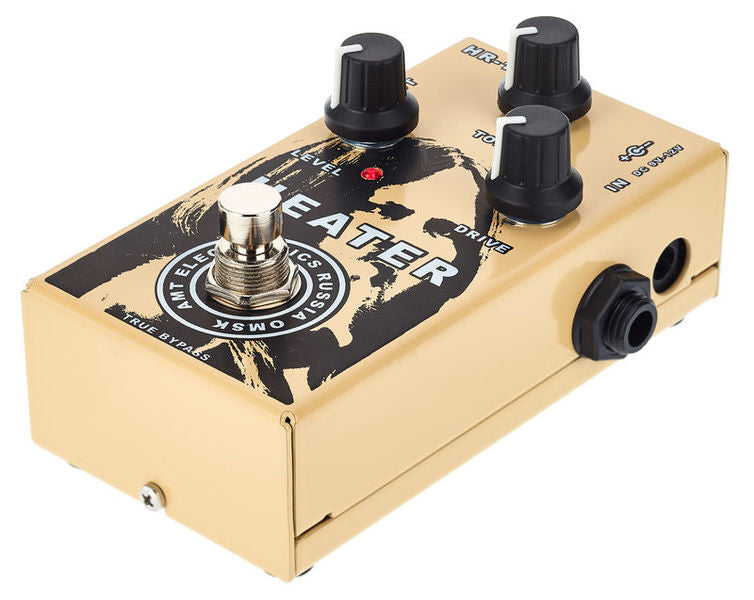

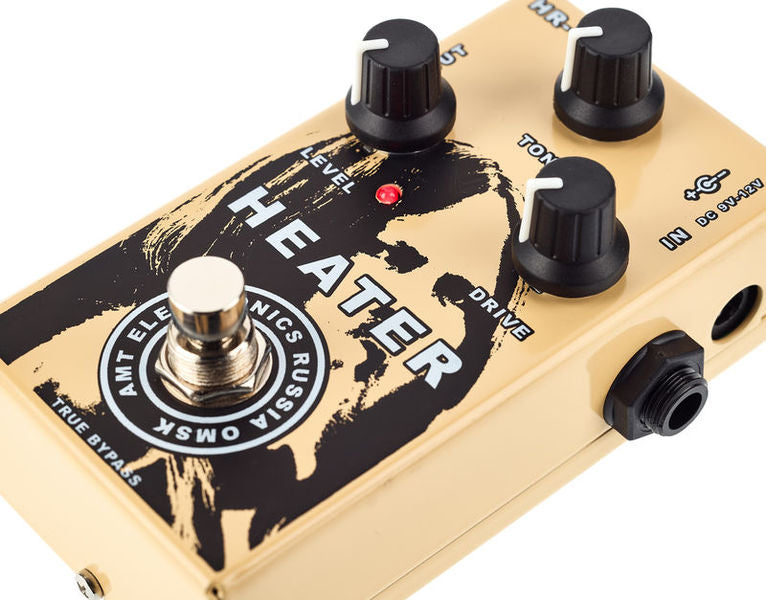

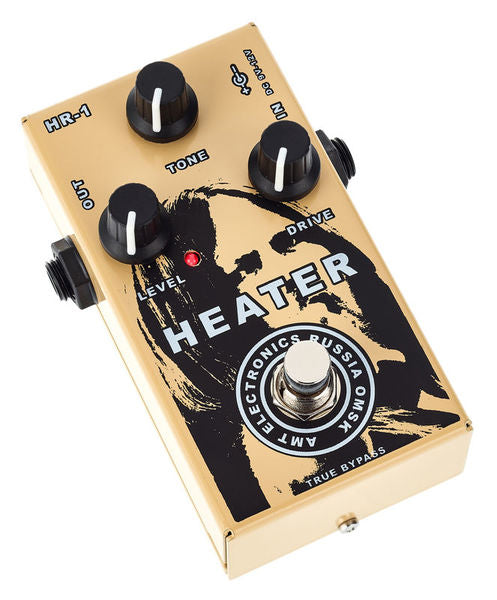

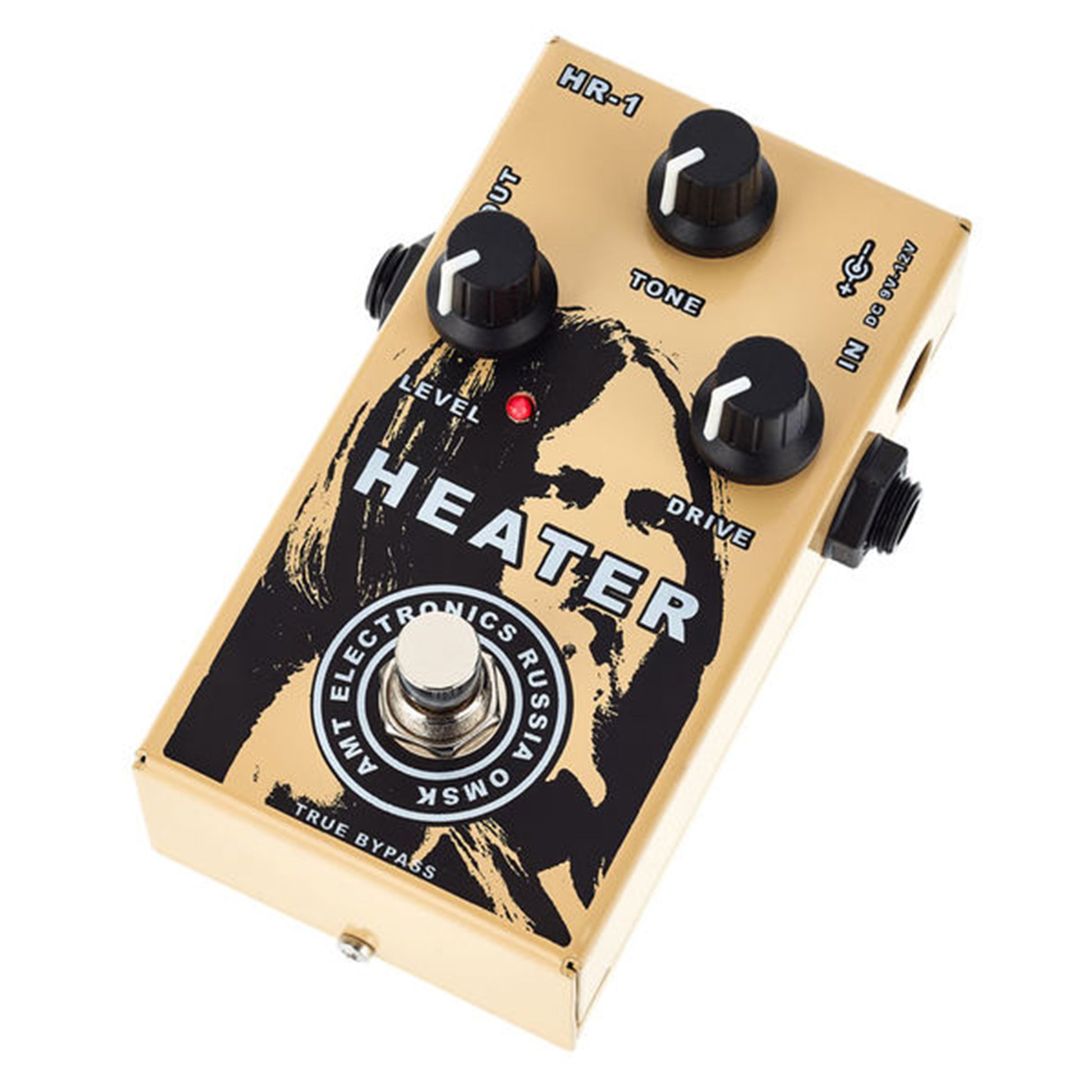

AMT HR-1 Heater — JFET overdrive/booster pedal (w/o power supply!)
AMT HR-1 Heater — JFET overdrive/booster pedal (w/o power supply!)
SKU:HR-1
Couldn't load pickup availability
ABOUT THE PRODUCT
AMT HEATER HR-1 is an analog of the legendary Tube Screamer in nature, but developed on the basis of modern components including JFET transistors. Such an approach allows you to look at the well-known pedal at different angle and discover new opportunities and colors of guitar sound.
The most attention in the process of the pedal development was paid to the sound quality due to the use of film capacitors.
The device features true bypass, which on the one hand calls for high quality cables, on the other — leaves the original instrument sound intact when the effect is off.
The pedal is powered either by 9V-battery or 9-12V power adaptor. The extended power voltages range is convenient if the «heater» is used along with a tube pedal, which normally require 12V adaptor. In this case, you can use single power adaptor via coupler/splitter.
With HR-1 used as a booster, overdrive or distortion, any guitarist will find his/her special sound.
► FEATURES
- True bypass;
- JFET transistors in sound section;
- High-quality components;
- Film capacitors in sound section;
- Lightness and compactness;
- Low voltage consumption.
► TECHNICAL PARAMETERS
- Input resistance: 1 mOhm
- The output resistance: 10 kOhm
- The maximum output level: 0 dBm
- Maximum gain: +30 dB
- Equivalent input noise: -100 db (IHF-A)
- Battery Power: yes, the battery 6LR61 (9v)
- Supply voltage: 9-12V DC
- Consumption current: 6 mA
- Dimensions: 113 x 74 x 54 mm
- Weight: 252 g
- Power supply is not included!
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-hr-1/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Noiseless power supply is purchased separately (you can choose):
|
AMT DC 12V, 1.25А AC/DC —
|
AMT DC 9V, 1.5А AC/DC —
|
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
