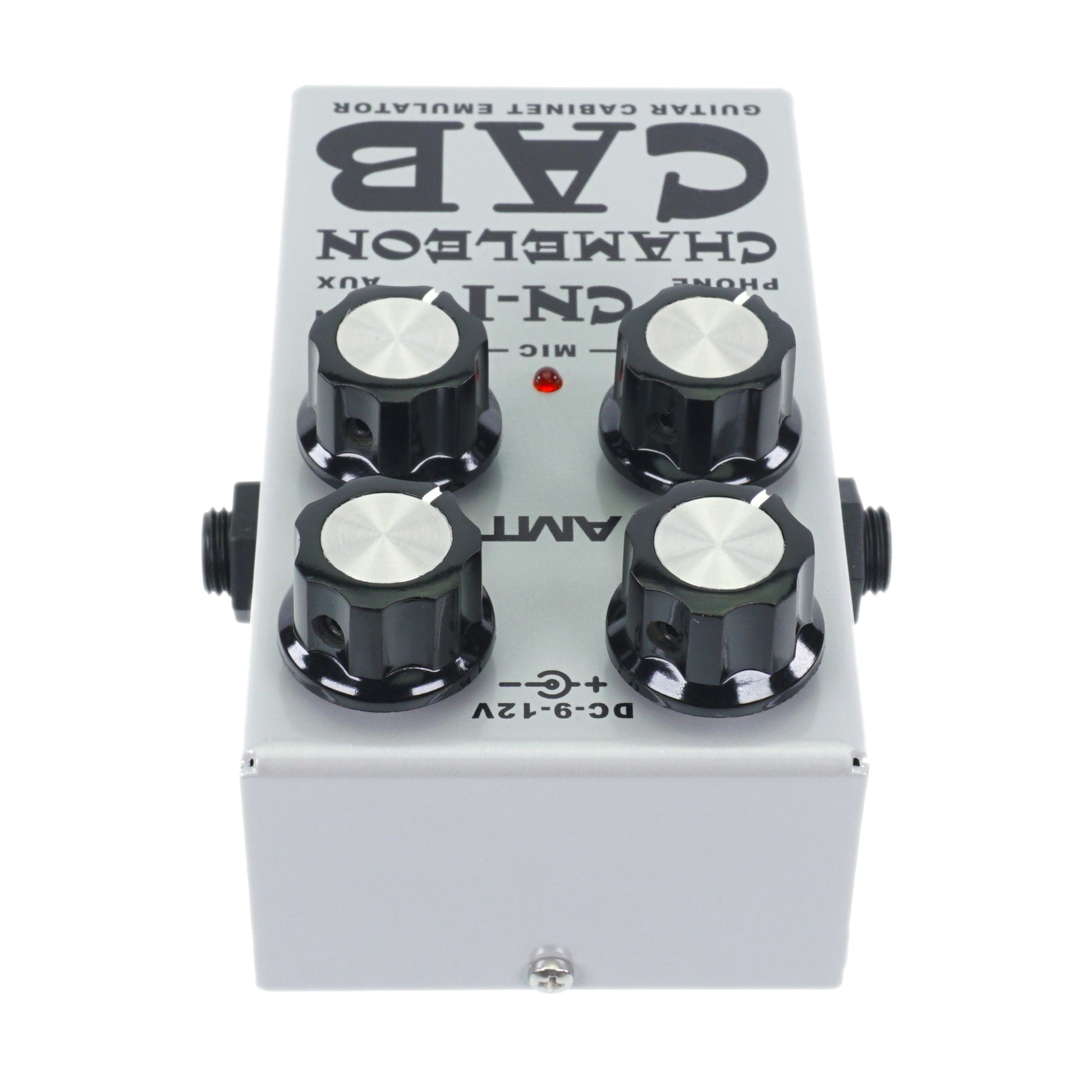

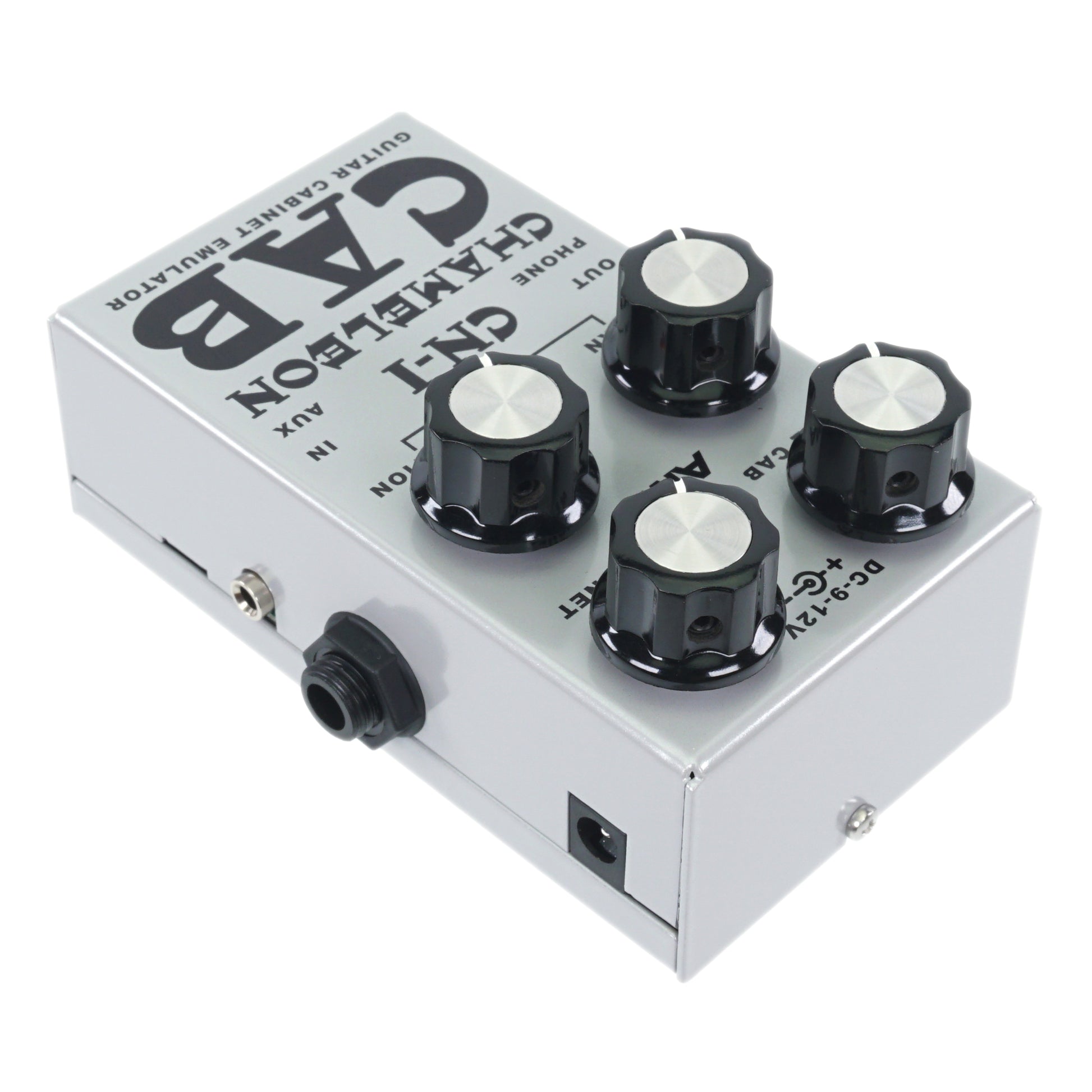

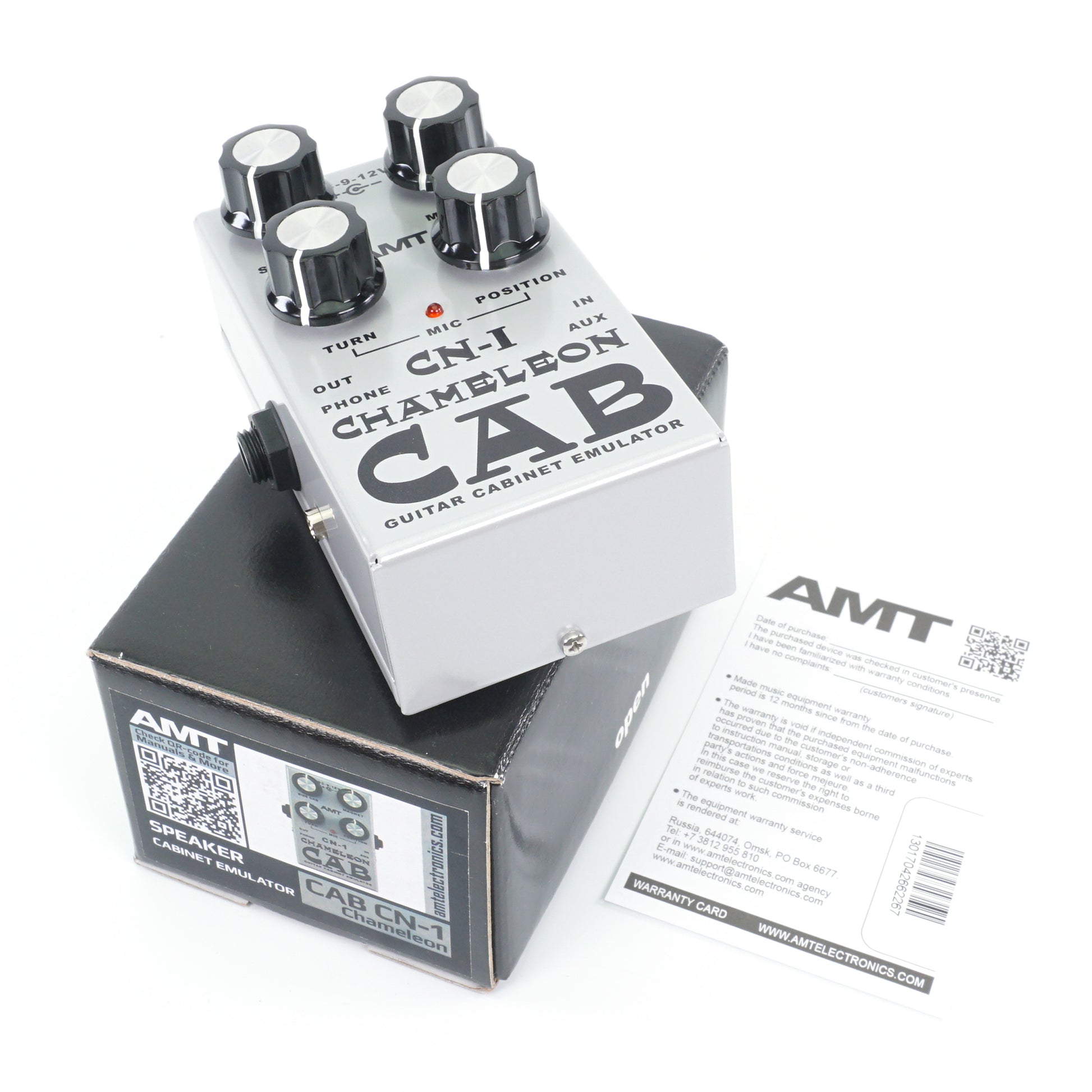

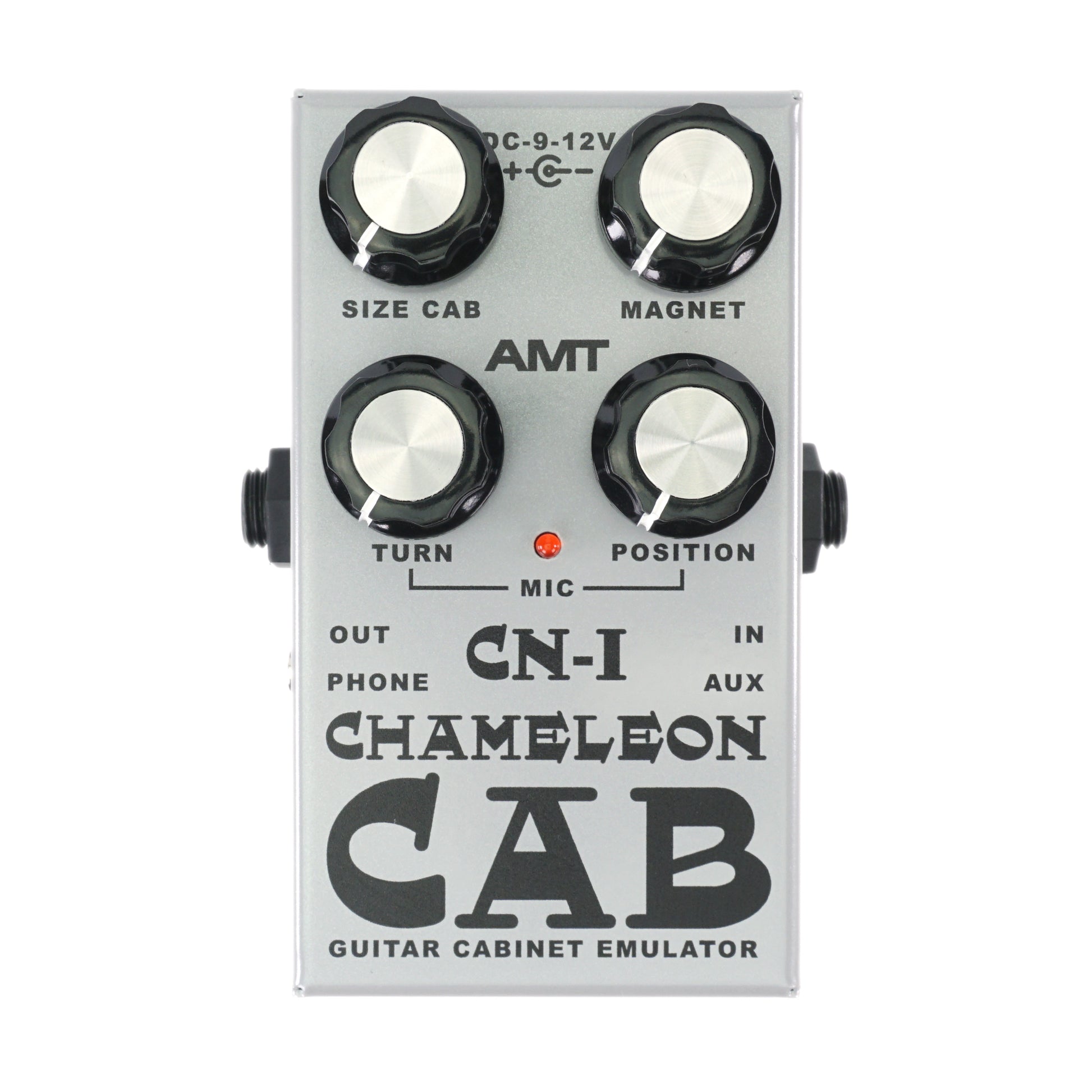

AMT Chameleon CAB CN-1 — Speaker Cabinet Emulator (w/o power supply!)

ABOUT THE PRODUCT

The AMT Chameleon Cab CN-1 is a unique speaker cabinet emulation tool that we have created due to the increased popular demand of performing live without a guitar amp or combo, or practice or record guitar at home studios.

Now, guitarists can easily play with their favorite distortion / overdrive / preamps directly into a computer, PA or DAW. This would have, otherwise, been impossible, resulting in a thin fizzy brittle sound by not using the proper cabinet emulation.

► FEATURES

Historically, the use of tube amplifier loaded on the speaker system with one or several special guitar-intended speakers for guitar channel has been a standard. The frequency response of such a system is much more limited in frequency range compared to broadband acoustic systems used in home stereo systems or headphones.

• The main feature of a guitar speaker is the lack of high frequencies (above 5 kHz) because the distorted (overloaded) sound of the guitar is very unpleasant when you play it via broadband loudspeakers.
• Connection of external audio devices (MP3 player, etc.) for guitar practice.  The use of devices similar to AMT Chameleon CAB CN-1 is, as a rule, is a forced measure, due to the circumstances restricting the freedom of guitar equipment choice. Since to completely reproduce the entire sound palette of real guitar speakers and tube amplifiers, you can only need a real guitar system.
• Due to many factors, the absolute sound identity of the simulation is practically unattainable; in case of AMT Chameleon CAB CN-1 we can only say about close approximation. But given the wide opportunities of CN-1 whose parameters can give you satisfactory sounds, and in cases where the use of a real system, for whatever reason, is impossible or impractical.
• Connecting mp3 player or a metronome to AUX and headphones to PHONE, you can immerse yourself in individual practice without disturbing people around you.

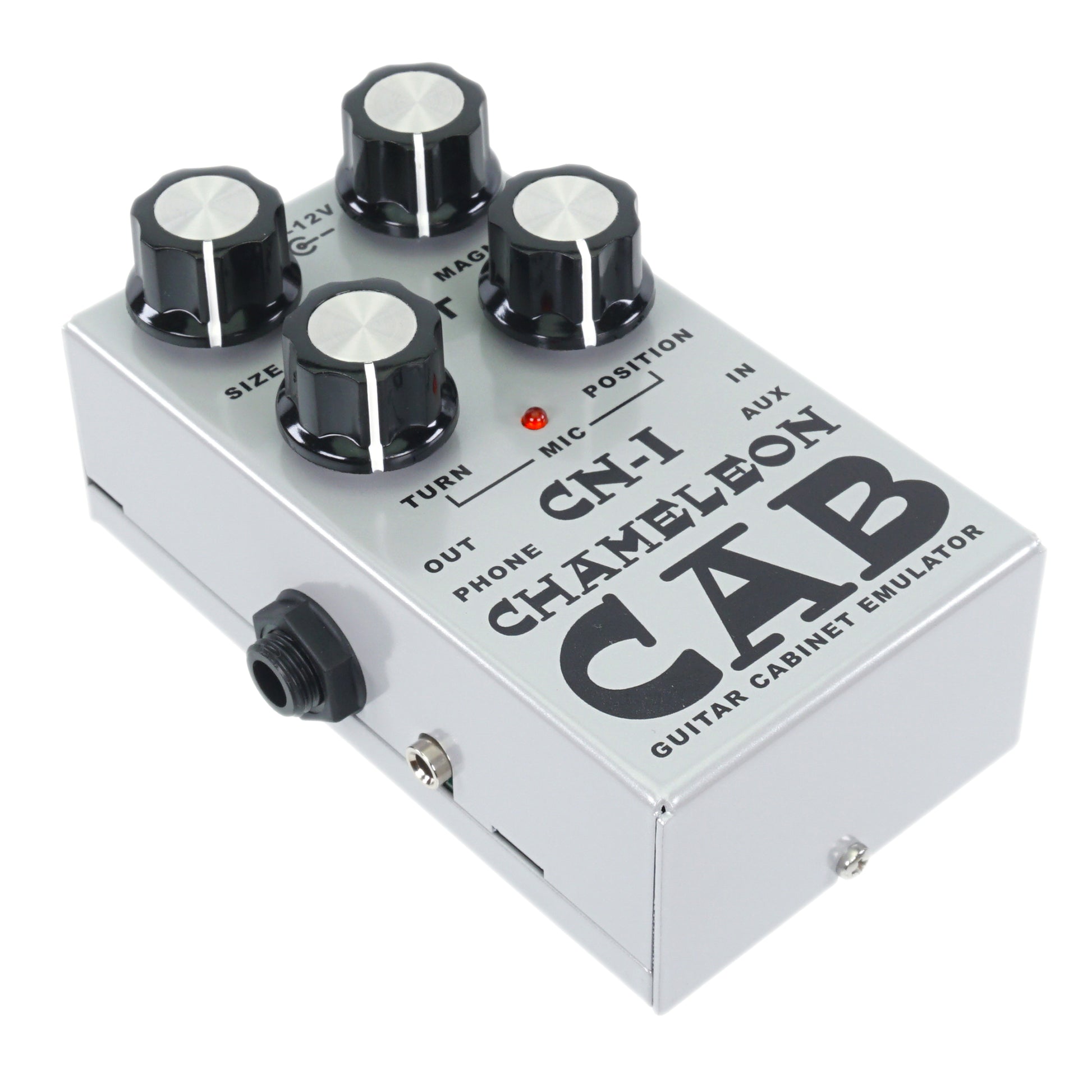

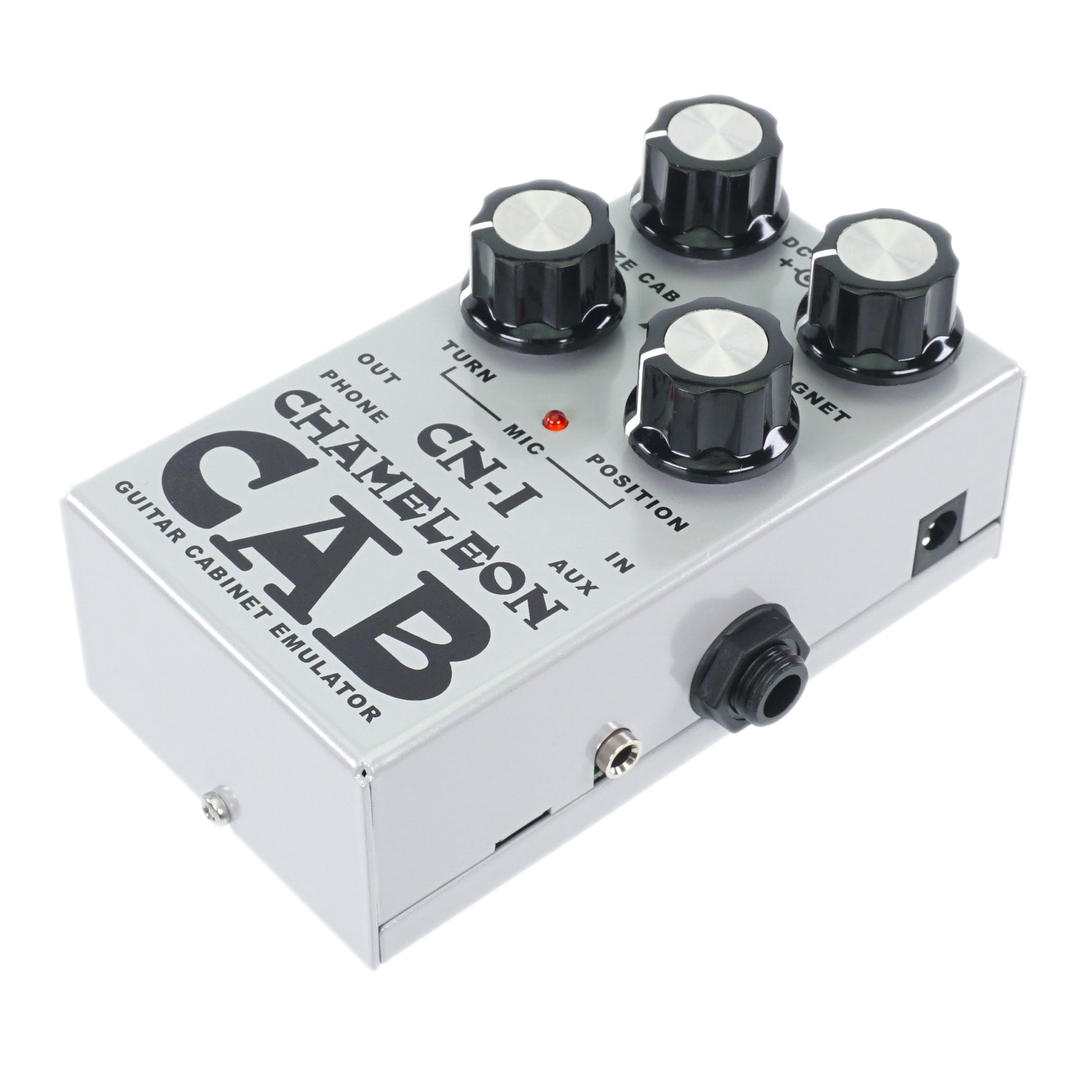

► CONTROLS

• SIZE CAB adjusts the overall speaker cabinet size being emulated. Simulates smaller 1x10" style cabinets all the way up to a thick sounding 4x12" cabinet, and everything in between.
• MAGNET adjusts the frequency cutoff response of the speaker magnets.
• MIC POSITION emulates moving the microphone closer to the center of the speaker cone, or further away from the center.
• MIC TURN emulates the rotational axis of the microphone, from straight on — to an angled away facing microphone.

► TECHNICAL PARAMETERS

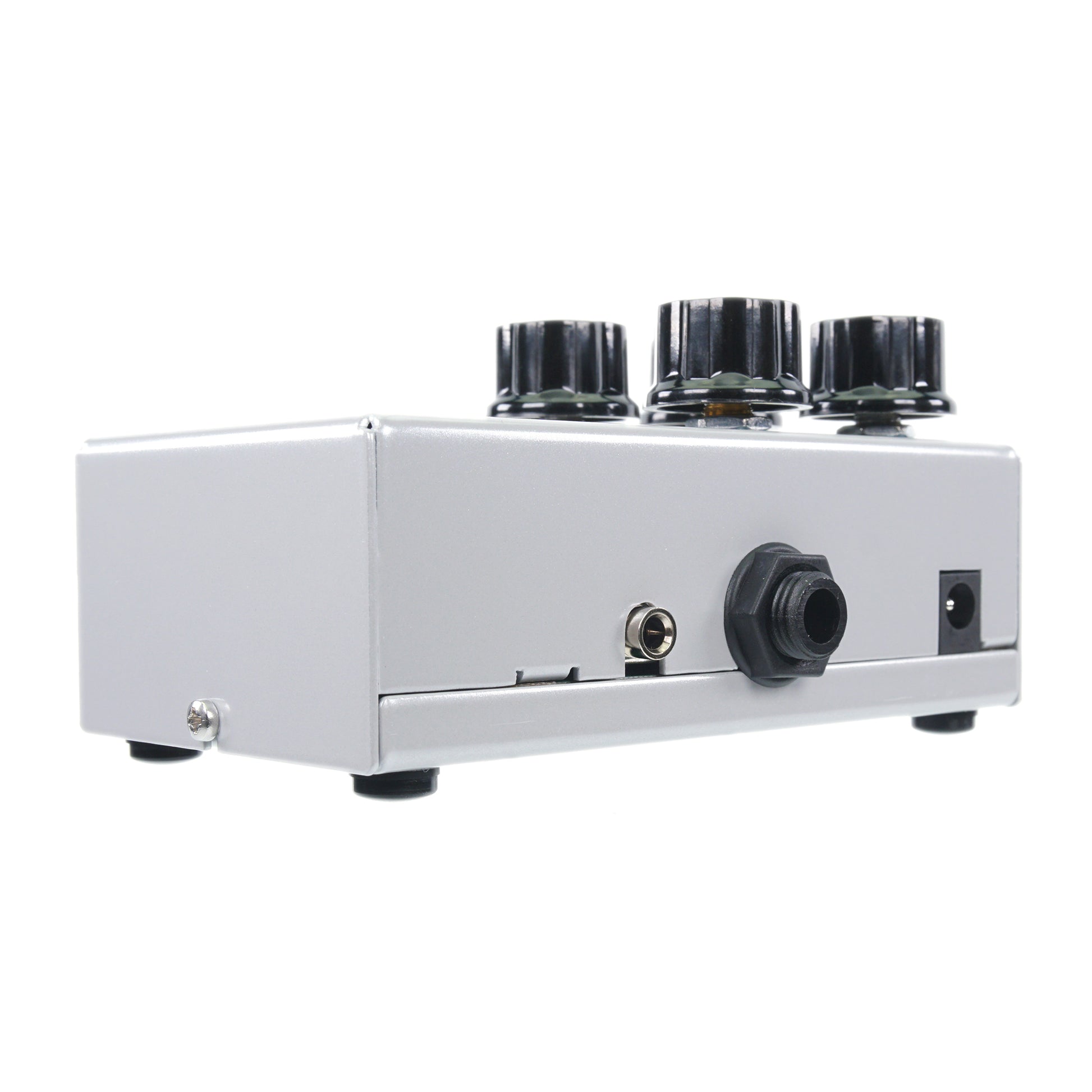

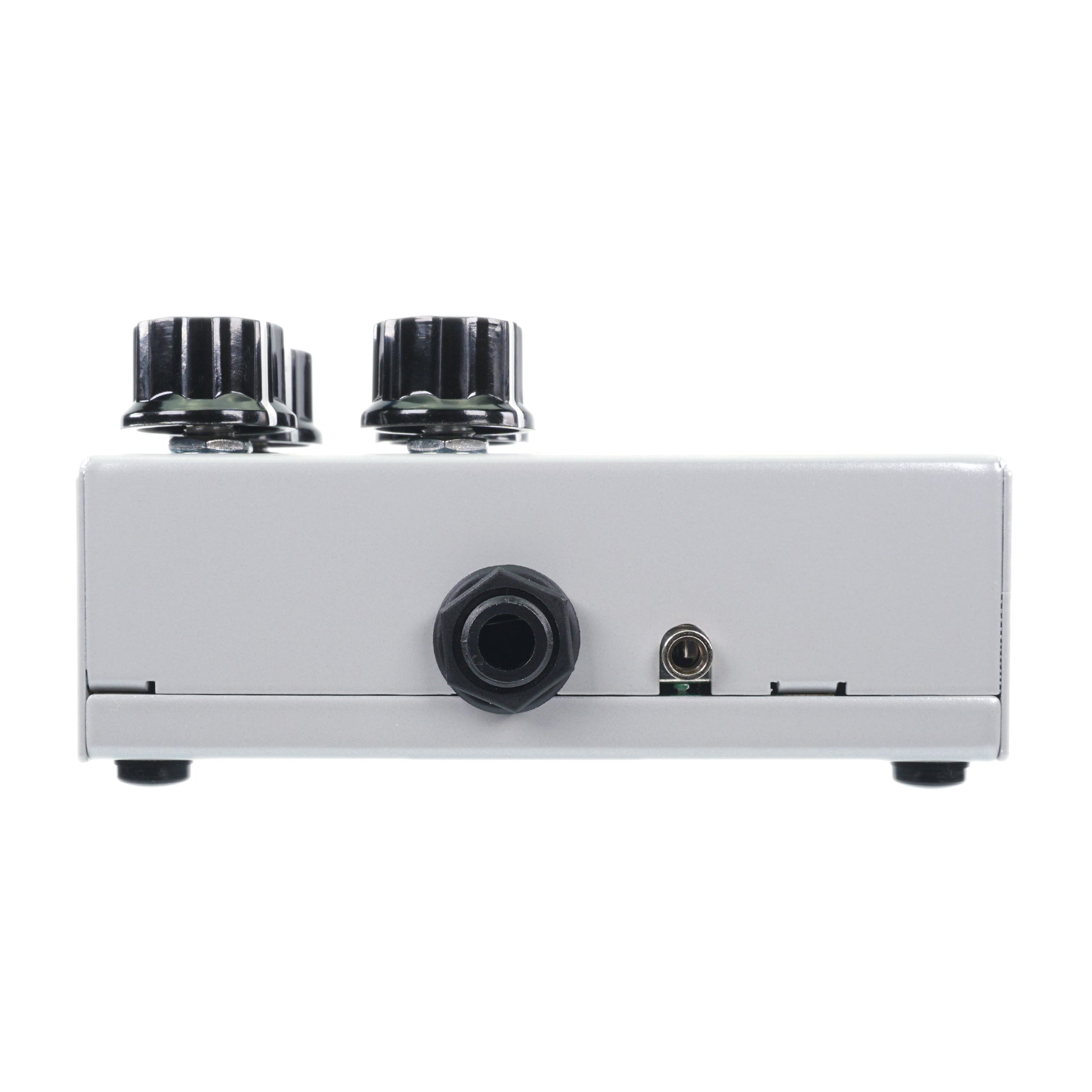

• 1/4" Input and Output Jacks
• 1/8" AUX Input and Output Jacks for other various devices
• Battery Power: 1 x 6F22 battery (9v)

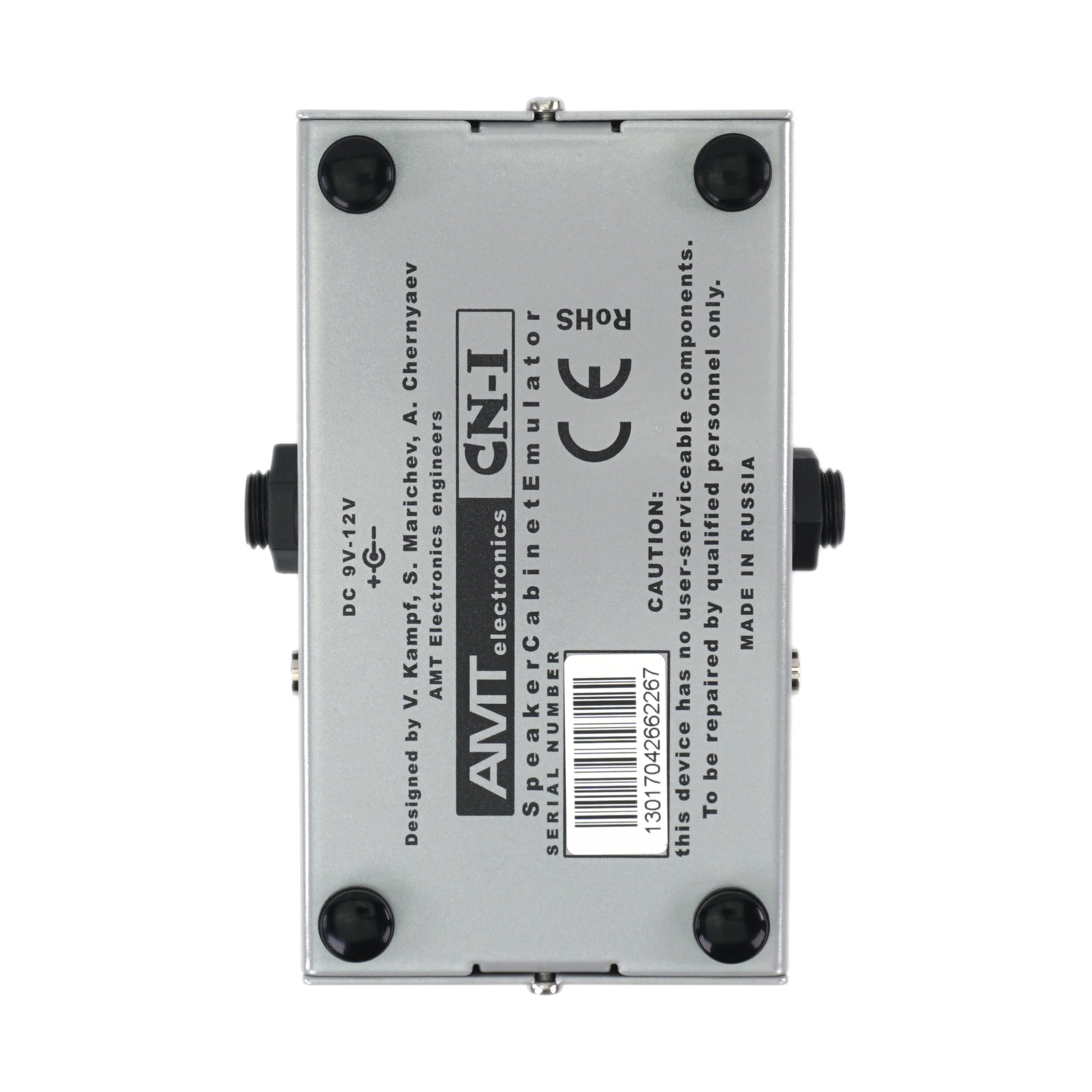

• Supply voltage: 9-12V DC (Negative Center)
• Consumption current (no more than):
  • 60 mA (with the headphones);
  • 10 mA (without the headphones).
• Weight: 286 g
• Dimensions: 112 x 77 x 58 mm
• Power supply is not included!

 NOTE

Read the review of the CN-1 pedal at www.bonedo.de: http://www.bonedo.de/artikel/einzelansicht/amt-chameleon-cn-1.html

► USER'S GUIDE

All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-cab-cn-1/

💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE

Noiseless power supply is purchased separately (you can choose):
