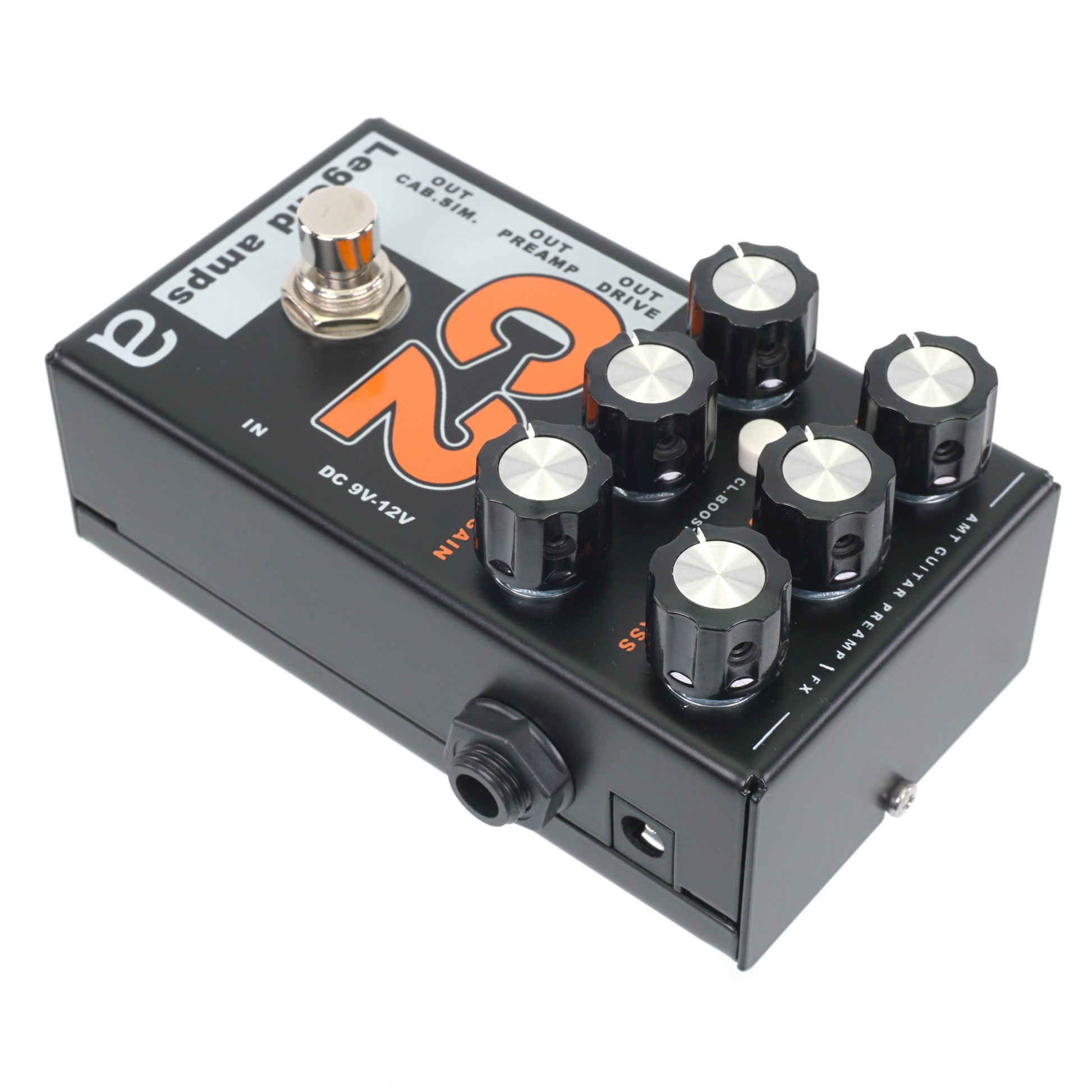

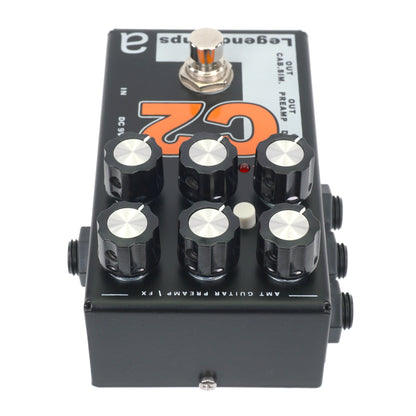

AMT C2 — 2 channels guitar preamp/distortion pedal (Cornford) (w/o power supply!)

INTRODUCTION

Introducing the next generation of the Legend Amp series of pedals — the LA2 line.

Guaranteed to be the most versatile distortion pedals on the market, offering huge tube-style saturated tone in the styles of all of your favorite high-gain modern and classic amp heads.

The LA2 pedals will accompany the original series, as an enhanced, upgraded «PRO» version.

► ABOUT THE PRODUCT

The AMT C2 preamp is able to emulate the unique sound of Engl's* third cousin Cornford* characterized by clear tone, diversity, and minimalism. The C2 drive channel provides wide overdrive range from slight crunch to biting high gain.

Two-channel LA2 series preamp effects are designed to produce clean and overdriven guitar sound within a variety of guitar channel organization. The basic concept of the series is «your own sound in your pocket».

The LA2 incorporates original circuit designs developed by the specialists of AMT, which allow obtaining bright and rich sound in the style of the original tube overdrives using low-voltage (9-12V) power and low current consumption.

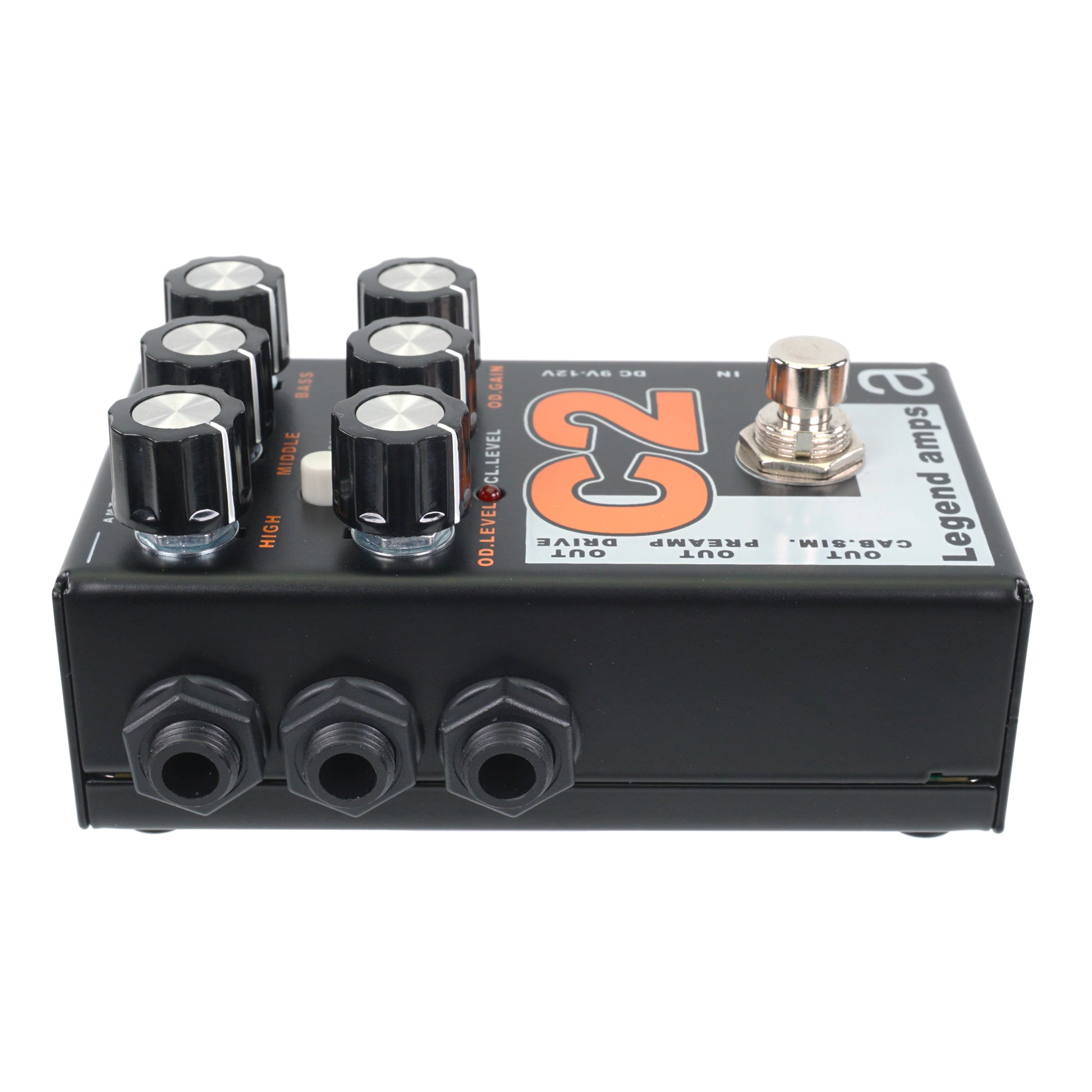

► ALL THREE OUTPUTS — AT THE SAME TIME!

The distinctive feature of the series is the presence of three outputs intended for implementation of basic types of channels organization:

• direct connection to guitar system power amp;
• connection to «clean» channel of a guitar combo or amp;
• direct connection to a mixer (CAB SIM OUT).

All three of these outputs can be used simultaneously! Use the different outputs for recording direct and mixing at the same time, run different effects through different outputs, or record three DAW tracks all at once.

The routing and recording options are endless. The Legend 2 series of pedals are a studio engineer's dream come true!

► TWO CHANNEL PREAMP AND DISTORTION PEDAL

When the LA2 pedal is connected to the amp or a mixer, it acts as a two-channel preamp, providing a switch between clean and overdriven channels by means of a footswitch. CLEAN channel is universal for all models of the series and sounds in the style of classic Fender* amps.

When using the LA2 in effect mode (as a regular drive/distortion pedal), the CLEAN channel of an external amplifier or a combo is used. Please be aware that the used combo or amplifier largely determines the resulting sound.

When in effect mode, the LA2 pedal uses «partial» active bypass, which reduces the need to minimize the length of used cables and retains the original sound of the instrument when the effect is off.

* All the names used in this document are trademarks of their respective owners, which are in no way are associated or affiliated with AMT Electronics. These trademarks of other manufacturers were used to identify products whose sounds were reviewed in the making of this product.

► CONTROLS

• OD LEVEL adjusts the overall loudness of the pedal output;
• OD GAIN adjusts the amount of distortion and drive;
• HIGH controls the amount of high frequency in the signal;
• MIDDLE controls the amount of mid-frequency in the signal;
• BASS controls the amount of bass frequency in the signal;
• CL LEVEL adjusts the buffer output of the bypassed signal, 1 o'clock positioning represents standard -10dB level;
• CL BOOST SWITCH engages a boost of clean signal up to +8dB when the pedal is bypassed, making the pedal a 2-channel preamp.

► TECHNICAL PARAMETERS

• Weight: 315 g.
• Dimensions: 113 mm x 77 mm x 55 mm
• Supply voltage: 9-12V DC
• Battery Power: 1 x 6F22 battery (9v)
• Consumption current: ~6 mA
• The power supply is not included!

► USER'S GUIDE

All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-c2/
