AMT Fulcrum PS-512V — linear power supply
AMT Fulcrum PS-512V — linear power supply
SKU:PS-512V
Couldn't load pickup availability
ABOUT THE PRODUCT
AMT Fulcrum PS-512V — is a linear power supply with 4 (four) galvanically isolated outputs.
► FEATURES

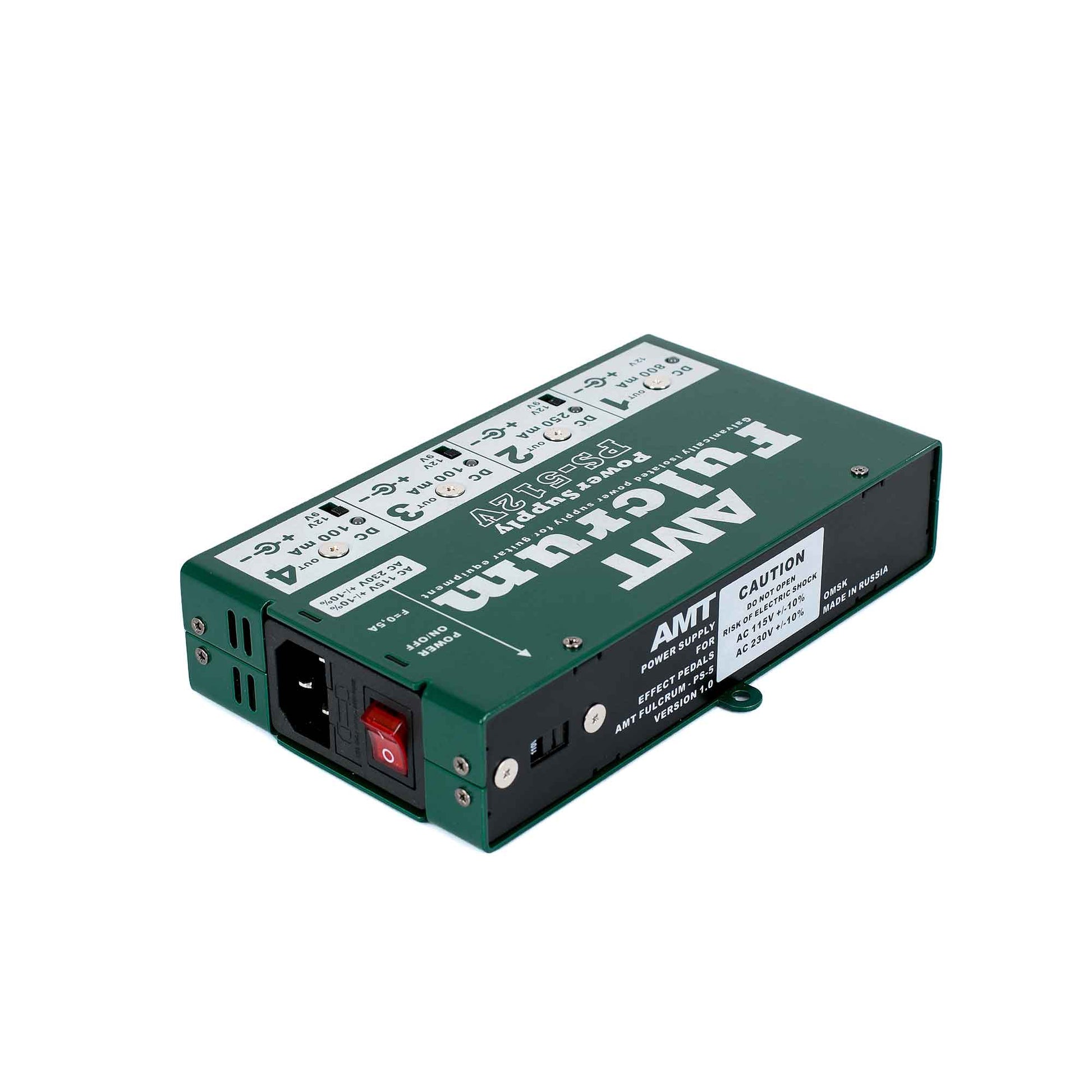

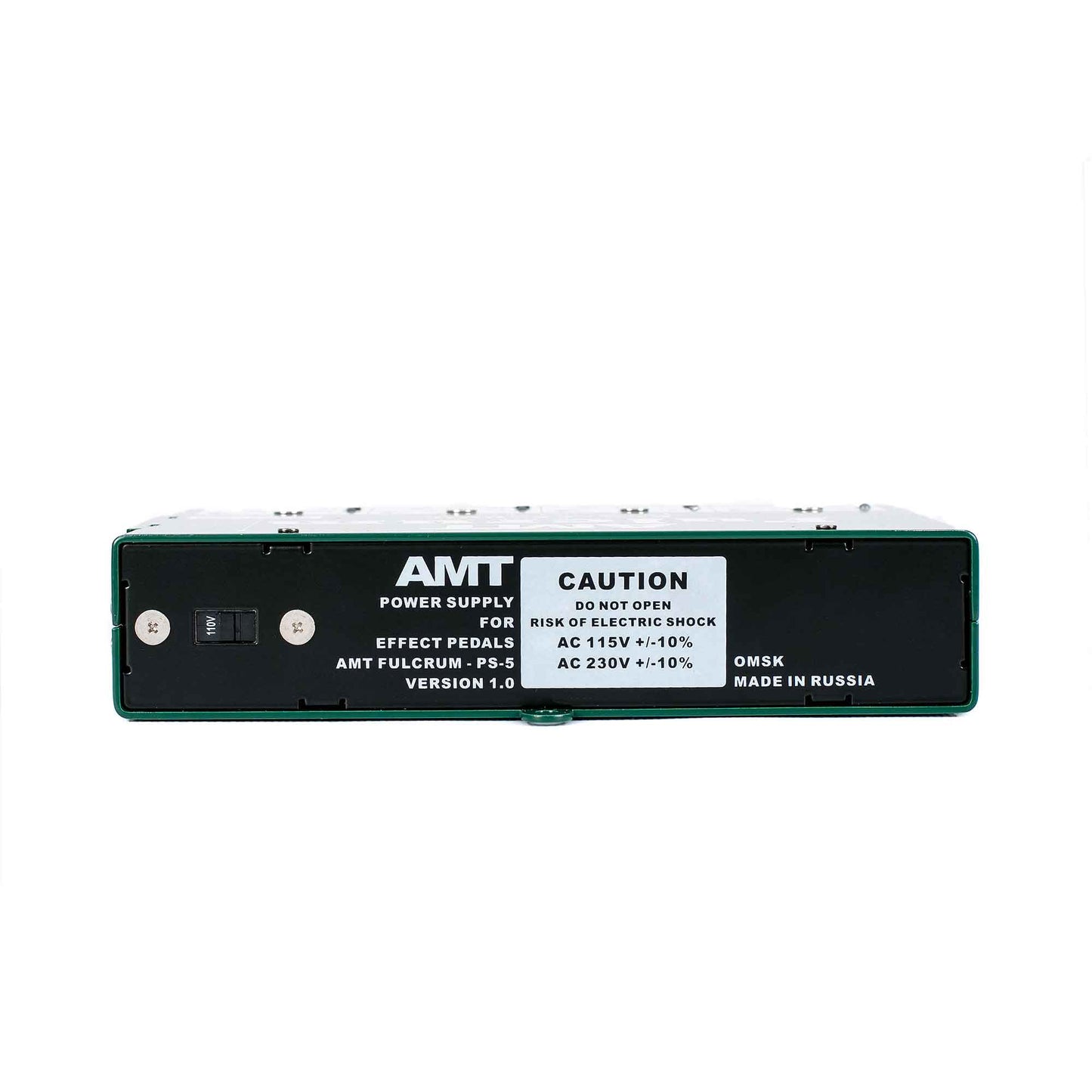

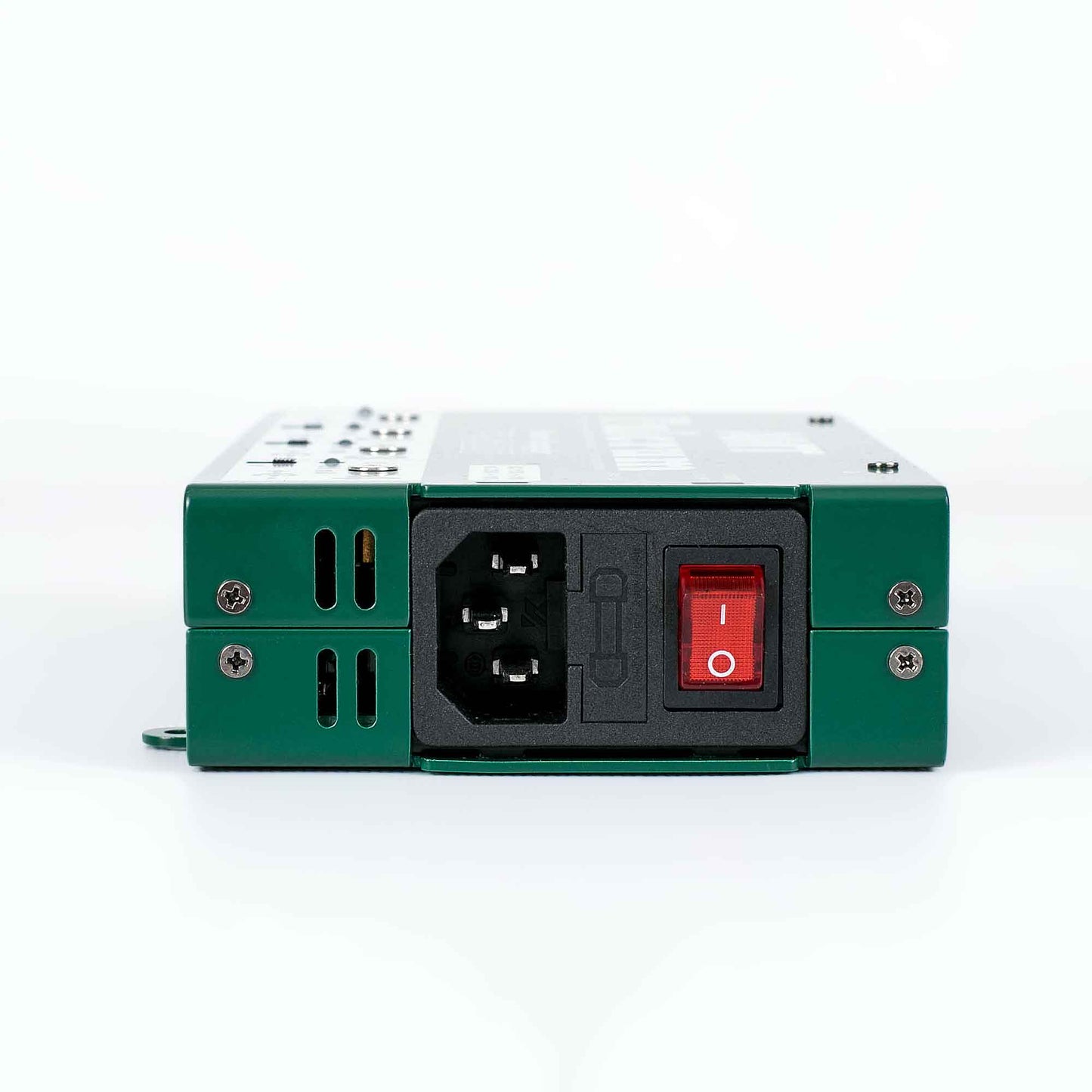

- The AC mains voltage is selected by the switch: 115VAC/230VAC +/- 10%.
- The mains fuse is 0.5A for both voltage standards.
- There is a power switch.
- The device’s body has three «petals» with holes for mounting this power supply on your pedalboard.
- Each output is protected against a short circuit and an overcurrent.

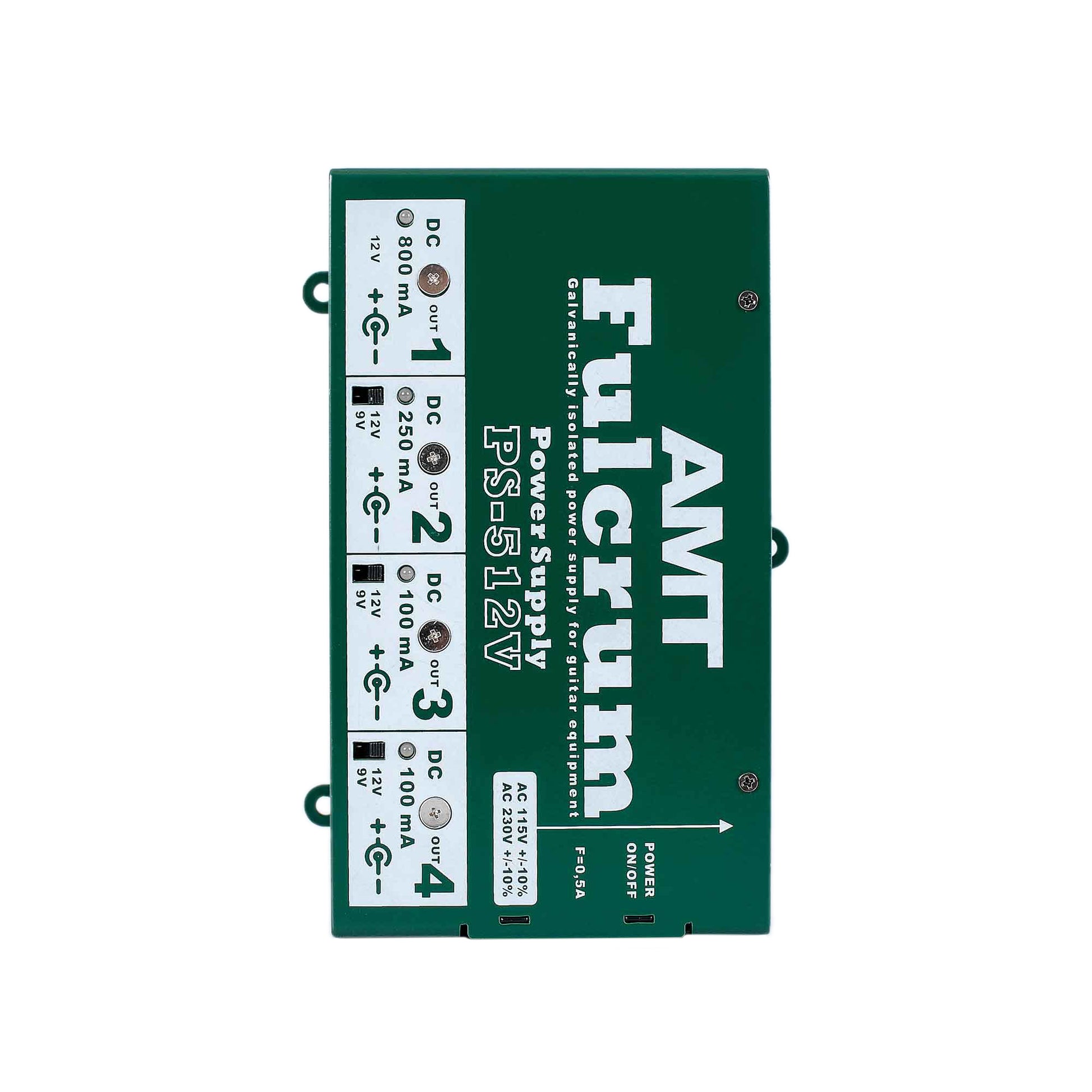

- Each output has a two-color LED to show the output status.
- The LED lights in green when the output is in a normal mode.
- The LED lights up in red when the output is in the current protection limiting mode.
- Each of all outputs can be simultaneously loaded with a nominal current, if the AC mains is in the range of +/- 10% of its rated voltage.

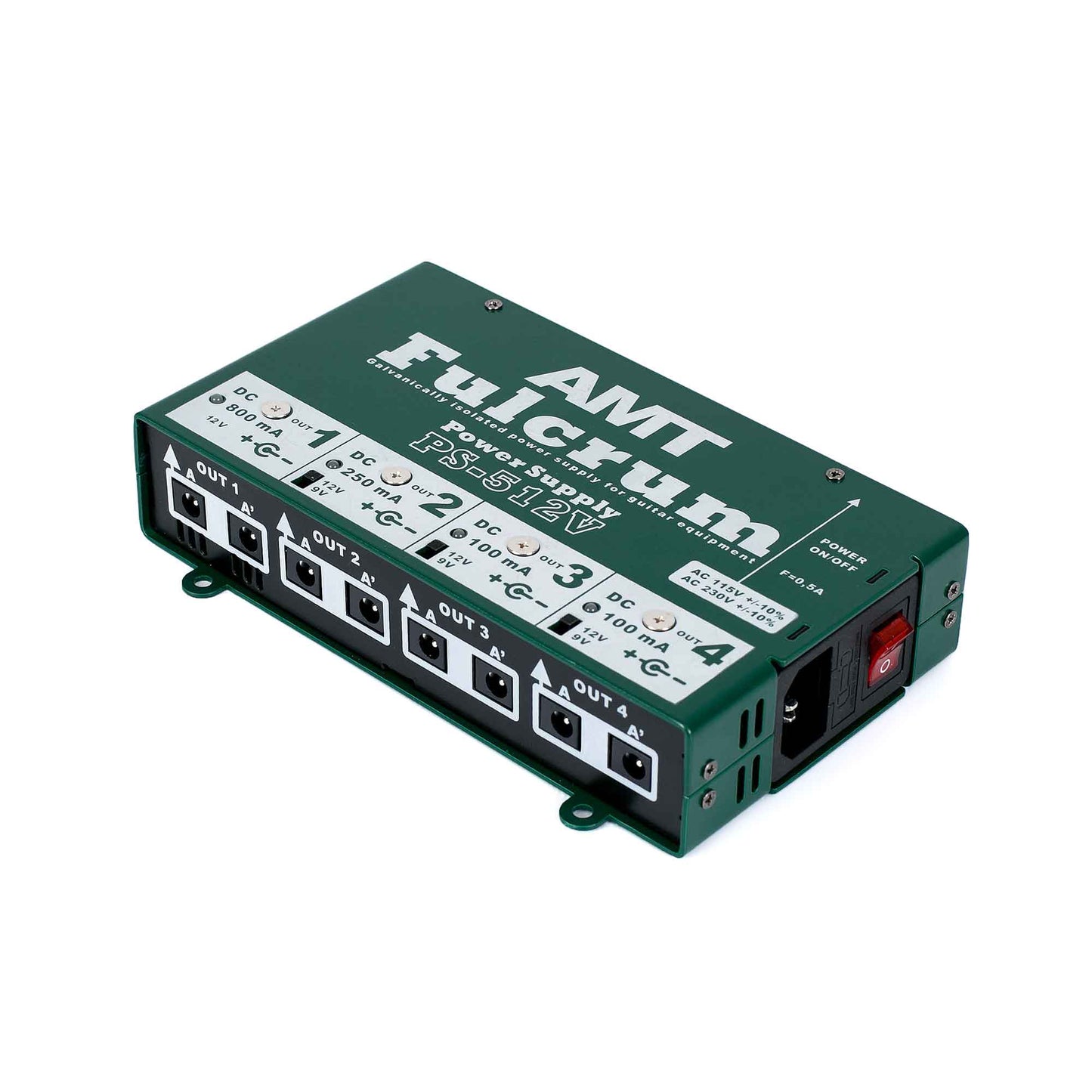

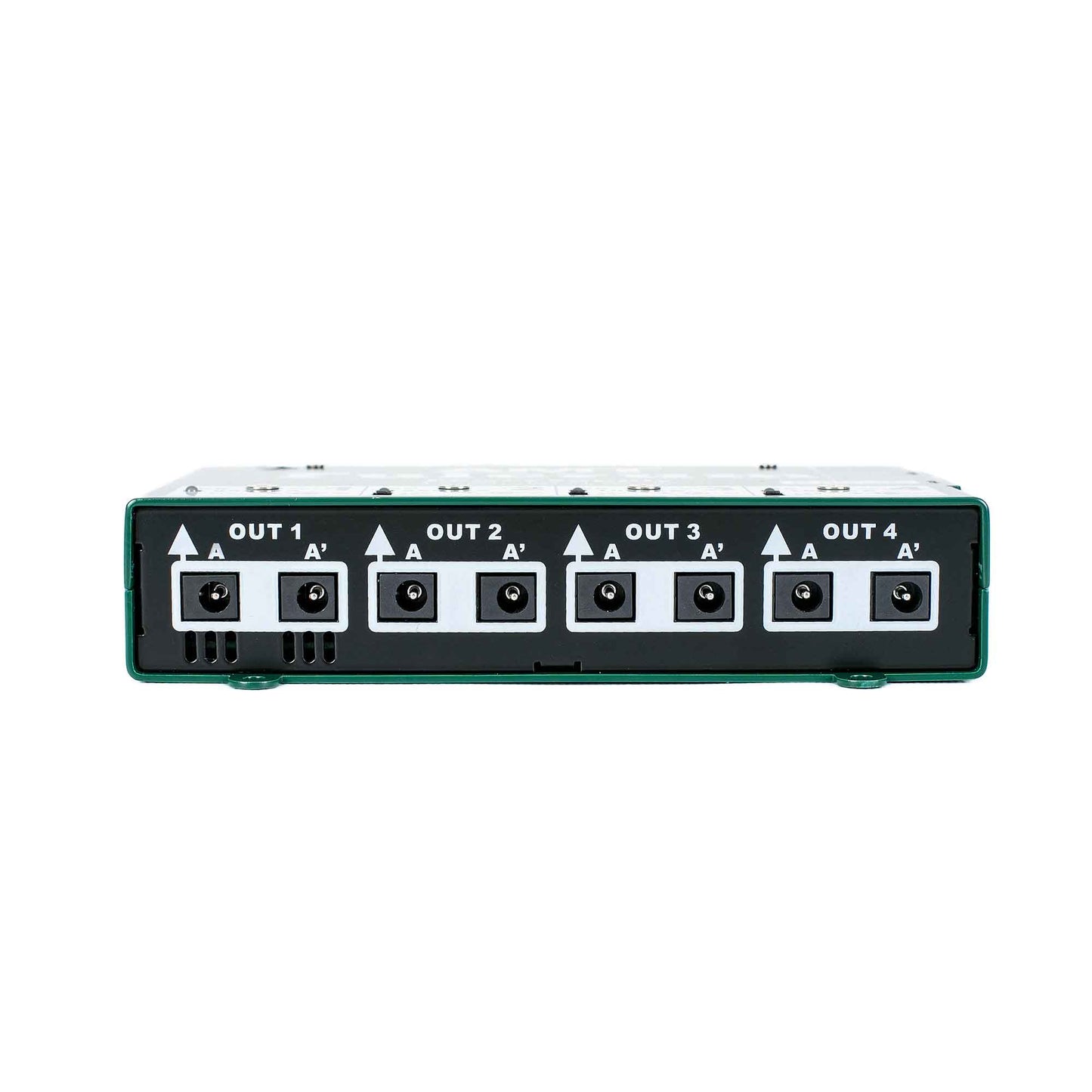

- The AMT Fulcrum PS-512V power supply has four isolated outputs with duplicated output connectors.
► TECHNICAL PARAMETERS
- AC Mains input: 115V & 230V (+/- 10%)
- DC Output 1: DC 12V (800mA)
- DC Output 2 (switchable): DC 9/12V (250mA)
- DC Output 3 (switchable): DC 9/12V (100mA)
- DC Output 4 (switchable): DC 9/12V (100mA)
- Maximum total (all outputs) current: 1250mA
- Weight: 975 g
- Dimensions: 170 x 36 x 97 mm

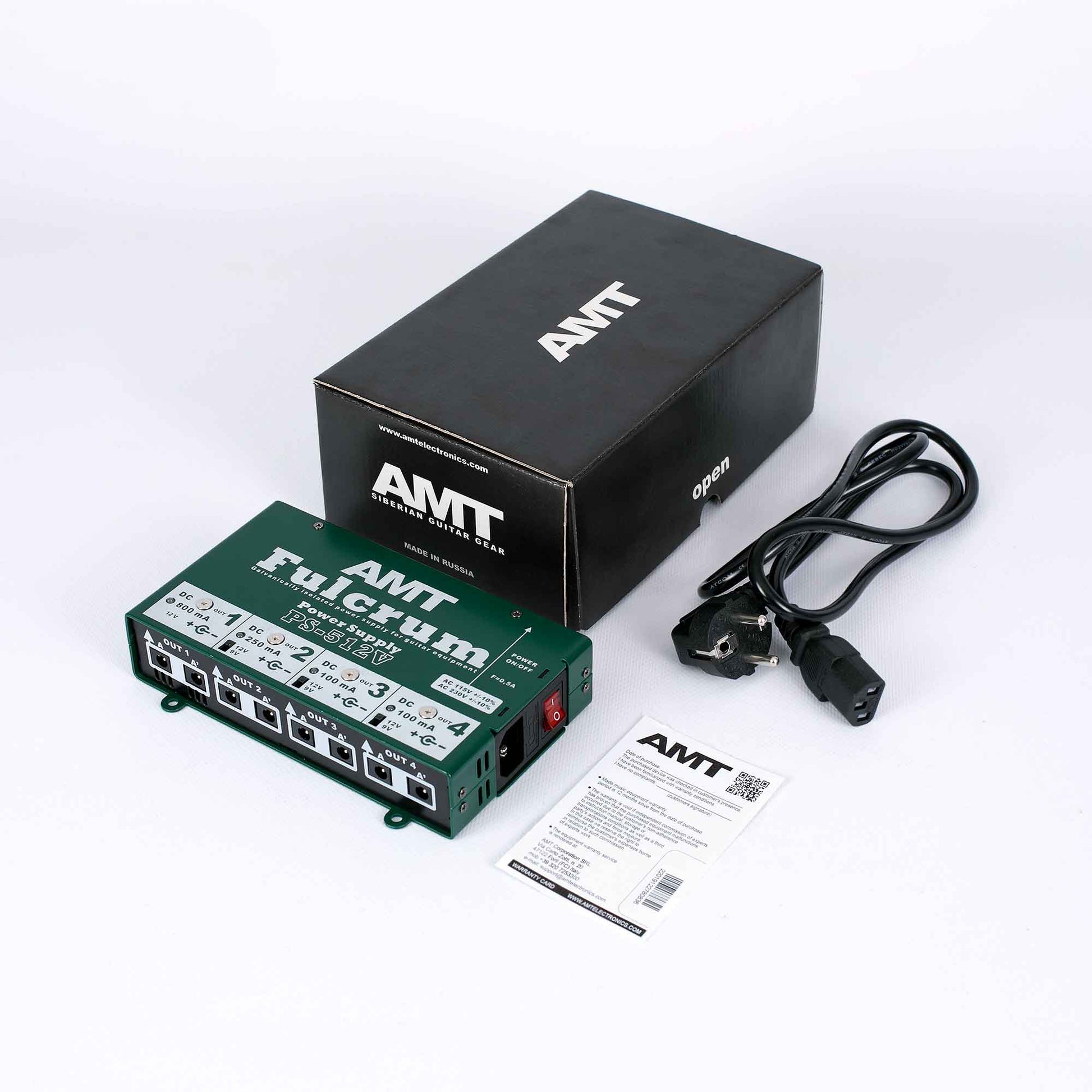

- VDE cable with EU plug is included!
IMPORTANT TO KNOW
OUT 1 + OUT 2 + OUT 3 + OUT 4 = 800mA + 250mA + 100mA + 100mA = 1250mA → 1,25A
At the same time, when we're talking about the total current (say, for a group of outputs «OUT 1»), it is assumed:
OUT 1 = OUT А + OUT А’
For example:
OUT 1 (max 800 mA) = OUT А [guitar pedal that consumes 450 mA] + OUT А’ [guitar pedal that consumes 350 mA] = 450 mA + 340 mA = 790 mA
As we can see, that's ok as under the amperage requirements for the «OUT 1» output group.
► USER'S GUIDE
All other necessary information about the device (User’s Guide, videos, etc.) you'll find on the product's page at the AMT Media Center:
https://media.amtelectronics.com/amt-fulcrum-ps-512v/
💡 FOR THIS DEVICE, YOU MAY NEED TO PURCHASE
Power supply cables are purchased separately:
IMPORTANT NOTE ABOUT THE POWER SUPPLY
For powering the AMT devices always use specialized power supplies originally designed for guitar pedals & gear meeting the following basic requirements:
Please, don't try to use for these purposes the usual cheapest power supply from household appliances and electronics, like from your laptop, Wi-Fi router, etc.! Such power supplies have a reverse polarity compared to AMT devices, so it won't work! Even if you're «the guy was born with a soldering iron in the hand» and almost ready to change a polarity of such power supply — we strongly not recommend you do that!
Those kinds of power supplies are not intended for using with the guitar gear. Otherwise, you'll get a problematic very noisy guitar sound full of «hum», «cheep», and other sound «effects»!
