PRE-ORDER! NEW! AMT Pangaea U-2 Ultima Brain Frame (without power supply!)

Versatile guitar effects platform

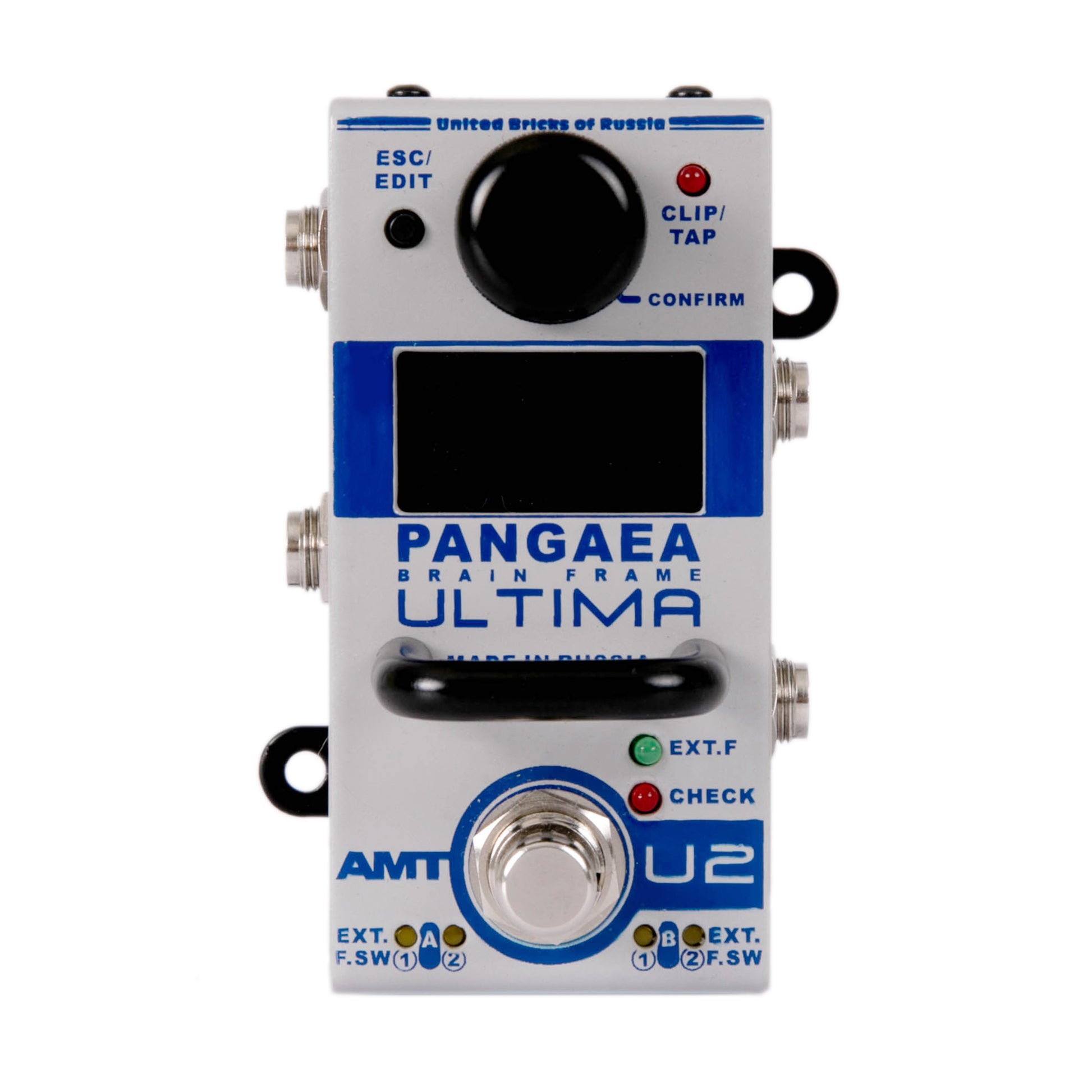

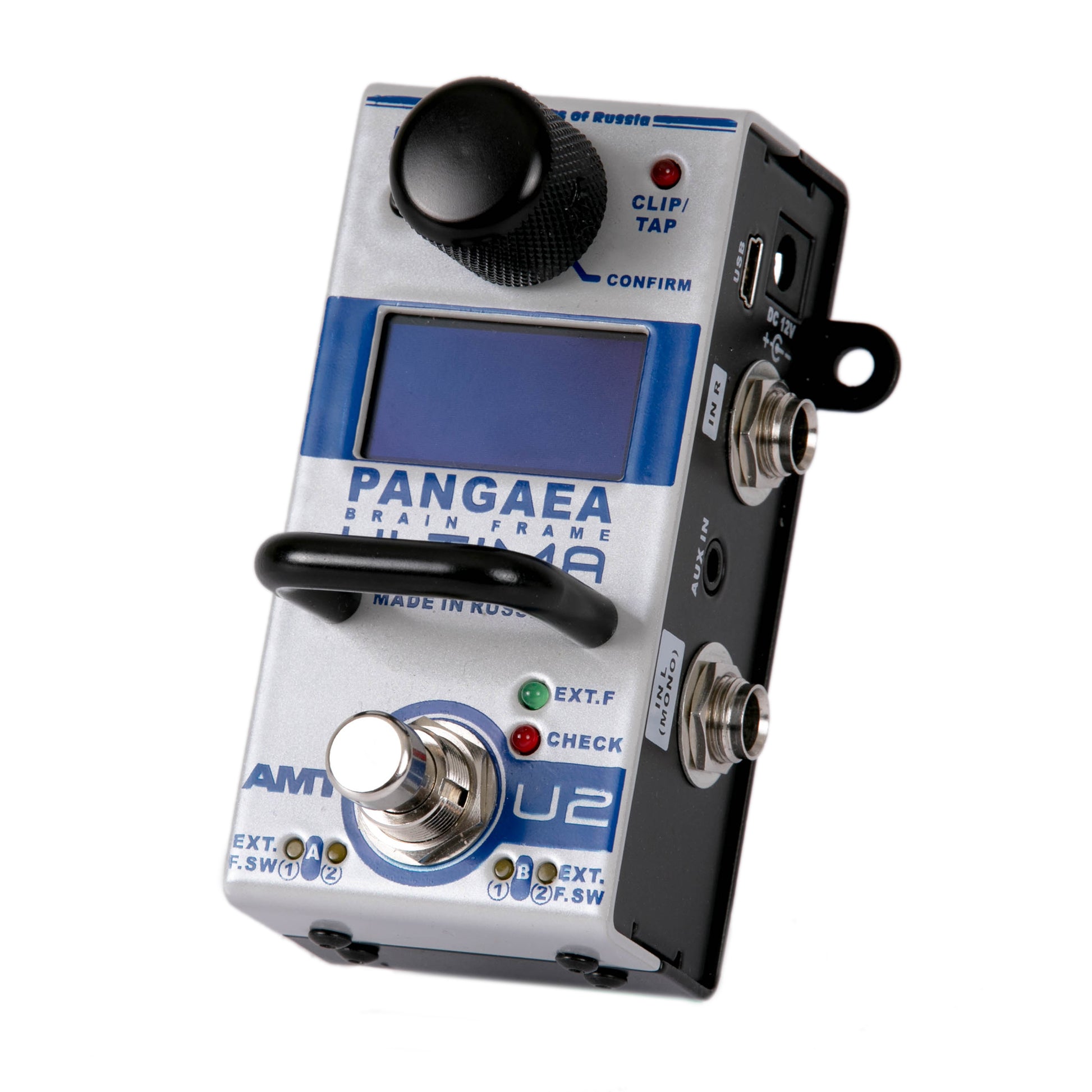

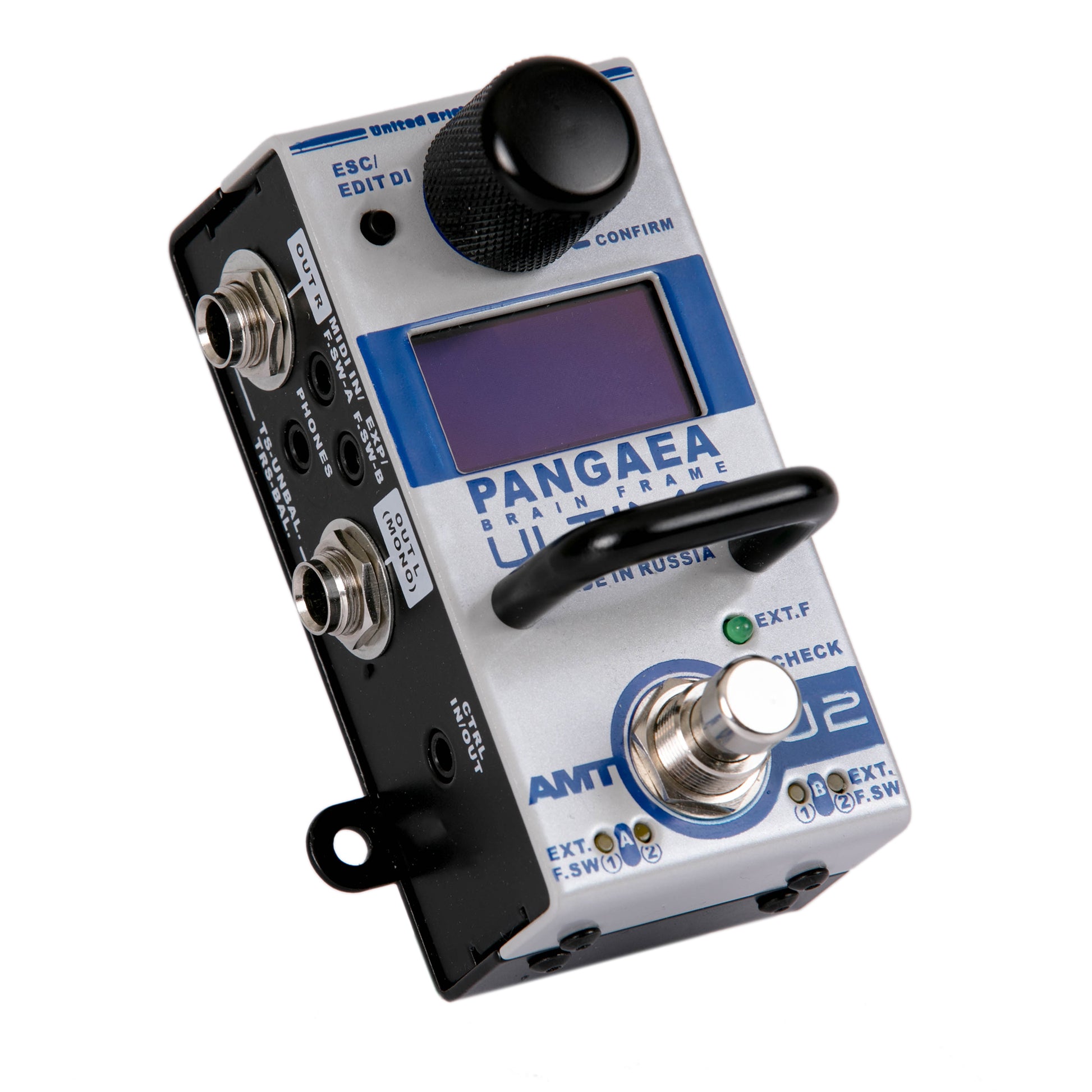

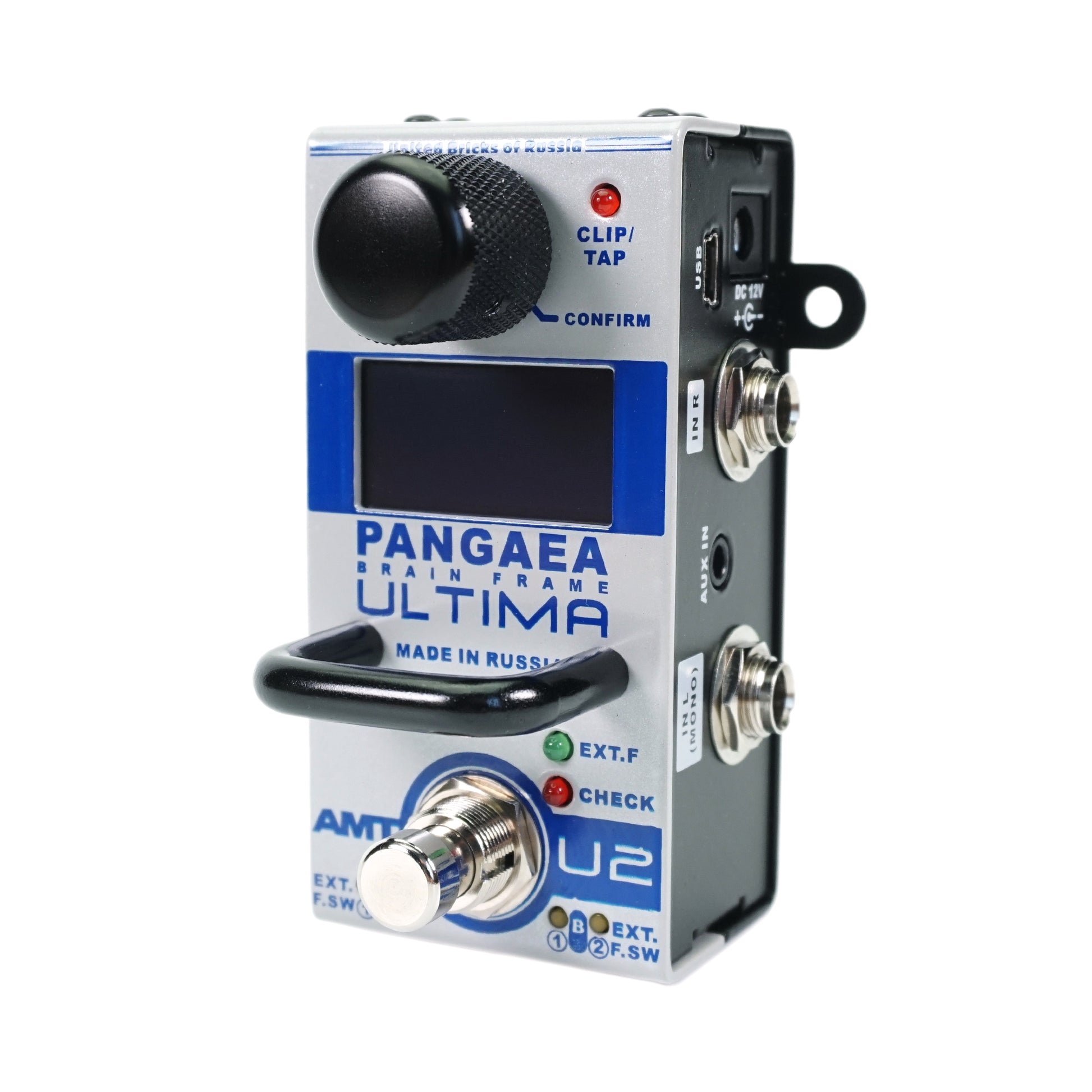

 AMT Electronics presents the new device – AMT U-2 Pangaea Ultima Brain Frame.

The device is a hardware platform on the basis of which various guitar effects can be implemented in software.

Changing the functionality of the device is carried out by changing the ► FIRMWARE ◄ of the device.

This device complements the AMT Bricks series of devices. The AMT Bricks series includes various devices (preamps, effect pedals, noise suppressors, cabinet simulators, device controllers, pedalboards, etc.).

Uniting the AMT Bricks series factor is their design and functional compatibility.

Most of the devices of the series can be used both independently and together.

FIRMWARE TYPES

On the ► PAGE ◄ there are available for downloading the next Firmware for the AMT Pangaea U-2 Ultima:

01 - IR CabSim Fx

The main firmware comes with the device by default.
A feature is an analog-digital preamp section with three channels: clean, low & high gain.

• TUNER;
• METRONOME;
• [NG] Noise Gate – Global settings / by each preset);
• [CM] Compressor;
• [PR] Preamp – analog-digital preamp section (Clean / Drive Low / Drive High);
• [PA] PowerAmp – 9 types of virtual Power Amps;
• [IR] CabSim – 1 WAV IR for both L/R channels per preset; IR/Dry parameter for mixing the processed and Dry signal;
• [EQ] Equalizer – parametric Pre/Post EQ;
• [FT] Filters – Hi/Low pass filters + Presence;
• [FX] DL/RV – Delay or Reverb per preset
• + rich switching capabilities (2-Preamps Bricks Mode, up to 2 external 2-button Footswitches, Expression pedal, MIDI, etc.)

02 - Modulation FX

The firmware that turns "Ultima" into an effects processor is designed for the case when your Pedalboard, which already has preamp/distortion pedals, requires expanding the sound palette due to various modulation effects.

• Noise Gate (global setting)
• Compressor
• Resonance Filter (wah-wah etc.)
• Flanger
• Chorus
• Delay
• Tremolo
• + other features

03 - IR Stereo CabSim

The firmware that turns the device into a powerful stereo IR impulse responses cabinet emulator.

• IR Stereo cabsim (2 IR’s per preset: the first wav IR for the LEFT channel, another one wav IR – for the RIGHT channel)
• Parametric Pre/Post EQ
• Hi/Low pass filters + Presence

04 - Stereo Delay

Multifunctional STEREO IN/OUT Delay effect.

05 - Stereo Reverb

Multifunctional STEREO IN/OUT Reverb with the following types:

• Gold Reverb
• Hall
• Room
• Plate
• Spring
• Gate
• Reverse

06 - Pre/Post FX

The firmware that turns the Ultima U-2 device to the PRE / POST effect processor.

PRE section:

• Noise Gate (global setting)
• Compressor
• Phaser
• Resonance Filter (wah-wah etc.)
• Flanger

POST section:

• IR cabsim (1 IR for both L/R channels per preset)
• Parametric Pre/Post EQ
• Hi/Low pass filters + Presence
• Delay or Reverb effect per preset
• + other features

SPECIFICATIONS

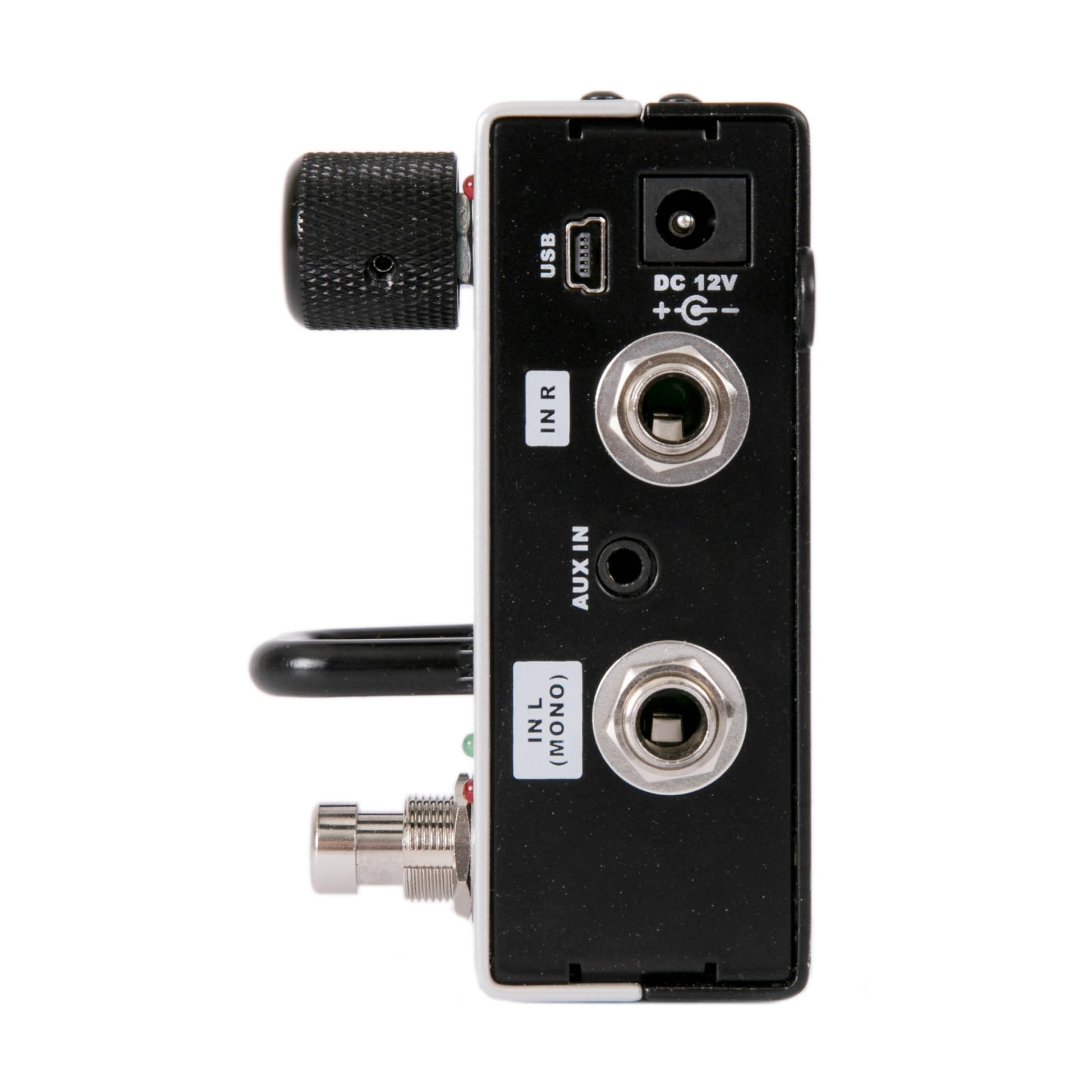

IN L, IN R – Inputs of the Left and Right channels:
– input impedance 470 kОм
– rated input voltage of audio signal 0.316Vrms (-10dBV)
– maximum sinusoidal voltage 2.5V (+8dBV)

AUX IN
– Input impedance 2kOhm
– maximum sinusoidal voltage 0.85V (-1.4dBV)

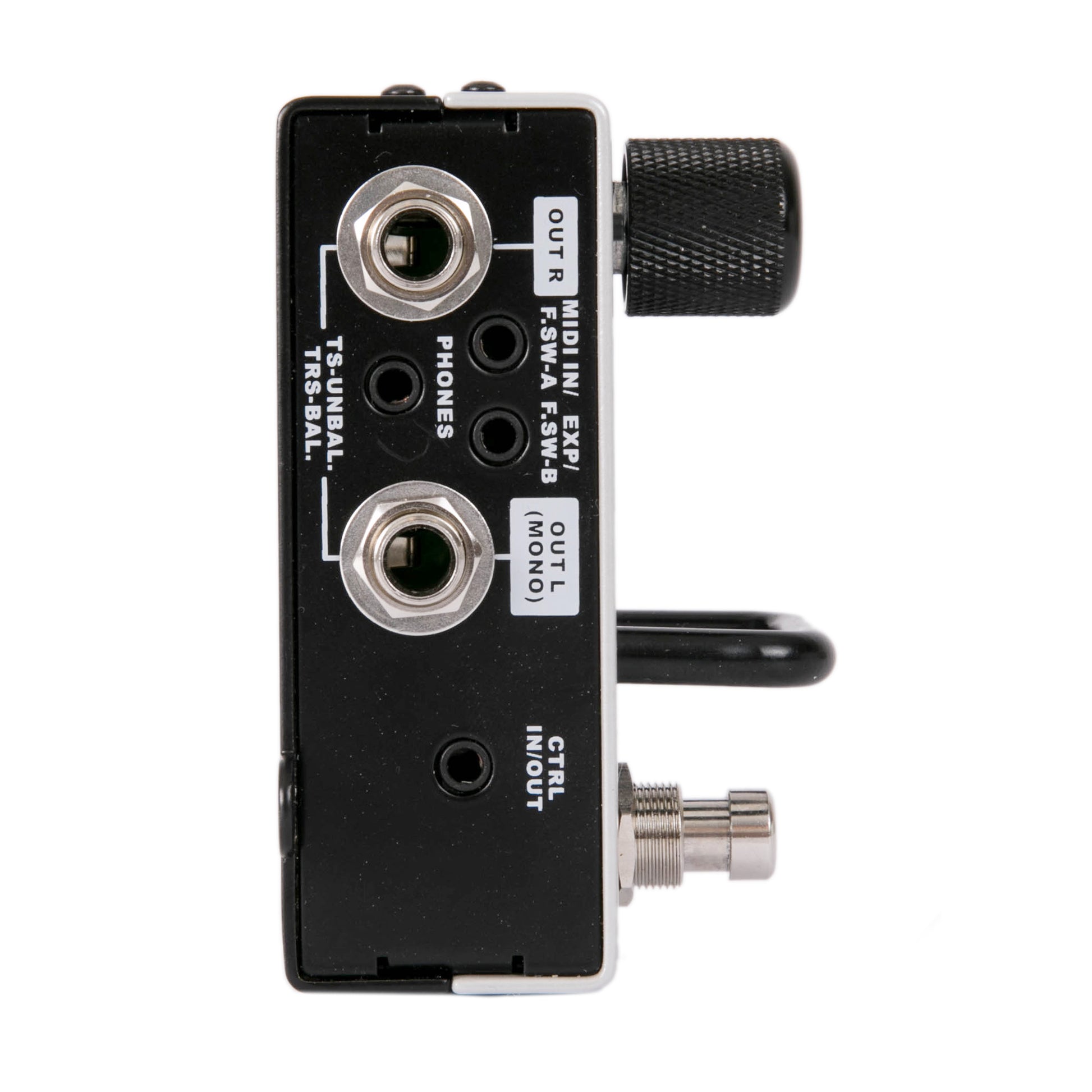

OUT L, OUT_R – Outputs of the Left and Right channels:
– output impedance 1,5kOhm (unbalanced output)
– maximum sinusoidal voltage 2,6V (unbalanced output)
– phantom power protection – present

PHONES – Output to headphones:
– minimum headphone impedance 32 Ohm
– maximum output sinusoidal voltage (no load) 2,6V (8dBV)
– output impedance 12 Ohm

POWER
– Voltage DC 12V
– Current consumption Approx. 300mA

CHARACTERISTICS OF IR FILES
– Type: WAV, IR A/D – D/A converters 24 bit
– Sampling frequency: 48 kHz
– IR length: 1024 samples (21.3 msec)

– S/N: 115dB.
– Latency: 1.2 ms / 0.0012 s
– Codec: AD\DA AK4621

DIMENSION (HxWxD) 47mm x 55mm x 95mm

WEIGHT 270 g (without package)

DETAILED DESCRIPTION AND CHARACTERISTICS

More detailed technical information is available in the ► User’s Manual◄
